This Product Is No Longer Available
| Code | W433 |
|---|---|
| Model | BP-430 |
| Weight (kg) | 146 |
| Weight (m3) | 0.848 |
| Weight (Freight) | 282.384 |
| Dimensions (cm) | 78 x 52 x 209 |

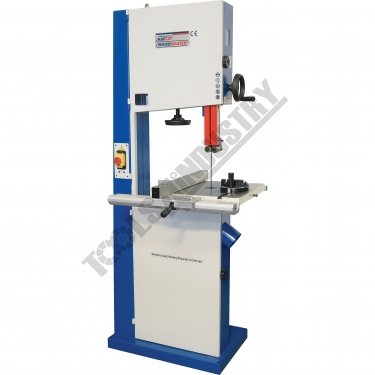

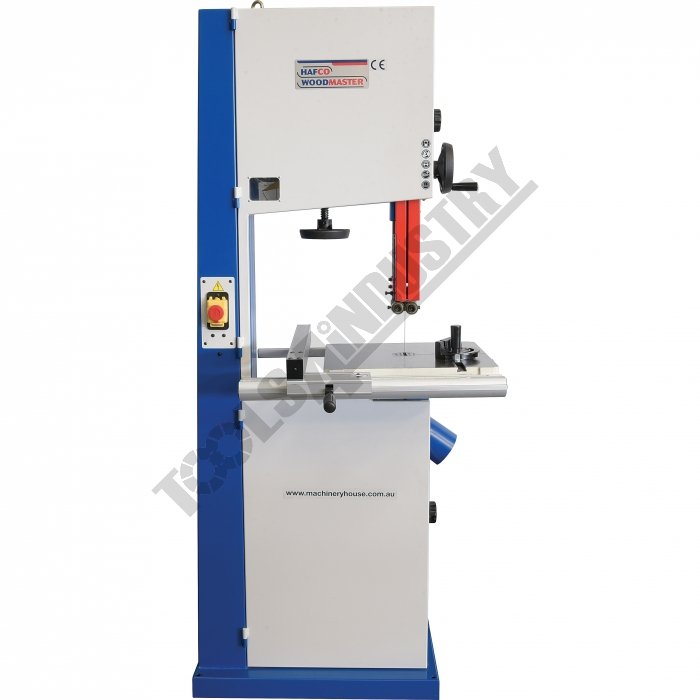

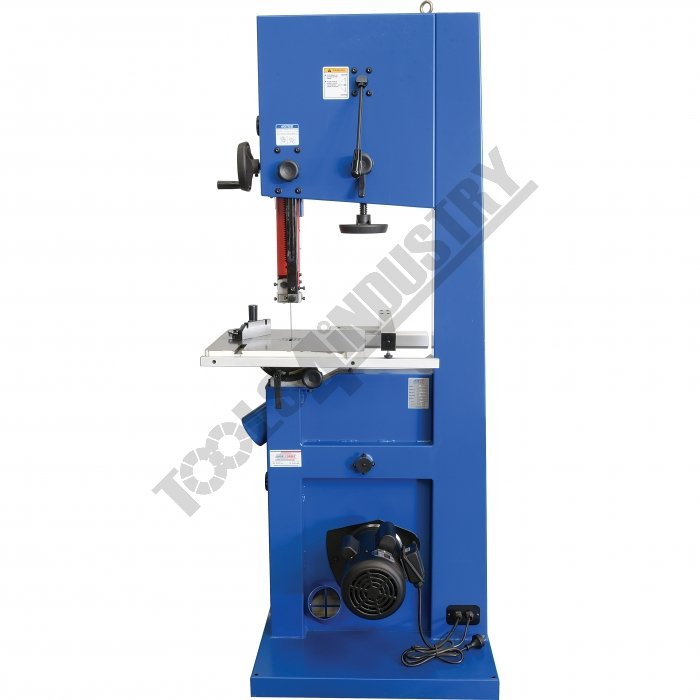

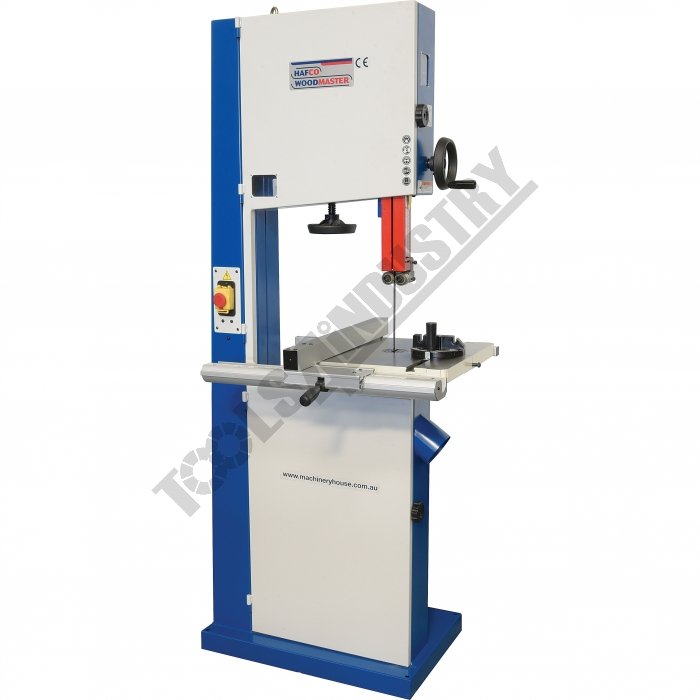

Wood Band Saw BP-430
Description
A wood bandsaw is probably the most versatile machine in any workshop and often the first machine used when preparing timber. With a powerful 1500W, 2hp 240V motor, large cutting capacities and all manufactured to quality standards we expect of our range of machines.The BP-430 manufactured in Taiwan offers excellent safety features including interlocked blade guard doors, safety magnetic nvr power switch, twin extraction ports and is all compliant to CE standard. A rigid welded steel chassis cast iron table and heavy-duty ball bearing blade guides are included, along with a rigid rip fence and precision mitre fence.
An often overlooked feature is the ease of changing the blade; The BP-430 has a quick release blade tensioning lever which substantially speeds up the process of blade changing. Two belt speeds offer the right speed of 488 & 1010m/min. for cutting either a large or small job.
Features
- 1500W / 2hp 240V motor
- 2-speed 488/1010m/min
- 415mm throat capacity

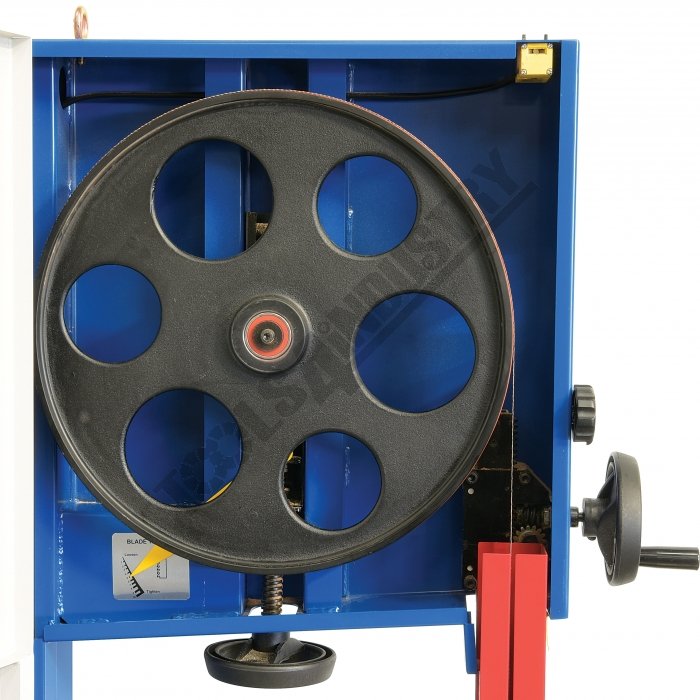

- 430mm heavy duty cast iron wheels

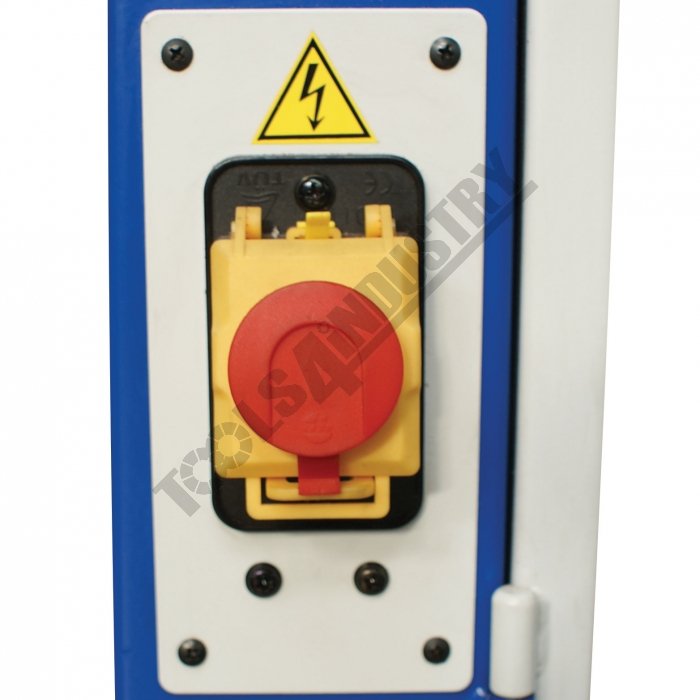

- Magnetic NVR on/off switch

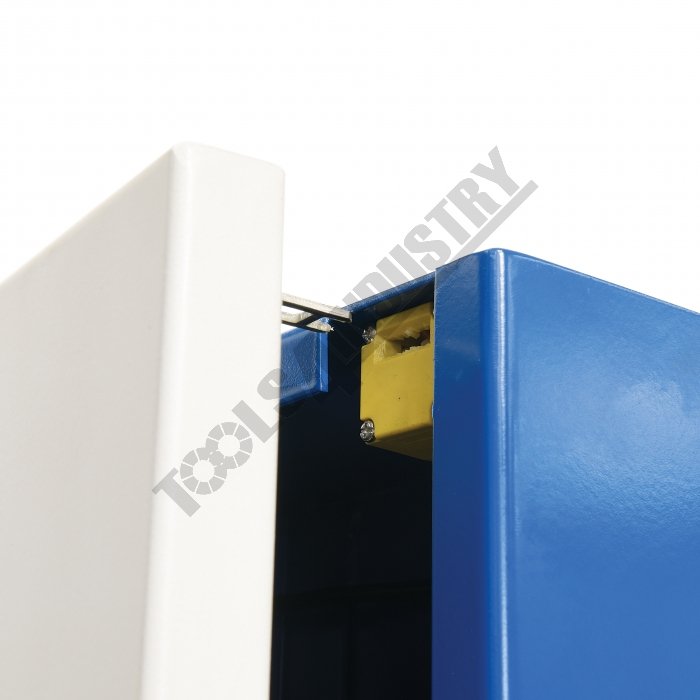

- Micro-switch protection on hinged blade guard doors

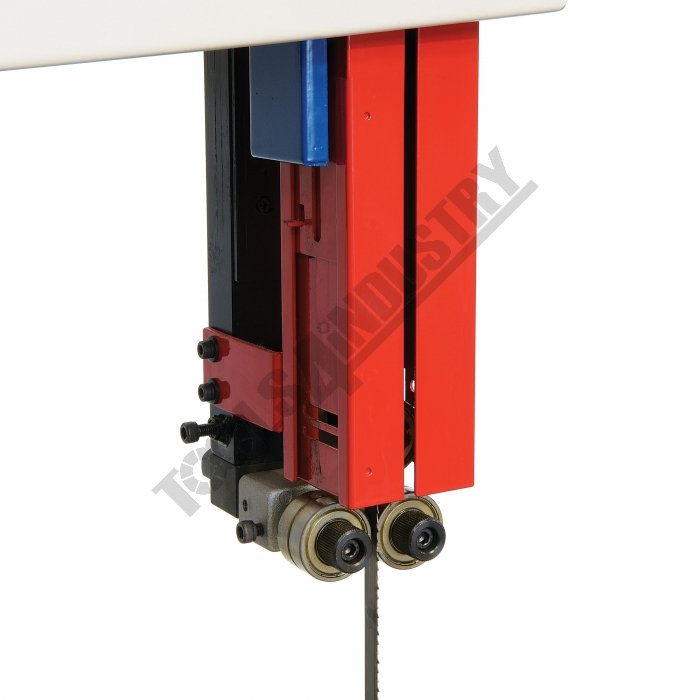

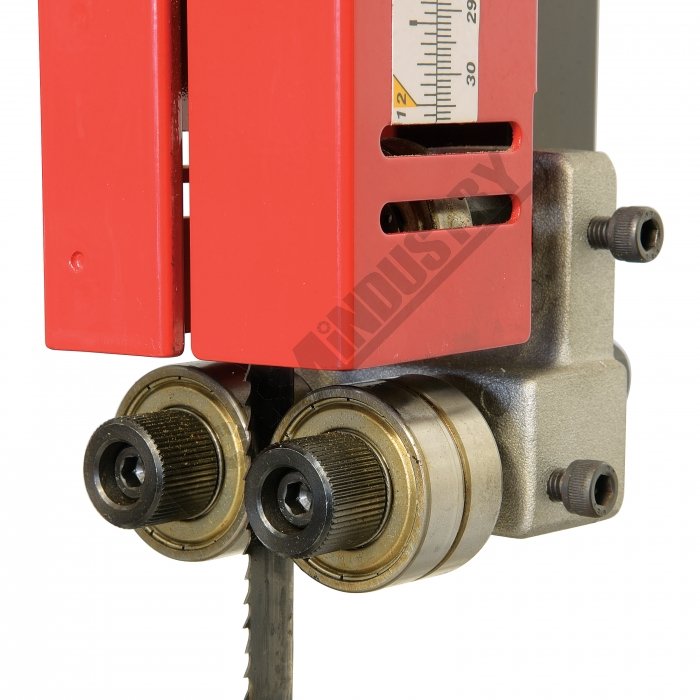

- Ball bearing blade guides

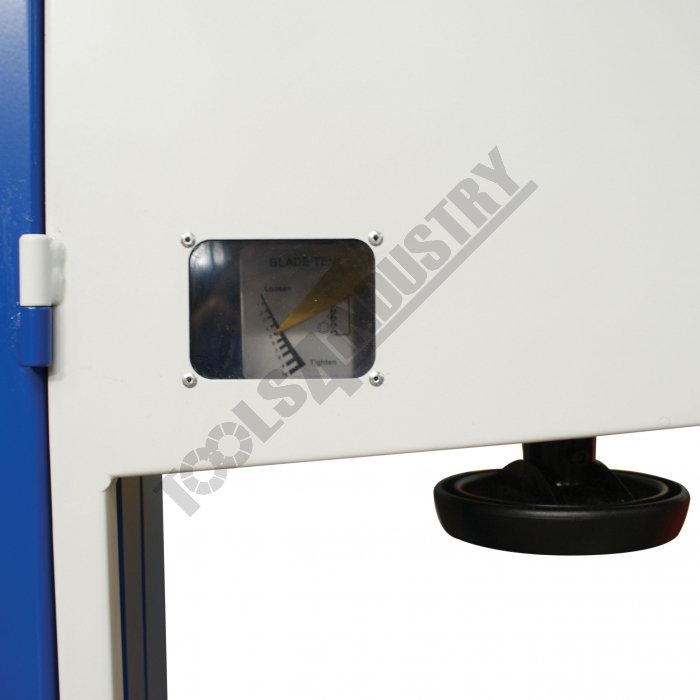

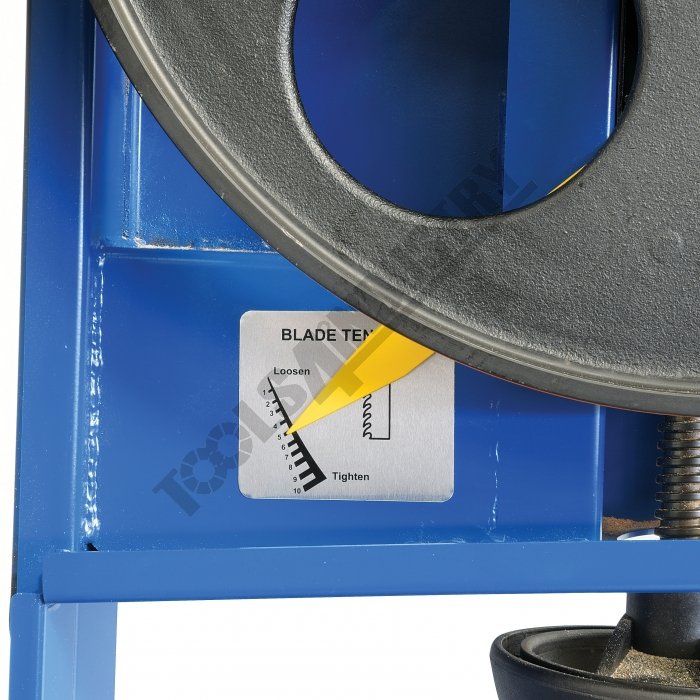

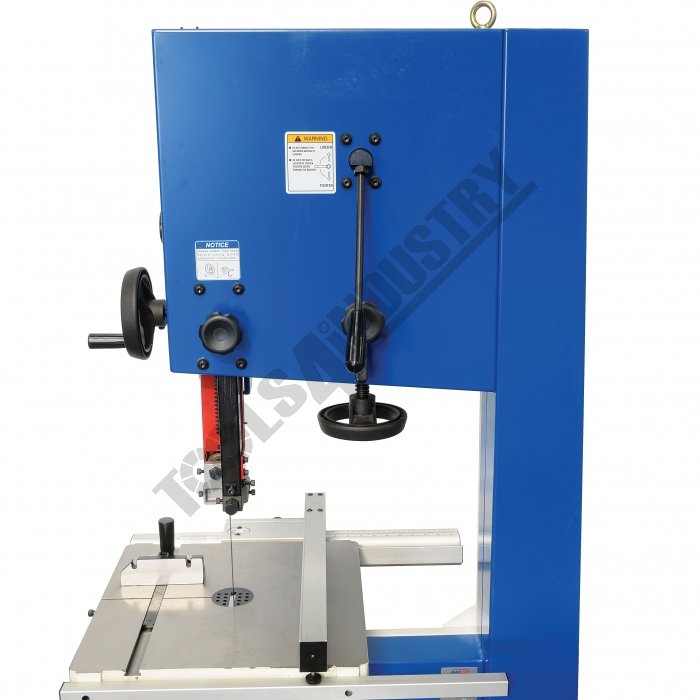

- Quick-action blade tension

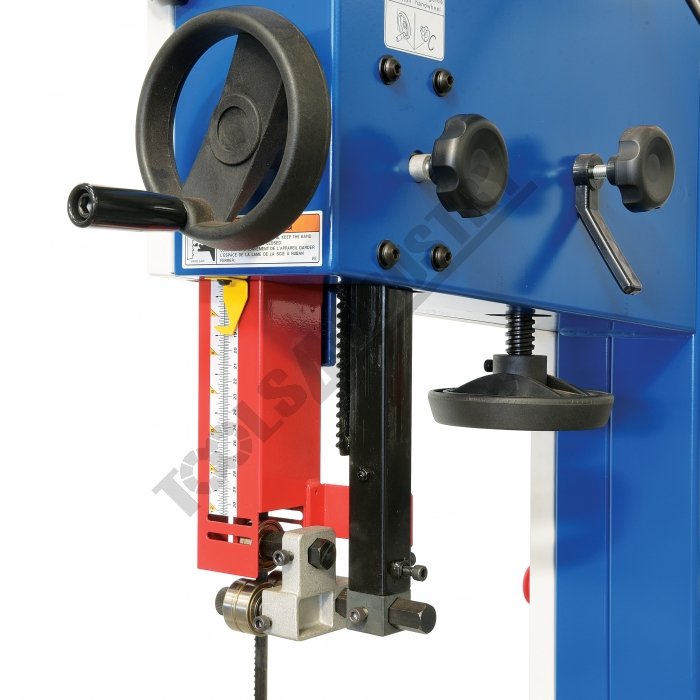

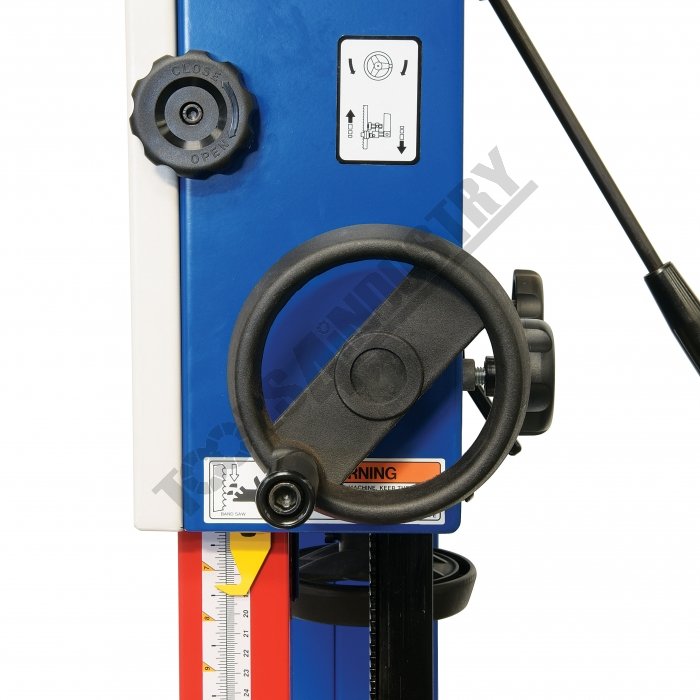

- Rack & pinion adjustment on top blade guide

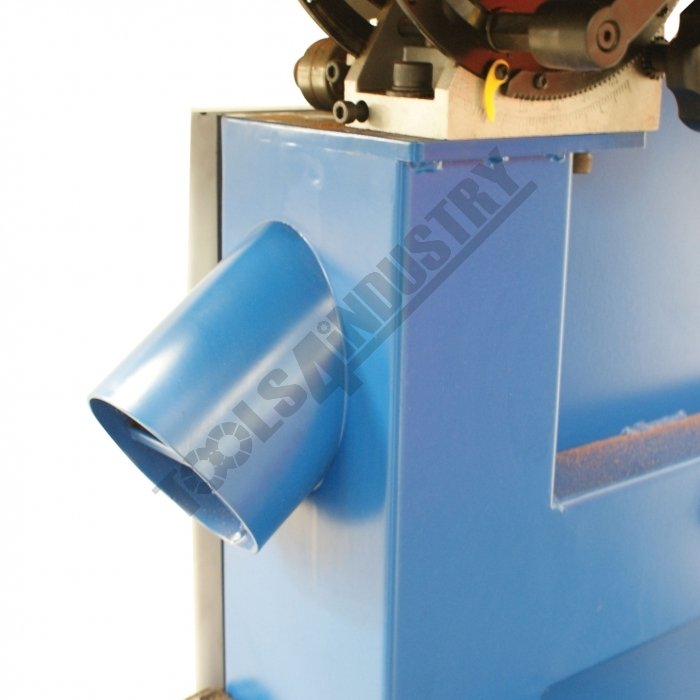

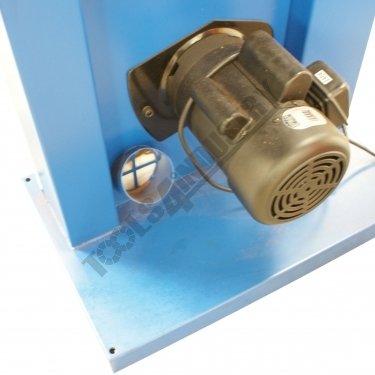

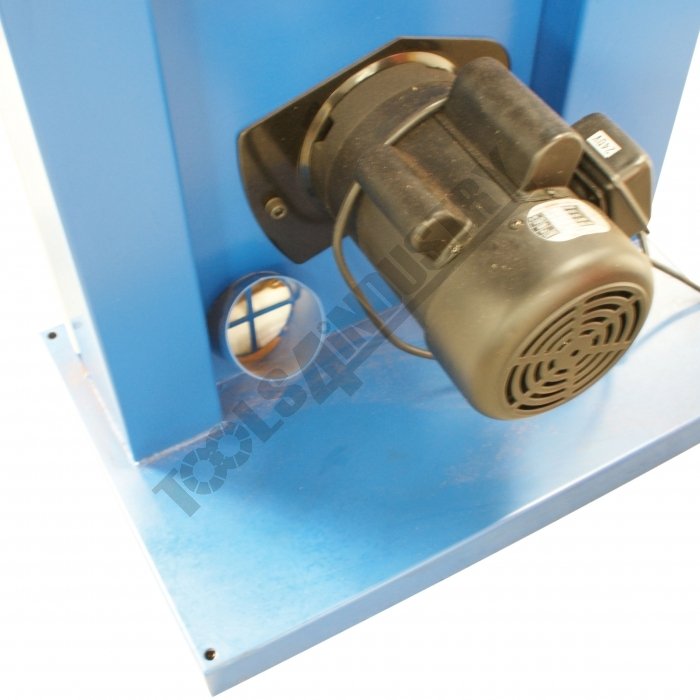

- Twin 100mm dust chutes

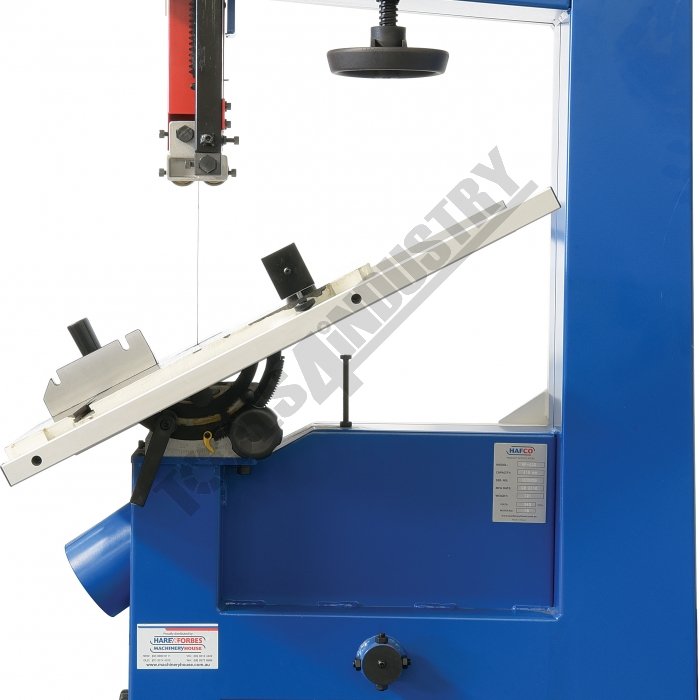

- Cast iron table tilts to 45°
- CE safety standard compliant
- Quality Taiwanese manufacture
Includes

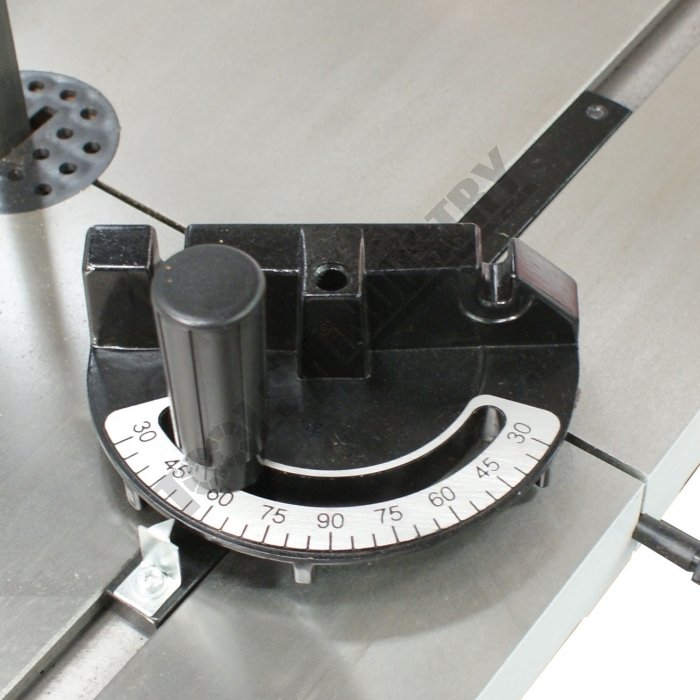

- Mitre guide

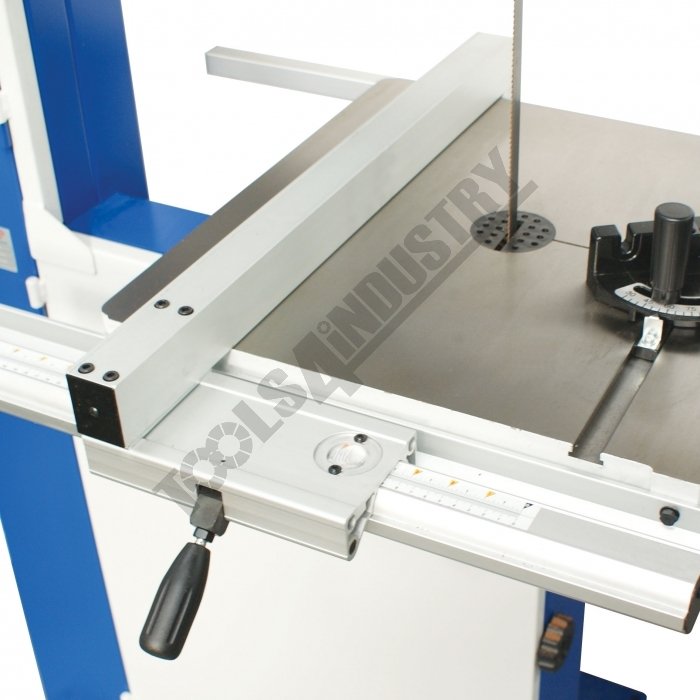

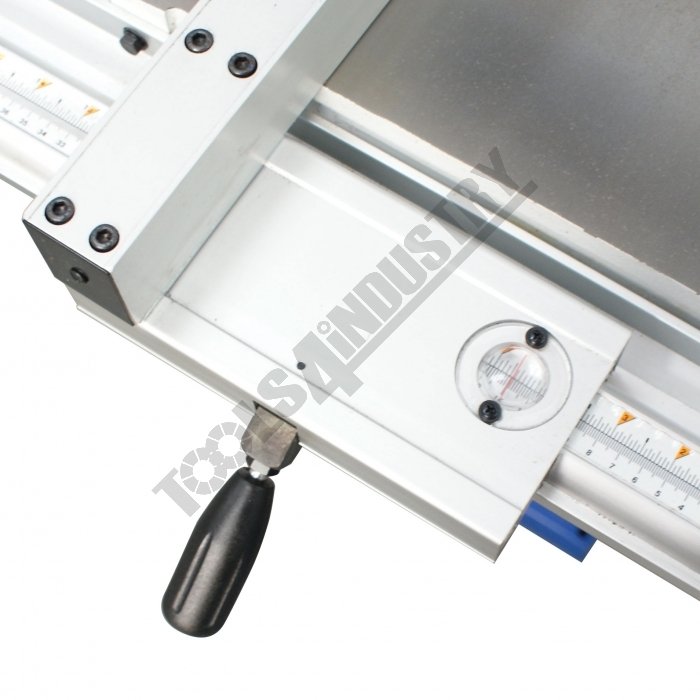

- Aluminium Rip fence
Specifications
- Compare 29 Products
- ORDER CODE
- MODEL
- Wheel Diameter (Ø)mm
- Throat Capacitymm
- Height Capacitymm
- Table Sizemm
- Frame Type
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Blade CodeSuits
- Blade Size (L x W x T)mm
- Floor Space (W x D x H)mm
- Nett Weightkg

- W433
- BP-430
- 430
- 415
- 310
- 430 x 430
- Steel
- 1.5 / 2
- 240 / 10
- W433A, W433B, W433C
- 3345 x 16 x 0.80
- 850 x 830 x 1860
- 146

- R822
- BS350S
- 350
- 340
- 230
- 548 x 500
- Steel
- 1.125 / 1.5
- 240 / 10
- R822A, R822B, R822F
- 2628 x 16 x 0.65
- 1000 x 800 x 1810
- 103

- W855
- Basato 3h Vario
- 315
- 305
- 205
- 548 x 400
- Steel
- 0.8 / 1.06
- 240 / 10
- W854A, W854AB
- 2360 x 13 x 0.65
- 1100 x 650 x 1680
- 72

- W4202
- BP-305
- 310
- 305
- 175
- 548 x 400
- Steel
- 0.75 / 1
- 240 / 10
- W420A, W420B, W420F
- 2240 x 12.5 x 0.65
- ~
- 75

- W856
- Basato 4
- 380
- 375
- 250
- 548 x 400
- Steel
- 1.5 / 2
- 240 / 10
- W856A, W856B
- 2895 x 12 x 0.65
- ~
- 108

- W417
- BP-250
- 255
- 245
- 100
- 340 x 335
- Steel
- 0.375 / 0.5
- 240 / 10
- W417A, W417B
- 1712 x 9.5 x 0.65
- ~
- 35

- W691
- MBS500
- 470
- 465
- 285
- 630 x 480
- Steel
- 1.5 / 2
- 240 / 15
- W4335 / W4336
- 3607 x 25 x 0.90
- ~
- 175

- W427
- BP-500
- 525
- 510
- 335
- 508 x 612
- Steel
- 2.2 / 3
- 415
- W425A, W425B, W425C
- 3937 x 25.4 x 0.70
- ~
- 265

- W4334
- BP-470
- 470
- 465
- 280
- 630 x 480
- Steel
- 2.25 / 3
- 240 / 15
- W4335, W4336
- 3607 x 19 x 0.80
- ~
- 180

- R821
- BS300E
- ~
- 305
- 190
- 480 x 400
- Steel
- 0.75 / 1
- 240 / 10
- W420A, W420B, W420F
- 2368 x 12.5 x 0.65
- ~
- 80

- W420
- BP-300
- 310
- 305
- 180
- 480 x 400
- Steel
- 0.75 / 1
- 240 / 10
- W420A, W420B
- 2240 x 12.5 x 0.65
- ~
- 65

- W432
- BP-530
- 530
- 515
- 310
- 530 x 530
- Steel
- 1.5 / 2
- 240 / 10
- W432A, W432B
- 3860 x 19 x 0.80
- ~
- 196

- W4324
- BP-420
- 420
- 410
- 255
- 535 x 435
- Steel
- 2.25 / 3
- 240 / 10
- W4324A, W4324B
- 3345 x 16 x 0.65
- ~
- 140

- W854
- Basato 3 Vario
- 315
- 300
- 165
- 540 x 400
- Steel
- 0.8 / 1.06
- 240 / 10
- W854A, W854B
- 2360 x 12 x 0.65
- ~
- 69

- W403
- BP-14A
- 356
- 340
- 150
- 350 x 350
- Cast Iron
- 0.55 / 0.75
- 240 / 10
- W404A, W404B, W404D
- 2362 x 9.5 x 0.65
- ~
- 78

- R823
- BS400
- ~
- 416
- 305
- 535 x 480
- Steel
- 1.5 / 2
- 240 / 10
- W433A, W433B
- 3378 x 16 x 0.65
- ~
- 140

- W950
- BP-255
- 255
- 245
- 152
- 360 x 320
- Steel
- 0.375 / 0.5
- 240 / 10
- W950A, W950B, W950F
- 1826 x 12.5 x 0.65
- 750 x 650 x 1430
- 38

- W9501
- BP-255 + Circle Att Package
- 255
- 245
- 152
- 360 x 320
- Steel
- 0.375 / 0.5
- 240 / 10
- W950A, W950B, W950F
- 1826 x 12.5 x 0.65
- 750 x 650 x 1430
- 43

- W952
- BP-310
- 310
- 305
- 165
- 480 x 390
- Steel
- 0.75 / 1
- 240 / 10
- W420A, W420B, W420F
- 2240 x 12.5 x 0.65
- 830 x 700 x 1590
- 73

- W955
- BP-360
- 360
- 340
- 225
- 545 x 515
- Steel
- 1.1 / 1.5
- 240 / 10
- W955A,W955B, W955F
- 2560 x 16 x 0.65
- 920 x 800 x 1710
- 88

- W4224
- BP-355
- 355
- 345
- 245
- 535 x 435
- Steel
- 1.5 / 2
- 240 / 10
- W4224A,W4224B,W4224F
- 2750 x 16 x 0.65
- 920 x 760 x 1810
- 121

- W4230
- BP-355H
- 355
- 345
- 300
- 540 x 480
- Steel
- 1.7 / 2.5
- 240 / 10
- W4230A, W4230B, W4230F
- 2920 x 6~19 x 0.9
- 680 x 600
- 132

- W4330
- BP-430A
- 430
- 415
- 310
- 585 x 435 with Extension
- Steel
- 1.5 / 2 (Electronic Brake System)
- 240 / 10
- W433A, W433B, W433C
- 3345 x 16 x 0.80
- 850 x 830 x 1860
- 181

- W4340
- BP-480A
- 480
- 465
- 310
- 680 x 480
- Steel
- 1.5 / 2 (Electronic Brake System)
- 240 / 10
- W434A, W434B
- 3630 x 19 x 0.80
- 960 x 850 x 1935
- 214

- W4344
- BP-480
- 480
- 465
- 310
- 480 x 632
- Steel
- 1.5 / 2 [with Brake System]
- 240 / 15
- W434A, W434B
- 3630 x 19 x 0.65
- 960 x 850 x 1935
- 182

- W4346
- BP-480
- 480
- 465
- 310
- 480 x 682
- Steel
- 1.5 / 2 [with Brake System]
- 415 / 3.3
- W434A, W434B
- 3630 x 19 x 0.65
- 960 x 850 x 1935
- 180.5

- W425
- BP-500
- 525
- 510
- 335
- 508 x 612
- Steel
- 2.2 / 3
- 240 / 15
- W425A, W425B, W425C
- 3937 x 25.4 x 0.70
- 1050 x 800 x 1910
- 290

- W429
- BP-630
- 630
- 615
- 370
- 542 x 660
- Steel
- 2.2/ 3
- 415
- W429A, W429B
- 4483 x 25.4 x 0.90
- 1160 x 900 x 2100
- 350

- W434
- BP-480
- 480
- 462
- 310
- 480 x 480
- Steel
- 1.5 / 2
- 240 / 15
- W434A, W434B
- 3630 x 19 x 0.80
- 960 x 850 x 1935
- 174
| ORDER CODE | BP-430 |
|---|---|
| MODEL | 430 |
| Wheel Diameter (Ø)mm | 415 |
| Throat Capacitymm | 310 |
| Height Capacitymm | 430 x 430 |
| Table Sizemm | Steel |
| Frame Type | 1.5 / 2 |
| Motor PowerkW / hp | 240 / 10 |
| Voltage / AmperageV / amp | W433A, W433B, W433C |
| Blade CodeSuits | 3345 x 16 x 0.80 |
| Blade Size (L x W x T)mm | 850 x 830 x 1860 |
| Floor Space (W x D x H)mm | 146 |
| Nett Weightkg |
