Wood Band Saw Basato 3 Vario

Description

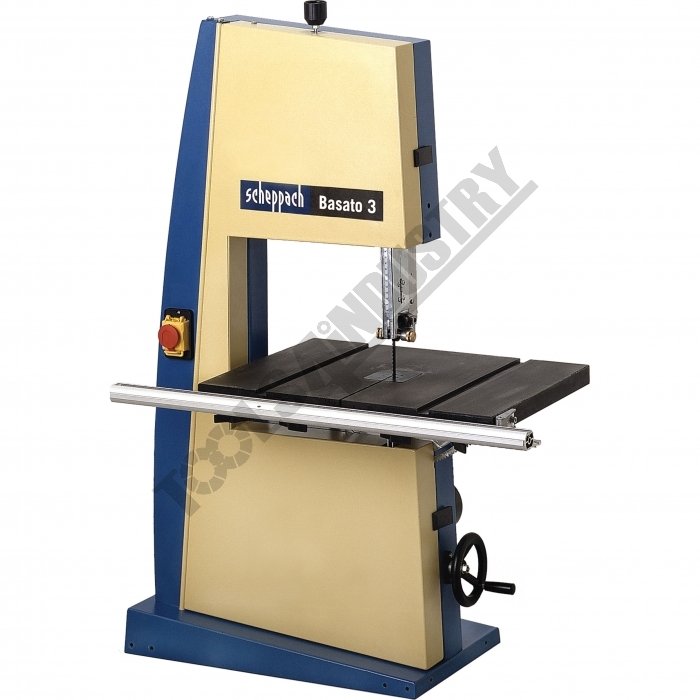

Scheppach Basato 3 Vario Wood Band Saw:Continuous speed control

For perfect adaption to individual types of material, the Basato 3 offers you as a special feature continuous speed control within a range from 370 to 750 m/min ensuring, at the same time, utmost accuracy by means of top and bottom 3-roller precision guides. For smooth running, the balanced and polished band wheels are fitted with a rubber facing.

The tilting table copes with every task. The large cast iron table offers a safe work-piece support. The tilting table has a precise one hand setting control ranging from -17º to +45º , while the throat width is 305mm.

The precision fence system is equipped with a magnifying glass. For your safety, the casting is protected by a door with a cut off switch.

Features

• Special Features:German design & technology
• Unique variable speed drive system 370 to 750m/min
• Large 540 x 400mm cast iron table
• Twin 3-roller precision blade guides ensure precise cuts
• 305 x 165mm cutting capacity
• Solid rip fence with eye-glass for precise settings
• Precision rip fence with magnifier. Conveniently inserted from above for right and left hand use.
• Patented table tilting from -17° to +45°
• 800W 240V motor

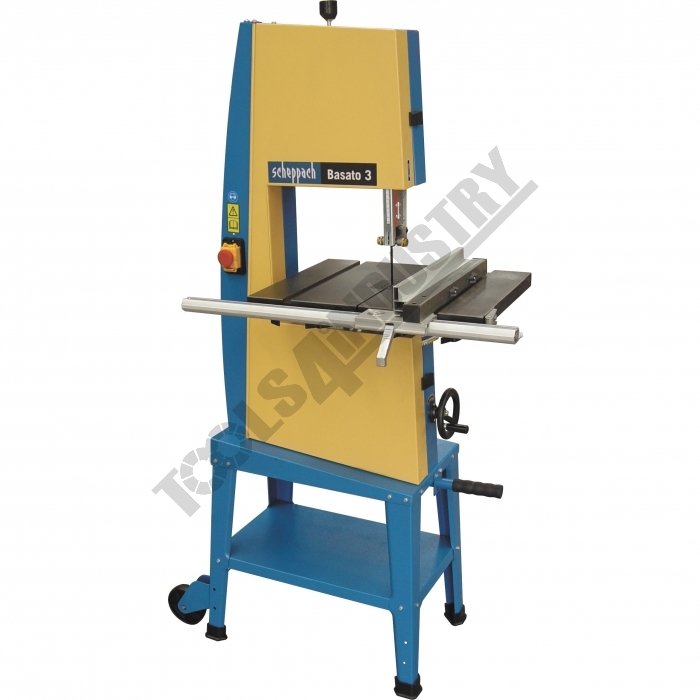

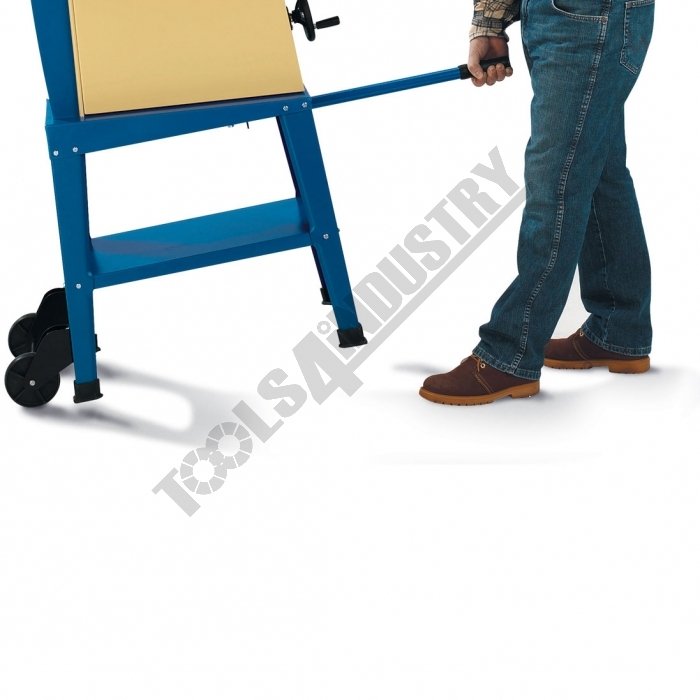

• Standard base unit with wheel kit
• For smooth running, the balanced and polished band wheels are fitted with a rubber facing

Includes

• Extra Specs:TABLE ADJUSTMENT= -17 to +45º
• TABLE HEIGHT= 520mm
• TABLE SIZE= 540 x 400mm
• SUCTION CONNECTOR= 100mm
• BLADE SPEED= 370-750m/min
• DIMENSIONS (LxWxH)= 860 x 600 x 1680mm
