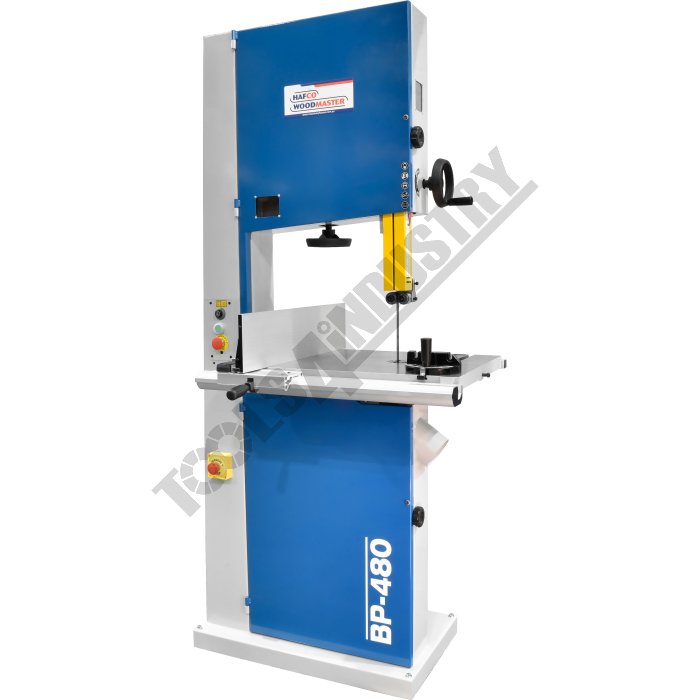

Wood Band Saw BP-480 CE 2 Blade Speeds - 488 & 1010m/min & Includes Magnetic Safety Brake System - 240V

Description

Manufactured in Taiwan, the CE Safety Compliant BP-480 is equipped with a powerful 1.5kW, 2hp brake motor and offers a cutting capacity of 465mm depth x 310mm height.

Safety is paramount, with CE-compliant features including a 2-second blade stopping time, interlocked blade guard doors, a magnetic NVR power switch, an emergency stop switch, and a keyed motor brake release for safe blade changes.

Balanced Ø480mm cast iron blade wheels minimise vibration for smoother operation, while two blade speeds (488 & 1010m/min) ensure versatility for both large and small tasks.

Features

• Quality Taiwanese manufacture
• Powerful 2hp - 240V braked motor - CE Safety Compliant
• Keyed brake release enhances safety during blade changes
• 465mm throat capacity
• Extra high cutting capacity - 310mm

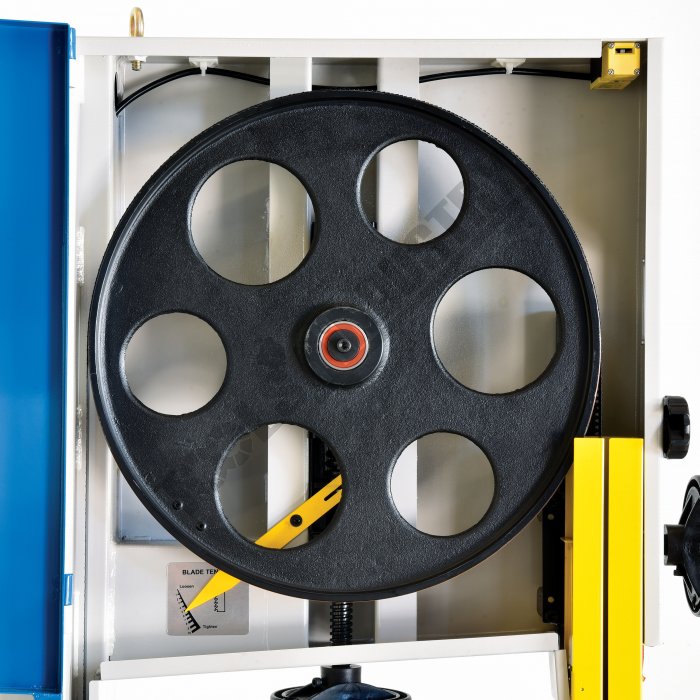

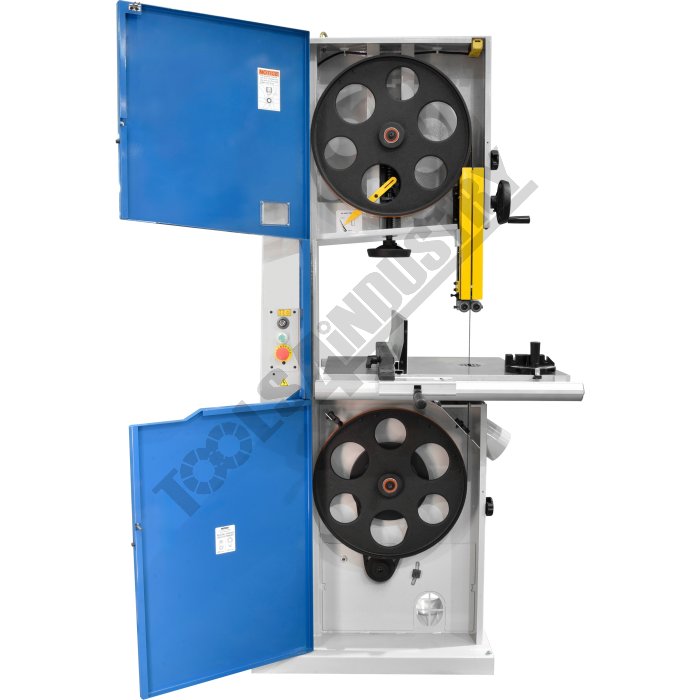

• Ø480mm heavy duty cast iron wheels
• Two blade speeds 488/1010m/min

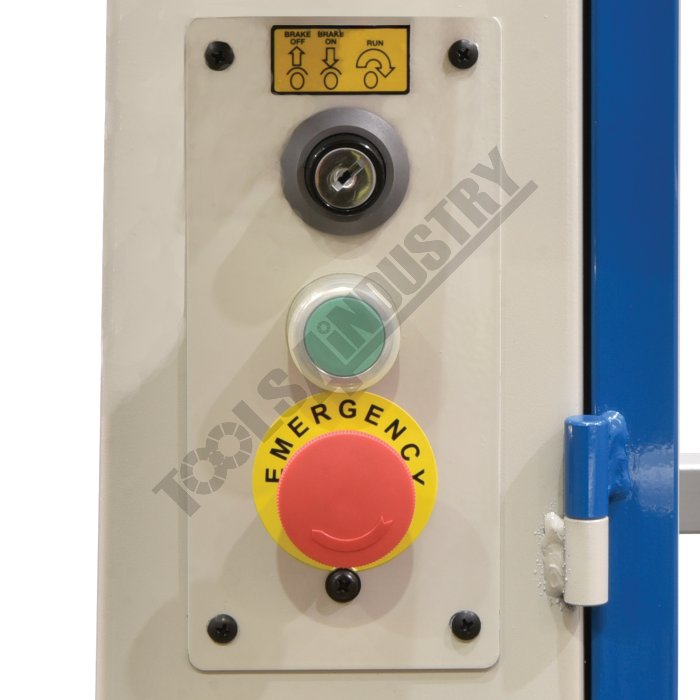

• Magnetic NVR on/off switch
• Emergency stop switch

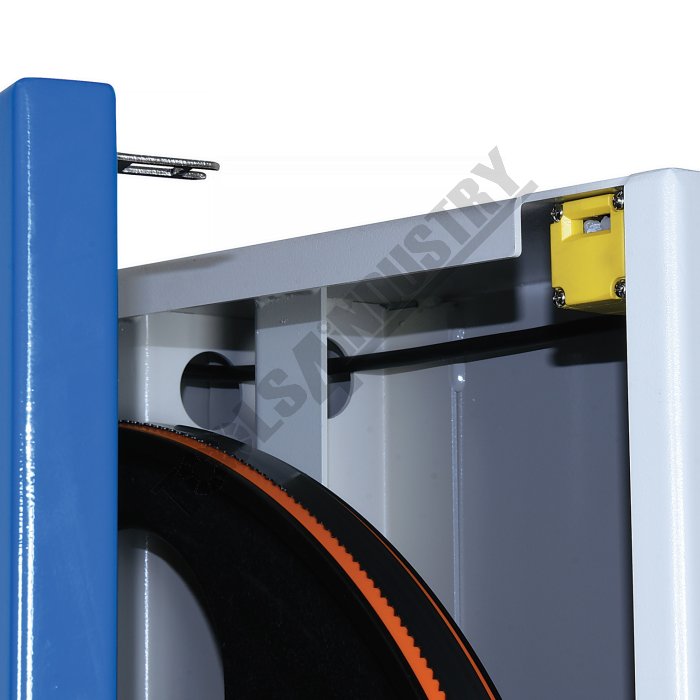

• Micro-switch protection on hinged blade guard doors

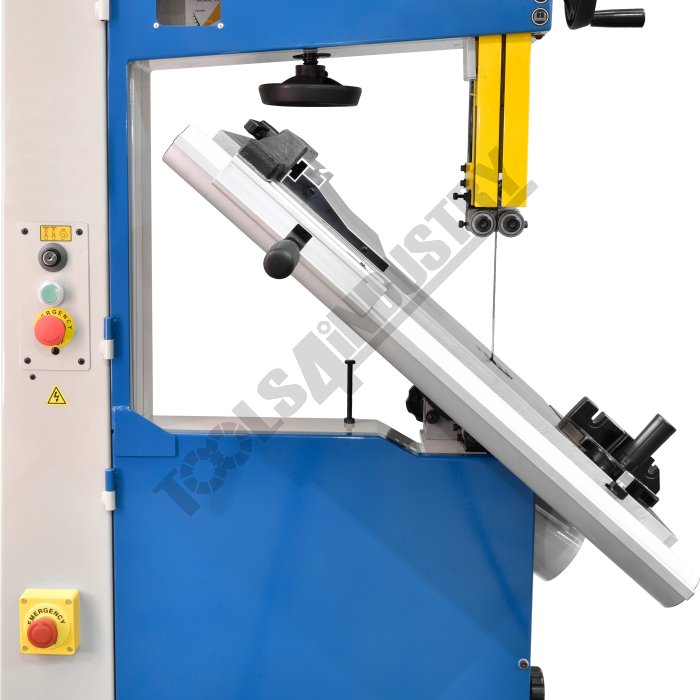

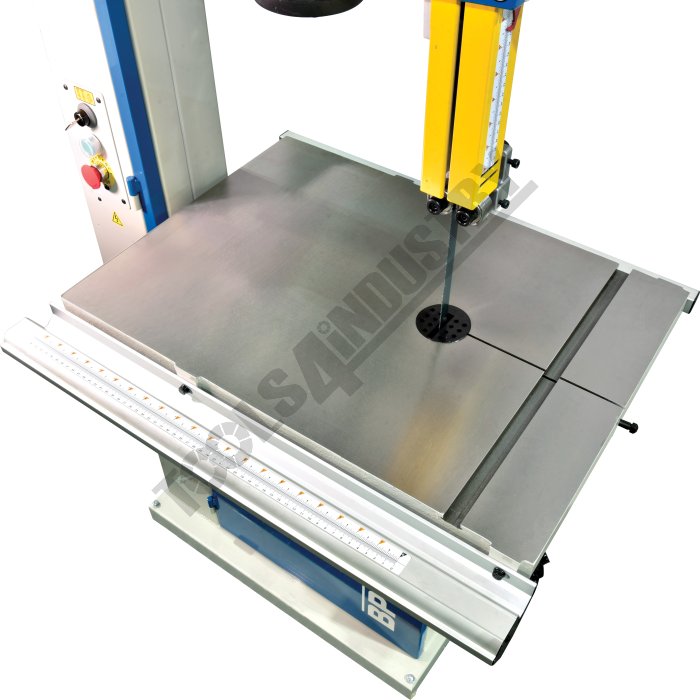

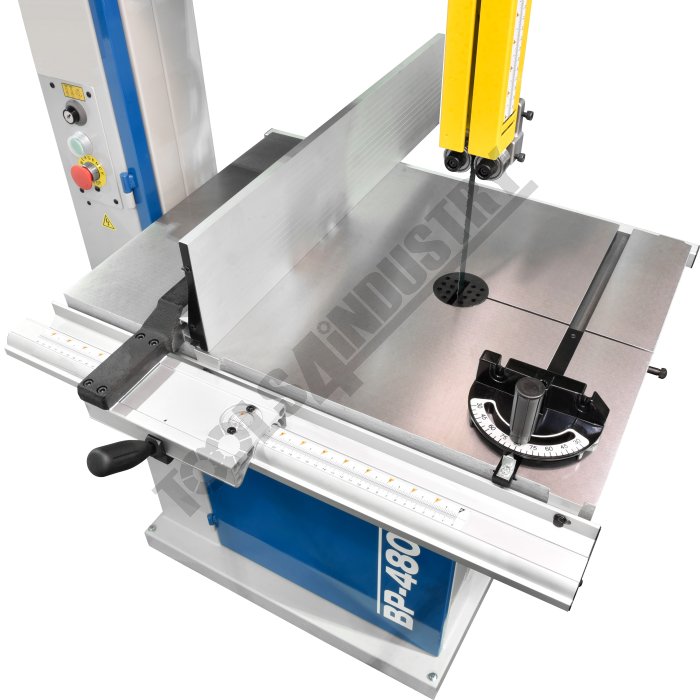

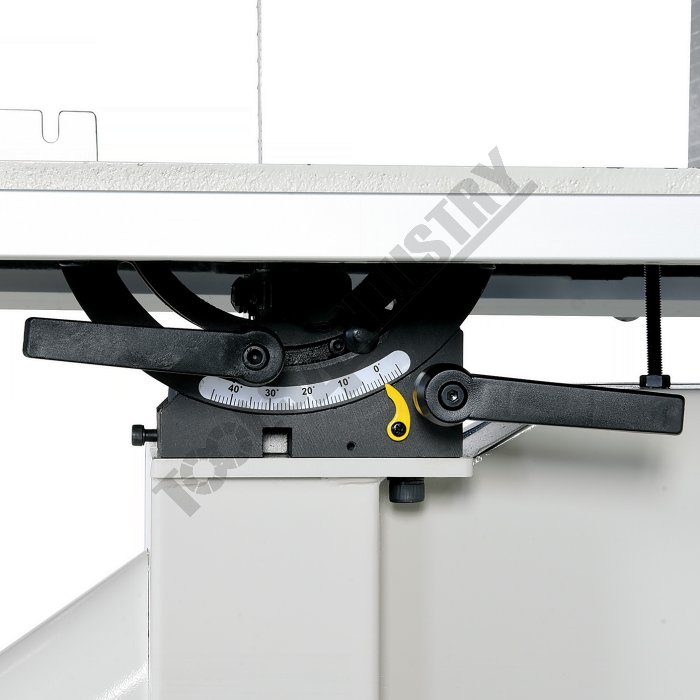

• Large cast iron table tilts to -5° to +45°

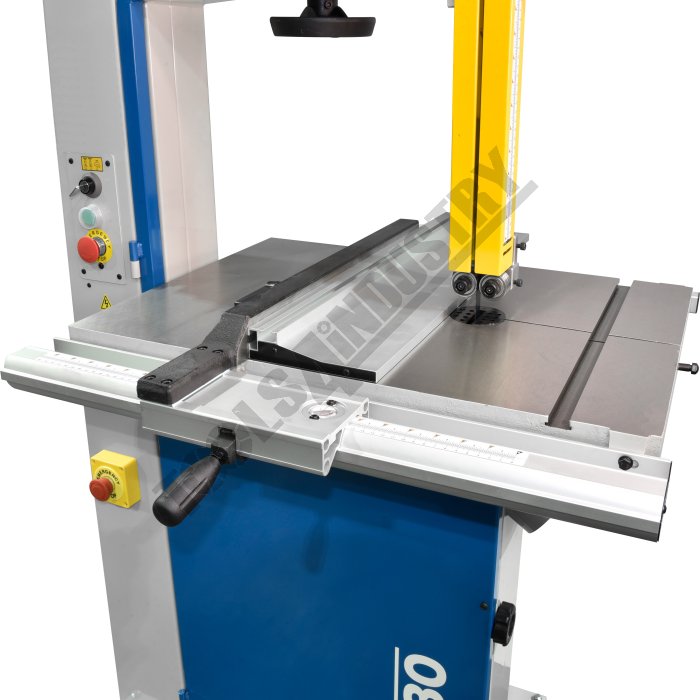

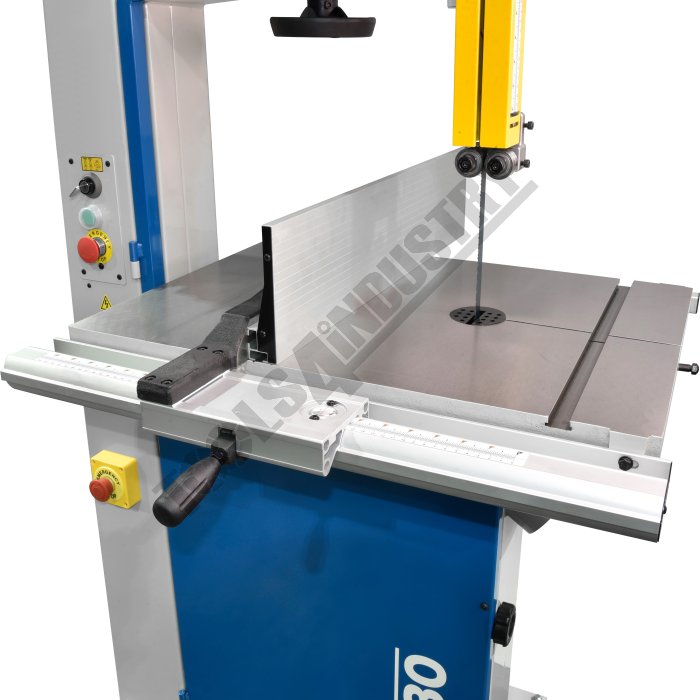

• High / Low ripping fence - 150mm & 12mm

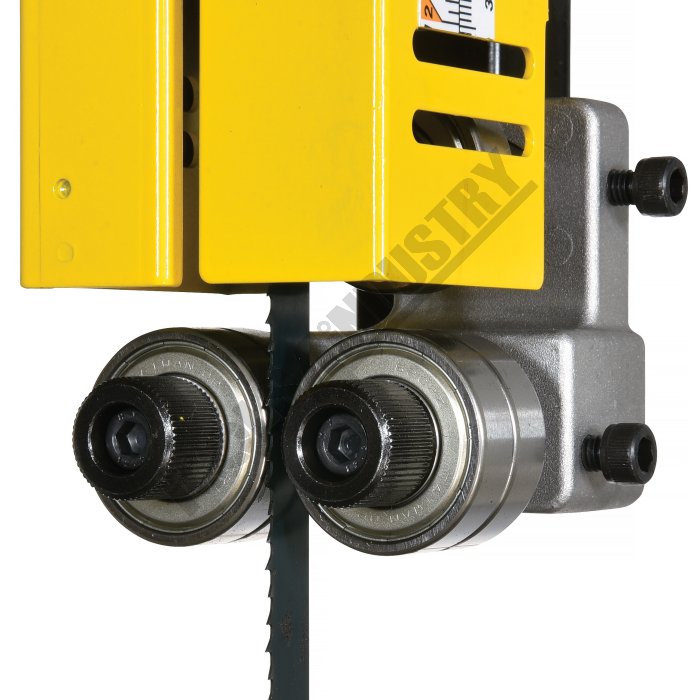

• Double ball bearing guides with grooved rear thrust bearing for maximum blade support

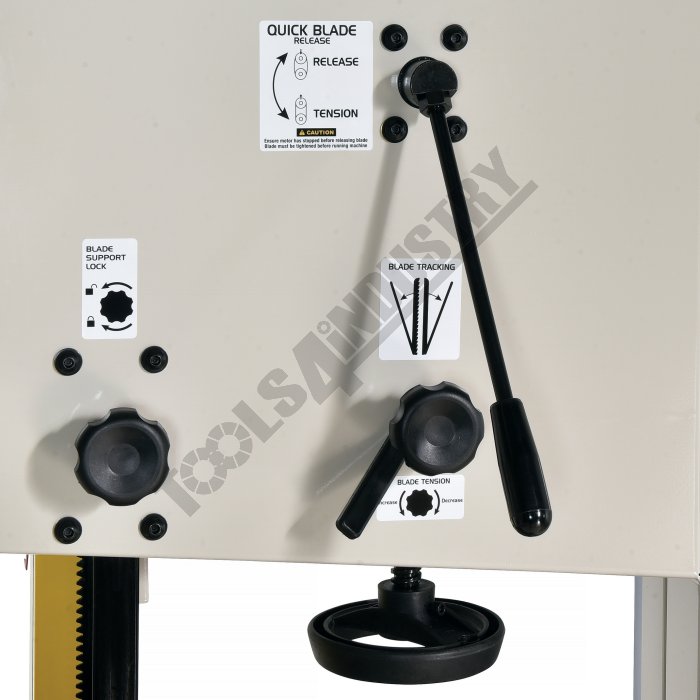

• Quick-action blade tension

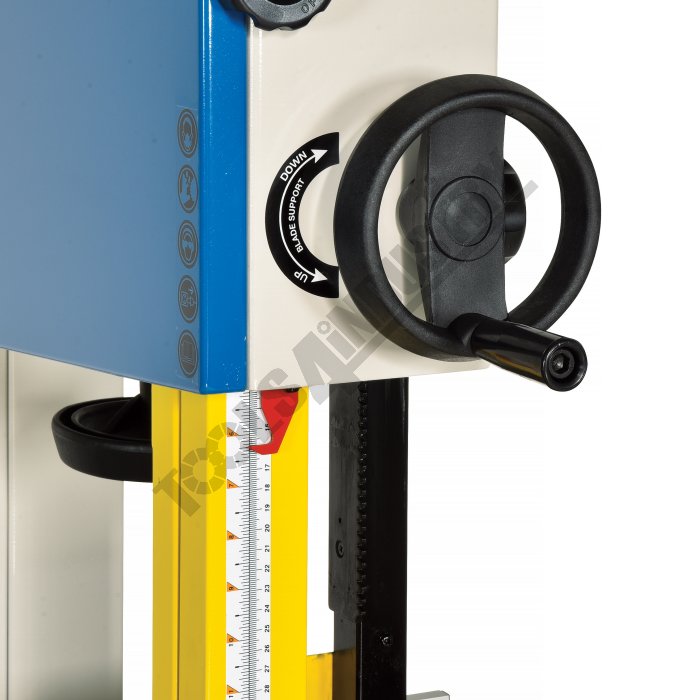

• Rack & pinion adjustment on top blade guide

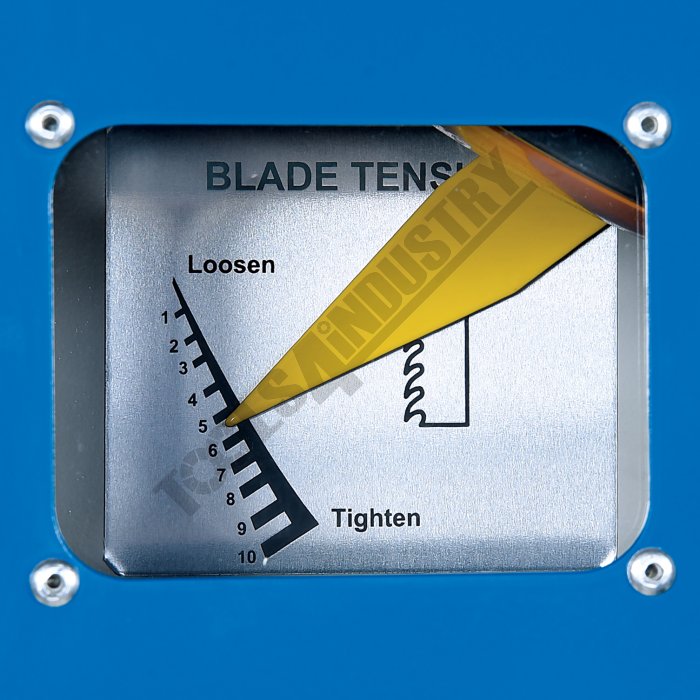

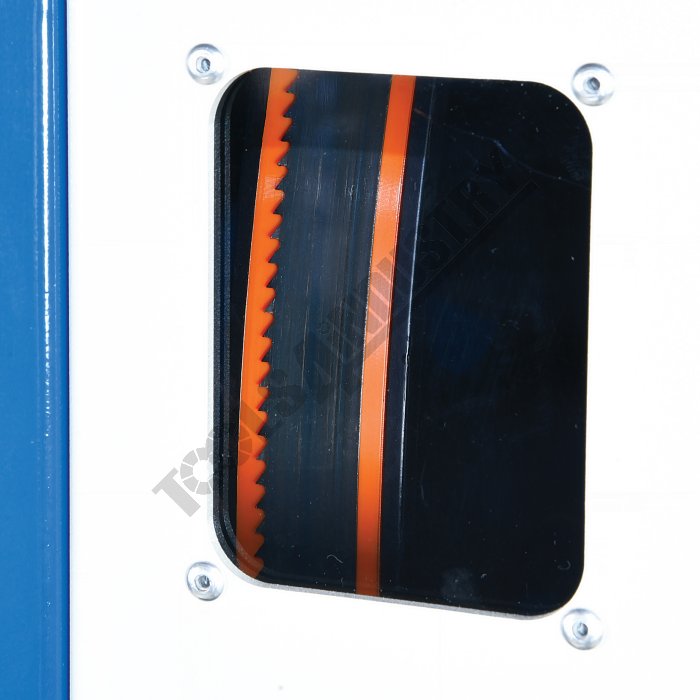

• Two viewing windows make blade tracking and tensioning possible while the machine is running

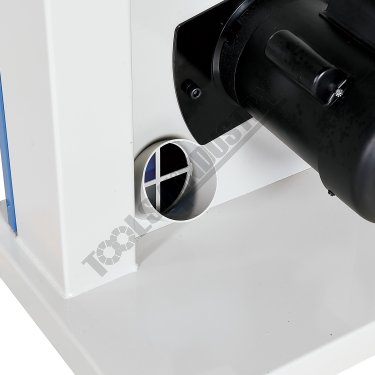

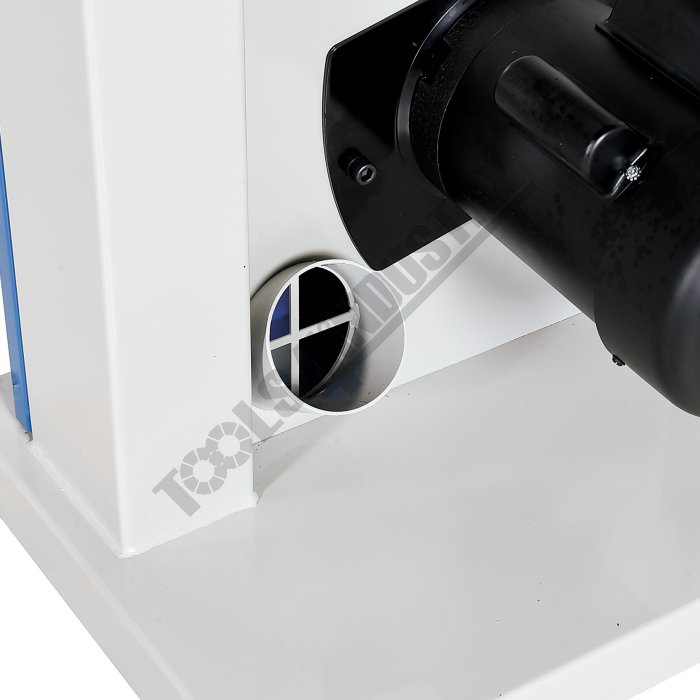

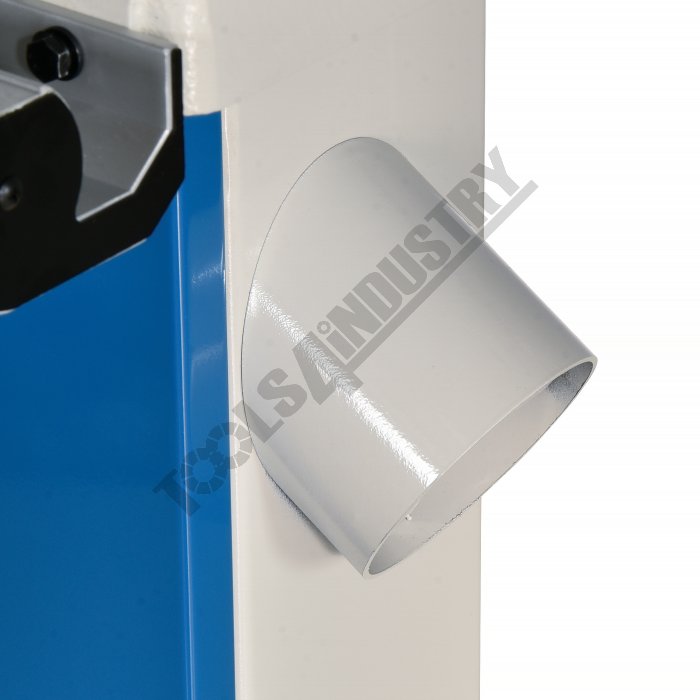

• Twin Ø100mm (4") dust ports for efficient dust extraction

Includes

• High / Low ripping fence

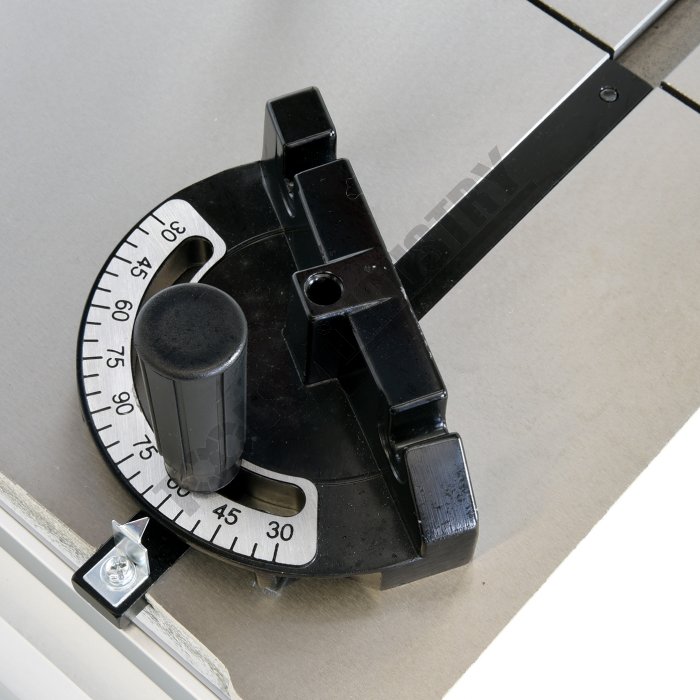

• Mitre gauge
• 6TPI, Blade - 3630 x 19 x 0.65mm
