| Code | W311 |
|---|---|
| Model | RG-190 |
| Weight (kg) | 0.66 |
| Weight (m3) | 0.002 |
| Weight (Freight) | 0.66 |
| Dimensions (cm) | 19.5 x 13 x 6 |

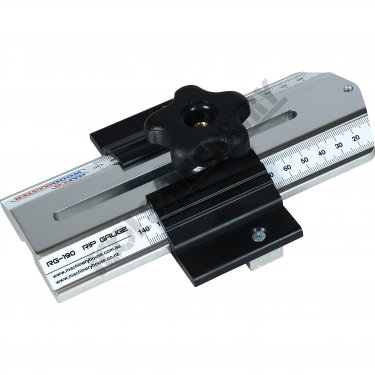

Ripping Gauge RG-190
Description

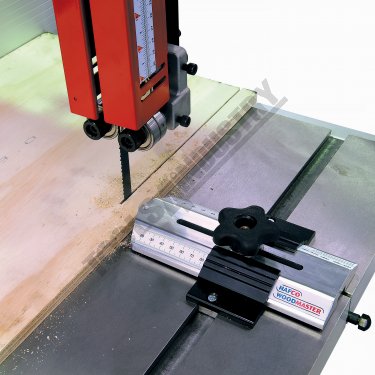

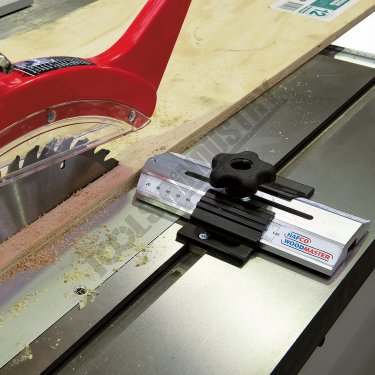

The RG-190 ripping gauge makes repetitive ripping of thin strips safer and easier than any other method. Made from heavy duty aluminium extrusions, the gauge locks securely in any 3/4" x 3/8" mitre gauge slot. The built-in scale helps you make fine accurate adjustments. The ball bearing holds the stock firmly against the fence, allows smooth feeding and makes repositioning a simple operation. Also, a very handy gauge for bandsaws & table saws.Features

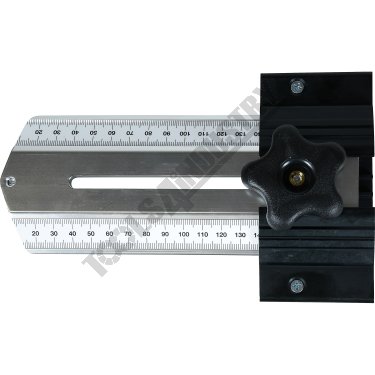

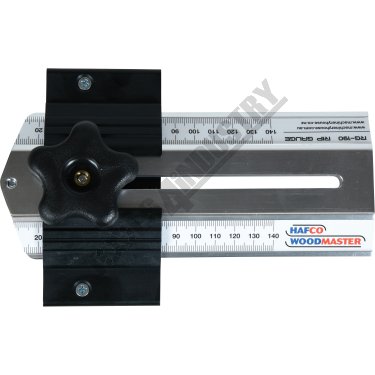

- 0 - 135mm clamp depth adjustment
- Locks into any 3/4” wide x 3/8” deep table slots
- Makes repetitive ripping of thin strips easy and safe

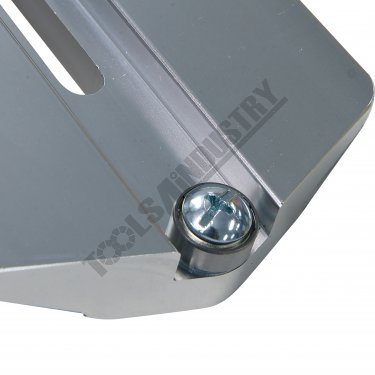

- Ball bearing roller support to smoothly guide the timber past the blade
- Cuts to the left of the blade, preventing burning, binding and kickback
- Made from heavy duty aluminium extrusions with a built-in scale
- 190 x 75mm aluminium extrusion body with adjustable sliding extrusion clamp
Specifications
- Compare 1 Products
- ORDER CODE
- MODEL
- Depth Adjustmentmm
- Suits Table Slots (Width x Depth)Inch
- Aluminium Extrusion Guidemm
- Roller GuideType
- W311
- RG-190
- 0 - 135
- 3/4" x 3/8"
- 190 x 75
- Ball Bearing
| ORDER CODE | RG-190 |
|---|---|
| MODEL | 0 - 135 |
| Depth Adjustmentmm | 3/4" x 3/8" |
| Suits Table Slots (Width x Depth)Inch | 190 x 75 |
| Aluminium Extrusion Guidemm | Ball Bearing |
| Roller GuideType |
