| Code | W4230 |
|---|---|
| Model | BP-355H |

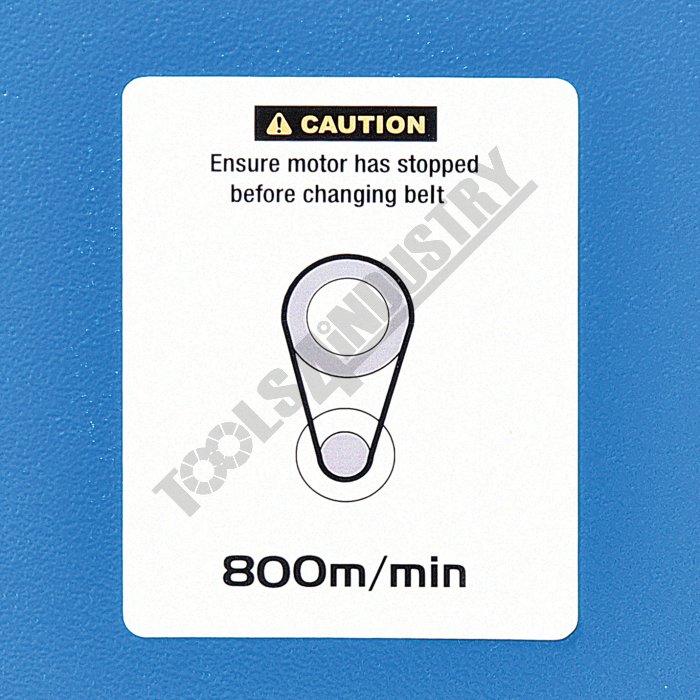

| Capacity | Blade Speed 800m/min |
| Weight (kg) | 155 |
| Weight (m3) | 0.657 |
| Weight (Freight) | 218.781 |
| Dimensions (cm) | 161 x 68 x 60 |

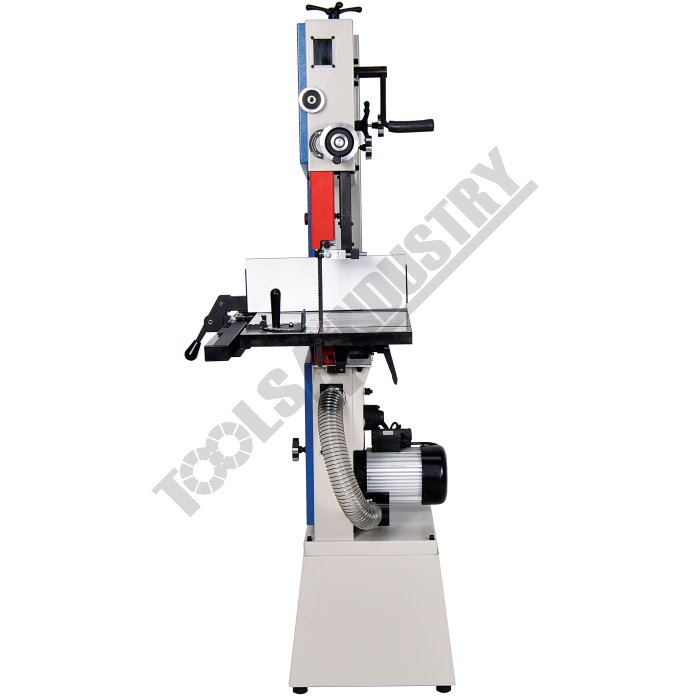

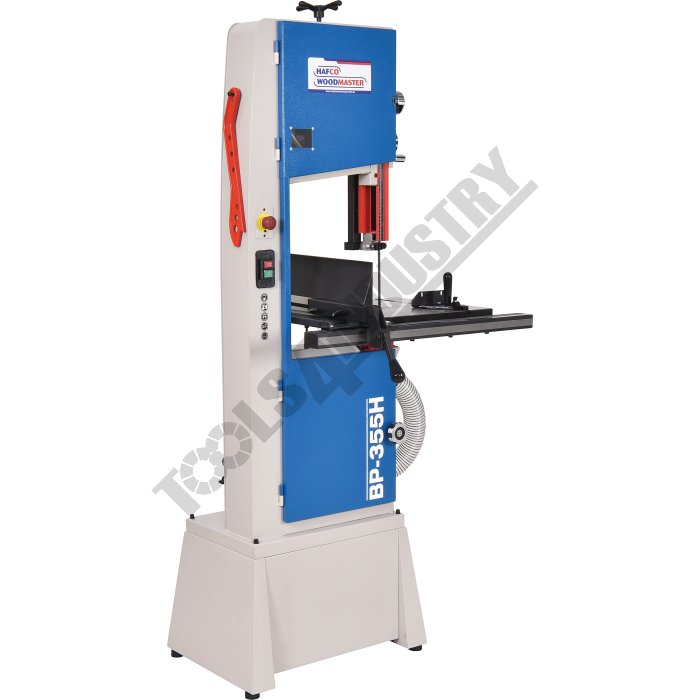

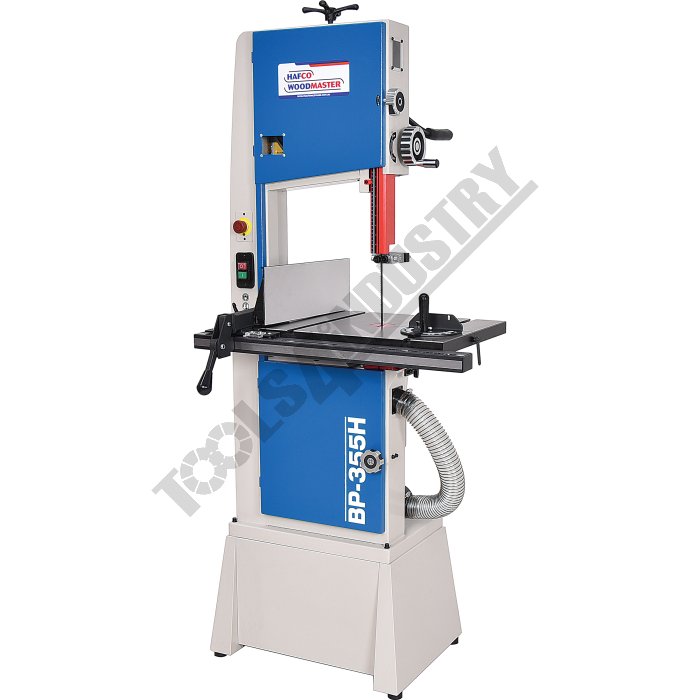

Wood Band Saw BP-355H Blade Speed 800m/min
Description
The BP-355H woodworking bandsaw is designed for serious performance, accuracy, and safety in both professional and advanced workshop environments. Featuring an impressive 300mm cutting height capacity, it handles deep resawing and large stock with ease. The rigid, steel-fabricated frame ensures exceptional stability and vibration reduction, delivering smooth, accurate cuts every time.Precision is enhanced through ball bearing blade guides and a rack-and-pinion adjustable top blade guide, allowing fast, accurate setup and consistent blade tracking. The cast iron table provides a solid work surface and tilts up to 45° for angled cuts, while the high/low rip fence offers flexibility for a wide range of cutting tasks.
A quick-release blade tension mechanism and a blade tension indicator with viewing window make blade changes fast and reliable. Integrated blade guards with safety interlocked micro-switches, along with a magnetic safety switch and emergency stop, provide comprehensive operator protection. Powered by a robust 1.7kW (2.5hp) 240V induction motor and equipped with a 100mm dust extraction port, this bandsaw delivers powerful, clean, and dependable performance for demanding woodworking applications.
Features
- Large cutting height capacity of 300mm

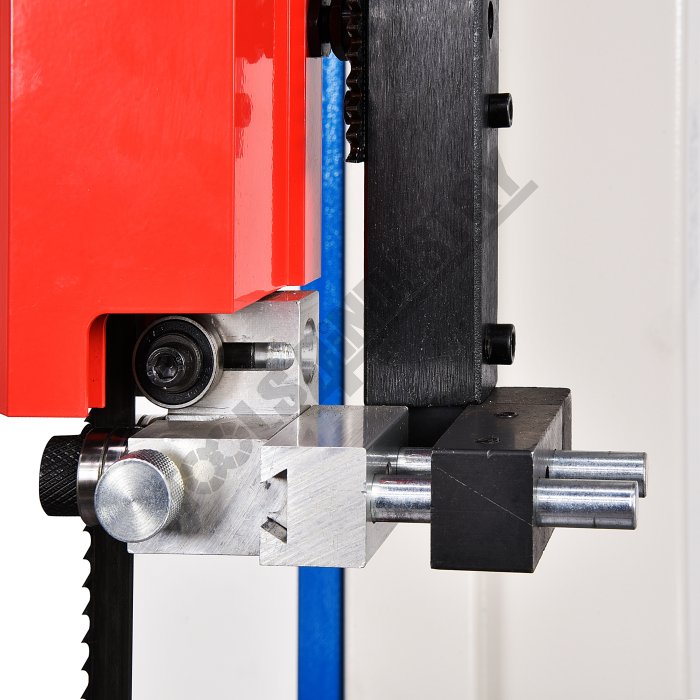

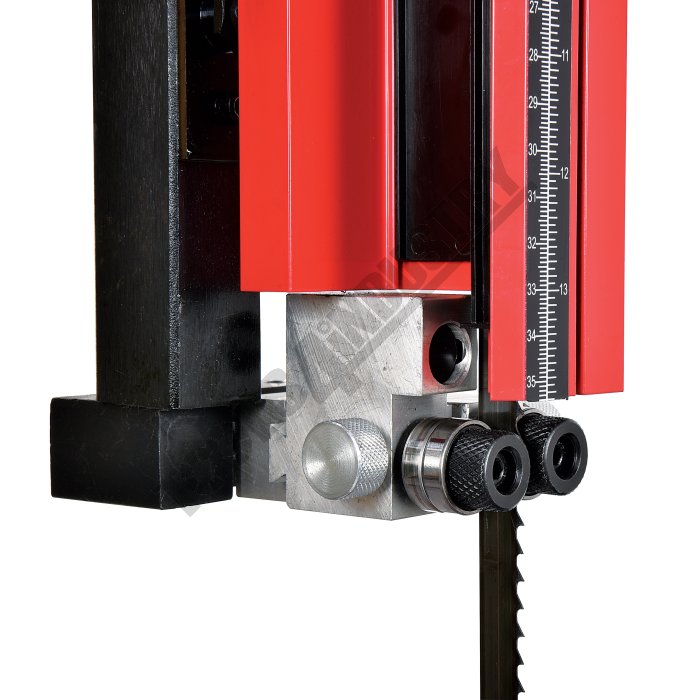

- Ball bearing blade guides

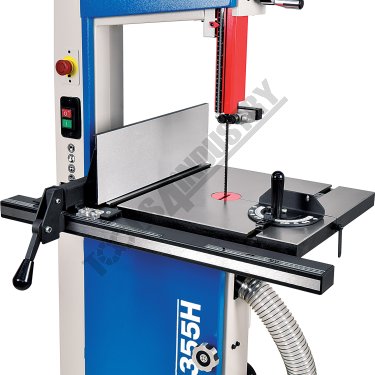

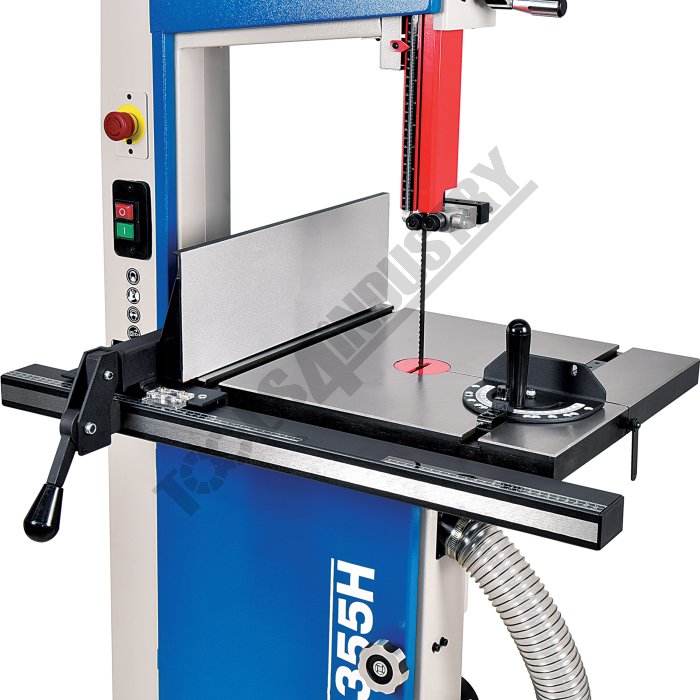

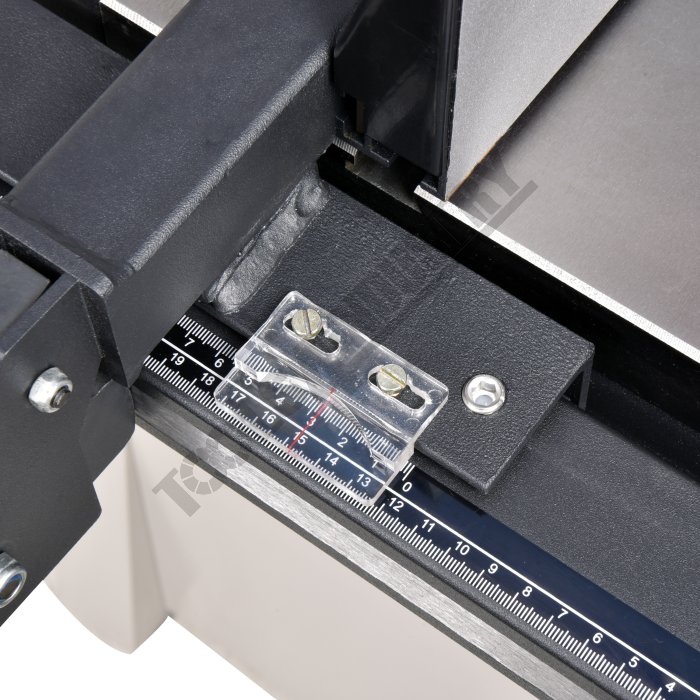

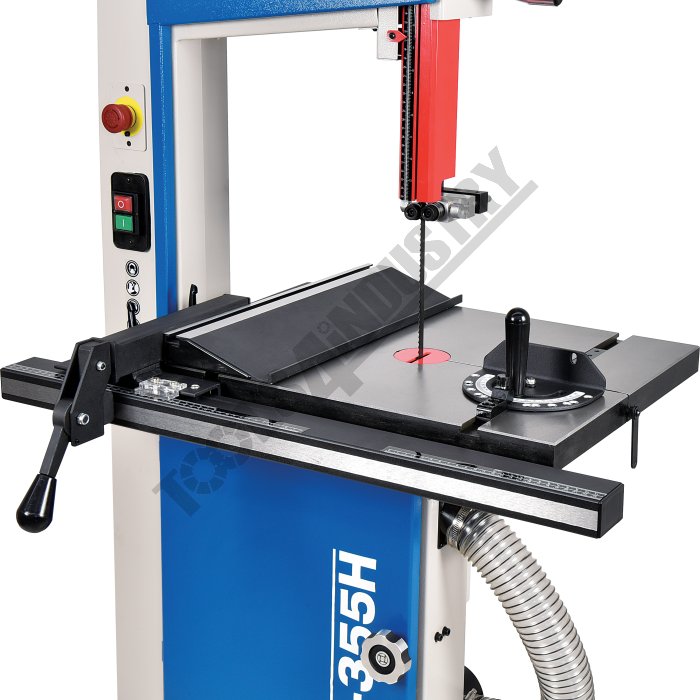

- High / Low rip fence
- Heavy duty steel fabricated frame

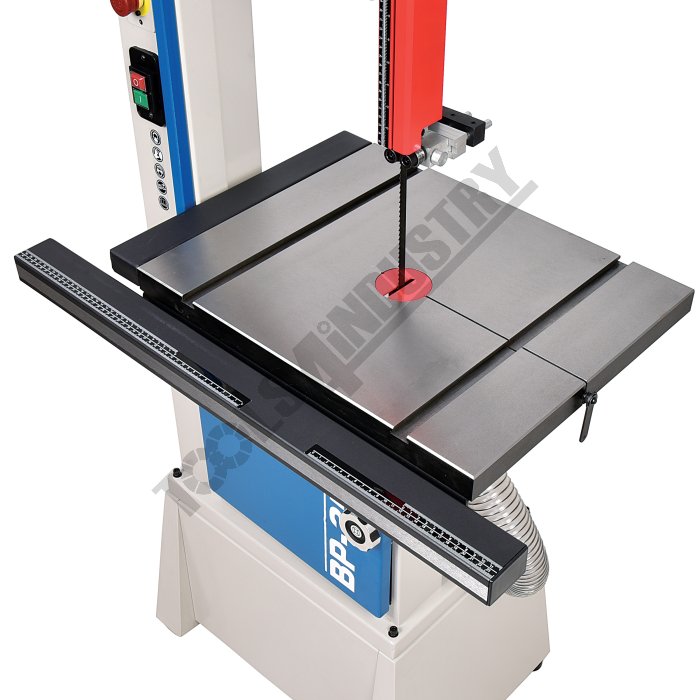

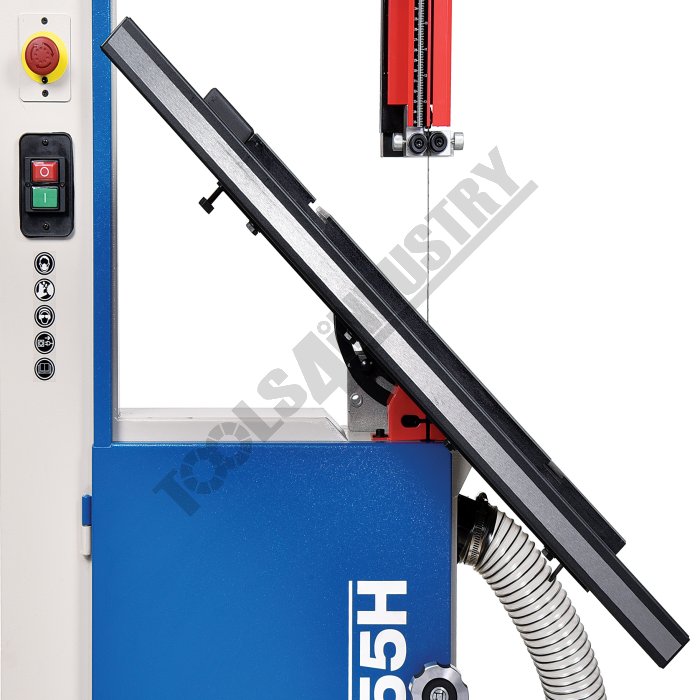

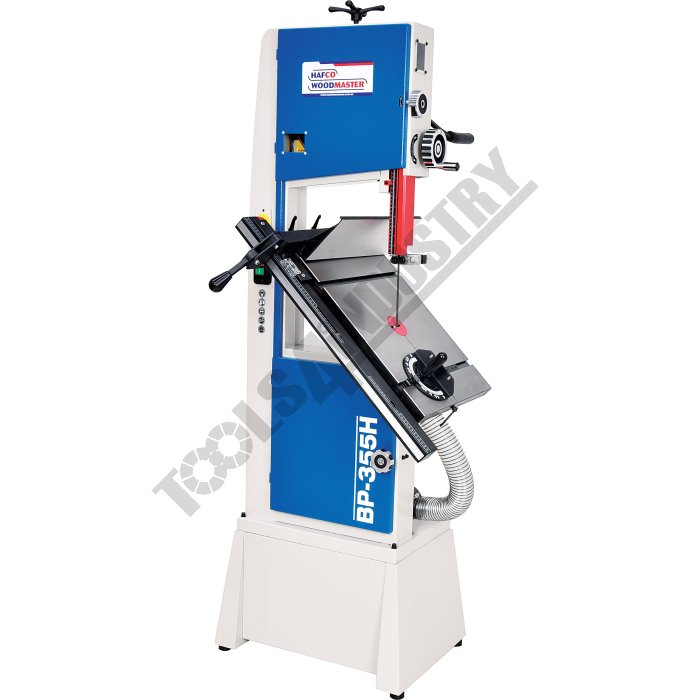

- Cast iron table tilts to 45˚

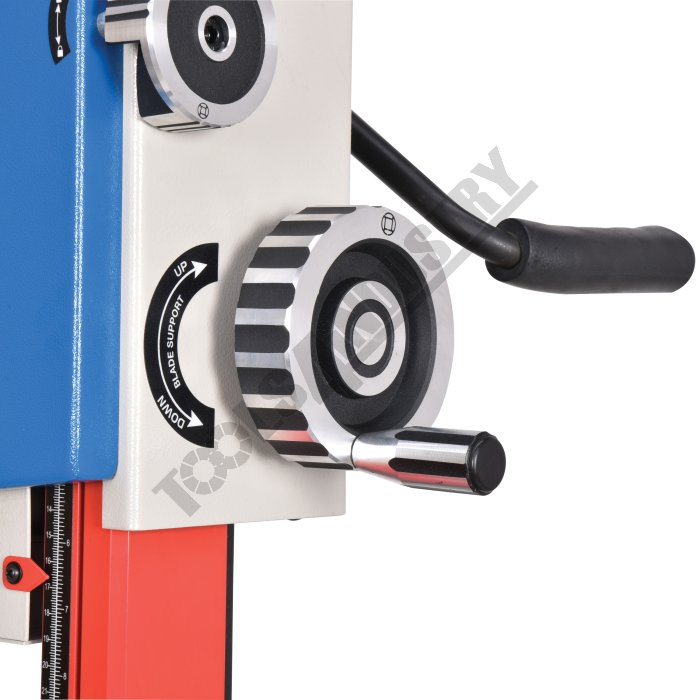

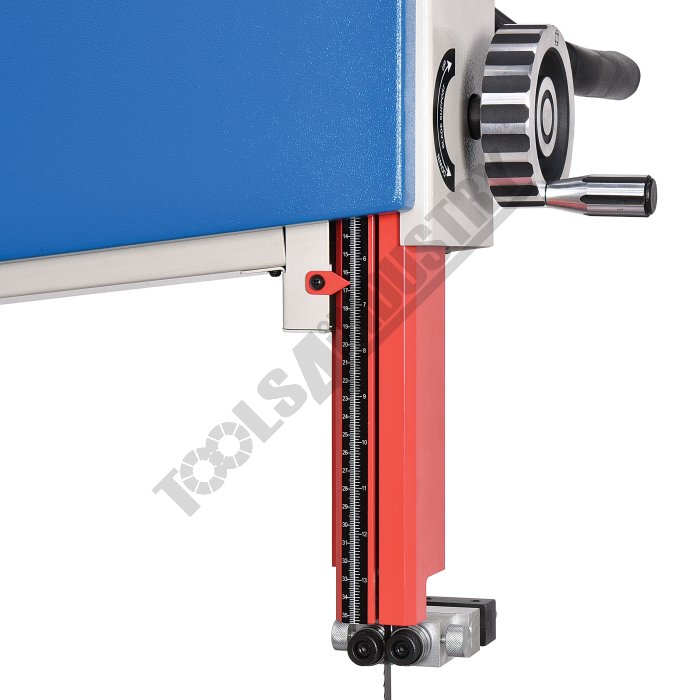

- Rack & pinion adjustment on top blade guide

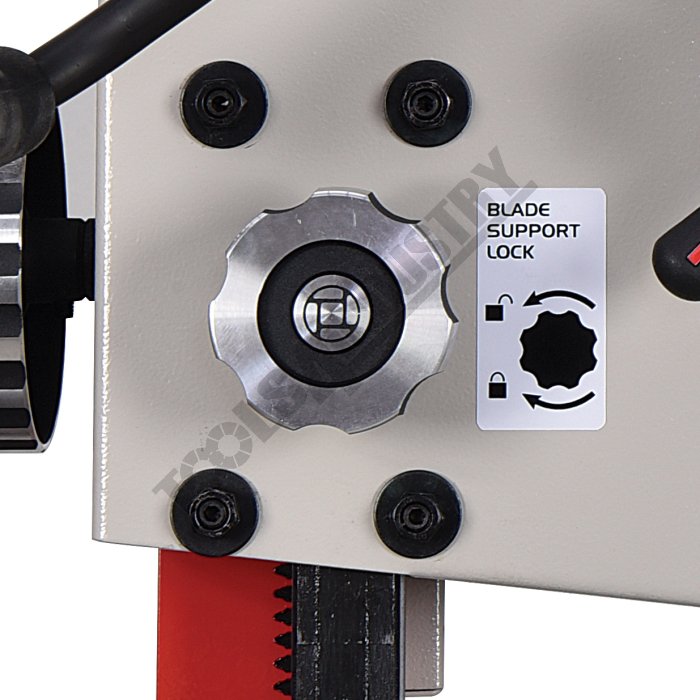

- Quick-release blade tension mechanism

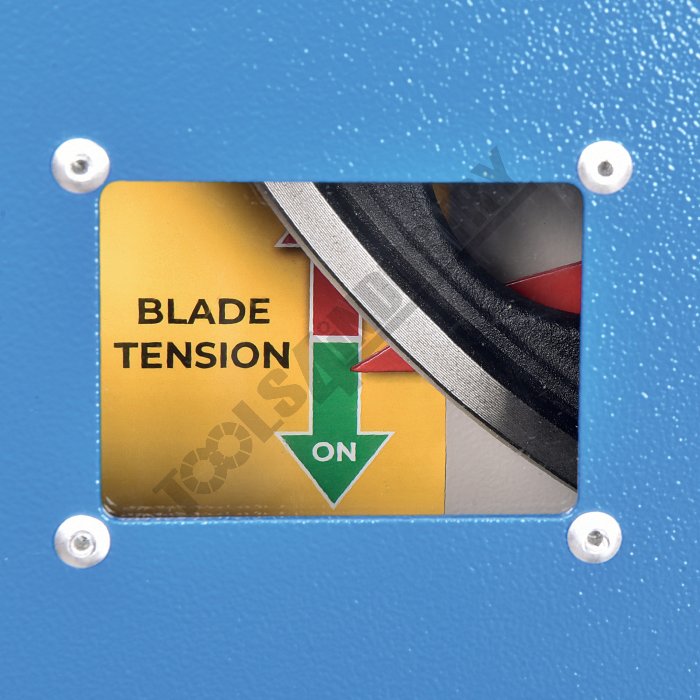

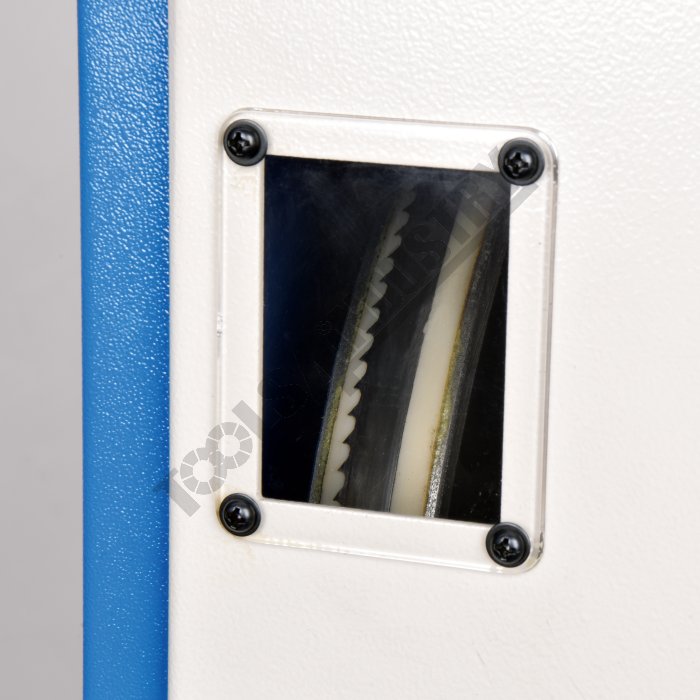

- Blade tension indicator with viewing window

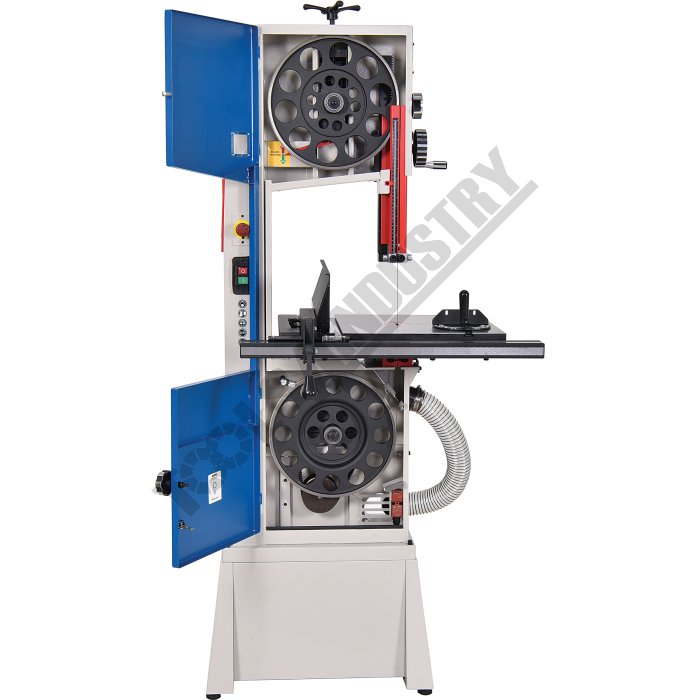

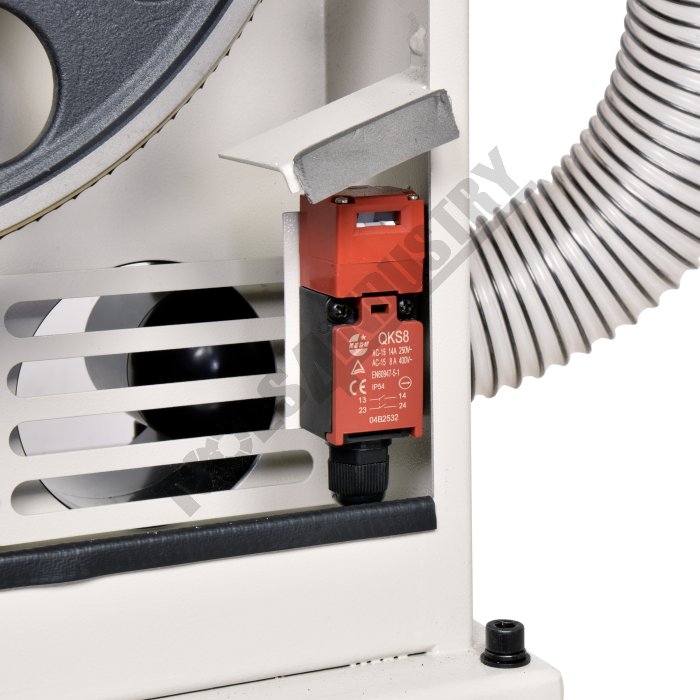

- Blade guards with safety interlocked micro-switches

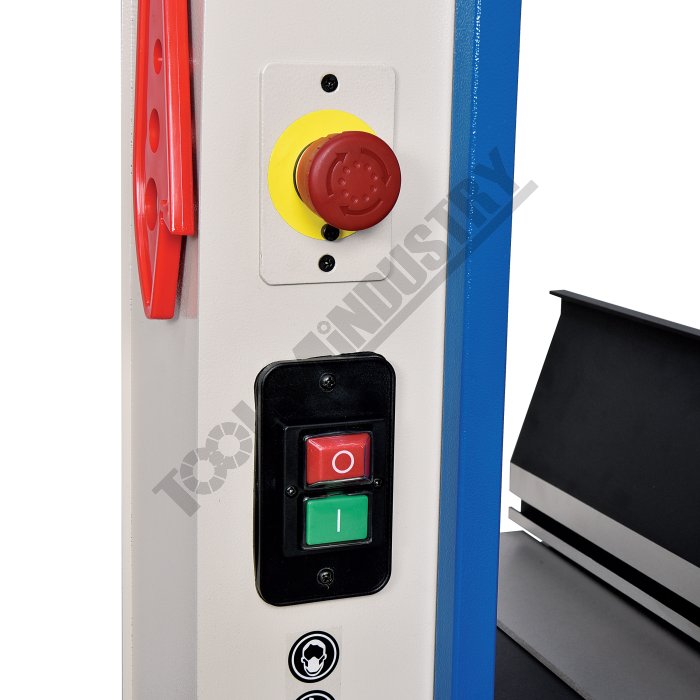

- Safety magnetic switch with emergency stop

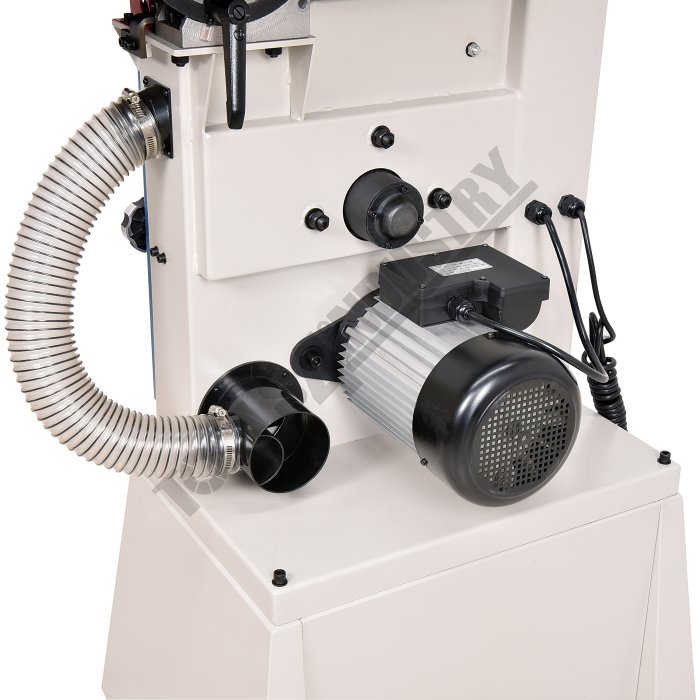

- 100mm dust collector port
- 1.7kW / 2.5hp 240V induction motor
Includes

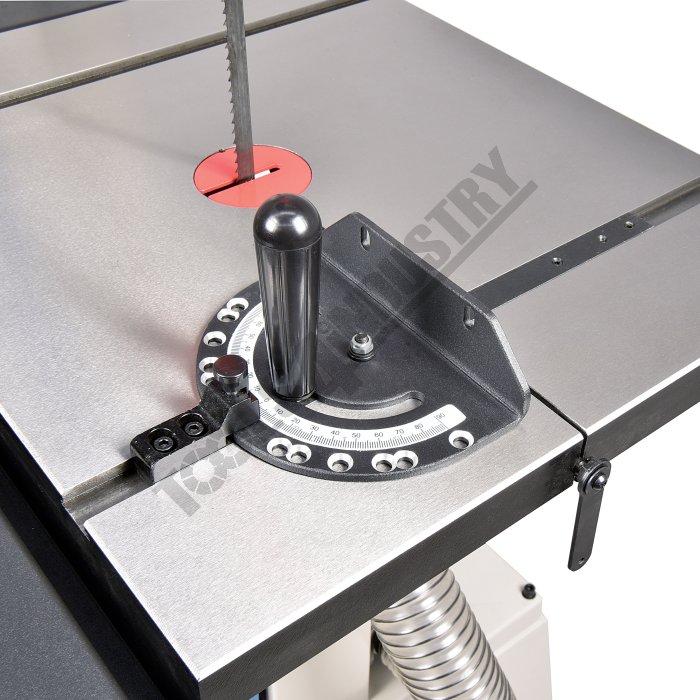

- Mitre guide
- Quick lock rip fence
- Enclosed stand
Specifications
- Compare 12 Products
- ORDER CODE
- MODEL
- Wheel Diameter (Ø)mm
- Throat Capacitymm
- Height Capacitymm
- Table Sizemm
- Frame Type
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Blade CodeSuits
- Blade Size (L x W x T)mm
- Floor Space (W x D x H)mm
- Nett Weightkg

- W4230
- BP-355H
- 355
- 345
- 300
- 540 x 480
- Steel
- 1.7 / 2.5
- 240 / 10
- W4230A, W4230B, W4230F
- 2920 x 6~19 x 0.9
- 680 x 600
- 132

- W4330
- BP-430A
- 430
- 415
- 310
- 585 x 435 with Extension
- Steel
- 1.5 / 2 (Electronic Brake System)
- 240 / 10
- W433A, W433B, W433C
- 3345 x 16 x 0.80
- 850 x 830 x 1860
- 181

- W4340
- BP-480A
- 480
- 465
- 310
- 680 x 480
- Steel
- 1.5 / 2 (Electronic Brake System)
- 240 / 10
- W434A, W434B
- 3630 x 19 x 0.80
- 960 x 850 x 1935
- 214

- W4344
- BP-480
- 480
- 465
- 310
- 480 x 632
- Steel
- 1.5 / 2 [with Brake System]
- 240 / 15
- W434A, W434B
- 3630 x 19 x 0.65
- 960 x 850 x 1935
- 182

- W4346
- BP-480
- 480
- 465
- 310
- 480 x 682
- Steel
- 1.5 / 2 [with Brake System]
- 415 / 3.3
- W434A, W434B
- 3630 x 19 x 0.65
- 960 x 850 x 1935
- 180.5

- W425
- BP-500
- 525
- 510
- 335
- 508 x 612
- Steel
- 2.2 / 3
- 240 / 15
- W425A, W425B, W425C
- 3937 x 25.4 x 0.70
- 1050 x 800 x 1910
- 290

- W429
- BP-630
- 630
- 615
- 370
- 542 x 660
- Steel
- 2.2/ 3
- 415
- W429A, W429B
- 4483 x 25.4 x 0.90
- 1160 x 900 x 2100
- 350

- W950
- BP-255
- 255
- 245
- 152
- 360 x 320
- Steel
- 0.375 / 0.5
- 240 / 10
- W950A, W950B, W950F
- 1826 x 12.5 x 0.65
- 750 x 650 x 1430
- 38

- W9501
- BP-255 + Circle Att Package
- 255
- 245
- 152
- 360 x 320
- Steel
- 0.375 / 0.5
- 240 / 10
- W950A, W950B, W950F
- 1826 x 12.5 x 0.65
- 750 x 650 x 1430
- 43

- W952
- BP-310
- 310
- 305
- 165
- 480 x 390
- Steel
- 0.75 / 1
- 240 / 10
- W420A, W420B, W420F
- 2240 x 12.5 x 0.65
- 830 x 700 x 1590
- 73

- W955
- BP-360
- 360
- 340
- 225
- 545 x 515
- Steel
- 1.1 / 1.5
- 240 / 10
- W955A,W955B, W955F
- 2560 x 16 x 0.65
- 920 x 800 x 1710
- 88

- W4224
- BP-355
- 355
- 345
- 245
- 535 x 435
- Steel
- 1.5 / 2
- 240 / 10
- W4224A,W4224B,W4224F
- 2750 x 16 x 0.65
- 920 x 760 x 1810
- 121
| ORDER CODE | BP-355H |
|---|---|
| MODEL | 355 |
| Wheel Diameter (Ø)mm | 345 |
| Throat Capacitymm | 300 |
| Height Capacitymm | 540 x 480 |
| Table Sizemm | Steel |
| Frame Type | 1.7 / 2.5 |
| Motor PowerkW / hp | 240 / 10 |
| Voltage / AmperageV / amp | W4230A, W4230B, W4230F |
| Blade CodeSuits | 2920 x 6~19 x 0.9 |
| Blade Size (L x W x T)mm | 680 x 600 |
| Floor Space (W x D x H)mm | 132 |
| Nett Weightkg |
