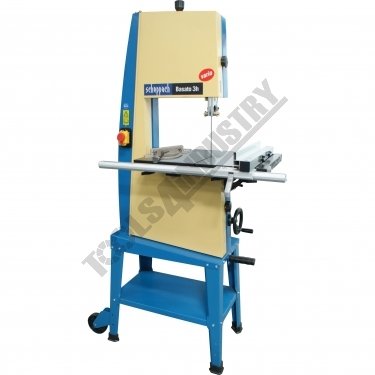

Wood Band Saw Basato 3h Vario

Description

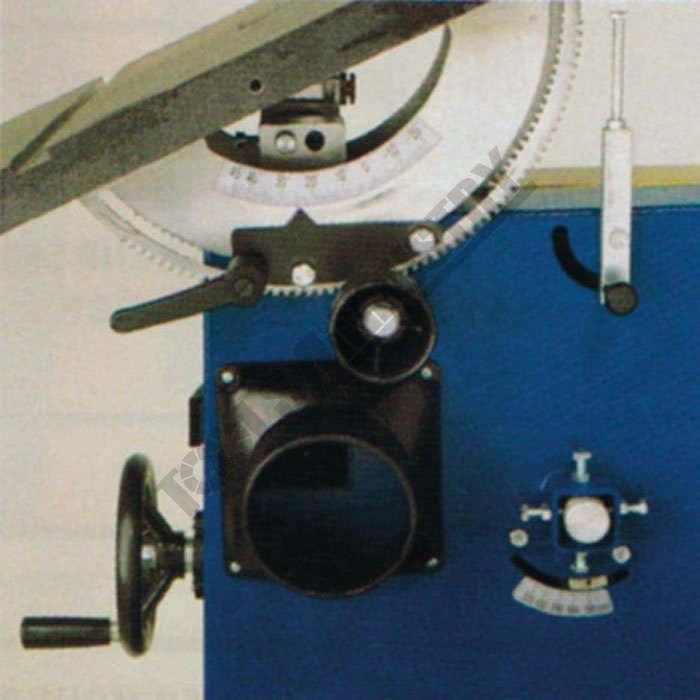

Continuous speed control

The Basato 3h offers you special features like continuous speed control within a range from 370 to 750 m/min ensuring, at the same time, utmost accuracy by means of top and bottom 3-roller precision guides. For smooth running, the balanced and polished band wheels are fitted with a rubber facing.

The tilting table copes with every task. The large cast iron table offers a safe work-piece support. The tilting table has a precise one hand setting control ranging from -17º to +45º , while the throat width is 305mm. The precision fence system is equipped with a magnifying glass and a safety cut out switch is fitted to the blade door.


TABLE ADJUSTMENT= -17 to +45º
TABLE HEIGHT= 1020mm
TABLE SIZE= 548 x 400mm
SUCTION CONNECTOR= 100mm
BLADE SPEED= 370-750m/min
DIMENSIONS (LxWxH)= 1000 x 600 x 1680mm

Features

• German design & technology

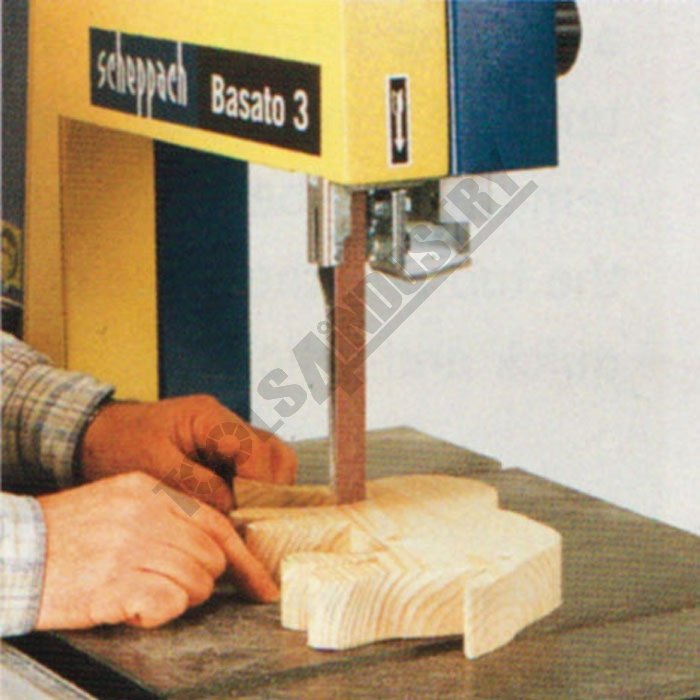

• Unique variable speed drive system 370 to 750m/min
• Large 548 x 400mm cast iron table

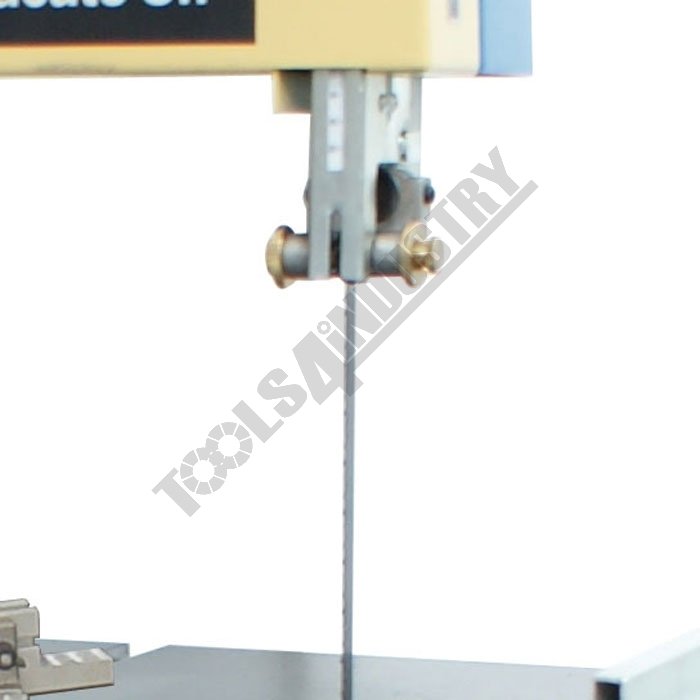

• Twin 3-roller precision blade guides ensure precise cuts
• 305 x 205mm cutting capacity
• Solid rip fence with eye-glass for precise settings

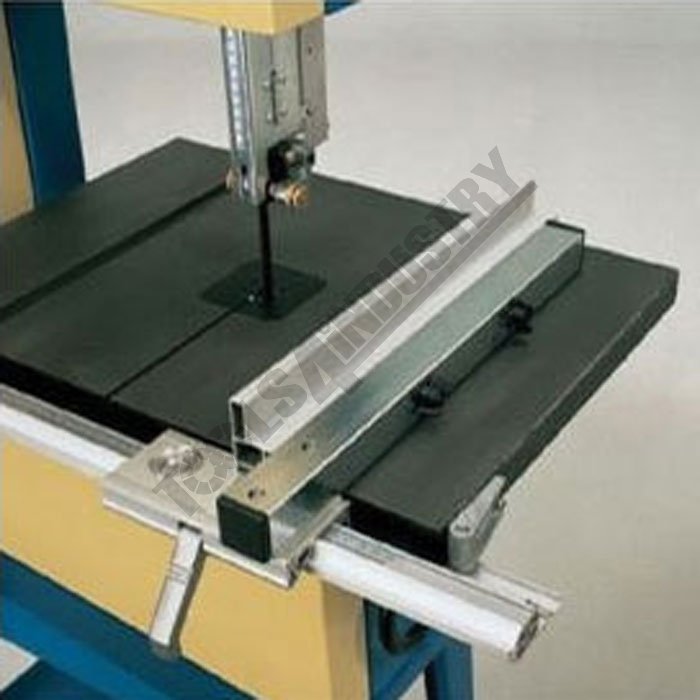

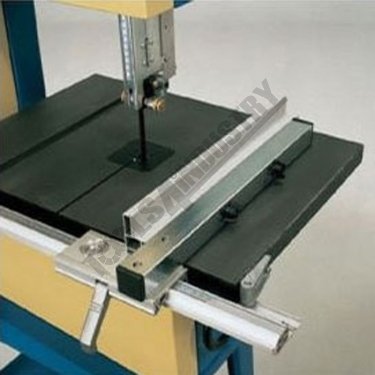

• Precision rip fence with magnifier. Conveniently inserted from above for right and left hand use

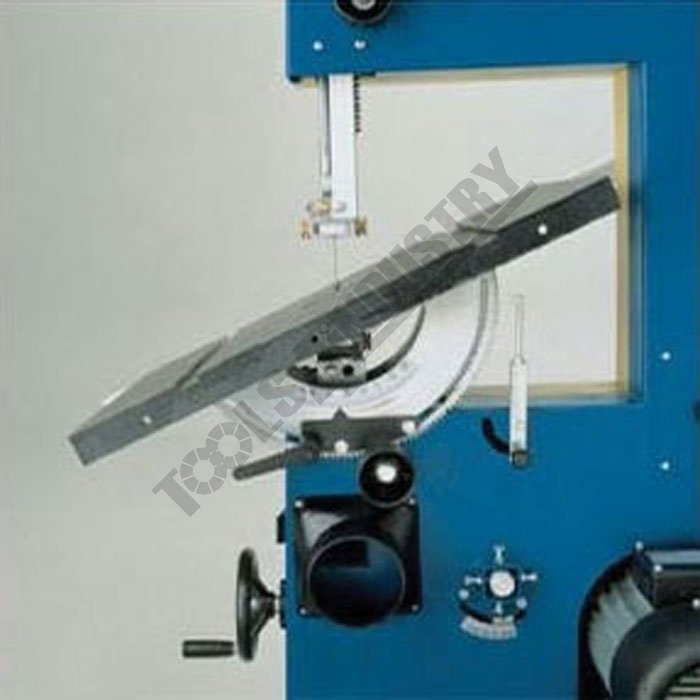

• Patented table tilting from -17º to +45°
• 800W 240V motor

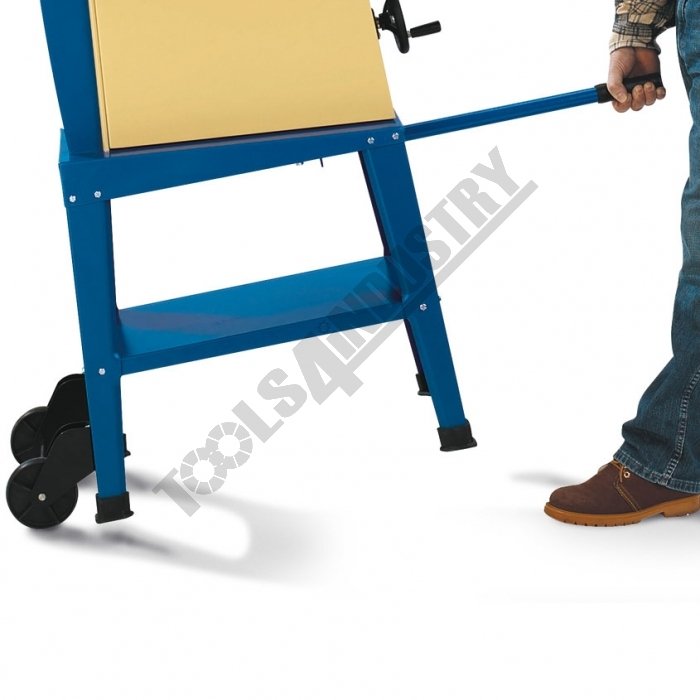

• Standard base unit with wheel kit
• For smooth running, the balanced and polished band wheels are fitted with a rubber facing
• Includes heavy duty mitre gauge & 95mm dust chute
