This Product Is No Longer Available

W420

Code	W420
Model	BP-300
Weight (kg)	65
Weight (m³)	0.196
Weight (Freight)	65.268
Dimensions (cm)	106 x 37 x 50

Product Brochure Instruction Manual [735 KB] Parts List [104 KB]Bandsaw - Wood Risk Assessment

This Product Is No Longer Available

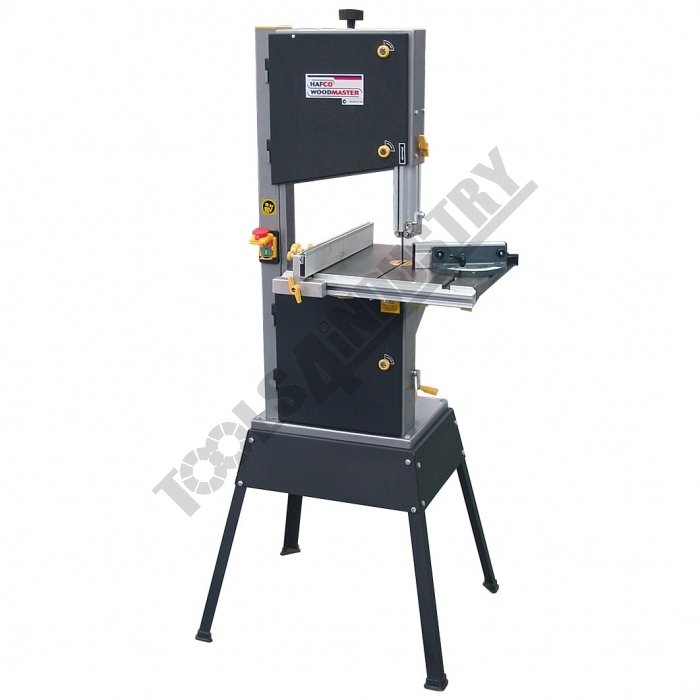

Wood Band Saw BP-300

Description

Model BP-300 Wood Band Saw:

Features

Powerful 750W / 1hp 240V Aluminium motor

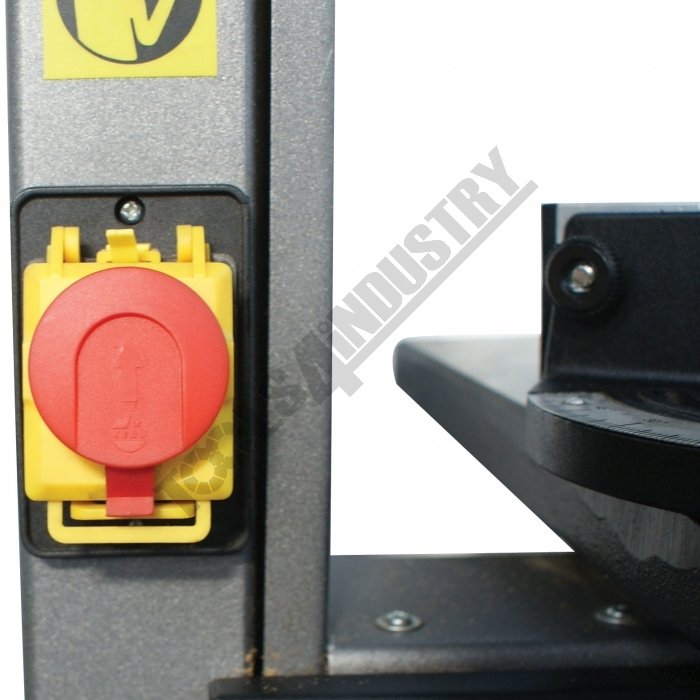

Safety magnetic switch with emergency stop
Micro-switch protection on hinged blade guard doors
2 x blade speeds via mechanical handwheel system

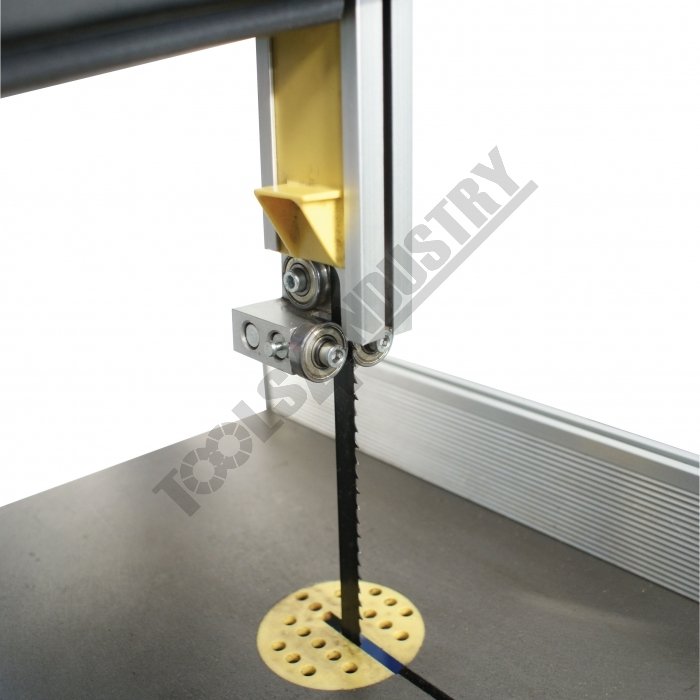

Ball bearing blade guides mounted on a solid aluminium block

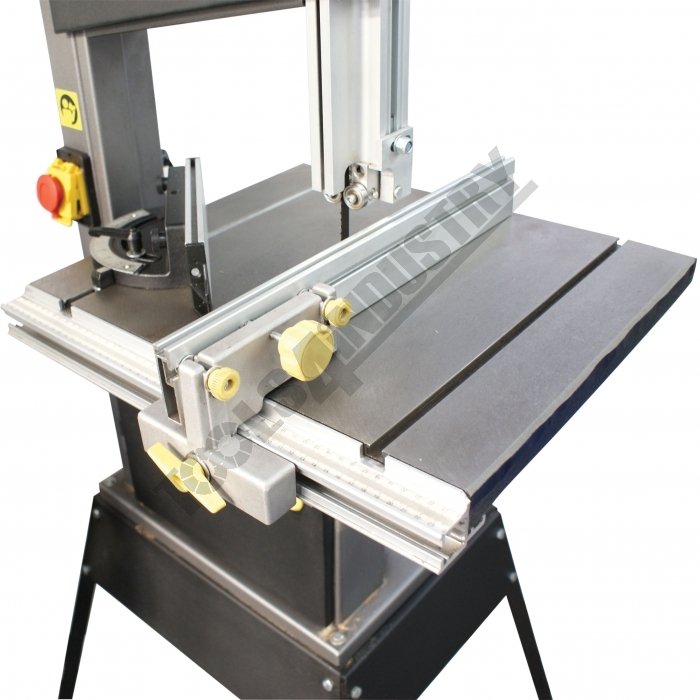

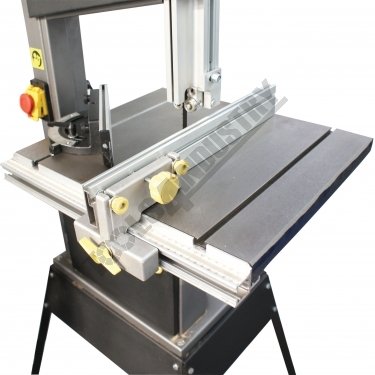

Aluminium rip fence with quick action lock
Large 480 x 400mm cast iron table

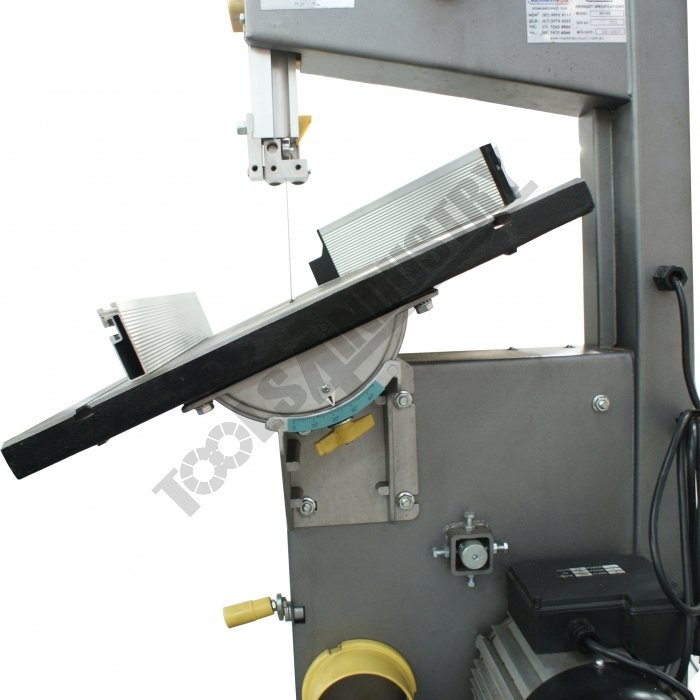

Cast iron table tilts to 45°
Large height capacity 180mm

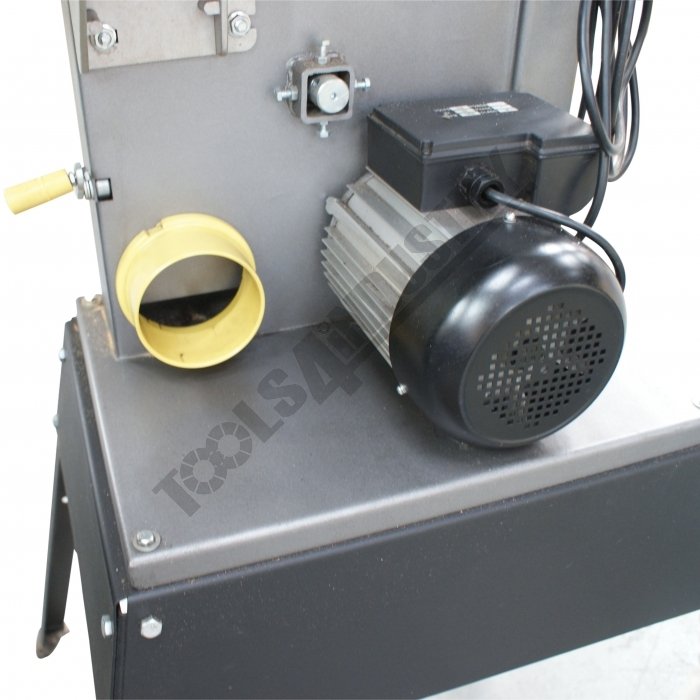

100mm dust collector port

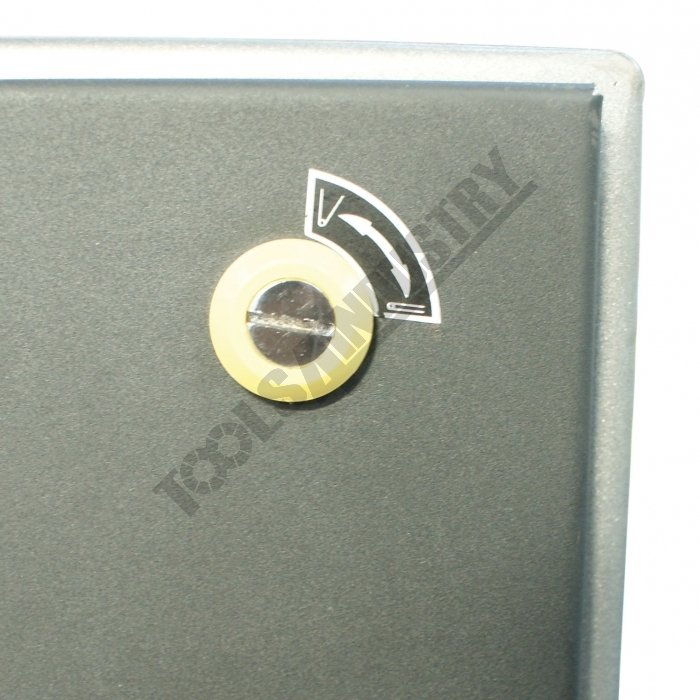

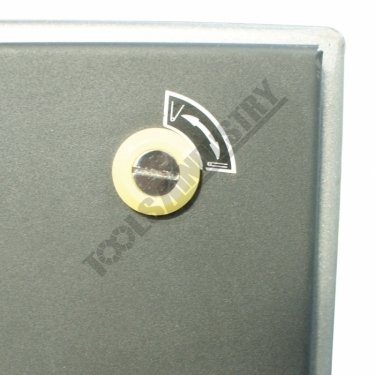

Safety locks on doors
Wide foot-print study stand
Heavy duty adjustable aluminium fence

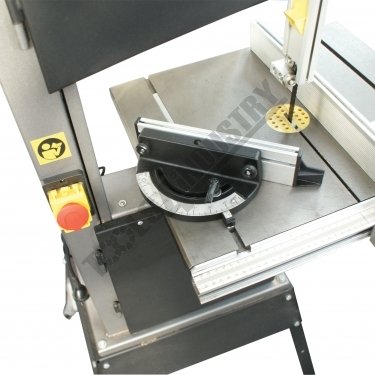

Mitre guide & fence can be used on either side of blade

Includes

Includes:Stand ;Mitre guide ;Heavy Duty Rip fence

Specifications

Compare 29 Products
ORDER CODE
MODEL
Wheel Diameter (Ø)mm
Throat Capacitymm
Height Capacitymm
Table Sizemm
Frame Type
Motor PowerkW / hp
Voltage / AmperageV / amp
Blade CodeSuits
Blade Size (L x W x T)mm
Floor Space (W x D x H)mm
Nett Weightkg

W420
BP-300
310
305
180
480 x 400
Steel
0.75 / 1
240 / 10
W420A, W420B
2240 x 12.5 x 0.65
~
65

W432
BP-530
530
515
310
530 x 530
Steel
1.5 / 2
240 / 10
W432A, W432B
3860 x 19 x 0.80
~
196

W4324
BP-420
420
410
255
535 x 435
Steel
2.25 / 3
240 / 10
W4324A, W4324B
3345 x 16 x 0.65
~
140

W854
Basato 3 Vario
315
300
165
540 x 400
Steel
0.8 / 1.06
240 / 10
W854A, W854B
2360 x 12 x 0.65
~
69

W403
BP-14A
356
340
150
350 x 350
Cast Iron
0.55 / 0.75
240 / 10
W404A, W404B, W404D
2362 x 9.5 x 0.65
~
78

R823
BS400
~
416
305
535 x 480
Steel
1.5 / 2
240 / 10
W433A, W433B
3378 x 16 x 0.65
~
140

W950
BP-255
255
245
152
360 x 320
Steel
0.375 / 0.5
240 / 10
W950A, W950B, W950F
1826 x 12.5 x 0.65
750 x 650 x 1430
38

W9501
BP-255 + Circle Att Package
255
245
152
360 x 320
Steel
0.375 / 0.5
240 / 10
W950A, W950B, W950F
1826 x 12.5 x 0.65
750 x 650 x 1430
43

W952
BP-310
310
305
165
480 x 390
Steel
0.75 / 1
240 / 10
W420A, W420B, W420F
2240 x 12.5 x 0.65
830 x 700 x 1590
73

W955
BP-360
360
340
225
545 x 515
Steel
1.1 / 1.5
240 / 10
W955A,W955B, W955F
2560 x 16 x 0.65
920 x 800 x 1710
88

W4224
BP-355
355
345
245
535 x 435
Steel
1.5 / 2
240 / 10
W4224A,W4224B,W4224F
2750 x 16 x 0.65
920 x 760 x 1810
121

W4230
BP-355H
355
345
300
540 x 480
Steel
1.7 / 2.5
240 / 10
W4230A, W4230B, W4230F
2920 x 6~19 x 0.9
680 x 600
132

W4330
BP-430A
430
415
310
585 x 435 with Extension
Steel
1.5 / 2 (Electronic Brake System)
240 / 10
W433A, W433B, W433C
3345 x 16 x 0.80
850 x 830 x 1860
181

W4340
BP-480A
480
465
310
680 x 480
Steel
1.5 / 2 (Electronic Brake System)
240 / 10
W434A, W434B
3630 x 19 x 0.80
960 x 850 x 1935
214

W4344
BP-480
480
465
310
480 x 632
Steel
1.5 / 2 [with Brake System]
240 / 15
W434A, W434B
3630 x 19 x 0.65
960 x 850 x 1935
182

W4346
BP-480
480
465
310
480 x 682
Steel
1.5 / 2 [with Brake System]
415 / 3.3
W434A, W434B
3630 x 19 x 0.65
960 x 850 x 1935
180.5

W425
BP-500
525
510
335
508 x 612
Steel
2.2 / 3
240 / 15
W425A, W425B, W425C
3937 x 25.4 x 0.70
1050 x 800 x 1910
290

W429
BP-630
630
615
370
542 x 660
Steel
2.2/ 3
415
W429A, W429B
4483 x 25.4 x 0.90
1160 x 900 x 2100
350

W434
BP-480
480
462
310
480 x 480
Steel
1.5 / 2
240 / 15
W434A, W434B
3630 x 19 x 0.80
960 x 850 x 1935
174

W433
BP-430
430
415
310
430 x 430
Steel
1.5 / 2
240 / 10
W433A, W433B, W433C
3345 x 16 x 0.80
850 x 830 x 1860
146

R822
BS350S
350
340
230
548 x 500
Steel
1.125 / 1.5
240 / 10
R822A, R822B, R822F
2628 x 16 x 0.65
1000 x 800 x 1810
103

W855
Basato 3h Vario
315
305
205
548 x 400
Steel
0.8 / 1.06
240 / 10
W854A, W854AB
2360 x 13 x 0.65
1100 x 650 x 1680
72

W4202
BP-305
310
305
175
548 x 400
Steel
0.75 / 1
240 / 10
W420A, W420B, W420F
2240 x 12.5 x 0.65
~
75

W856
Basato 4
380
375
250
548 x 400
Steel
1.5 / 2
240 / 10
W856A, W856B
2895 x 12 x 0.65
~
108

W417
BP-250
255
245
100
340 x 335
Steel
0.375 / 0.5
240 / 10
W417A, W417B
1712 x 9.5 x 0.65
~
35

W691
MBS500
470
465
285
630 x 480
Steel
1.5 / 2
240 / 15
W4335 / W4336
3607 x 25 x 0.90
~
175

W427
BP-500
525
510
335
508 x 612
Steel
2.2 / 3
415
W425A, W425B, W425C
3937 x 25.4 x 0.70
~
265

W4334
BP-470
470
465
280
630 x 480
Steel
2.25 / 3
240 / 15
W4335, W4336
3607 x 19 x 0.80
~
180

R821
BS300E
~
305
190
480 x 400
Steel
0.75 / 1
240 / 10
W420A, W420B, W420F
2368 x 12.5 x 0.65
~
80

ORDER CODE	BP-300
MODEL	310
Wheel Diameter (Ø)mm	305
Throat Capacitymm	180
Height Capacitymm	480 x 400
Table Sizemm	Steel
Frame Type	0.75 / 1
Motor PowerkW / hp	240 / 10
Voltage / AmperageV / amp	W420A, W420B
Blade CodeSuits	2240 x 12.5 x 0.65
Blade Size (L x W x T)mm	~
Floor Space (W x D x H)mm	65
Nett Weightkg
