| Code | W394 |
|---|---|
| Model | DC-3 |
| Capacity | 2HP |
| Weight (kg) | 53 |
| Weight (m3) | 0.324 |
| Weight (Freight) | 107.892 |
| Dimensions (cm) | 93 x 58 x 60 |

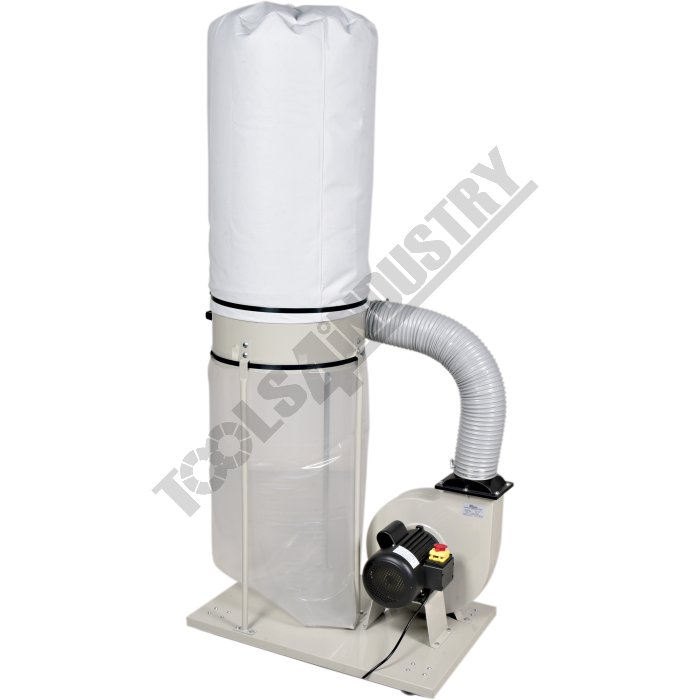

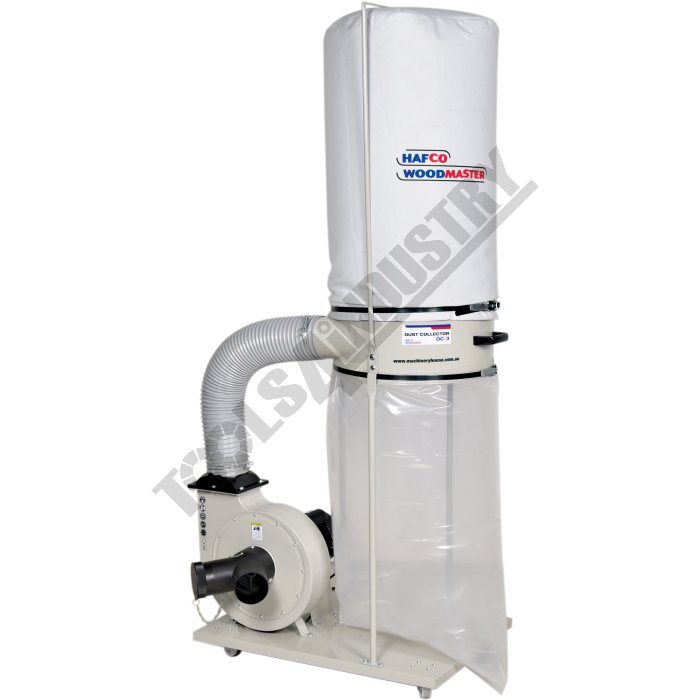

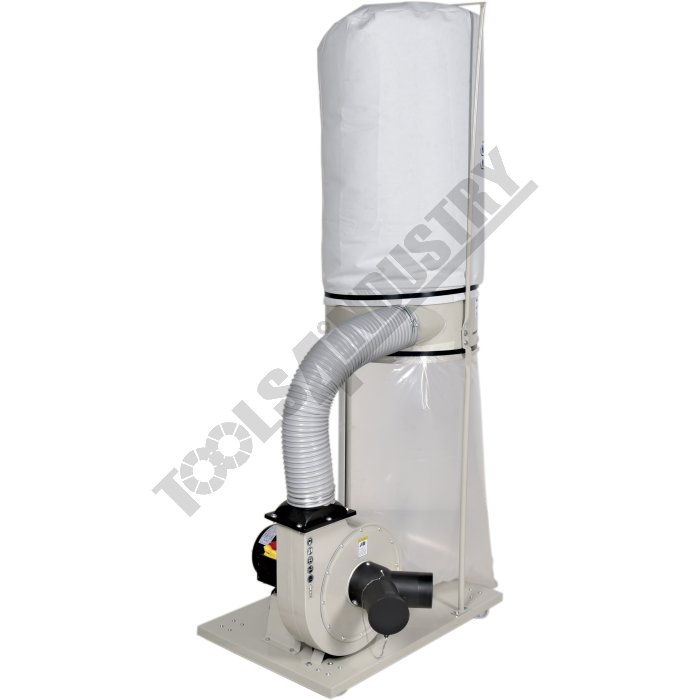

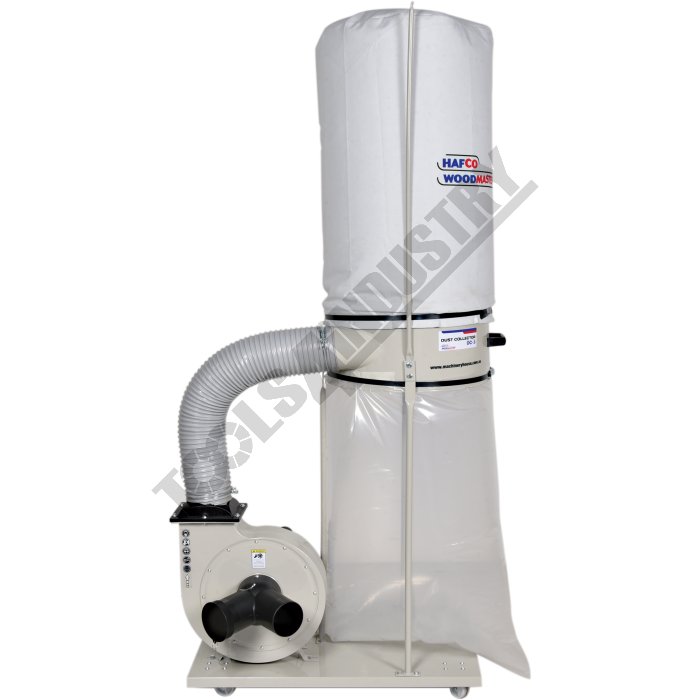

Dust Collector DC-3 2HP
Description

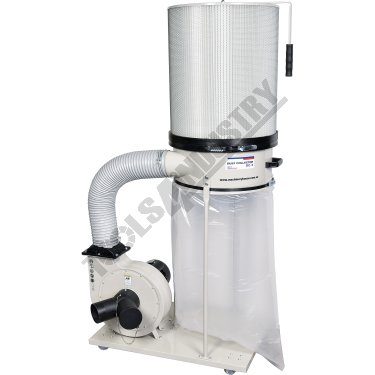

LPHV = Low Pressure High Volume SystemThe DC-3 is a low-pressure high-volume dust collector (LPHV), dust and shavings of LPHV extractors are sucked through the impeller fan blade, the heavier waste falls into the lower bag with the air being exhausted through the top filter bag which aids in collecting some of the fine dust on the way out. This type of extraction shifts huge volumes of air at low pressure. They are very efficient at removing bulk waste, recommended for Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors. The fine filtration efficiency can be improved somewhat by fitting a cyclone and replacing the bag with a cartridge filter.
Features
- 1200cfm air flow suction

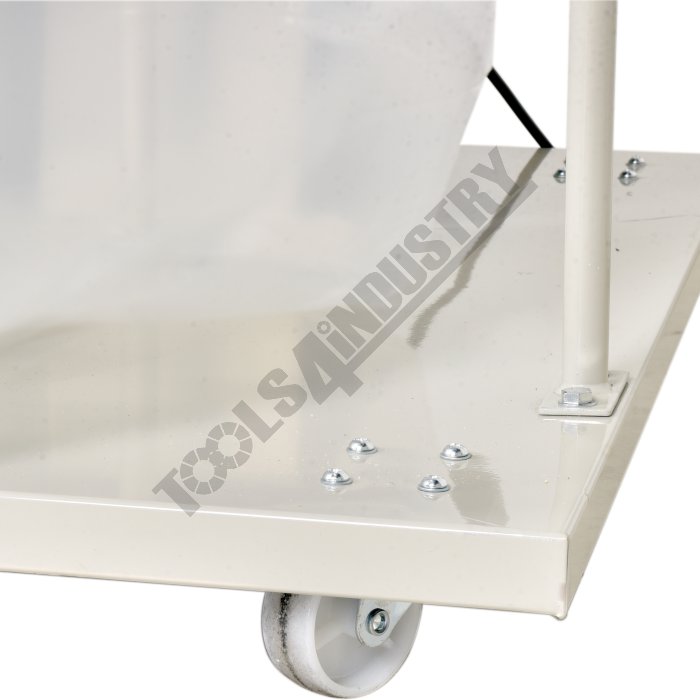

- Portable on wheels

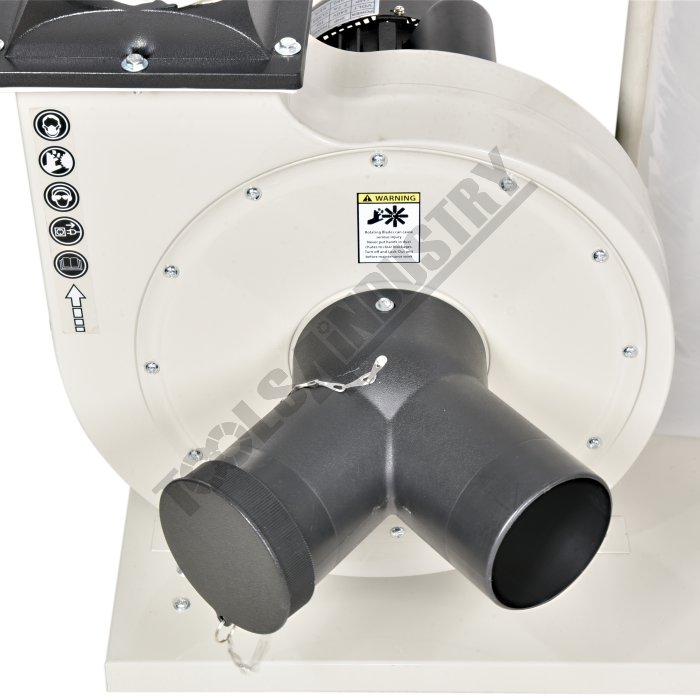

- Ø100mm twin inlets

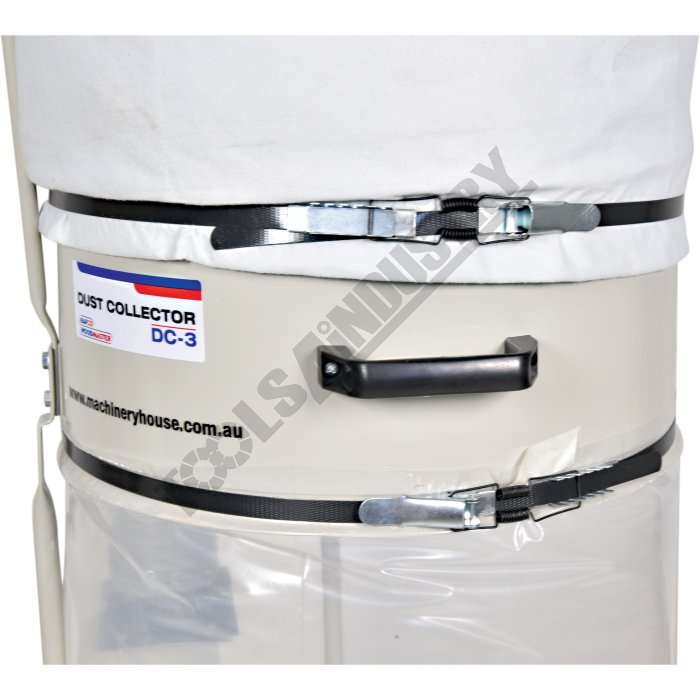

- Quick-action clamps

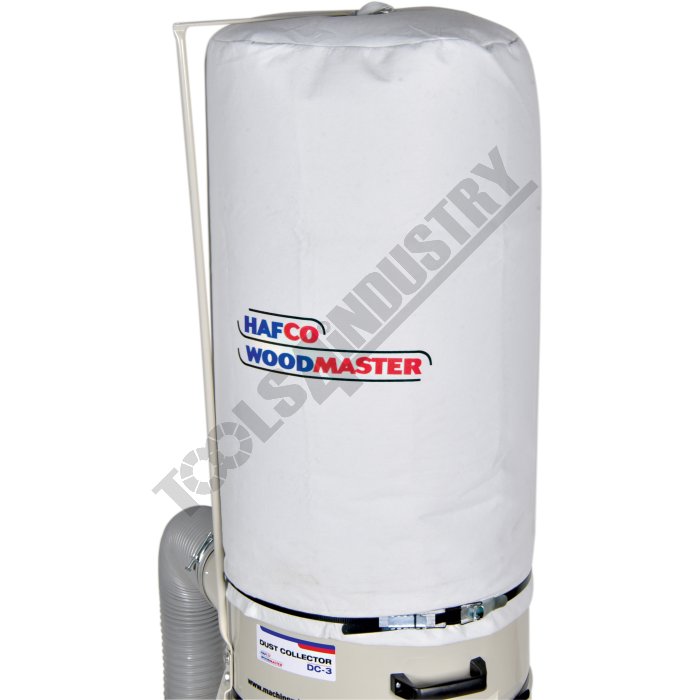

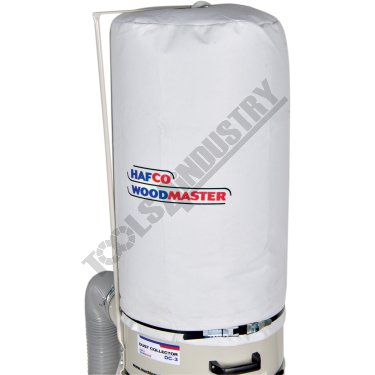

- 5 Micron fine filter bag

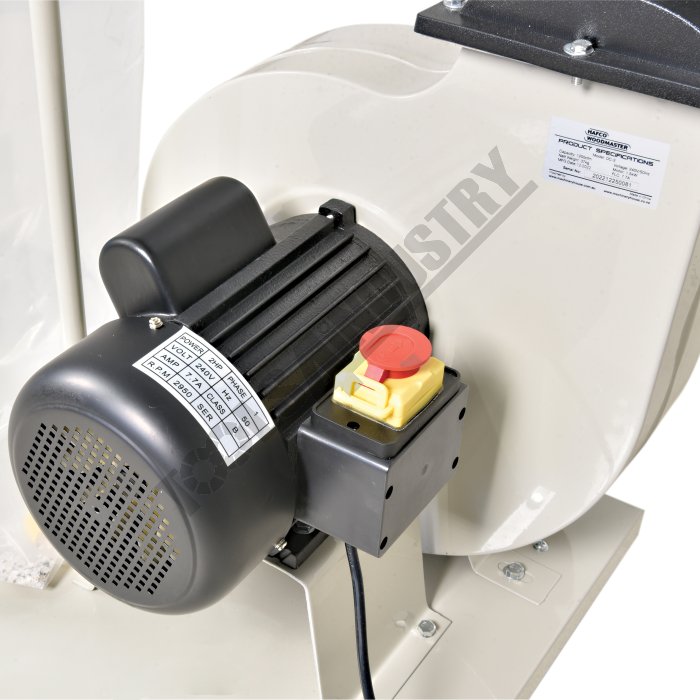

- 1.5kW / 2hp 240V motor
Specifications
- Compare 10 Products
- ORDER CODE
- MODEL
- Type
- AirflowCFM
- LPHV - Low Pressure High VolumeYes / No
- HPLV - High Pressure Low VolumeYes / No
- Inlets / DiameterNo. / mm
- Outlets / DiameterNo. / mm
- Motor PowerkW / hp
- VoltageV / amp
- Floor Space (W x D x H)mm
- Nett Weightkg
- W394
- DC-3
- Dust Collector
- 1200
- Yes
- No
- 2 x Ø100
- ~
- 1.5 / 2
- 240 / 10
- 1000 x 700 x 1950
- 42
- W329
- DC-7
- Dust Collector
- 2300
- Yes
- No
- 3 x Ø100
- ~
- 2.25 / 3
- 240 / 10
- 1550 x 740 x 1930
- 51
- W331
- DC-90
- Dust Collector
- 3200
- Yes
- No
- 3 x Ø100
- ~
- 3.75 / 5
- 415
- 1600 x 800 x 2840
- 109
- W319
- CD-20
- Dust Collector &
Cyclone Separator - 910
- Yes
- No
- 3 x Ø100
- ~
- 1.5 / 2
- 240 / 10
- ~
- 130
- W320
- CD-30
- Dust Collector &
Cyclone Separator - 2204
- Yes
- No
- 3 x Ø100
- ~
- 2.2 / 3
- 240 / 15
- ~
- 152
- W885
- HA-1000
- Dust Collector
- 109
- No
- Yes
- 1 x Ø100
- ~
- 1.1 / 1.5
- 240 / 10
- 350 x 350 x 650
- 14
- W332
- DC-2
- Dust Collector
- 500
- Yes
- No
- 1 x Ø100
- ~
- 0.75 / 1
- 240 / 10
- 750 x 400 x 1550
- 30
- W886
- HD12
- Dust Collector
- 680
- Yes
- No
- 1 x Ø100
- ~
- 0. 56 / 0.75
- 240 / 10
- 900 x 520 x 1570
- 24
- W316
- CDS-2/3
- Cyclone Dust Separator
- ~
- No
- No
- 2 x Ø100
- Ø152 ~ 25mm
- ~
- ~
- 650 x 560 x 1700
- 19
- W316
- CDS-2/3
- Cyclone Dust Separator
- ~
- No
- No
- 2 x Ø100
- Ø152 ~ 25mm
- ~
- ~
- 650 x 560 x 1700
- 19
| ORDER CODE | DC-3 |
|---|---|
| MODEL | Dust Collector |
| Type | 1200 |
| AirflowCFM | Yes |
| LPHV - Low Pressure High VolumeYes / No | No |
| HPLV - High Pressure Low VolumeYes / No | 2 x Ø100 |
| Inlets / DiameterNo. / mm | ~ |
| Outlets / DiameterNo. / mm | 1.5 / 2 |
| Motor PowerkW / hp | 240 / 10 |
| VoltageV / amp | 1000 x 700 x 1950 |
| Floor Space (W x D x H)mm | 42 |
| Nett Weightkg |
