CD-30 Cyclone Dust Collector 3HP

Description

Manufactured in Taiwan

LPHV = Low Pressure High Volume System

The wood dust and shavings of LPHV extractor are sucked through by the impeller fan blade, the heavy wood chips fall straight below in the steel canister waste bin and the finer dust continues through the blade into the next section passing through a 1 micron filtration cartridge where the air is exhausted and then fine dust falls into the lower plastic collection bag.

This type of extraction shifts huge volumes of air at low pressure and they are very efficient at removing & separating bulk waste such from Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors.

Features

• Portable 2 stage 2280cfm cyclone dust collector on wheels
• Cyclone design to separate large particles before reaches filter
• 1 micron pleated fine filter cartridge
• 190 litre steel drum capacity
• Triple Ø100mm inlets

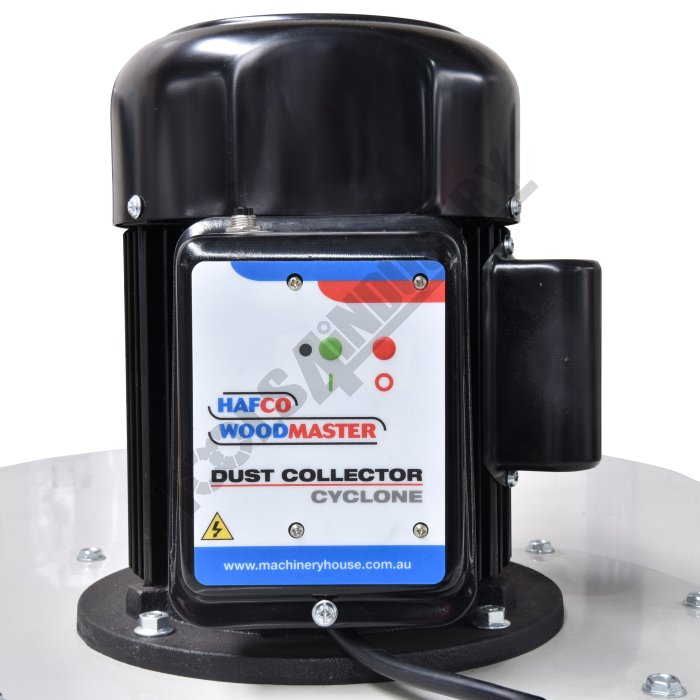

• Remote control start / stop function
• 2.2kW / 3hp 240V motor
• Steel drum with caster wheels for easy dust disposal
• Built-in plastic bag holding system, fits in steel drum
• Quick drum release lever for easy drum removal
• Quick-action release clamp on dust collection bag
• MADE IN TAIWAN
