HA-1000 Dust Collector 50 Litre 1.5

Description

The HA-1000 makes a great addition to the home workshop.

When it comes to suction power the HA-1000 surpasses all conventional centrifugal extractors in spite of being the smallest and most cost-efficient unit in our range. Also its compact design makes it easily portable and ideal were space is limited.

HPLV = High Pressure Low Volume System: HPLV extractors operate more like a standard vacuum cleaner as high pressure is increased or maintained when the inlet diameter is restricted or reduced. This extractor features a powerful 1100W through – flow motor design drawing dust & wood chips into a large Steel canister storage drum prior to entering both cardboard cartridge and paper bag filters; giving 2 levels of filtration down to 0.5 – 1 micron. This portable extractor is intended & ideal for the home workshop removing wood chips and dust from woodworking machines & power tools especially fitted with reduced ports from Ø100mm to Ø32mm.

Application examples Bandsaws, Scroll Saws, Sanders, and Power Tools etc. The Waste content can easily be emptied via a single quick action clamp. This extractor is also supplied with 2 metres of Ø100mm diameter hose.

Features

• German design & technology
• 1100W 240V motor
• Handle for easy moving
• Suction connector set for all small machines

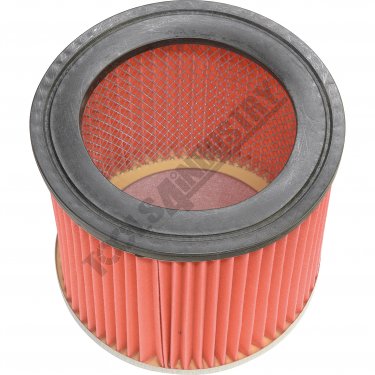

• Filter cartridge
• Polyester needle-felt filter bag
• Low pressure 2500Pa
• Filter area 0.3m²
• Filtration 5 micron
• Filling capacity 50 litres
• Hose length 2000mm
• Hose connection Ø100mm
• Noise level 77dB (A)
• Certificate CE
• Dimensions: Ø400 x 700mm (W x H)
• Weight approx. 14kg

Includes

• 2 x hose clamps
• 1 x 100-68mm reducer
• 1 x 63-45mm reducer
• 1 x 40-40mm reducer
• 1 x 35-35mm reducer
• 2 meters of Ø100mm hose
• Hose adaptor fitting
• Spare filter bags
