Code L4064
Model SVJCR-2525M16
Capacity 25mm Tool Height
Weight (kg) 0.8
Weight (m3) 0.000
Weight (Freight) 0.8
Dimensions (cm) 16 x 4 x 4
TOOLMASTER
Taiwan
Product Brochure

93º Rhombic / Positive - Right Hand Turning Tool Holder SVJCR-2525M16 25mm Tool Height

Description

Quality Tipped Tool Holders ISO Standard to suit Tungsten Carbide Indexable Insert Tips.

NOTE: Inserts not included with tool holders

Use insert VCMT160404TN15 (L0521)

Features

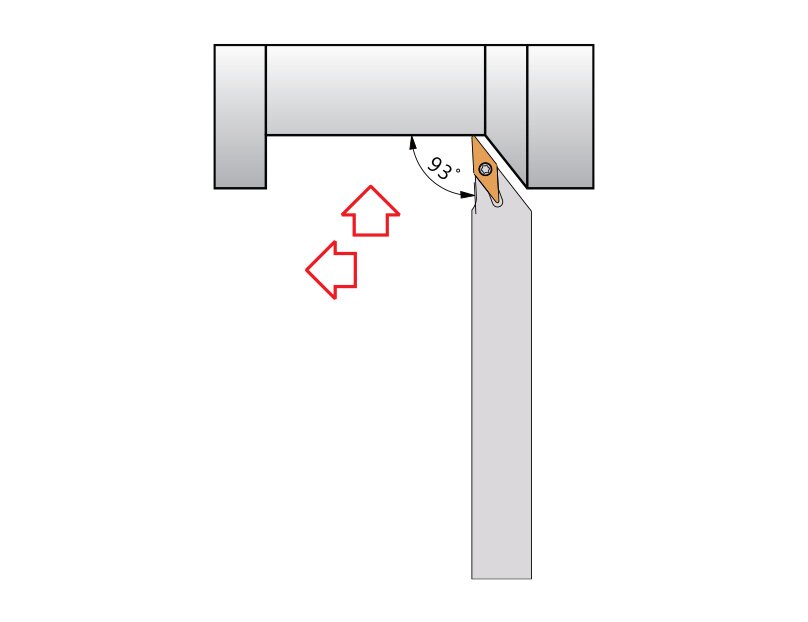

  • Multipurpose profiling toolholder with a 93º approach angle, equipped with rhombic positive insert (angle 35°)
  • For roughing, semi-finishing, finishing and general applications
  • Right hand tool holder suitable for turning towards the chuck

Specifications

ORDER CODESVJC
Part Number - Style25
Tool Height SizemmCenter screw
Clamping Method of InsertExternal turning
CategorySquare shank
Connection style25x25
Back End SizeProfiling



ApplicationRight
Hand Type93º
Holder StylePositive
Clearance AngleVCMT16

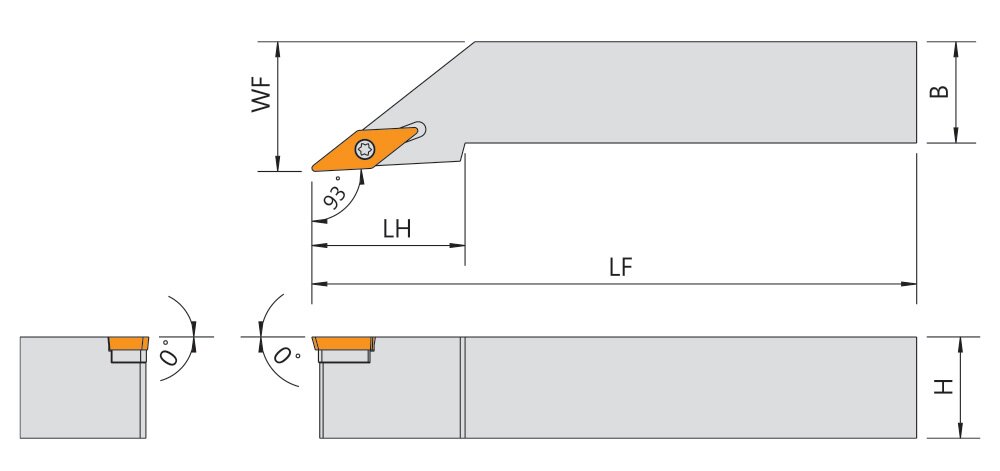

Insert Type25
A (H)mm25
Bmm150
C (LF)mm38
LHmm32
F (WF)mm~
Emm

Recommended Accessories

L0521
35° Rhombic Positive Turning Insert
VCMT160404HQ
Grade CA125P - General Purpose Steel
10 Inserts Per Pack
Code: L0521
View Product
L0522
KENNAMETAL Carbide Inserts - Turning
VBGT 160404 HP
Grade KC5410 - Aluminium
5 Inserts Per Pack
Code: L0522
View Product
L5229
SEAT to Suit Tool Holder
SMV-321
Suits SVJCR Toolholders
Code: L5229
View Product
L5225
Seat Pin to Suit Tool Holder
SN535
Suits SRDCN & SVJC Toolholders
Code: L5225
View Product
L5227
WRENCH to Suit Tool Holder

Suits SRDCN & SVJCR Toolholders LW035
Code: L5227
View Product
L5224
SCREW to Suit Tool Holder

Suits SVJC Toolholders
Code: L5224
View Product
L538
Key to Suit Tool Holder
T-15
Suits SER, SIR, SIN, SSSC, SVJC, SRDCN Tool Holders & F45SE Milling Cutters
Code: L538
View Product
