Round / Positive - Turning Tool Holder SRDCN-1616H10T3S 16mm Tool Height

Description

Quality Tipped Tool Holders ISO Standard to suit Tungsten Carbide Indexable Insert Tips.

NOTE: Inserts not included with tool holders

Use insert RCMT10T3M0TN15 (L0525)
SHIM SMR-1003 (aka the SEAT) (L5228)
SHIM SCREW SN535 (L5225)
INSERT SCREW CS35115 (L5226)
SHIM SCREW WRENCH LW035 (L5227)
SCREW TORX KEY FT-15 (L538)

Please note the ‘SHIM SCREW’ is installed with ‘SHIM SCREW WRENCH’ SN535 and once installed the INSERT is then held into place via the INSERT SCREW CS35115 which then screws into the SHIM SCREW (if shim breakage occurs both screws should be replaced)

Features

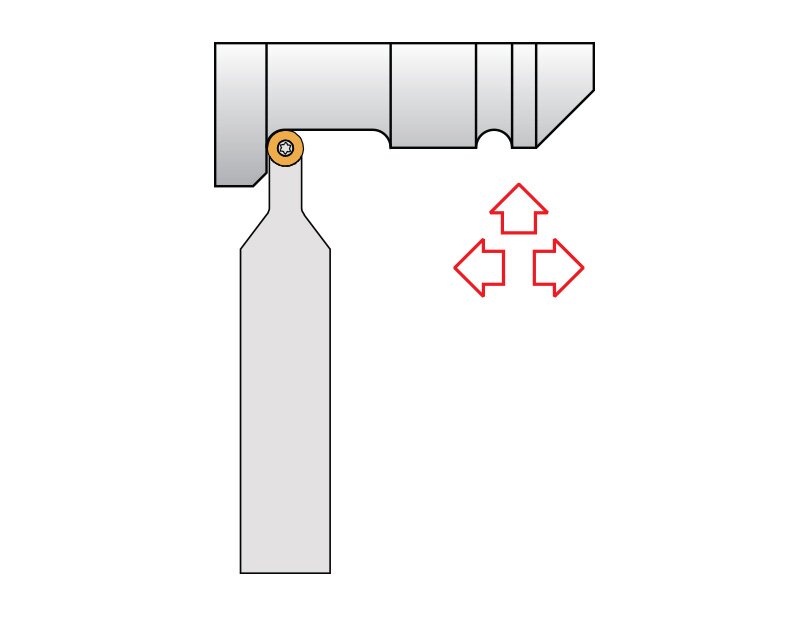

• Positive rake profiling tool holder with round insert
• Finishing to Medium metal removal applications
