Code L4062
Model SVJCR-2020K16
Capacity 20mm Tool Height
Weight (kg) 0.4
Weight (m3) 0.000
Weight (Freight) 0.4
Dimensions (cm) 13 x 4 x 4
TOOLMASTER
Taiwan
Product Brochure

93º Rhombic / Positive - Right Hand Turning Tool Holder SVJCR-2020K16 20mm Tool Height

Description

Quality Tipped Tool Holders ISO Standard to suit Tungsten Carbide Indexable Insert Tips.

NOTE: Inserts not included with tool holders

Use insert VCMT160404TN15 (L0521)

Features

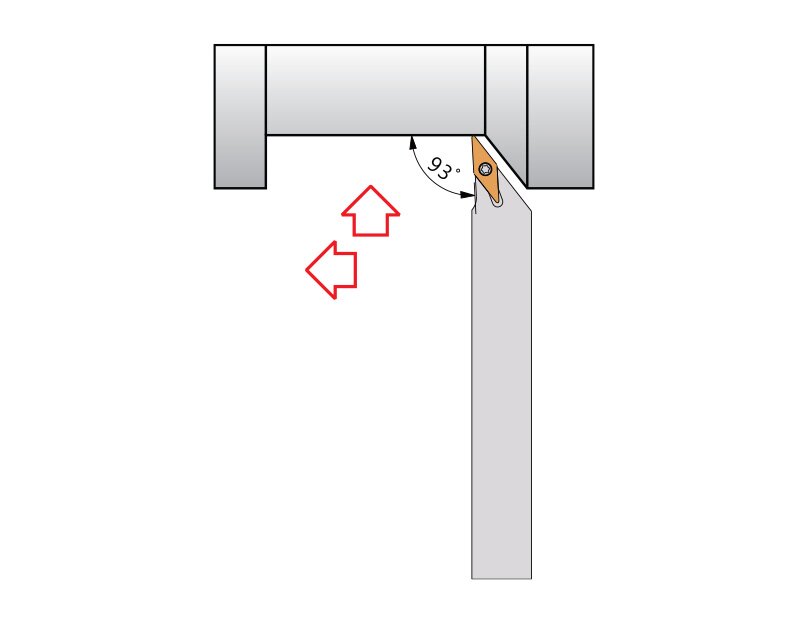

  • Multipurpose profiling toolholder with a 93º approach angle, equipped with rhombic positive insert (angle 35°)
  • For roughing, semi-finishing, finishing and general applications
  • Right hand tool holder suitable for turning towards the chuck

Specifications

ORDER CODESVJC
Part Number - Style20
Tool Height SizemmCenter screw
Clamping Method of InsertExternal turning
CategorySquare shank
Connection style20x20
Back End SizeProfiling



ApplicationRight
Hand Type93º
Holder StylePositive
Clearance AngleVCMT16
Insert Type20

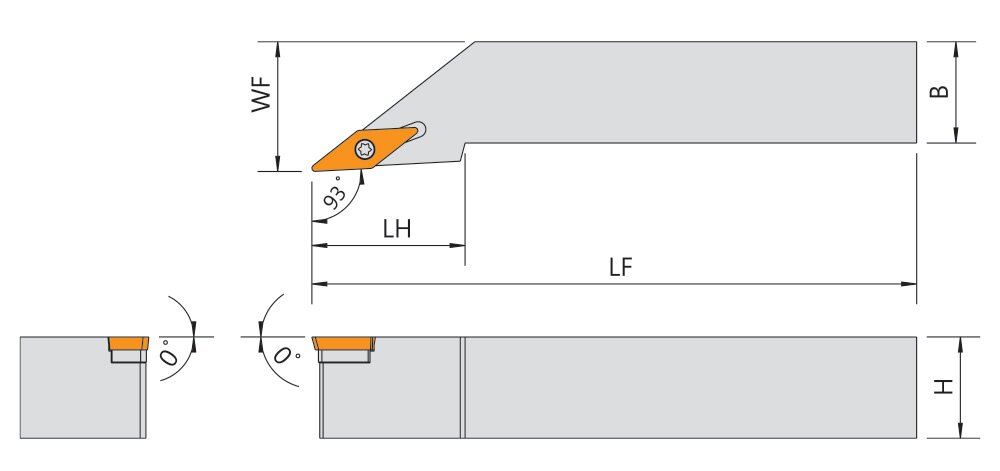

A (H)mm20
Bmm125
C (LF)mm33
LHmm25
F (WF)mm~
Emm
