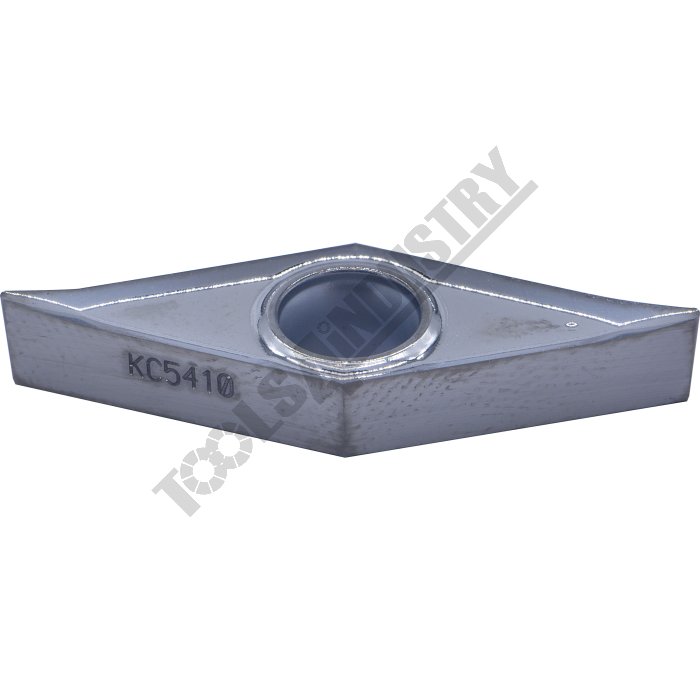

Side View

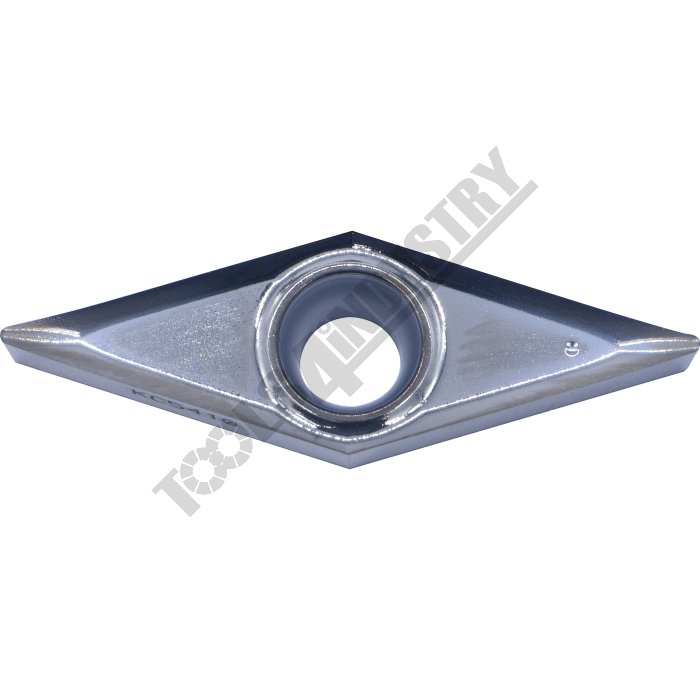

Top View

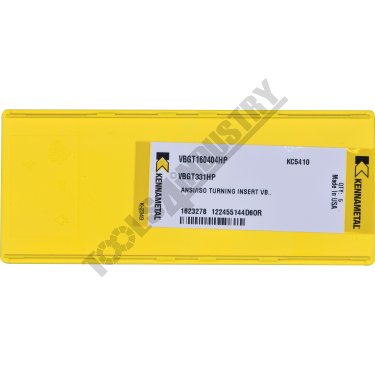

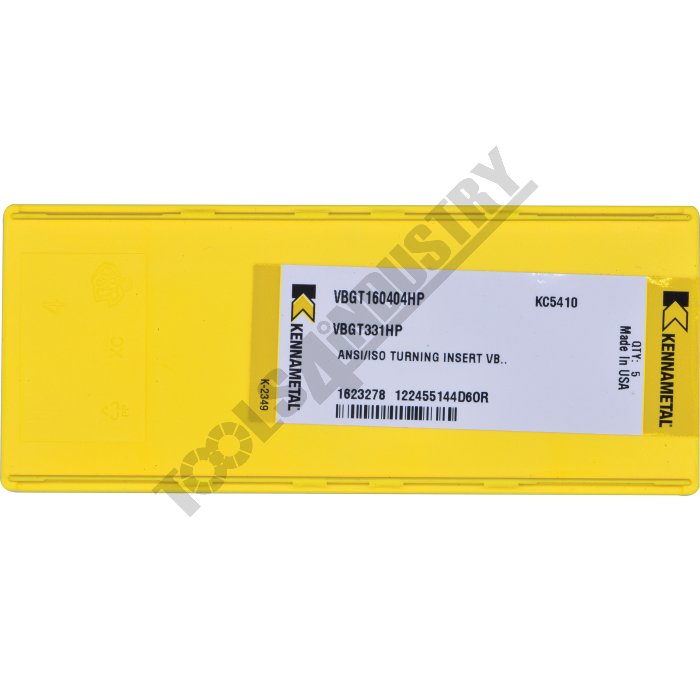

Label

Code	L0522
Model	VBGT 160404 HP
Capacity	Grade KC5410 - Aluminium
Weight (kg)	0.025
Weight (m³)	0.000
Weight (Freight)	0.025
Dimensions (cm)	11 x 5 x 1

Product Brochure

KENNAMETAL Carbide Inserts - Turning VBGT 160404 HP Grade KC5410 - Aluminium

Description

KC5410 Grade - Aluminium

Manufactured in Germany, the KENNAMETAL KC5410 HP insert is designed for high-performance machining of aluminium and other non-ferrous materials. Its premium PVD-coated carbide grade provides excellent wear resistance, smooth chip flow and superior surface finishes. Ideal for roughing, semi-finishing and finishing operations, it also performs well on nylon and plastics.

The "HP" indicates a high-positive, light-feed chipbreaker designed to achieve excellent finishes and prevent built-up edges.

Features

Made in Germany for exceptional quality and precision.
Premium PVD-coated insert on a highly deformation-resistant unalloyed substrate for extended tool life.
Optimised high-positive cutting geometry ensures smooth cutting action, reduced cutting forces and excellent chip control
Specifically designed for high-performance turning of aluminium. Also suitable for machining nylon, plastics and timber

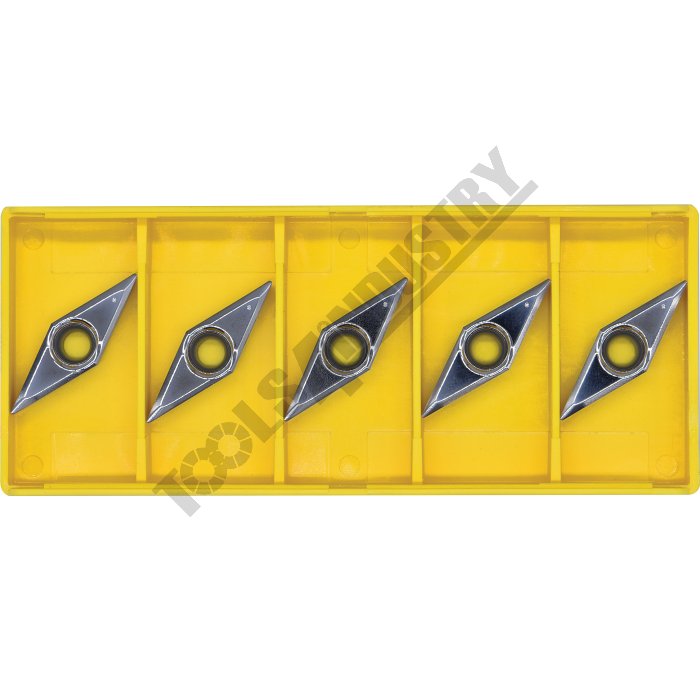

Supplied in a convenient pack of 5 inserts

Specifications

Compare 29 Products
ORDER CODE
MODEL
Grade
Application
Pieces in SetQty

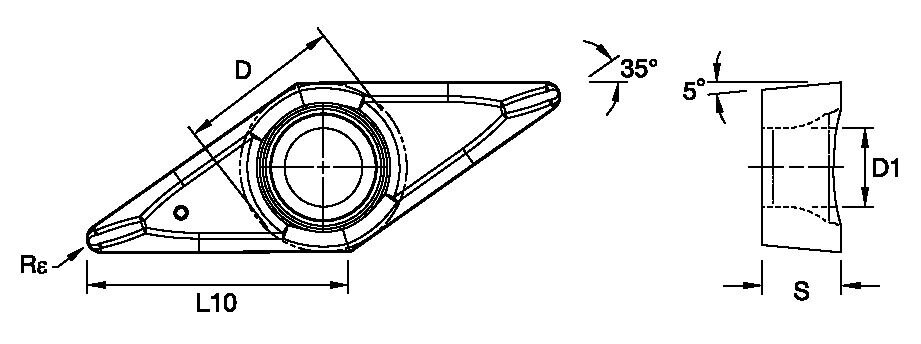

[D] Insert IC Size (Inscribed Circle)mm
[D1] Insert Hole Sizemm
[L10] Insert Cutting Edge Lengthmm
[S] Insert Thicknessmm
[Rε] Corner Radiusmm
Relief AngleDeg
dmm
Insert shapeStyle

L0522
VBGT 160404 HP
KC5410
Aluminium
5
9.53
4.4
16.61
4.76
0.4
5
~
Diamond (Rhombic)

L062
TCMT 110204HQ
CA125P
General Purpose Steel
10
11.0
2.80
~
2.38
0.40
~
6.35
~

L0525
TCGT 110204 HP
KC5410
Aluminium
5
6.35
2.8
11
2.38
0.4
~
~
Triangle

L061
TPMR 110304
CA125P
General Purpose Steel
10
11.0
~
~
3.18
0.40
~
6.35
~

L063
TPMR 160308
CA125P
General Purpose Steel
10
16.5
~
~
3.17
0.80
~
9.52
~

L054
TCMT 16T304HQ
CA525
General Purpose Steel
10
16.5
4.10
~
3.97
0.40
~
9.35
~

L0542
TCGT 16T304 HP
KC5410
Aluminium
5
9.53
4.4
16.5
3.97
0.4
~
~
Triangle

L0644
TNMG 160404HQ
CA115P
Finishing Steel
10
16.5
3.81
~
4.76
0.40
~
9.525
~

L064
TNMG 160408PS
CA125P
General Purpose Steel
10
16.5
3.81
~
4.76
0.80
~
9.525
~

L0648
TNMG 160408MS
CA6525
Stainless Steel
10
16.5
3.81
~
4.76
0.80
~
9.525
~

L0602
CNMG120408PS
CA125P
General Purpose Steel
10
12.7
5.16
~
4.76
0.80
~
12.7
~

L053
WNMG 080408PS
CA125P
General Purpose Steel
10
8.7
5.16
~
4.76
0.8
~
12.7
~

L0534
WNMG 080404HQ
CA115P
Finishing Steel
10
8.7
5.16
~
4.76
0.4
~
12.7
~

L0538
WNMG 080408MS
CA6525
Stainless Steel
10
8.7
5.16
~
4.76
0.8
~
12.7
~

L0539
WNGP 080408 HP
KC5410
Aluminium
5
12.7
5.16
8.69
4.76
0.8
~
~
Trigon / Diamond

L009A
Suits 12mm Lathe Set
~
General Purpose Steel
9
~
~
~
~
~
~
~
~

L0098
Suits 12mm Lathe Set
~
General Purpose Steel
10
~
~
~
~
~
~
~
~

L0078
Suits 16mm Lathe Set
~
General Purpose Steel
10
~
~
~
~
~
~
~
~

L060
CCMT 060204GK
CA125P
General Purpose Steel
10
6.35
2.8
~
2.38
0.4
7°
~
~

L0601
CCGT 060204 HP
KC5410
Aluminium
5
6.35
2.8
6.47
2.38
0.40
7°
~
Rhombic

L060A
CCMT 9T304GK
CA125P
General Purpose Steel
10
9.525
4.4
~
3.97
0.40
7°
~
~

L060B
CCGT 09T304 HP
KC5410
Aluminium
5
9.53
4.4
9.67
3.97
0.40
7°
~
Rhombic

L0615
TCMT 090204HQ
CA525
General Purpose Steel
10
5.56
2.5
~
2.38
0.4
7°
~
~

L0515
SCMT09T304HQ
CA125P
Finishing to Medium
10
9.525
4.4
~
3.97
0.4
7°
~
~

L0525
RCMT10T3M0TN15
TN15
Finishing Medium
10
~
~
~
3.97
~
7°
Ø10mm
R - Round

L0519
VCMT110304HQ
CA125P
General Purpose Steel
10
6.35
2.75
~
3.18
0.4
7°
~
~

L0520
VBGT 110304 HP
KC5410
Aluminium
5
6.35
2.8
11.07
3.18
0.4
5
~
Diamond (Rhombic)

L0517
SNMG120404HQ
CA125P
Roughing
10
12.7
5.16
~
4.76
0.4
~
~
~

L0521
VCMT160404HQ
CA125P
General Purpose Steel
10
9.53
4.4
~
4.76
0.4
7°
~
~

ORDER CODE	VBGT 160404 HP
MODEL	KC5410
Grade	Aluminium
Application	5
Pieces in SetQty	9.53
[D] Insert IC Size (Inscribed Circle)mm	4.4
[D1] Insert Hole Sizemm	16.61
[L10] Insert Cutting Edge Lengthmm	4.76
[S] Insert Thicknessmm	0.4
[Rε] Corner Radiusmm	5
Relief AngleDeg	~
dmm	Diamond (Rhombic)
Insert shapeStyle
