Code	L053
Model	WNMG 080408PMG
Capacity	Grade CA125P - General Purpose Steel
Weight (kg)	0.1
Weight (m³)	0.000
Weight (Freight)	0.1
Dimensions (cm)	7 x 2 x 2

Product Brochure

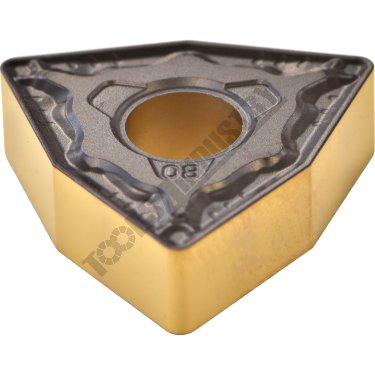

KYOCERA Carbide Inserts - Turning WNMG 080408PMG Grade CA125P - General Purpose Steel

Description

CA125P Grade CVD Coated Carbide for Steel
Suitable for continuous to heavy interrupted machining, these inserts are designed for general-purpose applications.

PMG Chipbreaker
Covers a wide range of machining applications from medium machining to roughing.
Excellent wear resistance with low cutting force design. Reduces chip shape inconsistencies and improves tool life.

Features

Japanese Made
CVD Coated Carbide with Thin Ultra-fine TiCN Coating

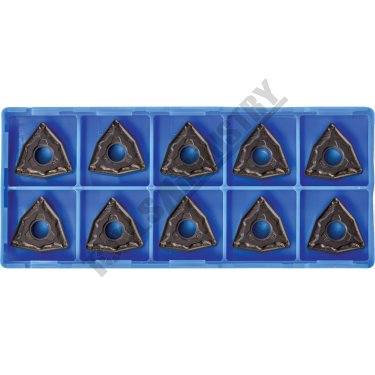

10 Inserts Per Pack

Specifications

Compare 29 Products
ORDER CODE
MODEL
Grade
Application
Pieces in SetQty
[D] Insert IC Size (Inscribed Circle)mm
[D1] Insert Hole Sizemm
[L10] Insert Cutting Edge Lengthmm
[S] Insert Thicknessmm
[Rε] Corner Radiusmm
Relief AngleDeg
dmm
Insert shapeStyle

L053
WNMG 080408PS
CA125P
General Purpose Steel
10
8.7
5.16
~
4.76
0.8
~
12.7
~

L0534
WNMG 080404HQ
CA115P
Finishing Steel
10
8.7
5.16
~
4.76
0.4
~
12.7
~

L0538
WNMG 080408MS
CA6525
Stainless Steel
10
8.7
5.16
~
4.76
0.8
~
12.7
~

L0539
WNGP 080408 HP
KC5410
Aluminium
5
12.7
5.16
8.69
4.76
0.8
~
~
Trigon / Diamond

L009A
Suits 12mm Lathe Set
~
General Purpose Steel
9
~
~
~
~
~
~
~
~

L0098
Suits 12mm Lathe Set
~
General Purpose Steel
10
~
~
~
~
~
~
~
~

L0078
Suits 16mm Lathe Set
~
General Purpose Steel
10
~
~
~
~
~
~
~
~

L060
CCMT 060204GK
CA125P
General Purpose Steel
10
6.35
2.8
~
2.38
0.4
7°
~
~

L0601
CCGT 060204 HP
KC5410
Aluminium
5
6.35
2.8
6.47
2.38
0.40
7°
~
Rhombic

L060A
CCMT 9T304GK
CA125P
General Purpose Steel
10
9.525
4.4
~
3.97
0.40
7°
~
~

L060B
CCGT 09T304 HP
KC5410
Aluminium
5
9.53
4.4
9.67
3.97
0.40
7°
~
Rhombic

L0615
TCMT 090204HQ
CA525
General Purpose Steel
10
5.56
2.5
~
2.38
0.4
7°
~
~

L0515
SCMT09T304HQ
CA125P
Finishing to Medium
10
9.525
4.4
~
3.97
0.4
7°
~
~

L0525
RCMT10T3M0TN15
TN15
Finishing Medium
10
~
~
~
3.97
~
7°
Ø10mm
R - Round

L0519
VCMT110304HQ
CA125P
General Purpose Steel
10
6.35
2.75
~
3.18
0.4
7°
~
~

L0520
VBGT 110304 HP
KC5410
Aluminium
5
6.35
2.8
11.07
3.18
0.4
5
~
Diamond (Rhombic)

L0517
SNMG120404HQ
CA125P
Roughing
10
12.7
5.16
~
4.76
0.4
~
~
~

L0521
VCMT160404HQ
CA125P
General Purpose Steel
10
9.53
4.4
~
4.76
0.4
7°
~
~

L0522
VBGT 160404 HP
KC5410
Aluminium
5
9.53
4.4
16.61
4.76
0.4
5
~
Diamond (Rhombic)

L062
TCMT 110204HQ
CA125P
General Purpose Steel
10
11.0
2.80
~
2.38
0.40
~
6.35
~

L0525
TCGT 110204 HP
KC5410
Aluminium
5
6.35
2.8
11
2.38
0.4
~
~
Triangle

L061
TPMR 110304
CA125P
General Purpose Steel
10
11.0
~
~
3.18
0.40
~
6.35
~

L063
TPMR 160308
CA125P
General Purpose Steel
10
16.5
~
~
3.17
0.80
~
9.52
~

L054
TCMT 16T304HQ
CA525
General Purpose Steel
10
16.5
4.10
~
3.97
0.40
~
9.35
~

L0542
TCGT 16T304 HP
KC5410
Aluminium
5
9.53
4.4
16.5
3.97
0.4
~
~
Triangle

L0644
TNMG 160404HQ
CA115P
Finishing Steel
10
16.5
3.81
~
4.76
0.40
~
9.525
~

L064
TNMG 160408PS
CA125P
General Purpose Steel
10
16.5
3.81
~
4.76
0.80
~
9.525
~

L0648
TNMG 160408MS
CA6525
Stainless Steel
10
16.5
3.81
~
4.76
0.80
~
9.525
~

L0602
CNMG120408PS
CA125P
General Purpose Steel
10
12.7
5.16
~
4.76
0.80
~
12.7
~

ORDER CODE	WNMG 080408PS
MODEL	CA125P
Grade	General Purpose Steel
Application	10
Pieces in SetQty	8.7
[D] Insert IC Size (Inscribed Circle)mm	5.16
[D1] Insert Hole Sizemm	~
[L10] Insert Cutting Edge Lengthmm	4.76
[S] Insert Thicknessmm	0.8
[Rε] Corner Radiusmm	~
Relief AngleDeg	12.7
dmm	~
Insert shapeStyle
