Code	L4050
Model	SSSCR-1212H09
Capacity	12mm Tool Height
Weight (kg)	0.2
Weight (m³)	0.000
Weight (Freight)	0.2
Dimensions (cm)	12 x 3 x 3

TOOLMASTER

Taiwan

Product Brochure

45º Square / Positive - Right Hand Turning Tool Holder SSSCR-1212H09 12mm Tool Height

Description

Quality Tipped Tool Holders ISO Standard to suit Tungsten Carbide Indexable Insert Tips.

NOTE: Inserts not included with tool holders

Use insert SCMT09T304HQ (L0515)

Features

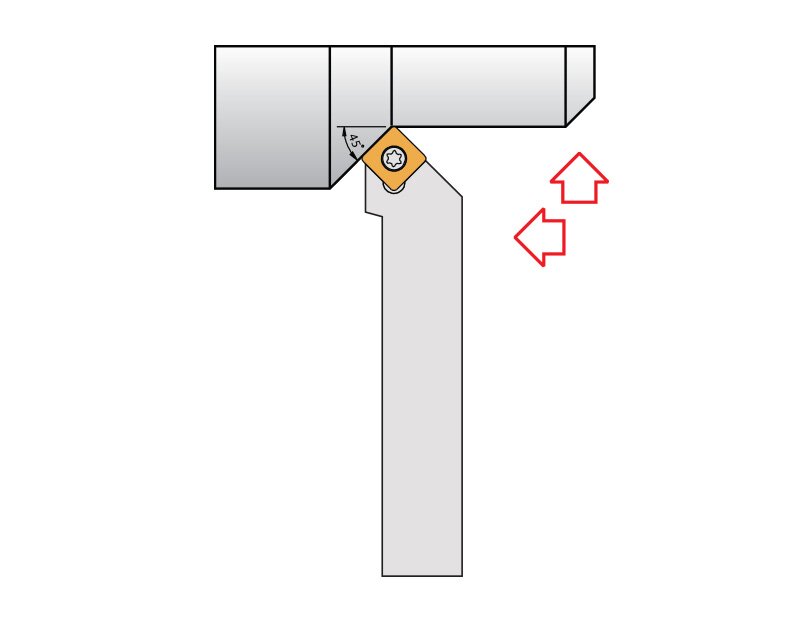

Toolholder with 45º approach angle for external turning and chamfering applications equipped with square positive inserts
Right hand tool holder suitable for turning towards the chuck

Specifications

Compare 27 Products
ORDER CODE
Part Number - Style
Tool Height Sizemm
Clamping Method of Insert
Category
Connection style
Back End Size
Application
Hand Type
Holder Style
Clearance Angle
Insert Type

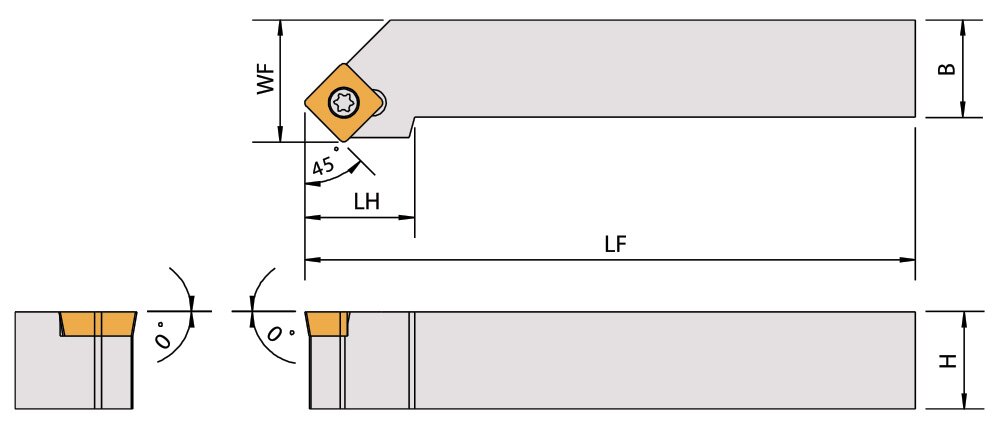

A (H)mm
Bmm
C (LF)mm
LHmm
F (WF)mm
Emm

L4050
SSSC
12
Center screw
External turning
Square shank
12x12
Chamfer turning
Turning
Right
45º
Positive
SCMT09
12
12
100
20
16
~

L4052
SSSC
16
Center screw
External turning
Square shank
16x16
Chamfer turning
Turning
Right
45º
Positive
SCMT09
16
16
100
20
20
~

L4054
PSSN
20
Lever lock
External turning
Square shank
20x20
Chamfer turning
Facing
Profiling
Turning
Right
45º
Negative
SNMG12
20
20
125
30
25
~

L4056
PSSN
25
Lever lock
External turning
Square shank
25x25
Chamfer turning
Facing
Profiling
Turning
Right
45º
Negative
SNMG12
25
25
150
30
32
~

L4058
SVJC
12
Center screw
External turning
Square shank
12x12
Profiling
Right
93º
Positve
VCMT11
12
12
100
~
12
~

L4060
SVJC
16
Center screw
External turning
Square shank
16x16
Profiling
Right
93º
Positive
VCMT11
16
16
100
~
16
~

L4062
SVJC
20
Center screw
External turning
Square shank
20x20
Profiling
Right
93º
Positive
VCMT16
20
20
125
33
25
~

L4064
SVJC
25
Center screw
External turning
Square shank
25x25
Profiling
Right
93º
Positive
VCMT16
25
25
150
38
32
~

L4070
SRDCN
16
Center screw
External turning
Square shank
16x16
Profiling Turning
Neutral
45°
Positive
RCMT10
16
16
100
20.3
13
~

L4071
SRDCN
20
Center screw
External turning
Square shank
20x20
Profiling Turning
Neutral
45°
Positive
RCMT10
20
20
125
20.3
15
~

L4072
SRDCN
25
Center screw
External turning
Square shank
25x25
Profiling Turning
Neutral
45°
Positive
RCMT10
25
25
150
20.3
17.5
~

L046
WTJN
20
~
~
~
~
~
Right
~
~
TNMG16
20
20
125
~
20
32

L047
WTJN
20
~
~
~
~
~
Left
~
~
TNMG16
20
20
125
~
20
32

L039
MWLN
20
~
~
~
~
~
Right
~
~
WNMG08
20
20
125
~
25
~

L040
MWLN
20
~
~
~
~
~
Left
~
~
WNMG08
20
20
125
~
25
~

L048
WTJN
25
~
~
~
~
~
Right
~
~
TNMG16
25
25
150
~
25
32

L049
WTJN
25
~
~
~
~
~
Left
~
~
TNMG16
25
25
150
~
25
32

L041
MWLN
25
~
~
~
~
~
Right
~
~
WNMG08
25
25
150
~
32
~

L042
MWLN
25
~
~
~
~
~
Left
~
~
WNMG08
25
25
150
~
32
~

L012
SCLC
10
~
~
~
~
~
Right
~
~
CCMT06
10
10
100
~
12
~

L0121
SCLC
10
~
~
~
~
~
Left
~
~
CCMT06
10
10
100
~
12
~

L015
STGC
12
~
~
~
~
~
Right
~
~
TCMT11
12
12
100
~
16
~

L016
STGC
12
~
~
~
~
~
Left
~
~
TCMT11
12
12
100
~
16
~

L017
STGC
16
~
~
~
~
~
Right
~
~
TCMT11
16
16
100
~
20
~

L018
STGC
16
~
~
~
~
~
Left
~
~
TCMT11
16
16
100
~
20
~

L044
MTJN
16
~
~
~
~
~
Right
~
~
TNMG16
16
16
100
~
20
30

L045
MTJN
16
~
~
~
~
~
Left
~
~
TNMG16
16
16
100
~
20
30

ORDER CODE	SSSC
Part Number - Style	12
Tool Height Sizemm	Center screw
Clamping Method of Insert	External turning
Category	Square shank
Connection style	12x12
Back End Size	Chamfer turning Turning
Application	Right
Hand Type	45º
Holder Style	Positive
Clearance Angle	SCMT09
Insert Type	12
A (H)mm	12
Bmm	100
C (LF)mm	20
LHmm	16
F (WF)mm	~
Emm

Recommended Accessories

L0515

KYOCERA Carbide Inserts - Turning
SCMT09T304HQ
Grade CA125P - Finishing to Medium
10 Inserts Per Pack

Code: L0515

L5221

Screw to Suit Turning Tool Holder

Suits SSSC Tool Holders

Code: L5221

L5222

Seat to Suit Tool Holder
SMS-422
Suits PSSN Toolholders

Code: L5222

L538

Key to Suit Tool Holder
T-15
Suits SER, SIR, SIN, SSSC, SVJC, SRDCN Tool Holders & F45SE Milling Cutters

Code: L538
