Code	L4060
Model	SVJCR-1616H11N
Capacity	16mm Tool Height
Weight (kg)	0.2
Weight (m³)	0.000
Weight (Freight)	0.2
Dimensions (cm)	12 x 3 x 3

TOOLMASTER

Taiwan

Product Brochure

93º Rhombic / Positive - Right Hand Turning Tool Holder SVJCR-1616H11N 16mm Tool Height

Description

Quality Tipped Tool Holders ISO Standard to suit Tungsten Carbide Indexable Insert Tips.

NOTE: Inserts not included with tool holders

Use insert VCMT110304 (L0519)

Features

Multipurpose profiling toolholder with a 93º approach angle, equipped with rhombic positive insert (angle 35°)
For roughing, semi-finishing, finishing and general applications

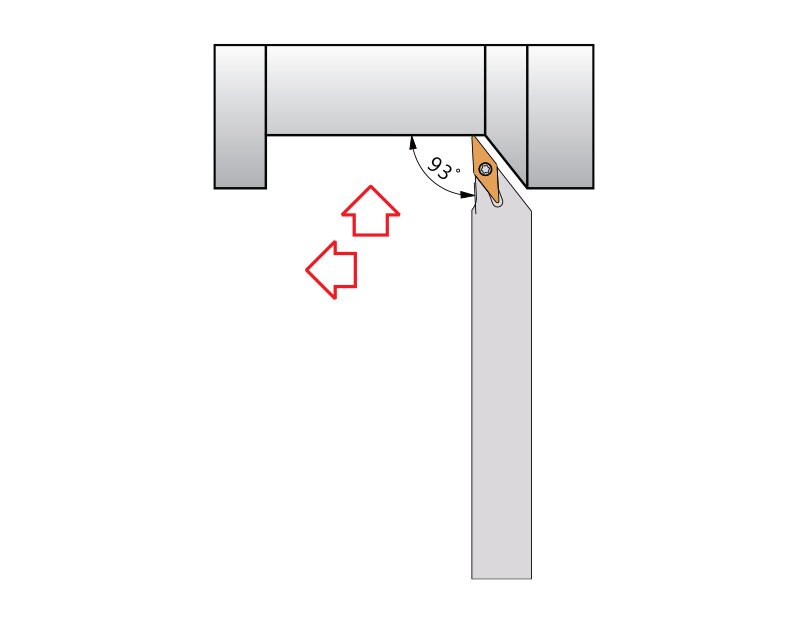

Right hand tool holder suitable for turning towards the chuck

Specifications

Compare 27 Products
ORDER CODE
Part Number - Style
Tool Height Sizemm
Clamping Method of Insert
Category
Connection style
Back End Size
Application
Hand Type
Holder Style
Clearance Angle
Insert Type

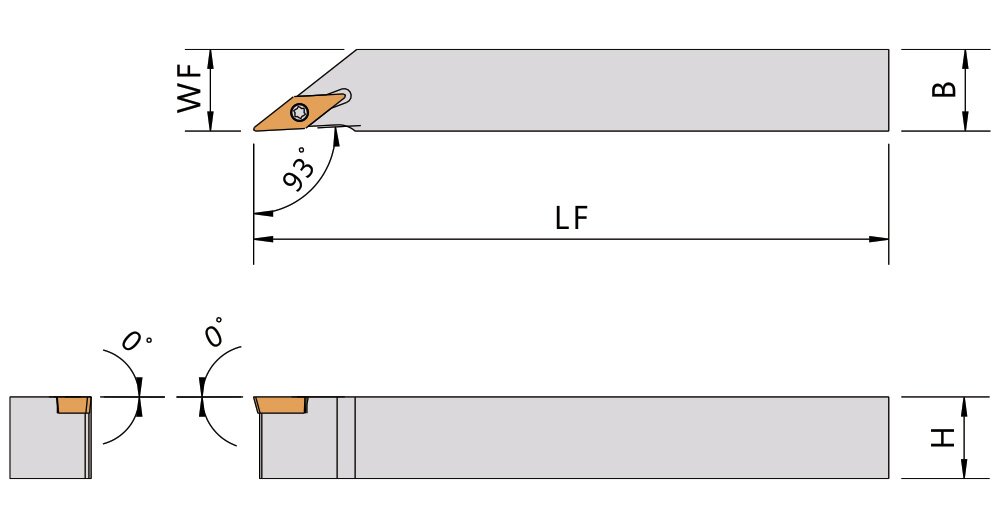

A (H)mm
Bmm
C (LF)mm
LHmm
F (WF)mm
Emm

L4060
SVJC
16
Center screw
External turning
Square shank
16x16
Profiling
Right
93º
Positive
VCMT11
16
16
100
~
16
~

L4062
SVJC
20
Center screw
External turning
Square shank
20x20
Profiling
Right
93º
Positive
VCMT16
20
20
125
33
25
~

L4064
SVJC
25
Center screw
External turning
Square shank
25x25
Profiling
Right
93º
Positive
VCMT16
25
25
150
38
32
~

L4070
SRDCN
16
Center screw
External turning
Square shank
16x16
Profiling Turning
Neutral
45°
Positive
RCMT10
16
16
100
20.3
13
~

L4071
SRDCN
20
Center screw
External turning
Square shank
20x20
Profiling Turning
Neutral
45°
Positive
RCMT10
20
20
125
20.3
15
~

L4072
SRDCN
25
Center screw
External turning
Square shank
25x25
Profiling Turning
Neutral
45°
Positive
RCMT10
25
25
150
20.3
17.5
~

L046
WTJN
20
~
~
~
~
~
Right
~
~
TNMG16
20
20
125
~
20
32

L047
WTJN
20
~
~
~
~
~
Left
~
~
TNMG16
20
20
125
~
20
32

L039
MWLN
20
~
~
~
~
~
Right
~
~
WNMG08
20
20
125
~
25
~

L040
MWLN
20
~
~
~
~
~
Left
~
~
WNMG08
20
20
125
~
25
~

L048
WTJN
25
~
~
~
~
~
Right
~
~
TNMG16
25
25
150
~
25
32

L049
WTJN
25
~
~
~
~
~
Left
~
~
TNMG16
25
25
150
~
25
32

L041
MWLN
25
~
~
~
~
~
Right
~
~
WNMG08
25
25
150
~
32
~

L042
MWLN
25
~
~
~
~
~
Left
~
~
WNMG08
25
25
150
~
32
~

L012
SCLC
10
~
~
~
~
~
Right
~
~
CCMT06
10
10
100
~
12
~

L0121
SCLC
10
~
~
~
~
~
Left
~
~
CCMT06
10
10
100
~
12
~

L015
STGC
12
~
~
~
~
~
Right
~
~
TCMT11
12
12
100
~
16
~

L016
STGC
12
~
~
~
~
~
Left
~
~
TCMT11
12
12
100
~
16
~

L017
STGC
16
~
~
~
~
~
Right
~
~
TCMT11
16
16
100
~
20
~

L018
STGC
16
~
~
~
~
~
Left
~
~
TCMT11
16
16
100
~
20
~

L044
MTJN
16
~
~
~
~
~
Right
~
~
TNMG16
16
16
100
~
20
30

L045
MTJN
16
~
~
~
~
~
Left
~
~
TNMG16
16
16
100
~
20
30

L4050
SSSC
12
Center screw
External turning
Square shank
12x12
Chamfer turning
Turning
Right
45º
Positive
SCMT09
12
12
100
20
16
~

L4052
SSSC
16
Center screw
External turning
Square shank
16x16
Chamfer turning
Turning
Right
45º
Positive
SCMT09
16
16
100
20
20
~

L4054
PSSN
20
Lever lock
External turning
Square shank
20x20
Chamfer turning
Facing
Profiling
Turning
Right
45º
Negative
SNMG12
20
20
125
30
25
~

L4056
PSSN
25
Lever lock
External turning
Square shank
25x25
Chamfer turning
Facing
Profiling
Turning
Right
45º
Negative
SNMG12
25
25
150
30
32
~

L4058
SVJC
12
Center screw
External turning
Square shank
12x12
Profiling
Right
93º
Positve
VCMT11
12
12
100
~
12
~

ORDER CODE	SVJC
Part Number - Style	16
Tool Height Sizemm	Center screw
Clamping Method of Insert	External turning
Category	Square shank
Connection style	16x16
Back End Size	Profiling
Application	Right
Hand Type	93º
Holder Style	Positive
Clearance Angle	VCMT11
Insert Type	16
A (H)mm	16
Bmm	100
C (LF)mm	~
LHmm	16
F (WF)mm	~
Emm

Recommended Accessories

L0519

35° Rhombic Positive Turning Insert
VCMT110304HQ
Grade CA125P - General Purpose Steel
10 Inserts Per Pack

Code: L0519

L0520

KENNAMETAL Carbide Inserts - Turning
VBGT 110304 HP
Grade KC5410 - Aluminium
5 Inserts Per Pack

Code: L0520

L5224

SCREW to Suit Tool Holder

Suits SVJC Toolholders

Code: L5224

L526

Key to Suit Tool Holder
T-7
Suits SCLC, STFC, STGC & SVJC Tool Holders

Code: L526
