Code	T462
Capacity	Ø1-Ø13mm Range
Weight (kg)	4.96
Weight (m³)	0.003
Weight (Freight)	4.96
Dimensions (cm)	24 x 10.5 x 10.5

TOOLMASTER

1 Year Warranty

Taiwan

Product Brochure

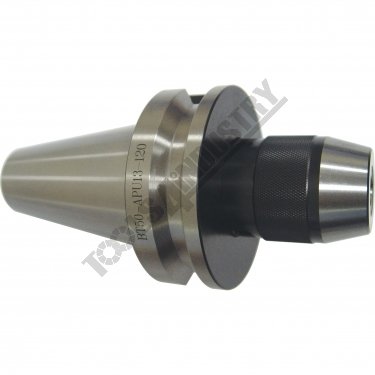

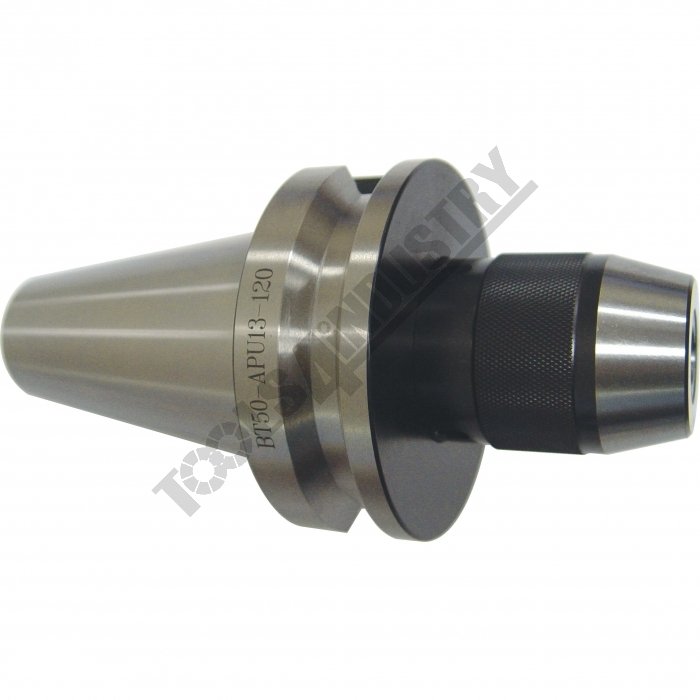

BT50-APU13-120 Drill Chuck BT APU Type Ø1-Ø13mm Range

Description

Manufactured to MAS403BT50 standard this one piece drill chuck is suitable for high speed CNC driling

Features

Precision ground
Rated at 8000rpm

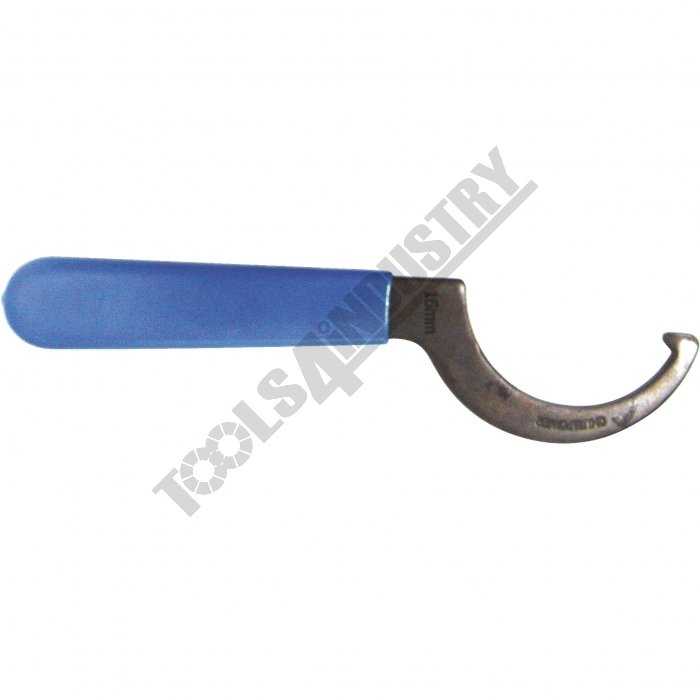

Supplied with "C" spanner for positive locking
M24 Pull Stud thread

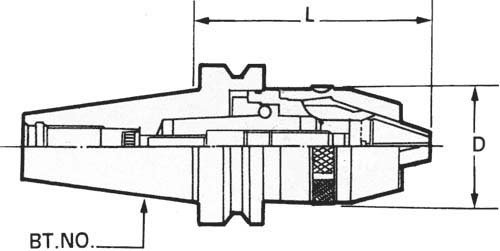

Specifications

Compare 4 Products
ORDER CODE
MODEL
Clamping Rangemm
Speed Ratingrpm
Dmm
L Min.mm
L Max.mm
Nett Weightkg

T462
BT50-APU13-120
1 - 13
8000
58
105
120
5.5

T344
BT30-APU13-100
1 - 13
8000
50.5
105.5
119
1.6

T190
BT40-APU13-110
1 - 13
8000
50
98
110
1.7

T194
BT40-APU16-120
3 - 16
6000
58
116
120
2.1

ORDER CODE	BT50-APU13-120
MODEL	1 - 13
Clamping Rangemm	8000
Speed Ratingrpm	58
Dmm	105
L Min.mm	120
L Max.mm	5.5
Nett Weightkg

Recommended Accessories

T445

Pull Stud
MAS P50T 45º Type 1
BT-50

Code: T445

D1272

Metric 135º Precision HSS Drill Set - 25 Piece

Ø1 - Ø13mm
0.5mm Increments

Code: D1272

D1282

Imperial 135º Precision HSS Drill Set - 29 Piece

Ø1/16" - Ø1/2"
1/64" Increments

Code: D1282

D126

Metric 135º Precision HSS Drill Set - 170 Pieces

Ø1 - Ø10mm
0.5mm Increments

Code: D126
