Code	T190
Capacity	Ø1-Ø13mm Range
Weight (kg)	2.08
Weight (m³)	0.002
Weight (Freight)	2.08
Dimensions (cm)	21.5 x 9 x 9

TOOLMASTER

1 Year Warranty

Taiwan

Product Brochure

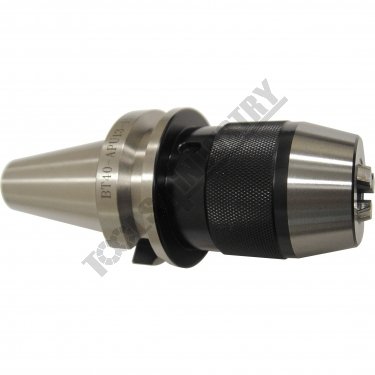

BT40-APU13-110 Drill Chuck BT APU Type Ø1-Ø13mm Range

Description

Manufactured to MAS403BT40 standard this one piece drill chuck is suitable for high speed CNC driling

Features

Precision ground
Rated at 8000rpm

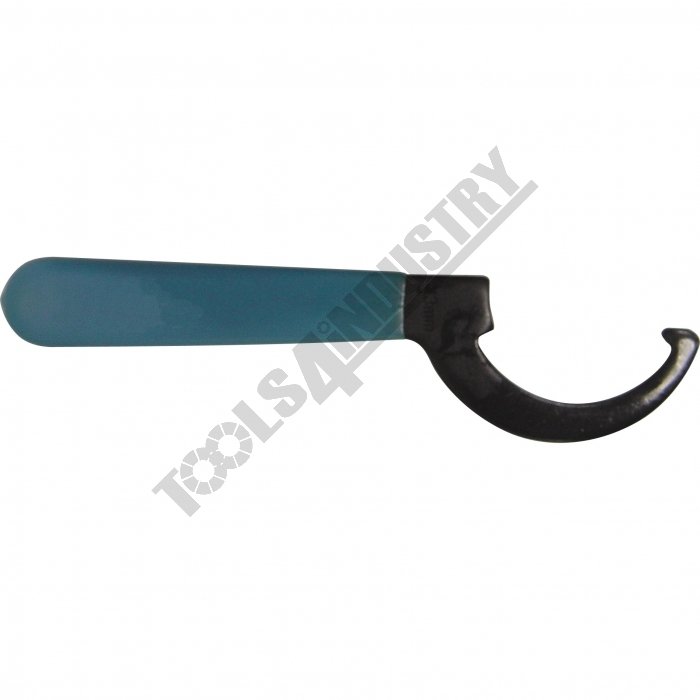

Supplied with "C" spanner for positive locking
M16 Pull Stud thread

Specifications

Compare 4 Products
ORDER CODE
MODEL
Clamping Rangemm
Speed Ratingrpm

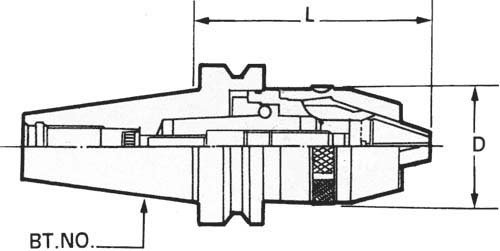

Dmm
L Min.mm
L Max.mm
Nett Weightkg

T190
BT40-APU13-110
1 - 13
8000
50
98
110
1.7

T194
BT40-APU16-120
3 - 16
6000
58
116
120
2.1

T462
BT50-APU13-120
1 - 13
8000
58
105
120
5.5

T344
BT30-APU13-100
1 - 13
8000
50.5
105.5
119
1.6

ORDER CODE	BT40-APU13-110
MODEL	1 - 13
Clamping Rangemm	8000
Speed Ratingrpm	50
Dmm	98
L Min.mm	110
L Max.mm	1.7
Nett Weightkg
