Code	T344
Capacity	Ø1-Ø13mm Range
Weight (kg)	1.5
Weight (m³)	0.001
Weight (Freight)	1.5
Dimensions (cm)	19 x 8 x 8

TOOLMASTER

1 Year Warranty

Taiwan

Product Brochure

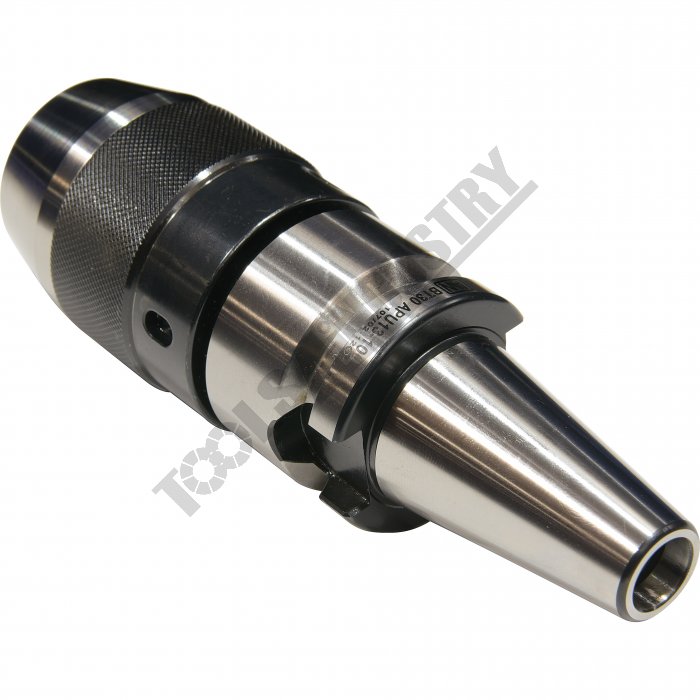

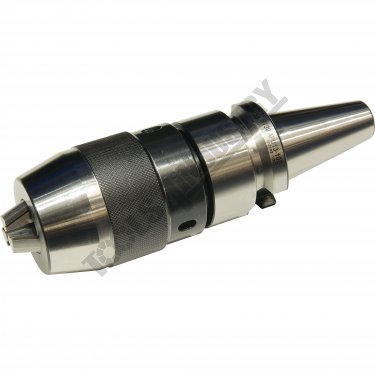

BT30-APU13-100 Drill Chuck BT APU Type Ø1-Ø13mm Range

Description

Manufactured to MAS403BT30 standard this one piece drill chuck is suitable for high speed CNC driling

Features

Precision ground
Rated at 8000rpm

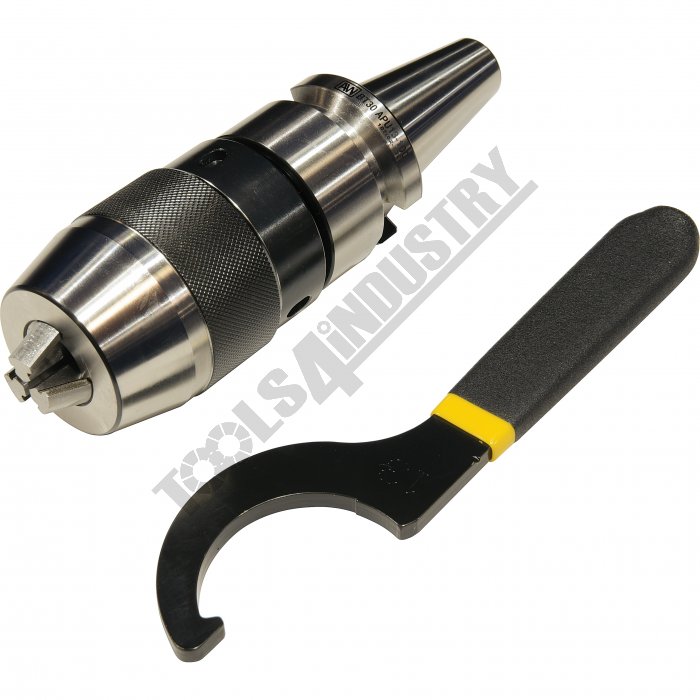

Supplied with "C" spanner for positive locking
M12 Pull Stud thread

Specifications

Compare 4 Products
ORDER CODE
MODEL
Clamping Rangemm
Speed Ratingrpm

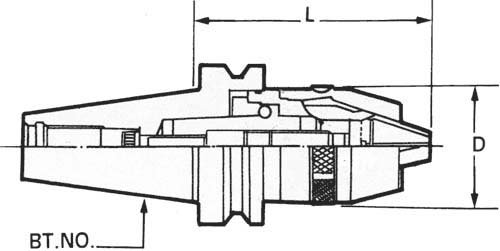

Dmm
L Min.mm
L Max.mm
Nett Weightkg

T344
BT30-APU13-100
1 - 13
8000
50.5
105.5
119
1.6

T190
BT40-APU13-110
1 - 13
8000
50
98
110
1.7

T194
BT40-APU16-120
3 - 16
6000
58
116
120
2.1

T462
BT50-APU13-120
1 - 13
8000
58
105
120
5.5

ORDER CODE	BT30-APU13-100
MODEL	1 - 13
Clamping Rangemm	8000
Speed Ratingrpm	50.5
Dmm	105.5
L Min.mm	119
L Max.mm	1.6
Nett Weightkg
