Code	T194
Capacity	Ø3-Ø16mm Range
Weight (kg)	7
Weight (m³)	0.002
Weight (Freight)	7
Dimensions (cm)	21.5 x 9 x 9

TOOLMASTER

1 Year Warranty

Taiwan

Product Brochure

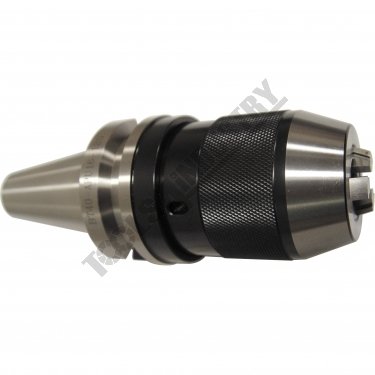

BT40-APU16-120 Drill Chuck BT APU Type Ø3-Ø16mm Range

Description

Manufactured to MAS403BT40 standard this one piece drill chuck is suitable for high speed CNC driling

Features

Precision ground
Rated at 6000rpm

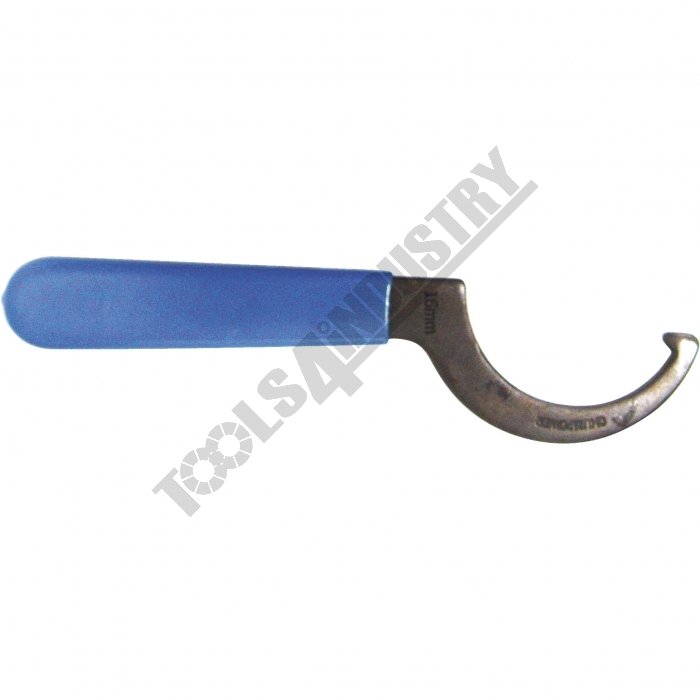

Supplied with "C" spanner for positive locking
M16 Pull Stud thread

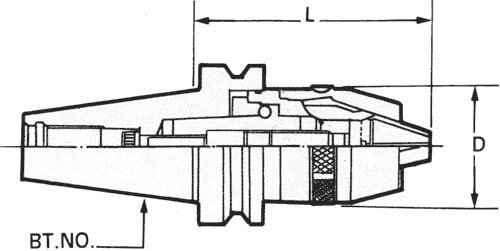

Specifications

Compare 4 Products
ORDER CODE
MODEL
Clamping Rangemm
Speed Ratingrpm
Dmm
L Min.mm
L Max.mm
Nett Weightkg

T194
BT40-APU16-120
3 - 16
6000
58
116
120
2.1

T462
BT50-APU13-120
1 - 13
8000
58
105
120
5.5

T344
BT30-APU13-100
1 - 13
8000
50.5
105.5
119
1.6

T190
BT40-APU13-110
1 - 13
8000
50
98
110
1.7

ORDER CODE	BT40-APU16-120
MODEL	3 - 16
Clamping Rangemm	6000
Speed Ratingrpm	58
Dmm	116
L Min.mm	120
L Max.mm	2.1
Nett Weightkg
