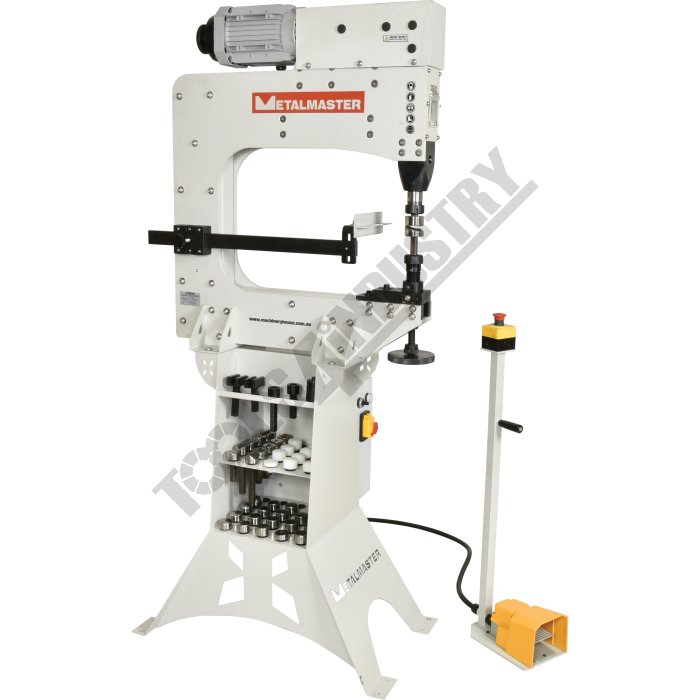

PHM-560 Power Hammer 1.2mm Mild Steel Capacity

Description

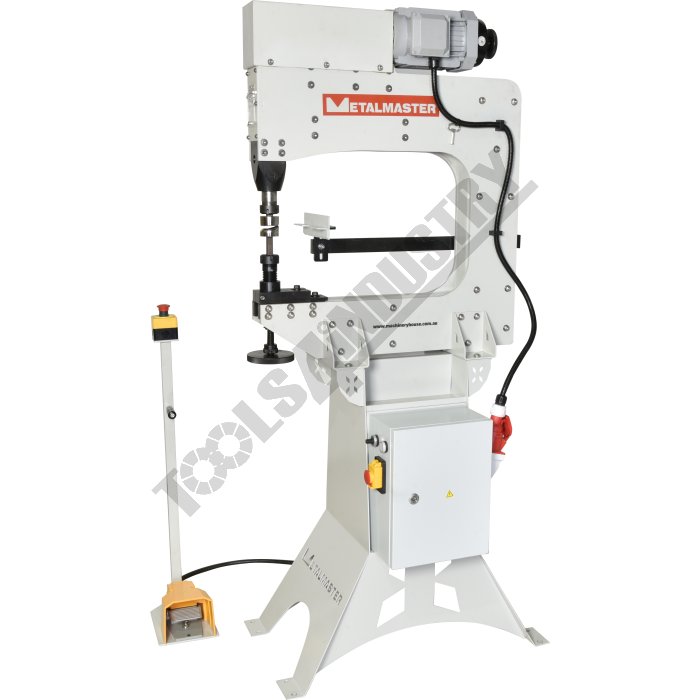

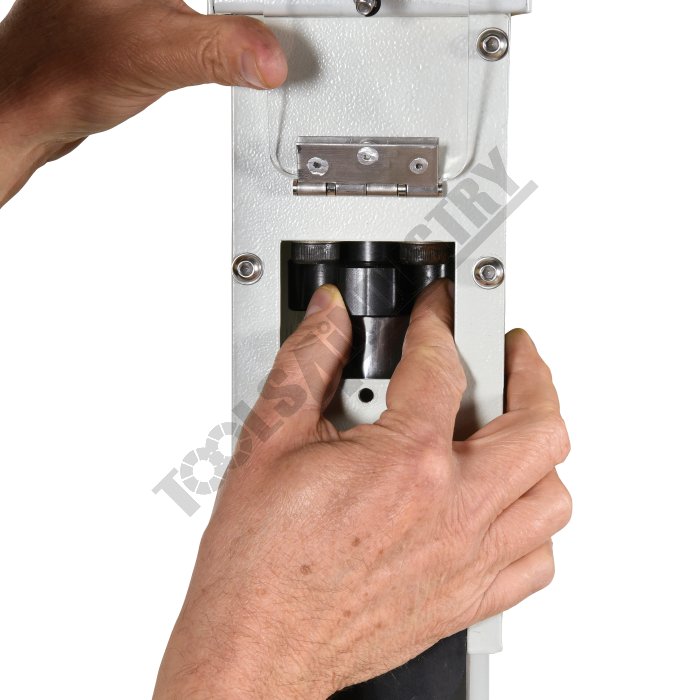

At last, there’s an affordable solution for metal shaping,The PHM-560MK2 Metalmaster Electric Power Hammer was designed to have all the features of larger machines without the price tag. The ability to switch between rigid and non-rigid modes to suit your project makes this machine even more flexible. Only limited by your imagination the PHM-560MK2 can shrink, stretch, dome, edge turn, bead and form louvers, ideal for shaping sheet metal for cars, motorbikes & airplane panels. It has a 12mm thick steel fabricated upper frame and is supplied with and extensive range of CR12 hardened steel dies for shaping steel and nylon dies for forming softer metals like aluminium. It has variable speed via inverter control, with 0-960 strokes
per minute and the capability of shaping up to 1.2mm steel
and up 1.6mm aluminium.

Features

  • Capacity - 1.2mm mild steel

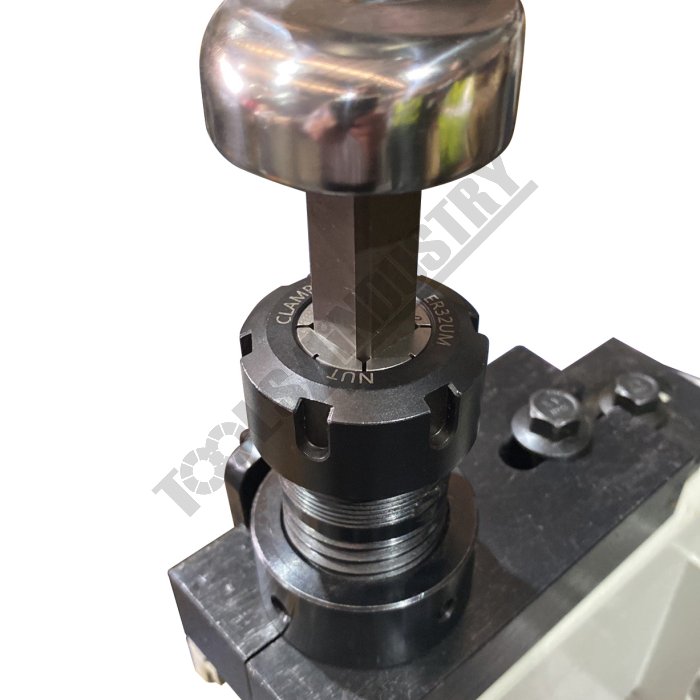

  • Quick change tool holder
  • Variable speed via inverter control, 0 - 960 blows per minute
  • 560mm throat depth capacity
  • 395mm throat height capacity

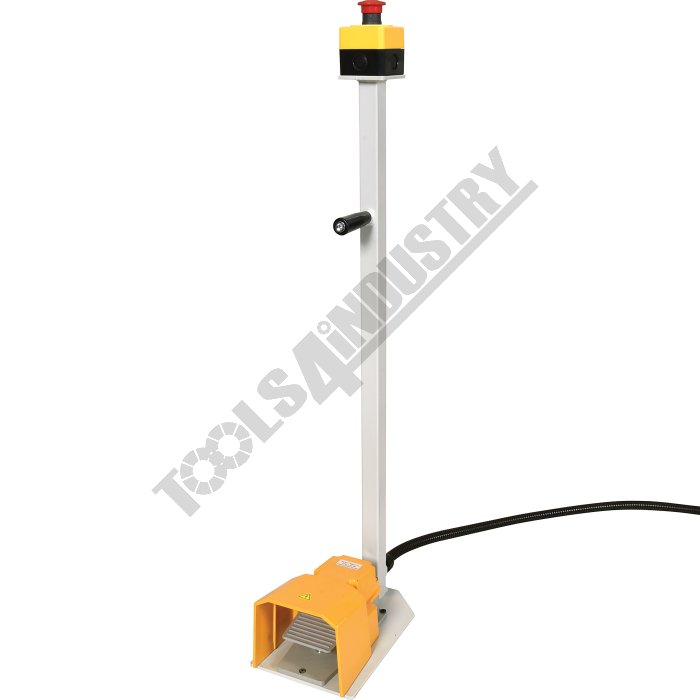

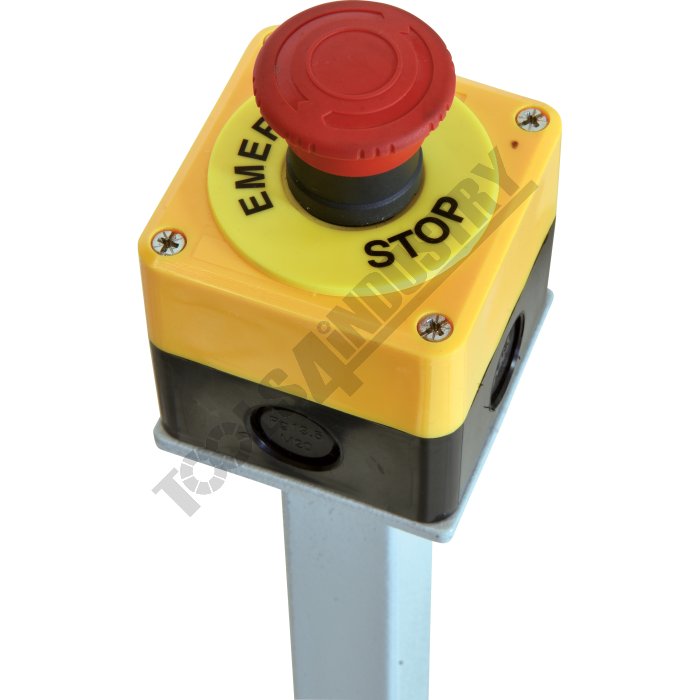

  • Foot pedal control with emergency stop

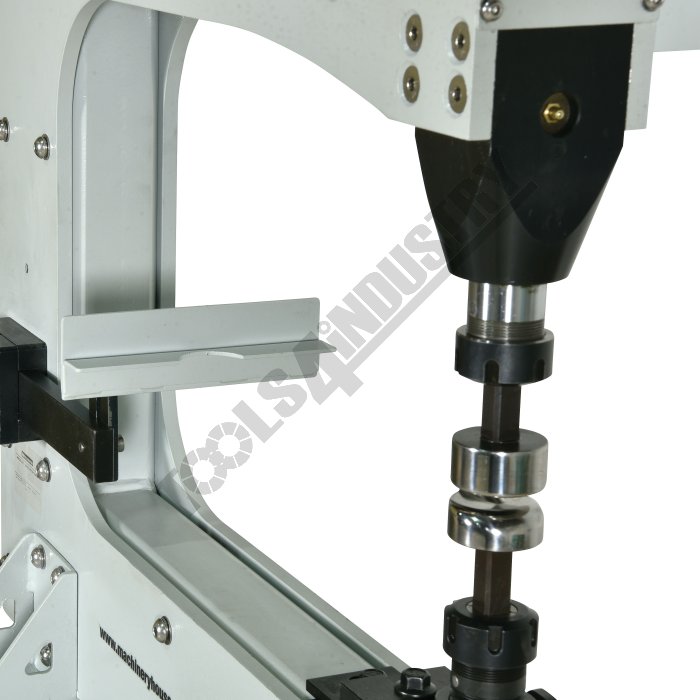

  • Steel fabricated upper frame - 12mm thick plate
  • Steel fabricated lower box section steel frame

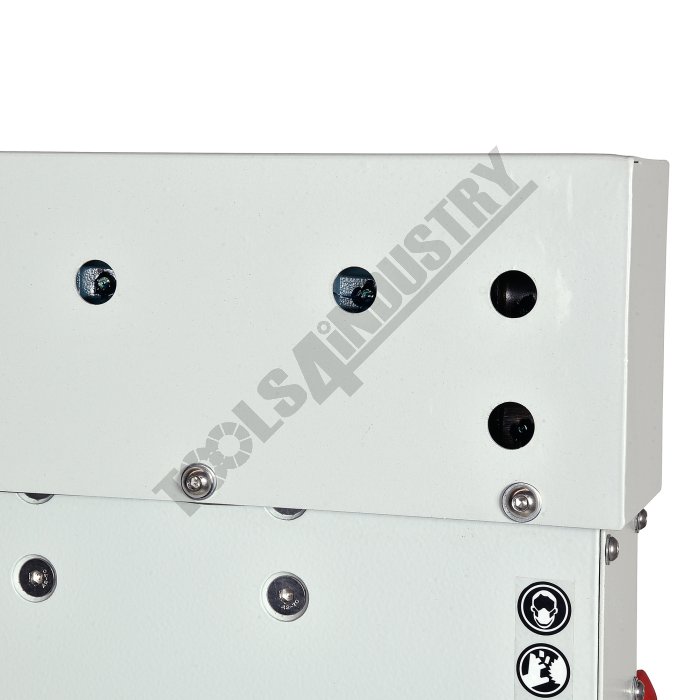

  • Drive shafts have bronze bushes & greasing points

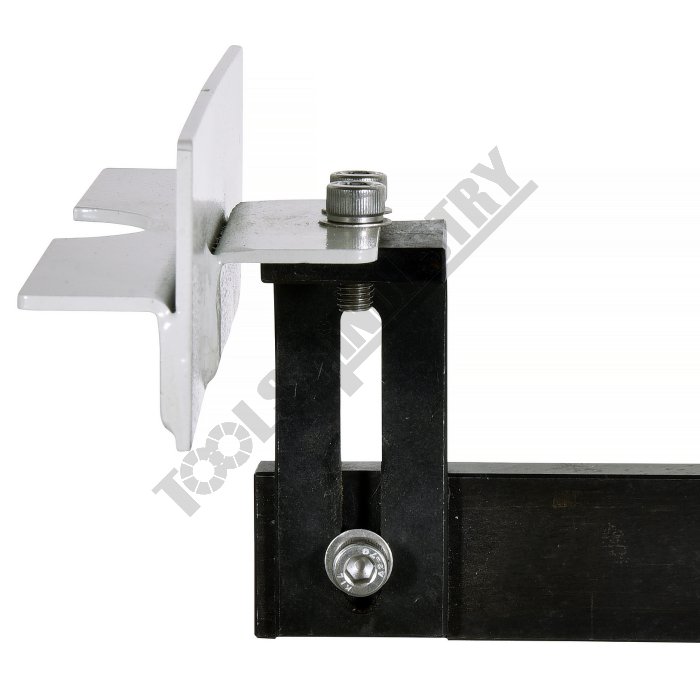

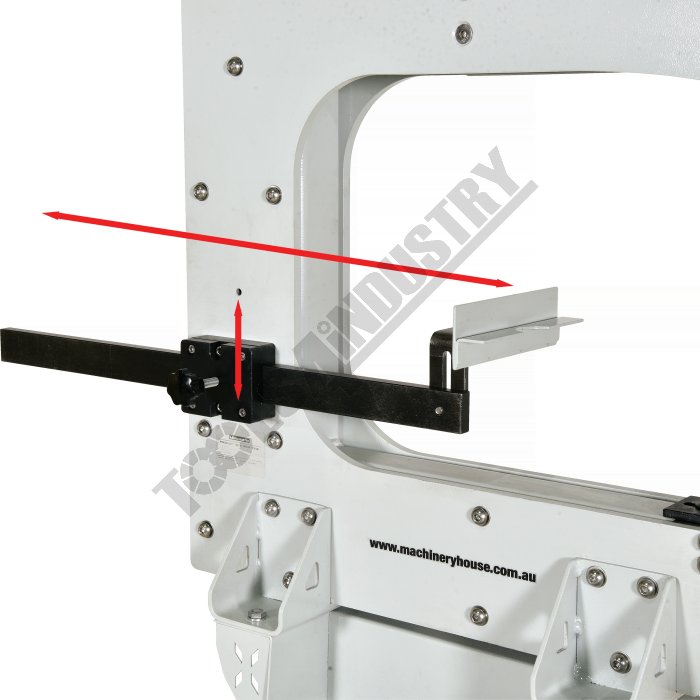

  • Adjustable heavy duty single arm length stop with 1 round roller & guide fence
  • Safety magnetic power switch
  • Steel dies made from CR12 steel & hardened
  • Nylon dies made from durable nylon
  • 1.1kW / 1.5hp, 240V motor

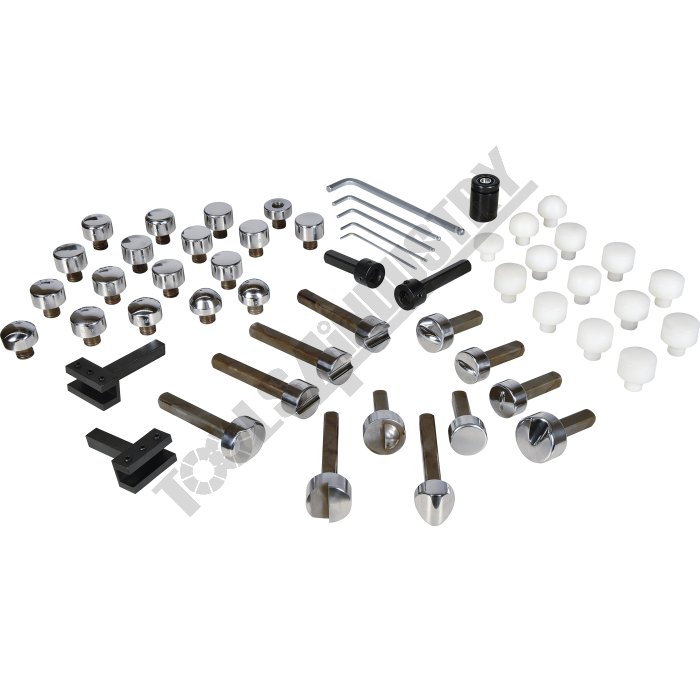

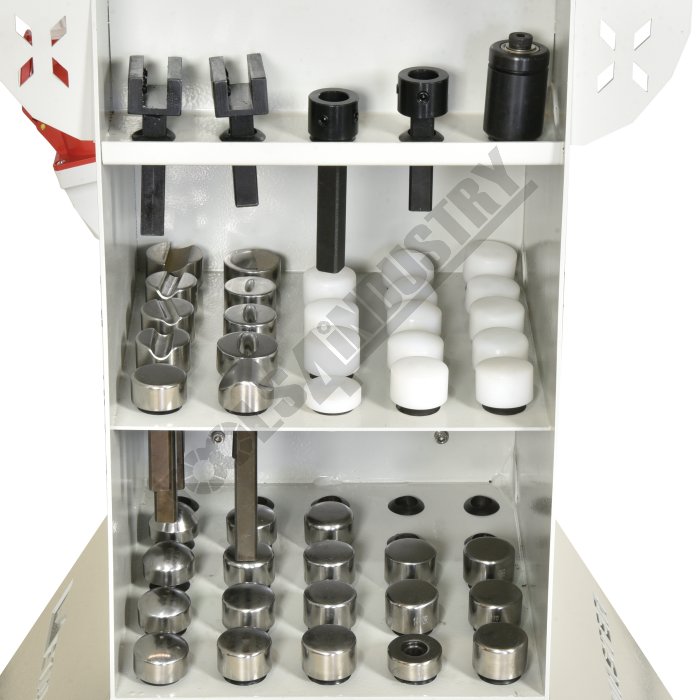

Includes

  • STEEL DIES

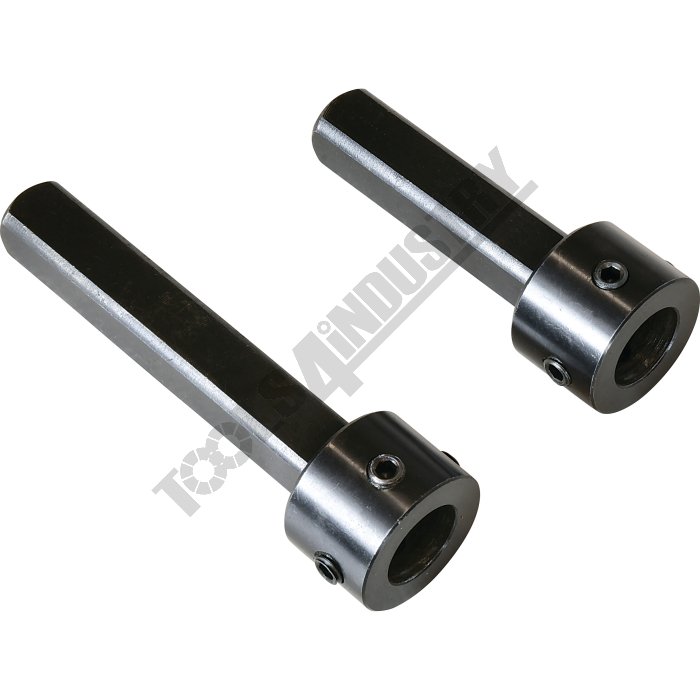

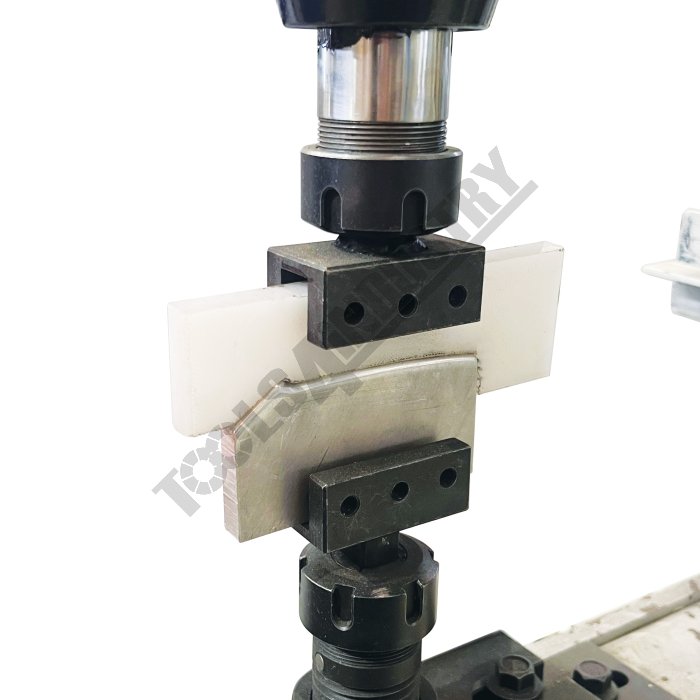

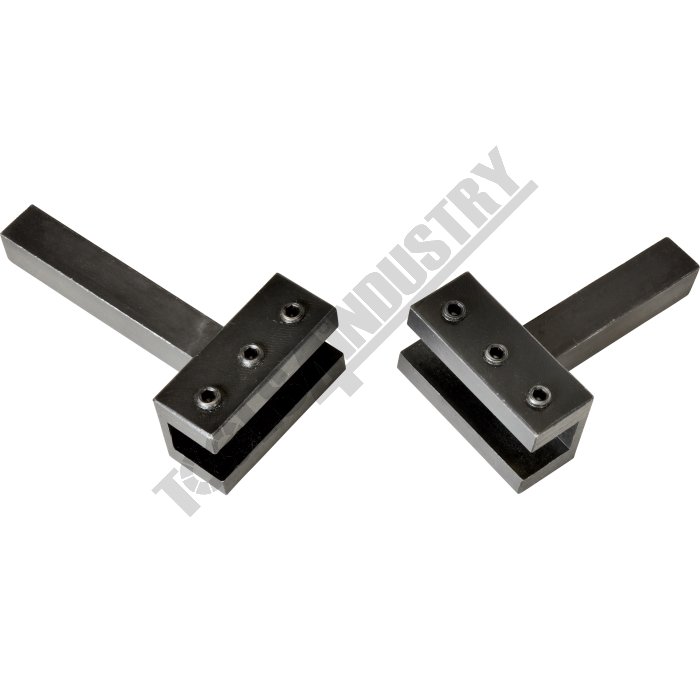

  • 1 x Set of Universal holders (16mm opening) for custom tooling

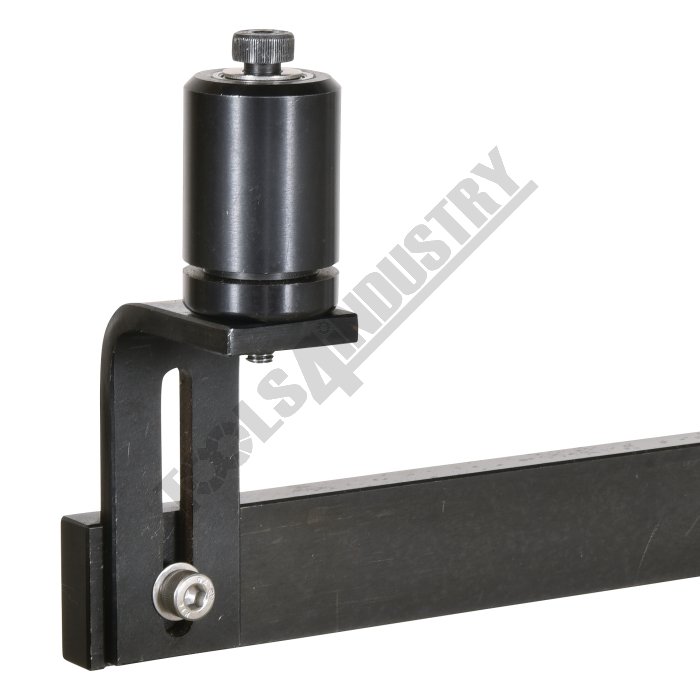

  • 1 x Roller guide for concave or convex shapes
  • 1 x Set of Thumbnail shrinking dies
  • 1 x Set of Louvre dies
  • 3 x Sets of Steel beading dies (1/4”, 3/8”, 1/2”)
  • 1 x Linear stretching die
  • 1 x Flat upper hammer die
  • 16 x Radius lower dies - 3/4", 7/8", 1", 1-1/8", 1-1/2", 1-7/8", 2", 3", 4", 5", 6" (1/16" radius edge), 6" radius (1/4" radius edge), 8", 14-1/2", 24", 36".

  • NYLON DIES
  • 1 x Flat upper hammer die
  • 13 x Radius lower dies - 3/4", 7/8", 1-1/8", 1-1/2", 1-7/8", 4", 5", 6" (1/16" radius edge), 6" (1/4" radius edge), 8", 14-1/2", 24", 36"

Specifications

ORDER CODEPHM-560
MODELPower Hammer

MachineType1.2 / 18
Mild Steel - Capacitymm / Gauge1.6 / 16
Aluminium - Capacitymm / Gauge~
Cubic feet per minuteCFM~
Tooling Height Adjustmentmm560
Throat Depthmm~
Length of Stroke Adjustmentmm~
Radius Anvil Sizesmm0 - 960 (Variable)
Speed - blows per minuteBPM~
Air ConsumptionCFM~
Working Heightmm~
Air Pressurepsi0.75 / 1
Motor PowerkW / hp240 / 10
Voltage / AmperageV / amp1050 x 750 x 1120
Shipping Dimensions (L x W x H)mm195
Nett Weightkg
