| Code | S2292 |
|---|---|
| Model | PHT-ETT |
| Capacity | 1.2mm Mild Steel Capacity |
| Weight (kg) | 1.8 |
| Weight (m3) | 0.004 |
| Weight (Freight) | 1.8 |
| Dimensions (cm) | 21 x 21 x 9 |
EDGE TURNING DIE SET PHT-ETT 1.2mm Mild Steel Capacity
Description

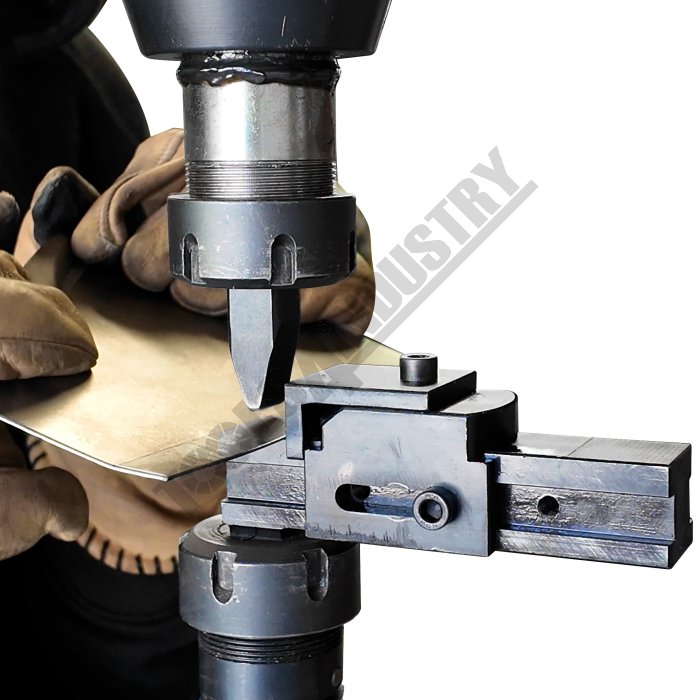

Form precise 90-degree flanges on a wide range of sheet metal projects with this Adjustable Edge Turning Die Set. Designed to turn edges from 3mm to 50mm, it’s ideal for shaping curved panels, door skins, roll pans, and more. Compatible with the Metalmaster PHM-560MK2. When fitted with a 16mm universal tool holder adaptor, it can also be used with the PHM-760HD and PHM-940HD models.Features
- Creates clean 90-degree flanges on sheet metal edges
- Adjustable flange width of 75mm (die to flange)

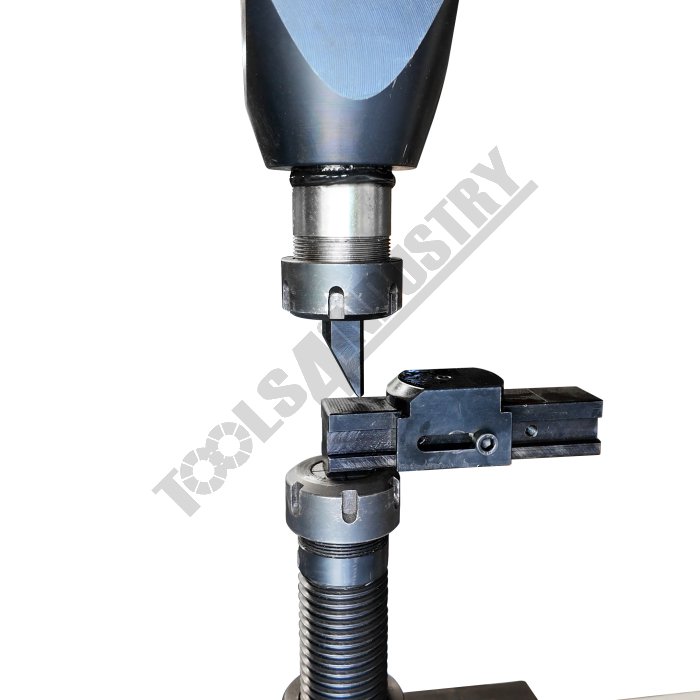

- Directly fits Metalmaster PHM-560MK2
- Compatible with PHM-760HD and PHM-940HD using a 16mm universal tool holder adaptor

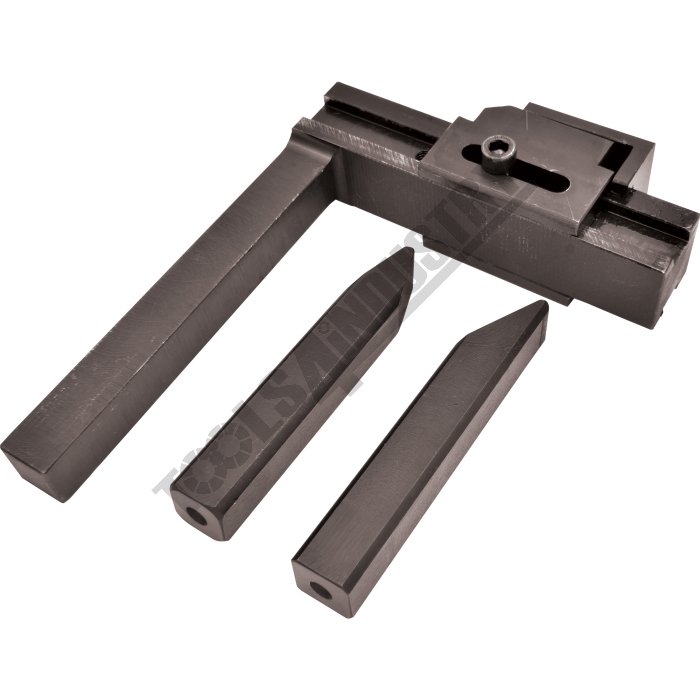

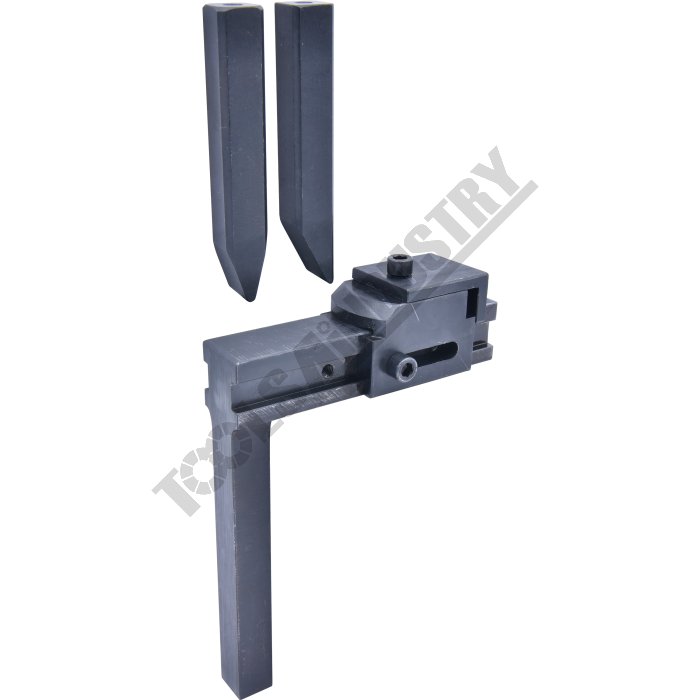

Includes

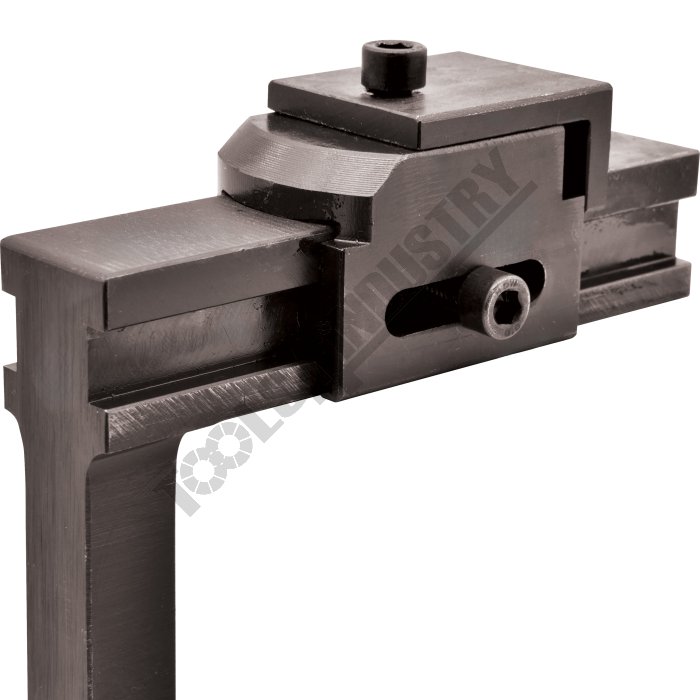

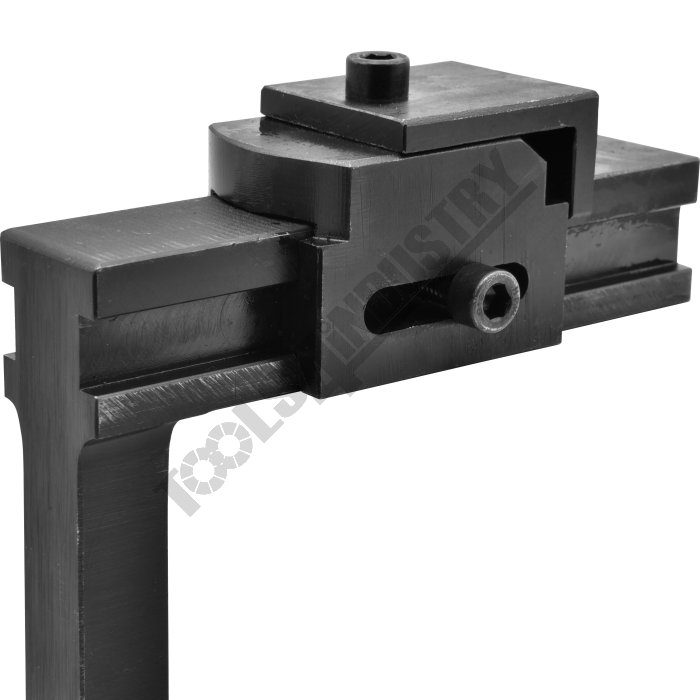

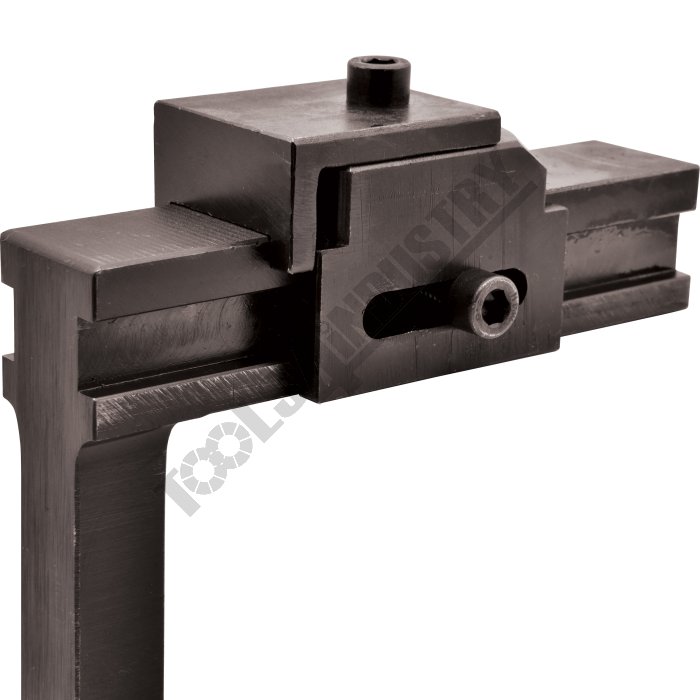

- Lower die with adjustable fence
- 2x Upper Die
Specifications
- Compare 5 Products
- ORDER CODE
- MODEL
- Part Number
- Type
- Face Diameterinch / mm
- Sizeinch / mm
- Shank Sizemm
| ORDER CODE | PHT-ETT |
|---|---|
| MODEL | ~ |
| Part Number | Small Louvre Die Set |
| Type | ~ |
| Face Diameterinch / mm | ~ |
| Sizeinch / mm | 16 |
| Shank Sizemm |
