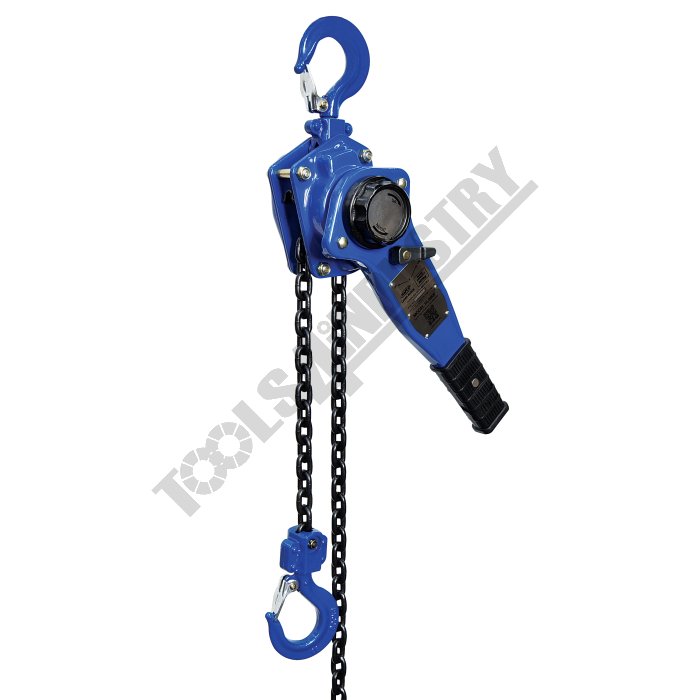

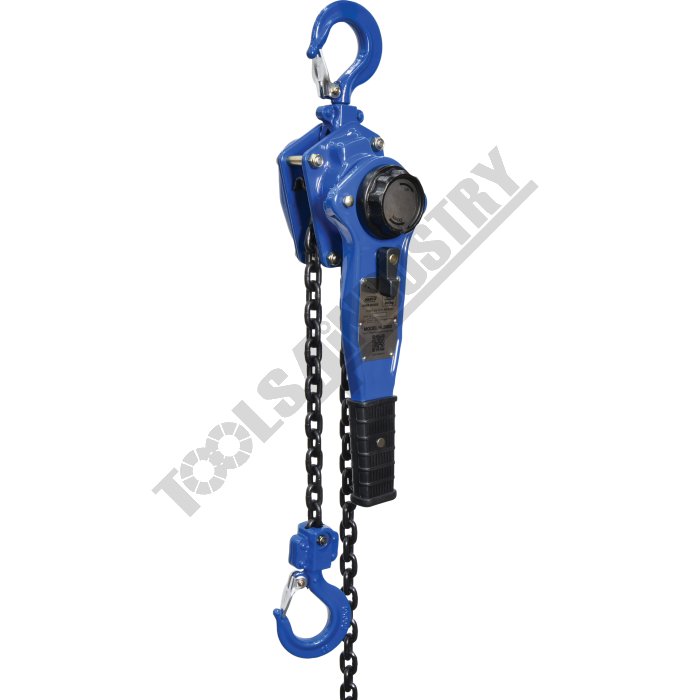

Lever Block HLB800 800 KG x 1.5 Metre

Description

HAFCO 800kg Lever Blocks are heavy duty and ideal for rigging, construction, and mining applications. They feature a Grade 80 alloy load chain and a robust, space-saving steel body.
The ID plates are made from stainless steel, and the unit contains no aluminium components. Each unit is AS 1418.2 compliant and supplied with a test certificate for quality assurance.

Features

• Rated capacity: 800kg
• Ergonomically compact design
• Built for durability in harsh and rugged environments
• Quick and easy chain adjustment for fast load positioning
• Suitable for use in underground mining and heavy-duty applications

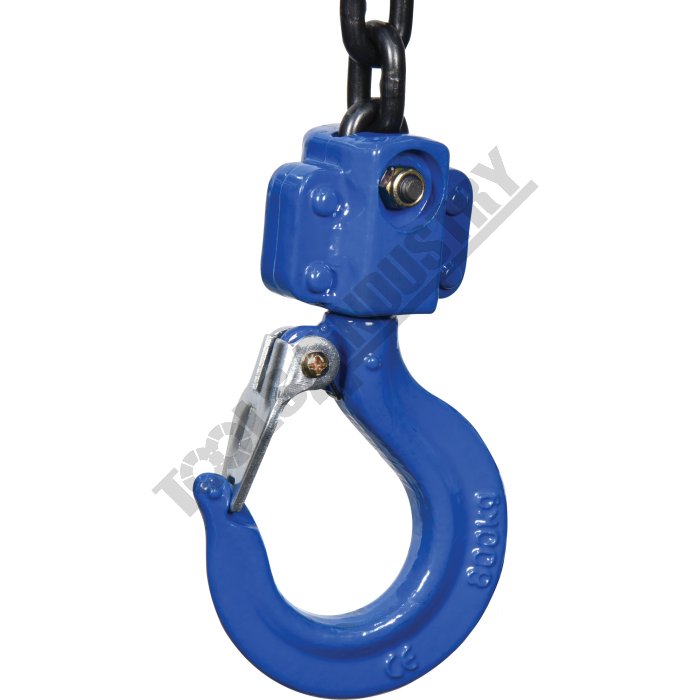

• Ball bearing-mounted to bottom hook enable smooth rotation under load
• Tested at a NATA-accredited facility in accordance with AS 1418.2
• Fully enclosed design with sealed gear and brake systems for superior protection and durability

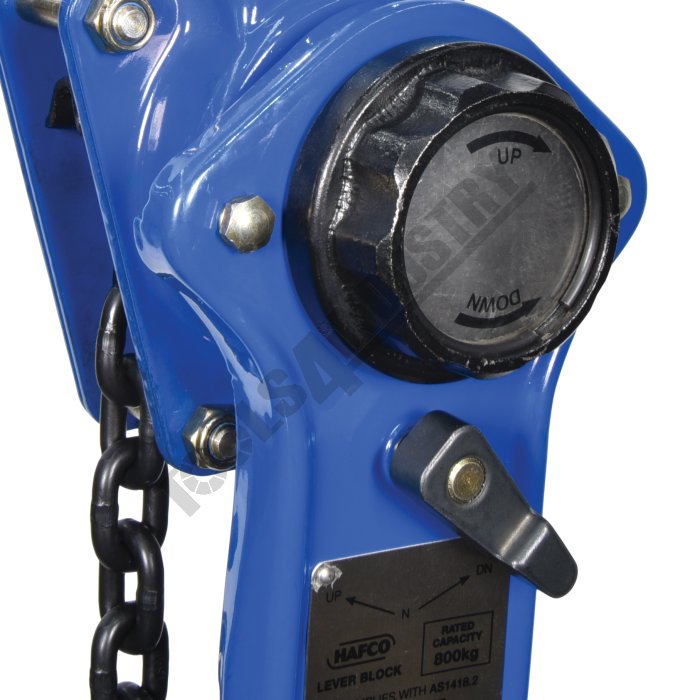

• The short arm lever and precision gear ratio allow minimal effort to lift heavy loads with maximum
• HAFCO ID plates and rivets are made from stainless steel a non-conductive material for added safety and durability
• Each HAFCO Lever Block is load-tested to its rated capacity and supplied with a HAFCO test certificate, traceable to its stamped identification side plate

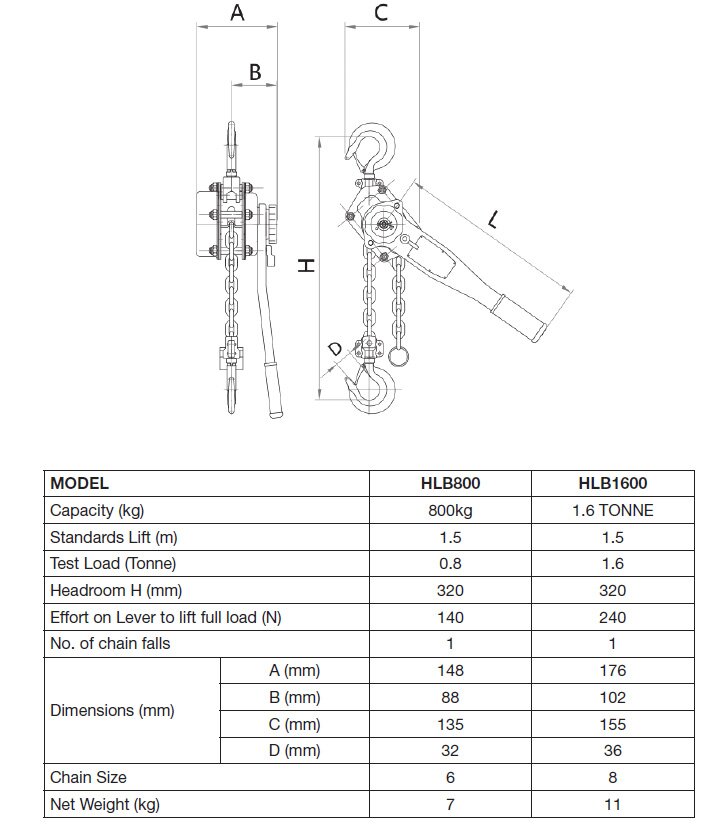

• Standard Lift: 1.5 Metres
• Test Load: 0.8 Tonne
• Headroom (H): 320mm
• Effort on lever to lift full load: 140N
• No. of chain falls: 1

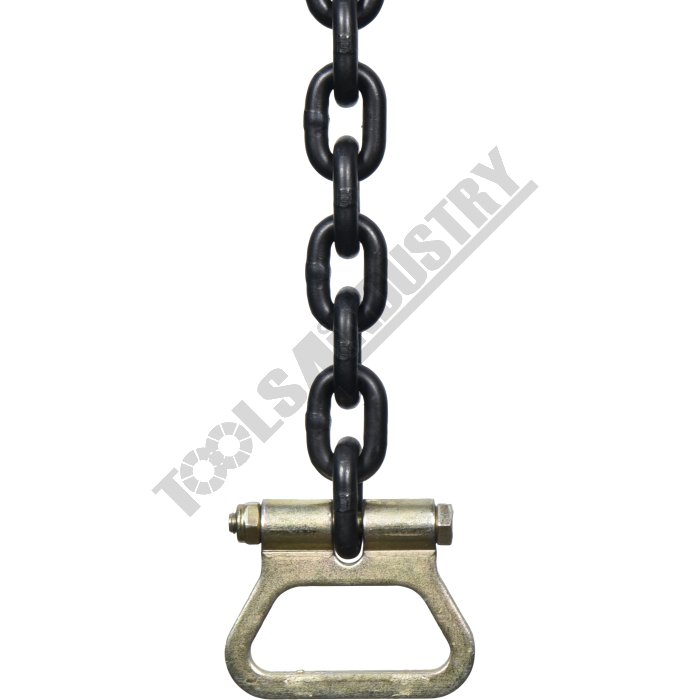

• Chain Size: 6 x 18mm
• Length of lever handle (L): 290mm
