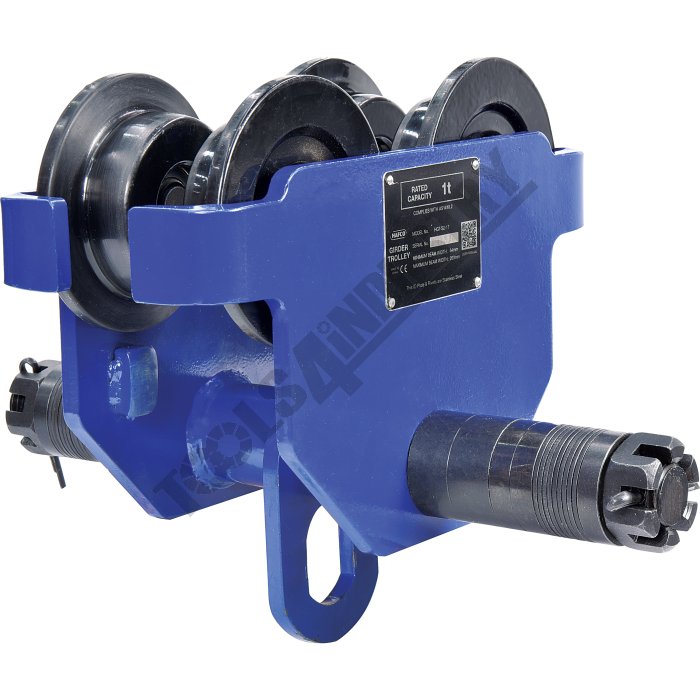

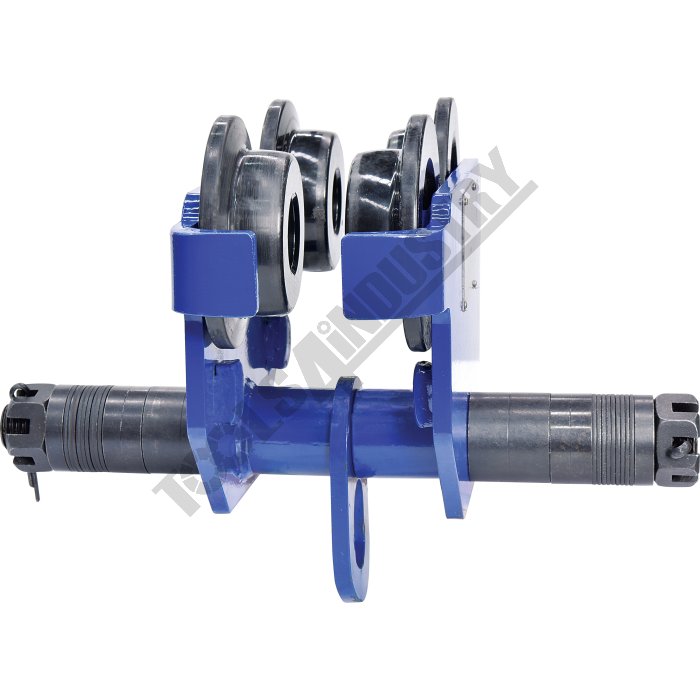

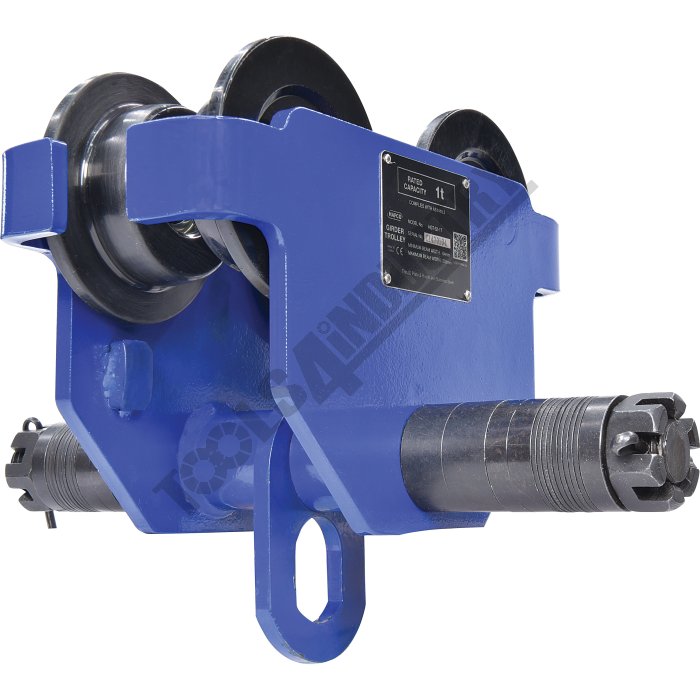

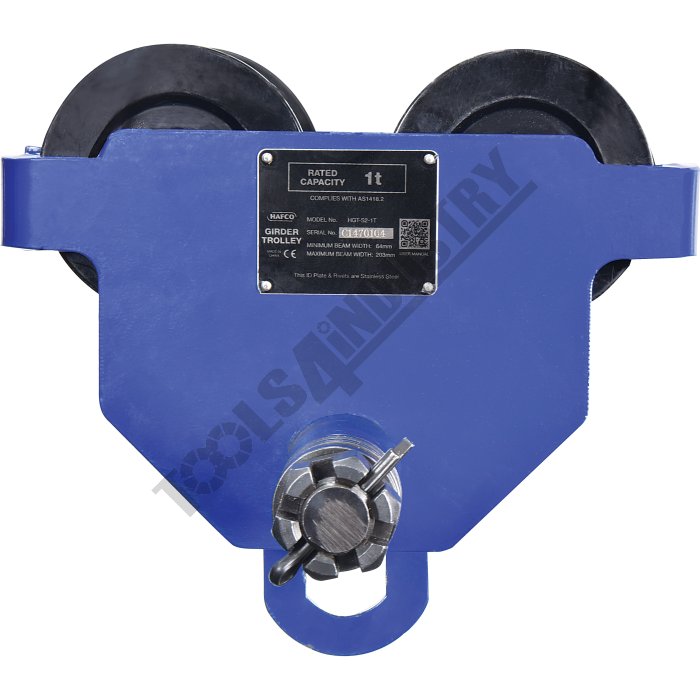

Girder Trolley HGT-S2-1T 1 Tonne Capacity

Description

The 1-tonne Push Girder Trolley is a highly reliable and efficient solution for moving loads safely along a beam. Designed for smooth manual travel, this trolley provides a stable running platform for hoists, chain blocks, and lifting devices, making it ideal for workshops, warehouses, and industrial lifting environments.

Engineered from high-strength steel, the trolley features precision-machined wheels with sealed bearings to ensure effortless movement and long-lasting performance. Its adjustable side plates allow the trolley to fit a wide range of I-beam and H-beam sizes, offering maximum versatility across different lifting setups.

With its simple pin-adjustment system, installation is quick and tool-friendly, enabling operators to set up, reposition, or remove the trolley with ease. Whether used for repetitive lifting tasks or general material handling, the 1T Push Girder Trolley delivers dependable performance, enhanced safety, and smooth travel under load.

Features

• Fully adjustable design to suit a wide range of beam sizes.
• Anti-tilt blocks fitted as standard for additional safety
• Stainless steel ID plate for traceability
• Anti-tilt blocks fitted as standard for additional safety
• High quality sealed ball bearings
• Test certificate & user manual supplied
• Built in bumper guards
• Sealed wheel bearings
• Quick adjustment to any beam
• QR Code scan for quick manual specifications
• Rated Capacity 1 Tonne
• Beam Size range 64mm-203mm
• Complies to AS 1418.2
