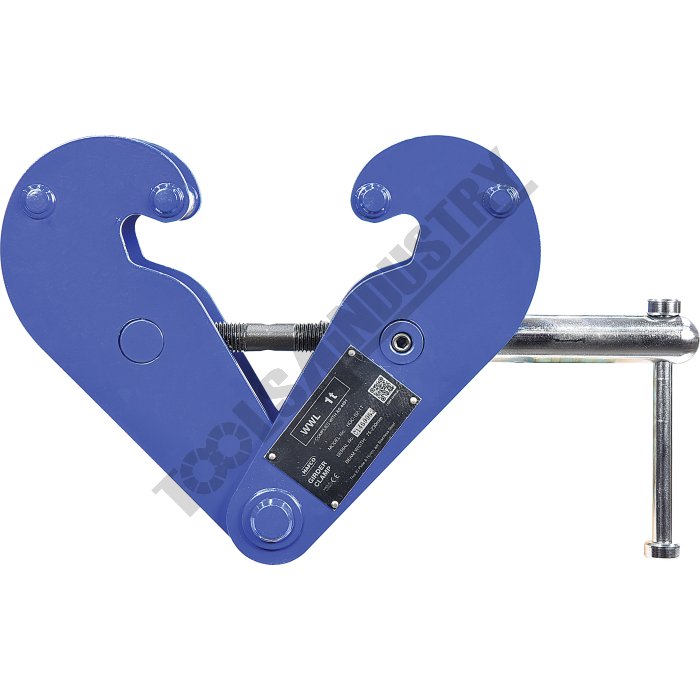

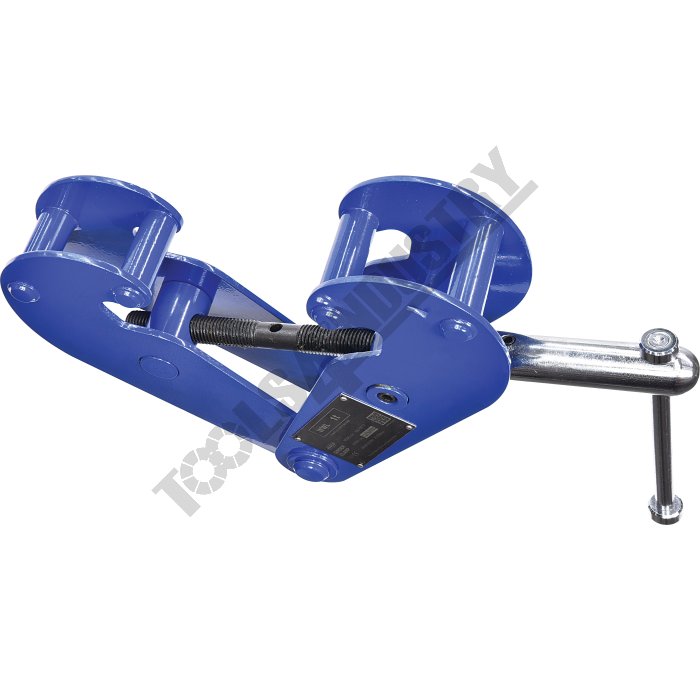

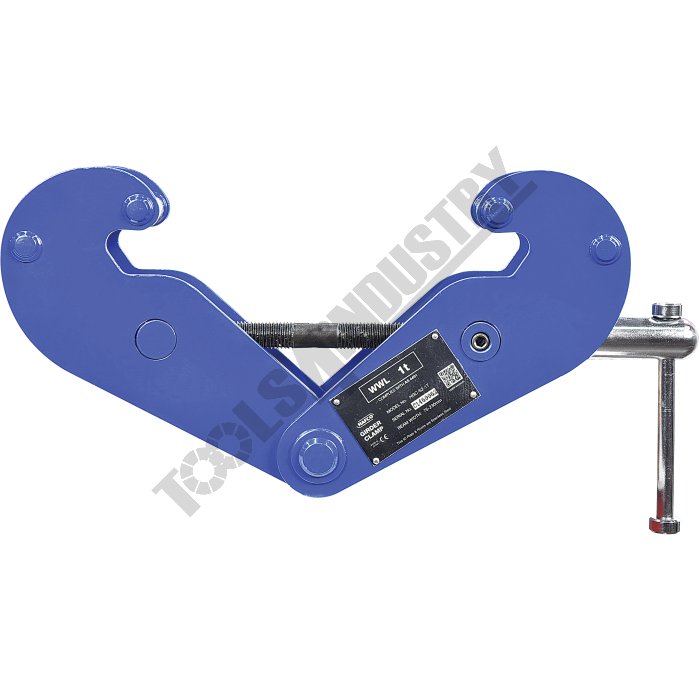

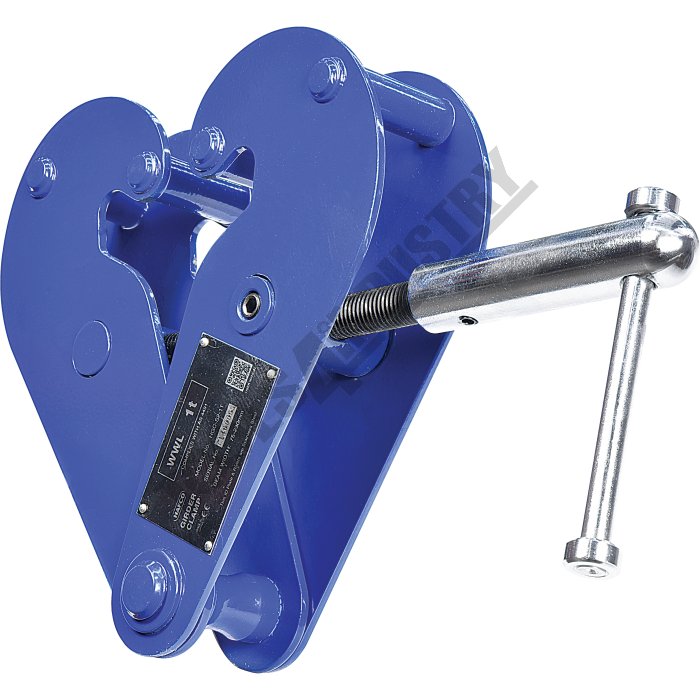

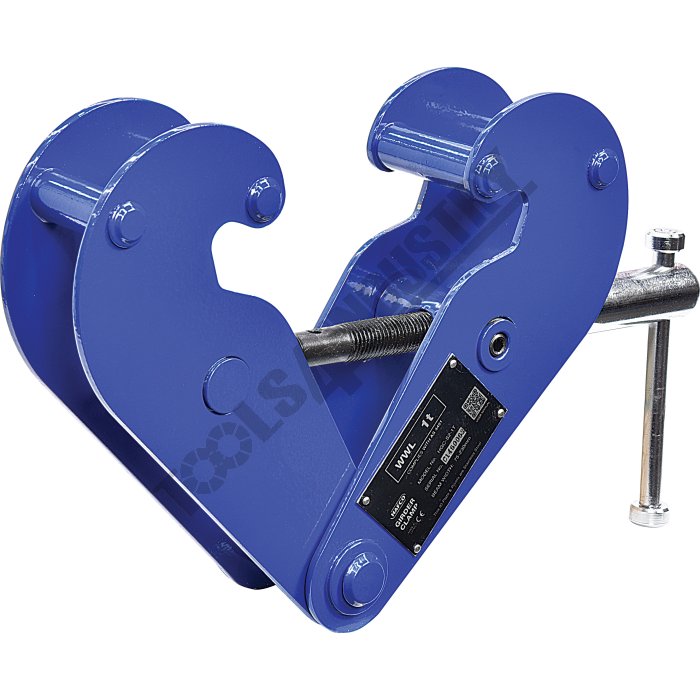

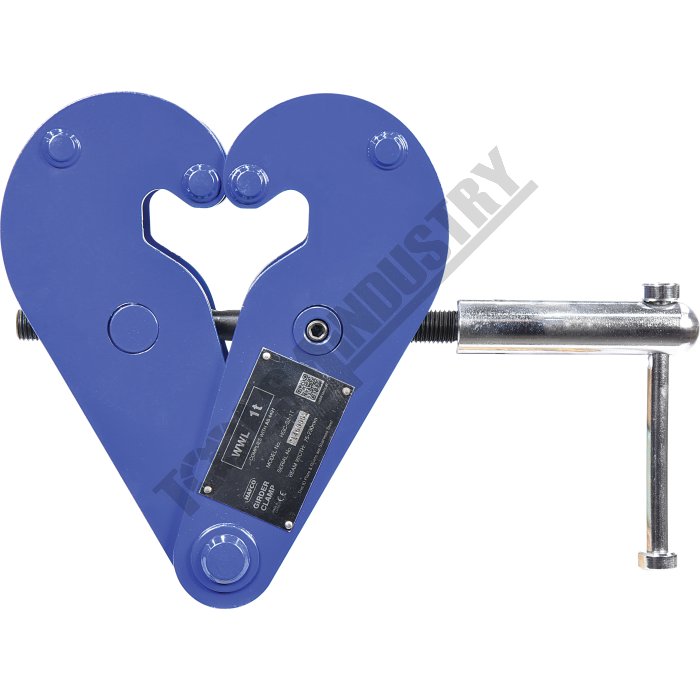

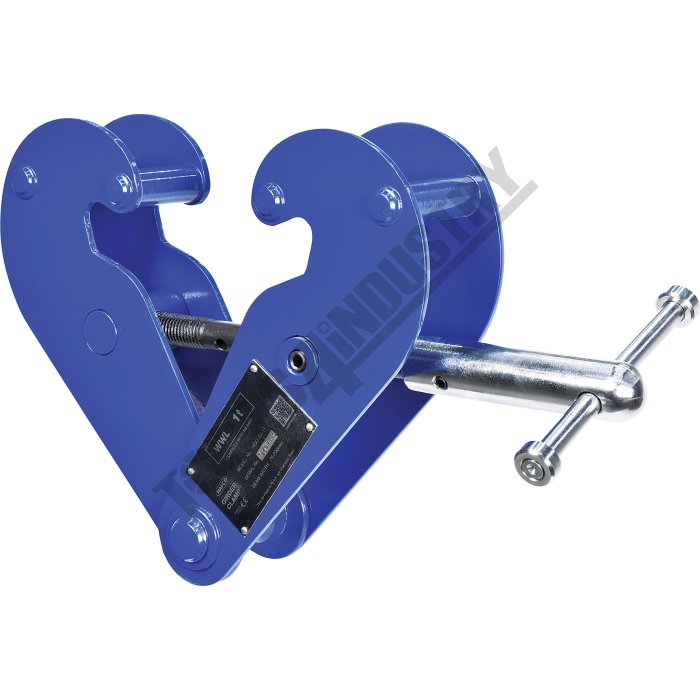

Girder Clamp HGC-S2-1T 1 Tonne Capacity

Description

The 1-tonne Girder Clamp is a versatile, secure, and easy-to-use solution designed for attaching lifting equipment to structural steel beams. Engineered for reliability, this clamp provides a safe anchorage point for hoists, chain blocks, and lifting devices during material handling operations.

Manufactured from high-strength alloy steel, the clamp features a robust, adjustable jaw opening that allows it to fit a wide range of beam sizes. Its simple screw-thread locking mechanism ensures a firm and stable grip on the beam, preventing slippage while maintaining ease of installation and removal.

Ideal for workshops, warehouses, construction sites, and maintenance applications, the 1T Girder Clamp delivers a dependable lifting connection that complies with relevant safety standards. Whether used for fixed lifting points or temporary lifting setups, it offers both strength and convenience in a compact design.

Features

• Robust all steel construction
• Manually adjustable to various beam widths
• Provides a connection point for hoists
• Can be used in different locations as required
• Each girder clamp is supplied with an individual serial number, stamped on both the clamp body and the stainless-steel identification plate.
• Adjustable design to accommodate a wide range of beam and flange widths.
• Simple, quick mounting suitable for both permanent installations and temporary lifting applications.
• Special clamp jaw design applies load away from the edge of the flange, reducing flange stress.Built-in load bar provides reduced headroom
• Additional security is provided by threaded adjustment screws secured by using the countersunk allen head screw to lock the threaded adjustment bar in position with a copper flat.
• QR Code scan for quick manual specifications

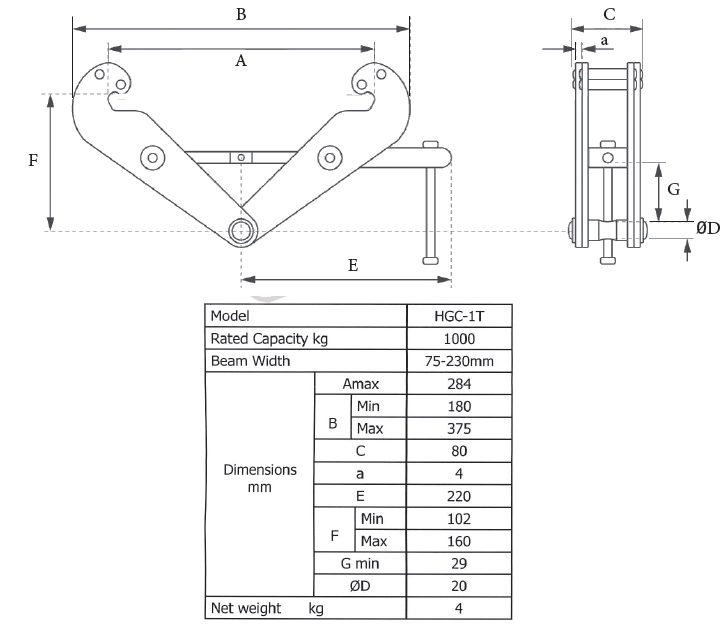

• Rated Capacity 1 Tonne
• Beam Size range 75mm-230mm
• Complies to AS 4991
