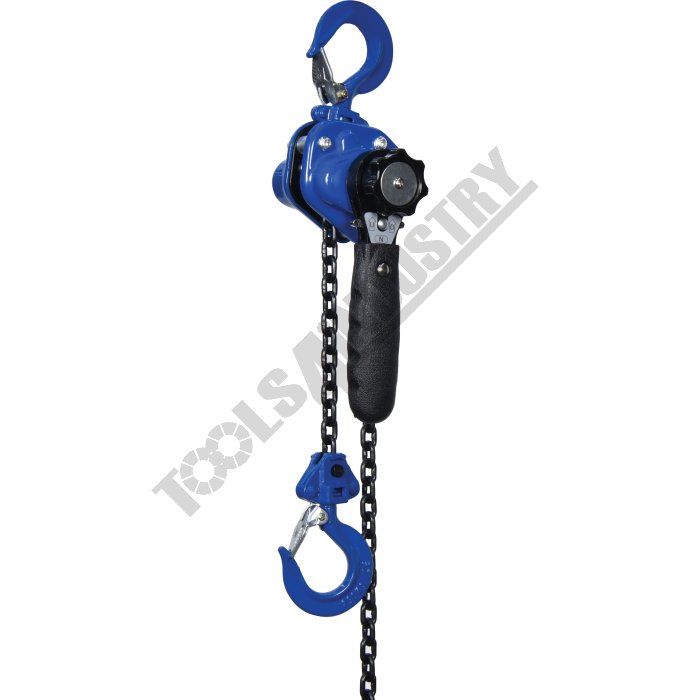

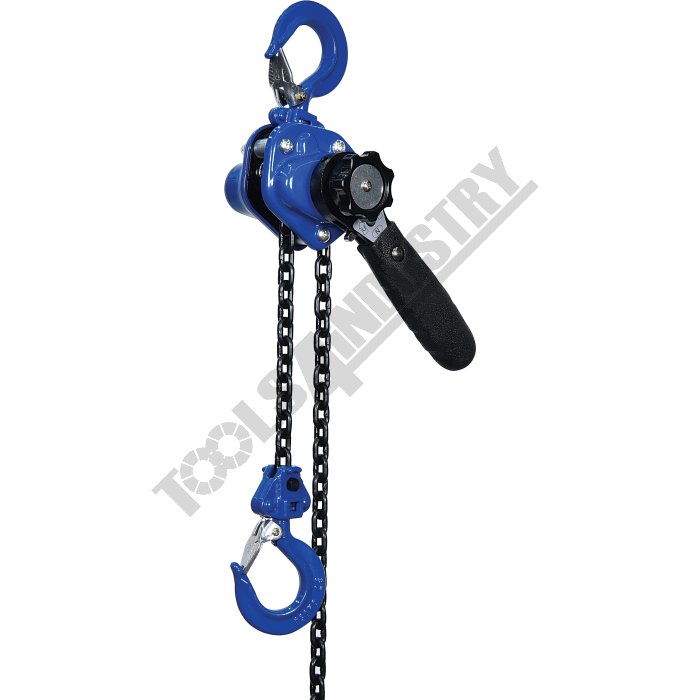

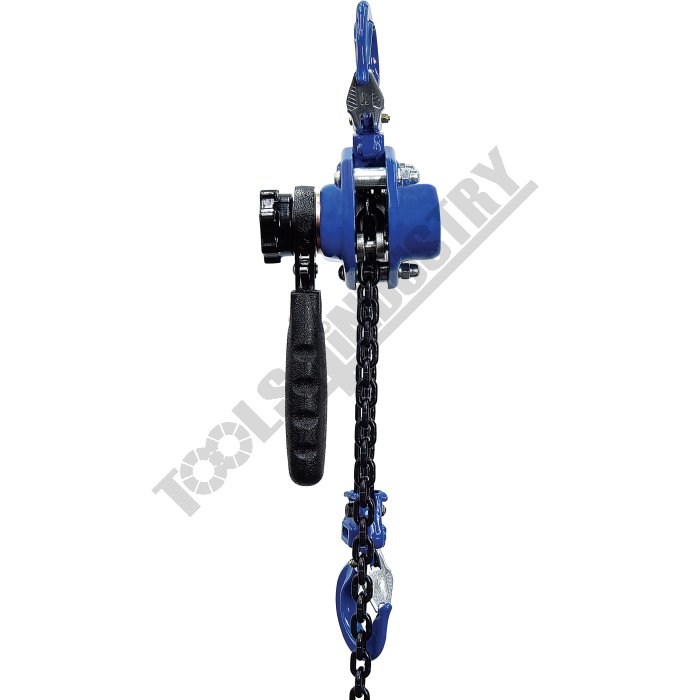

Lever Block HLB250 250kg x 1.5 Metre

Description

HAFCO 250kg Lever Blocks are lightweight, compact, and ideal for rigging, construction, and mining applications. They feature a Grade 80 alloy load chain and a robust, space-saving steel body.
The ID plates are made from stainless steel, and the unit contains no aluminium components. Each unit is AS 1418.2 compliant and supplied with a test certificate for quality assurance

Features

• Rated capacity: 250kg
• Ergonomically compact design
• Built for durability in harsh and rugged environments
• Quick and easy chain adjustment for fast load positioning
• Suitable for use in underground mining and heavy-duty applications

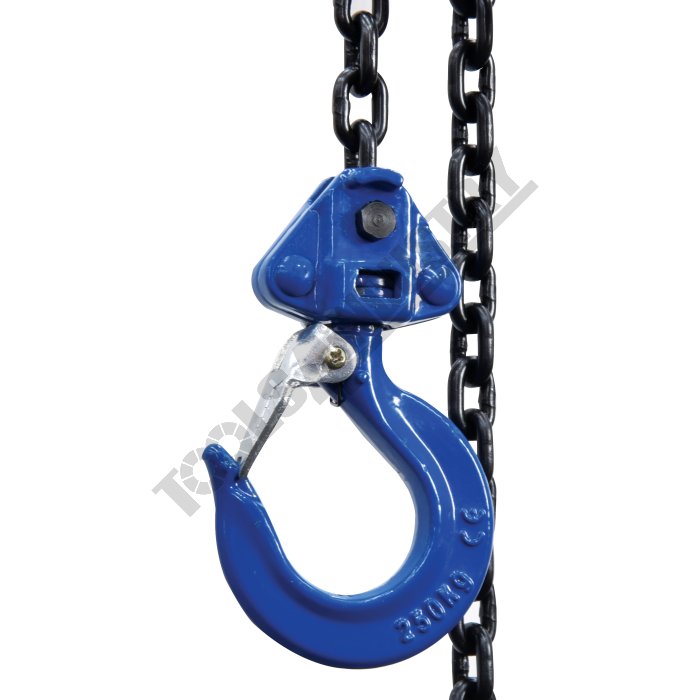

• Ball bearing-mounted to bottom hook enable smooth rotation under load
• Tested at a NATA-accredited facility in accordance with AS 1418.2
• Fully enclosed design with sealed gear and brake systems for superior protection and durability

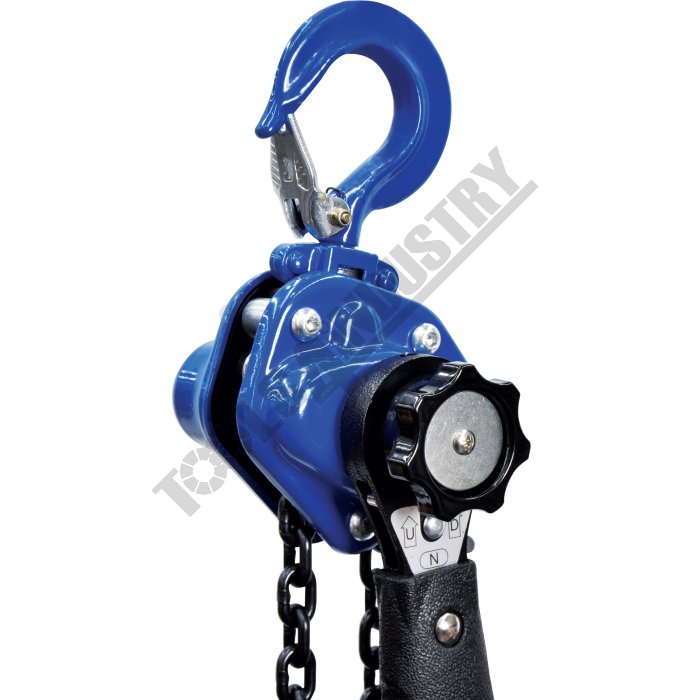

• The short arm lever and precision gear ratio allow minimal effort to lift heavy loads with maximum

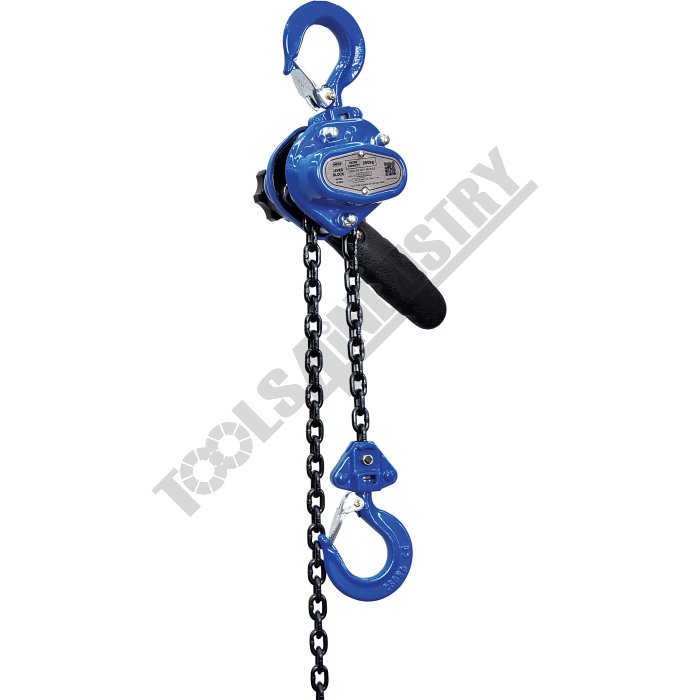

• HAFCO ID plates and rivets are made from stainless steel a non-conductive material for added safety and durability
• Each HAFCO Lever Block is load-tested to its rated capacity and supplied with a HAFCO test certificate, traceable to its stamped identification side plate.

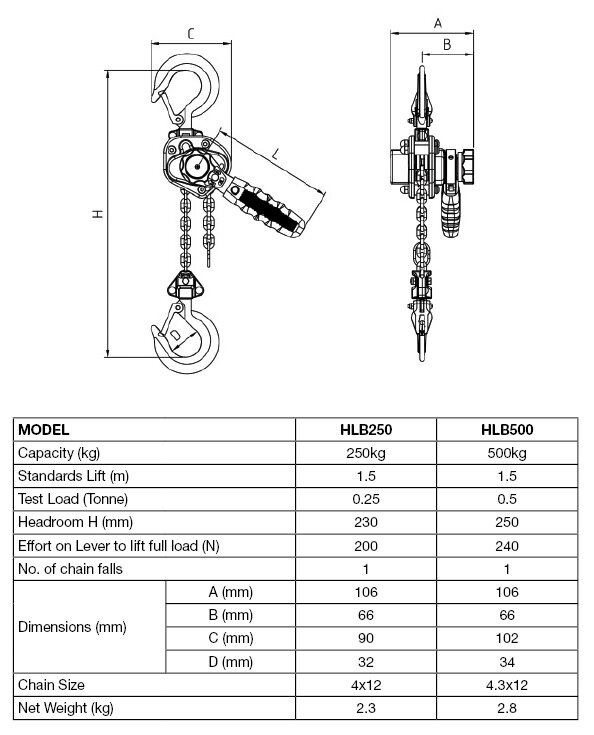

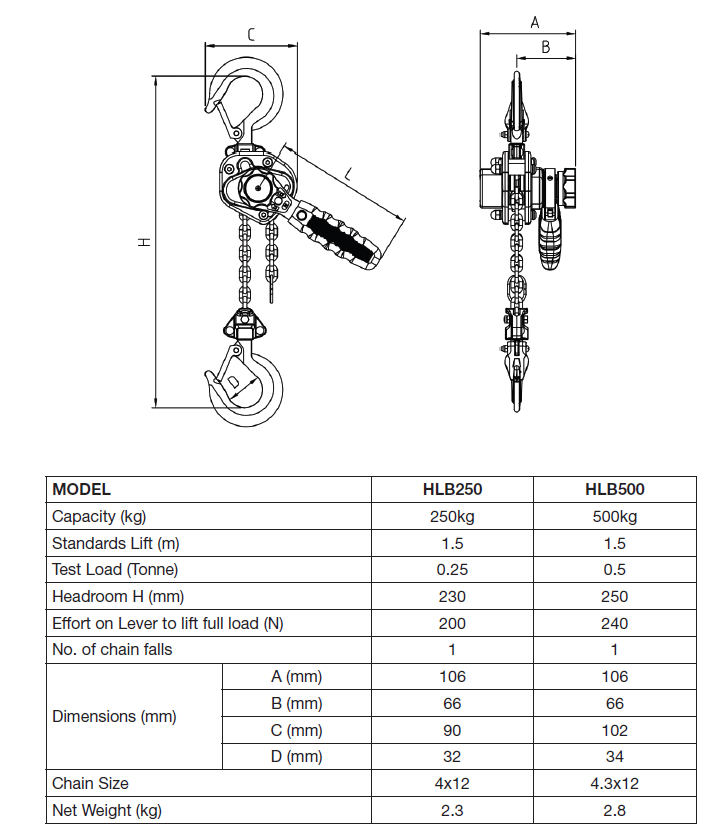

• Standard Lift -(Metres) 1.5
• Test Load - (Tonne) 0.25
• Headroom - (H mm) 230
• Effort on lever to lift full load - (N) 200
• No. of chain falls - 1
• Chain Size (mm) - 4x12
• Length of lever handle - (L) 160mm
