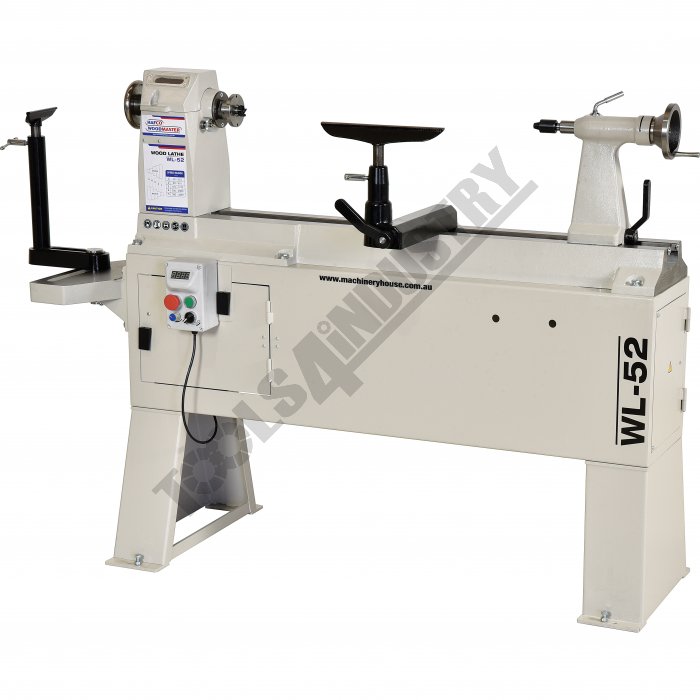

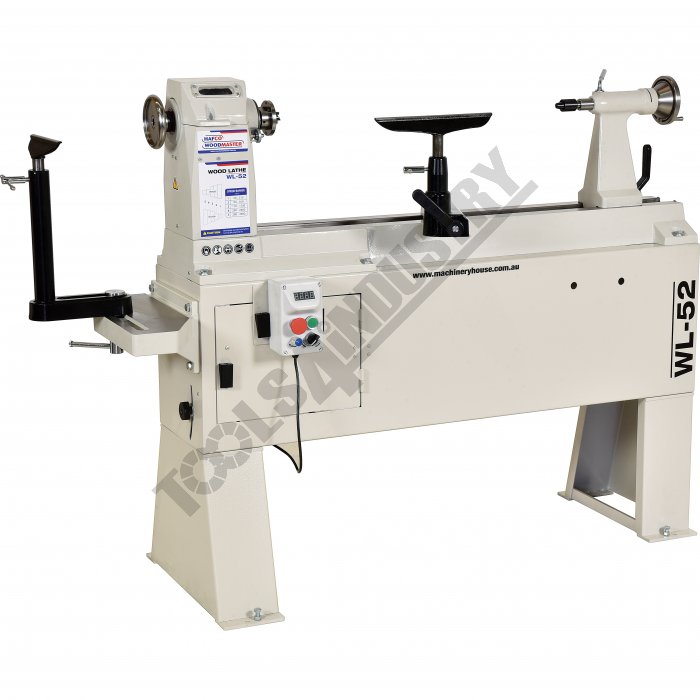

Heavy Duty Electronic Variable Speed Wood Lathe WL-52 Ø520mm Swing x 910mm Between Centres

Description

The WL-52 is a truly classic lathe, featuring a fixed head for outboard turning. It has been designed to offer large capacities and support for heavy work in a traditional configuration that is familiar to woodturners worldwide.

Combined with modern construction and high-quality electronic control, this machine is ideal for the professional woodturner as well as the dedicated enthusiast. Cast iron features heavily in the construction of this machine, including the headstock, tailstock and cast bed. The splayed legs give further stability, with an opposing asymmetrical design to spread load and counteract the forces generated by this formidable lathe.

Features

• Electronic variable speed 50-3890rpm

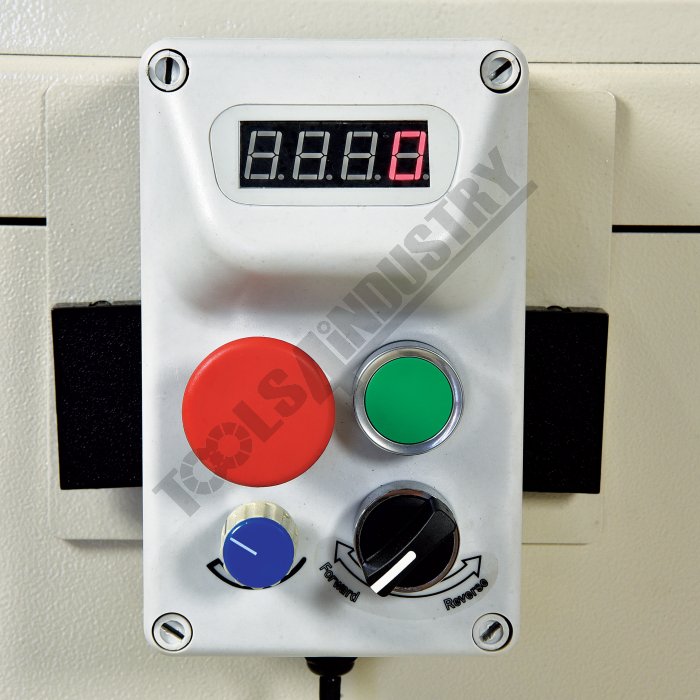

• Digital readout display for spindle speeds
• Heavy duty vibration absorbing cast iron construction
• Finely ground bed for reduced friction
• Heavy duty steel cabinet stand

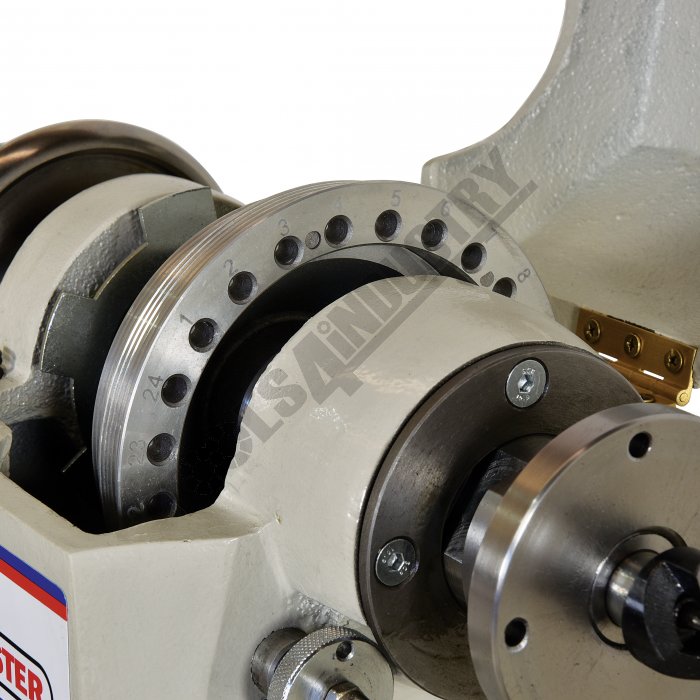

• Versatile 24 position indexing

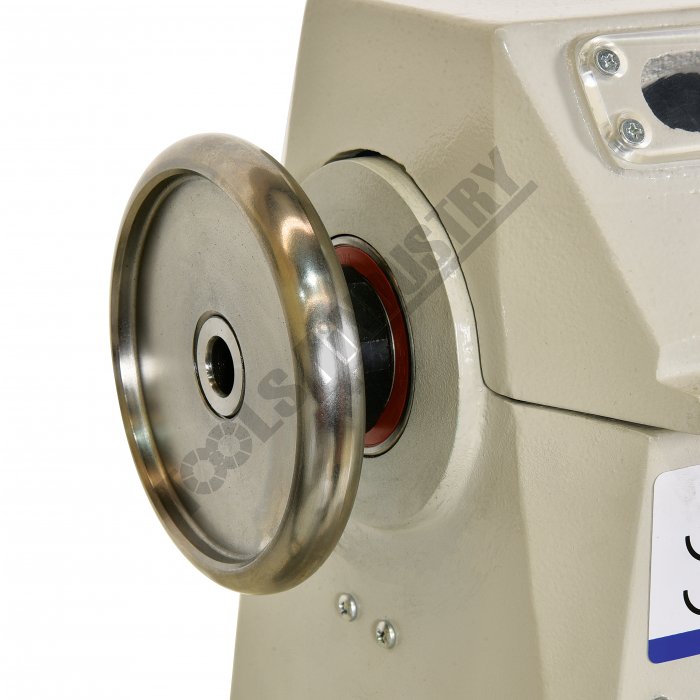

• Rear polished hand wheel brake
• 1.5kW / 2hp 240V inverter motor
• 520mm swing over bed
• 910mm distance between centres
• 2MT tailstock & headstock spindle taper
• 4 large QUATRO design headstock bearings
• 720mm Max. bowl diameter on outboard turning

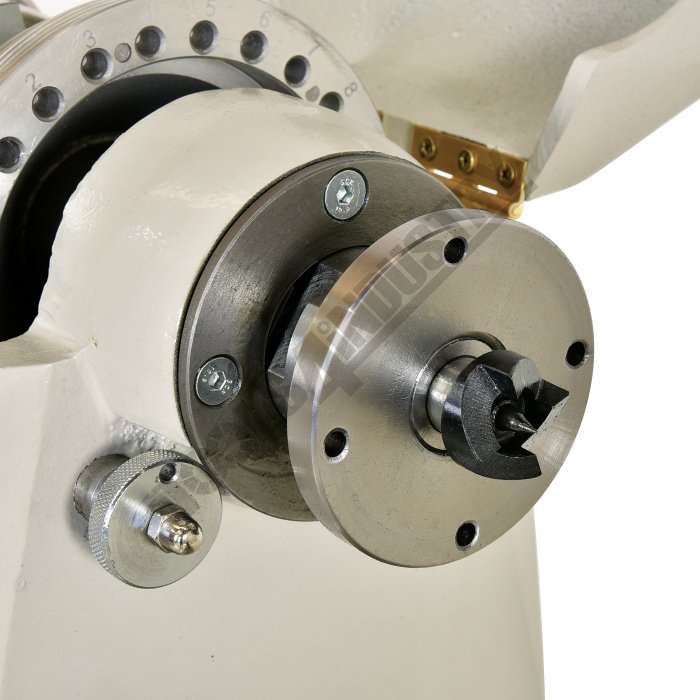

• Spindle lock for easy removal of chucks

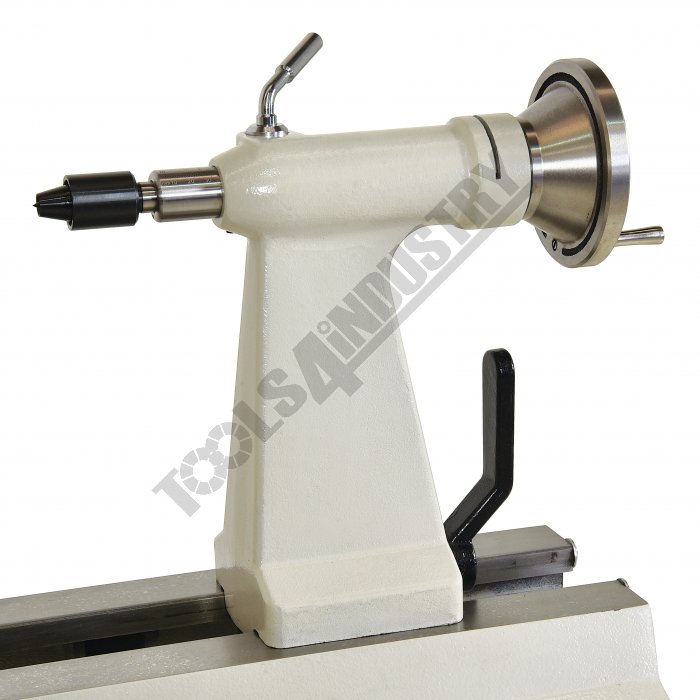

• 100mm tailstock spindle travel
• M30 x 3.5mm pitch spindle
• Magnetic switch with raised emergency stop button
• Hole through spindle 15mm
• Ram travel 100mm

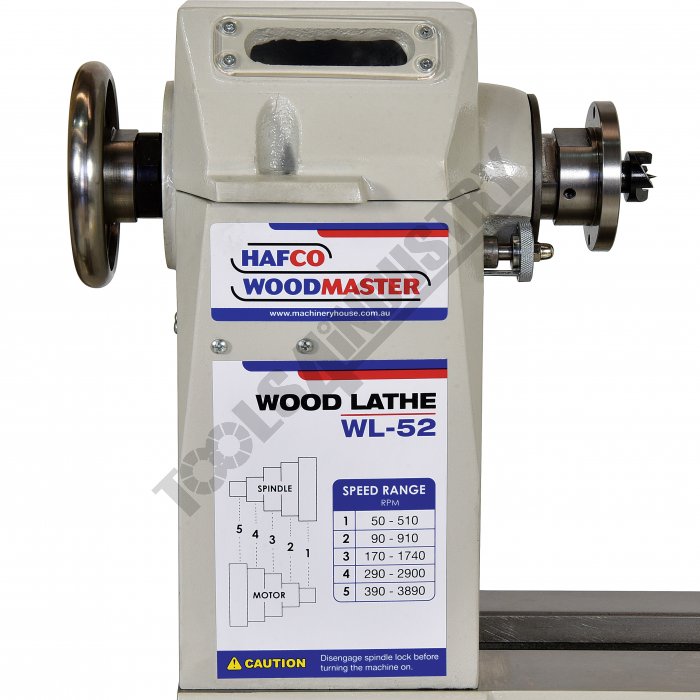

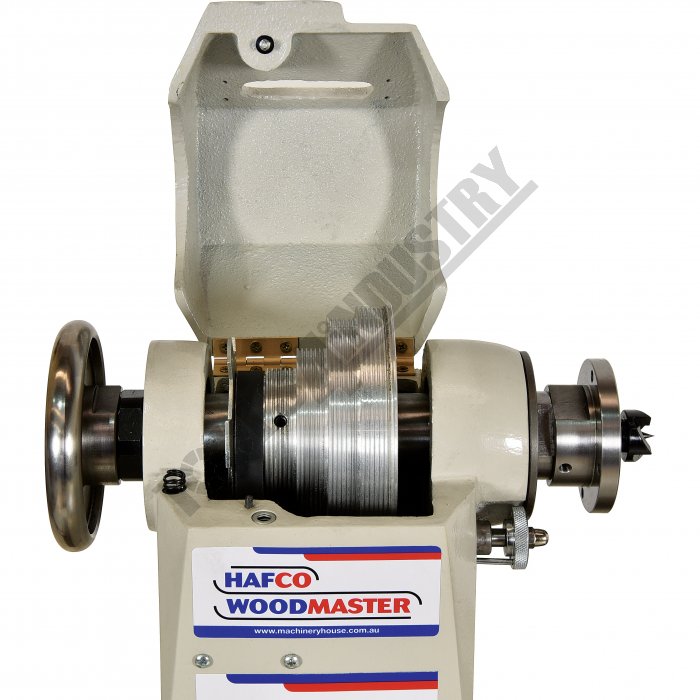

• Spindle speed ranges 50-510, 90-910, 170-1740, 290-2900, 390-3890rpm
• Swing over toolrest base 416mm

Includes

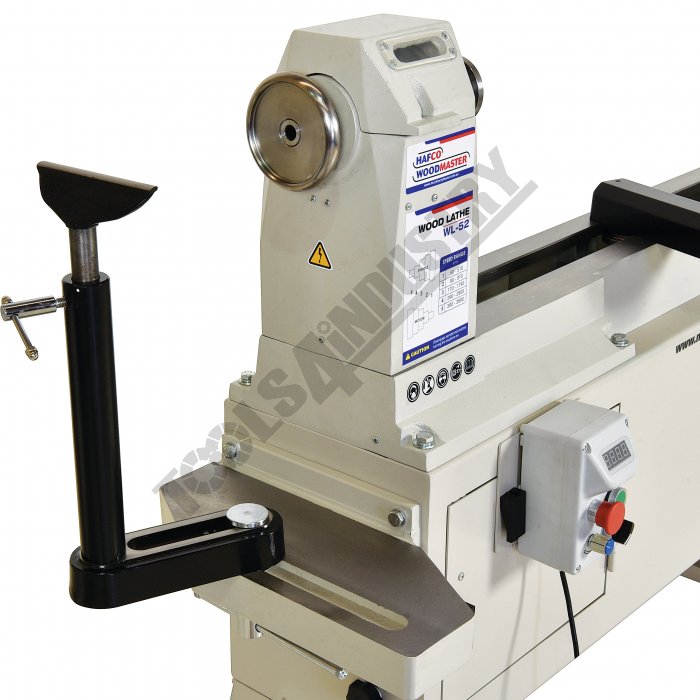

• Bowl turning attachment
• Faceplate
• Drive & live centres

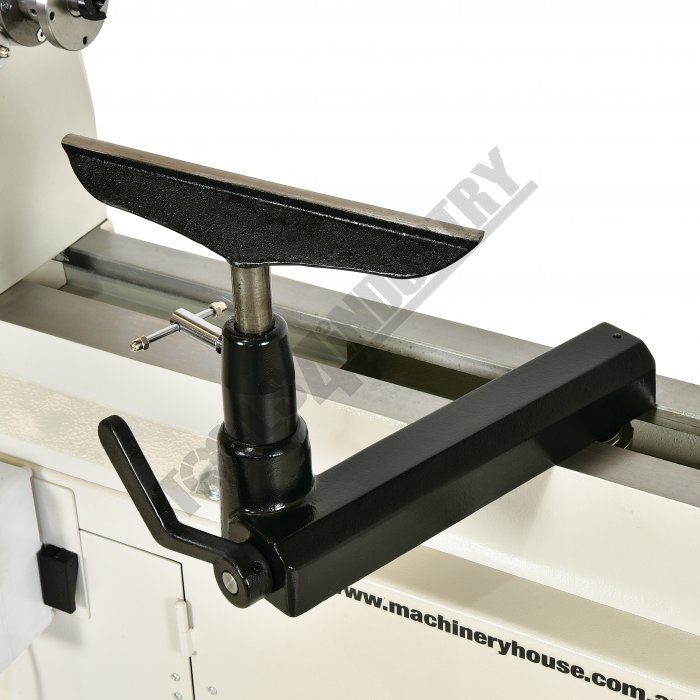

• Tool rest
• Stand
