| Code | K8841 |
|---|---|
| Model | QLD Schools / TAFE |
| Capacity | Ø462mm Swing x 1194mm Between Centres |
| Weight (kg) | 265 |
| Weight (m3) | 0.559 |
| Weight (Freight) | 265 |
| Dimensions (cm) | 175 x 56 x 57 |

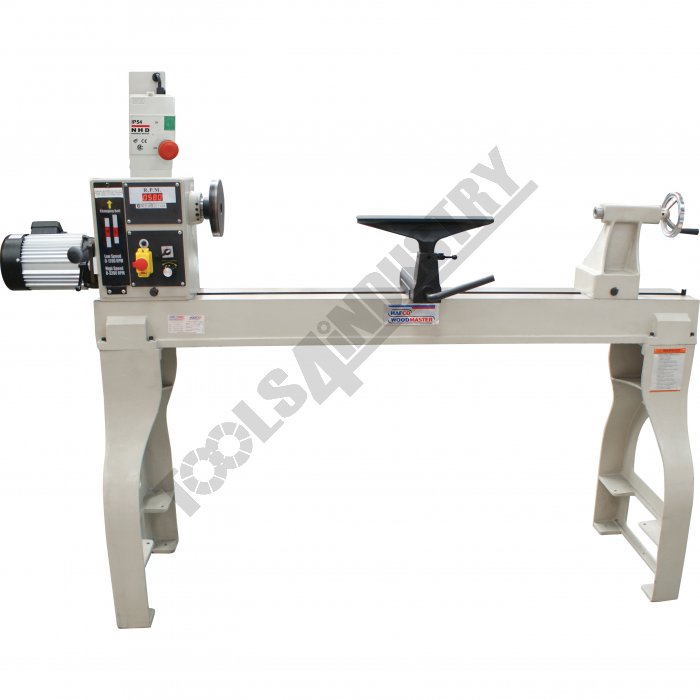

WL-46A - Electronic Variable Speed Wood Lathe QLD Schools / TAFE Ø462mm Swing x 1194mm Between Centres
Features
- Cast iron construction, bed, head and tailstock
- Electronic variable speed (100-3200rpm) with a digital readout
- Headstock is free to slide along the length of the bed
- Forward & reversing spindle direction switch
- 1.5kW / 2hp 240V motor
- Dust proof magnetic switch
- Heavy duty cast iron legs
Includes
- 150mm Faceplate
- Drive & live centres
- 355mm Tool rest
- Stand
- Tailstock

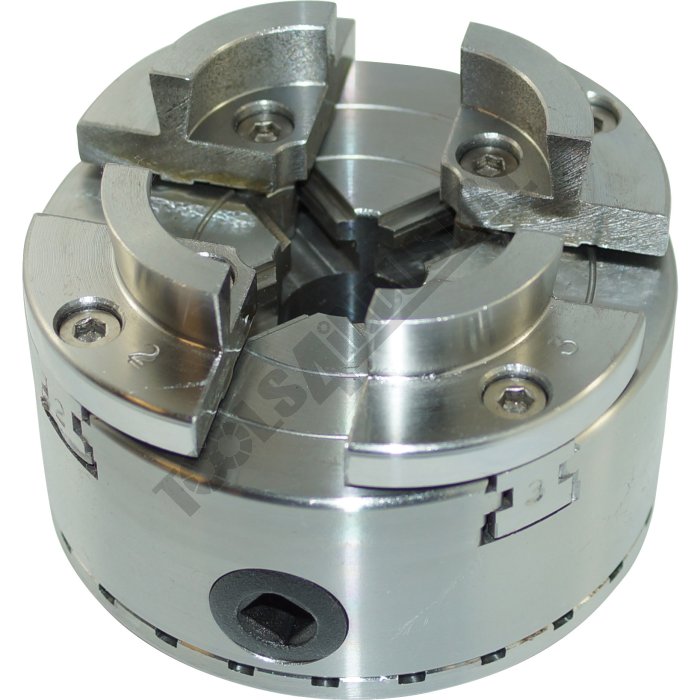

- (W370) WSC-100 Scroll Chuck

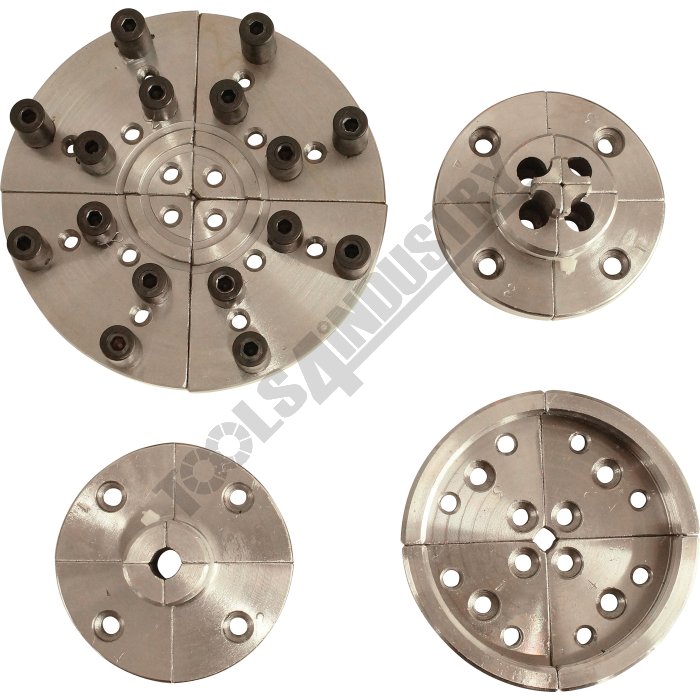

- (W375) WSC-KIT Scroll Chuck Accessory Kit

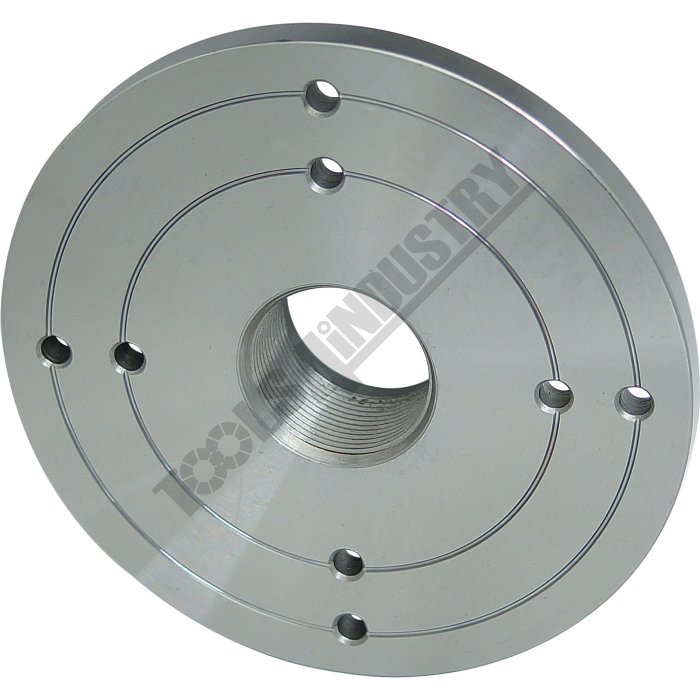

- (W298) FP-150 - Face Plate - Ø150mm

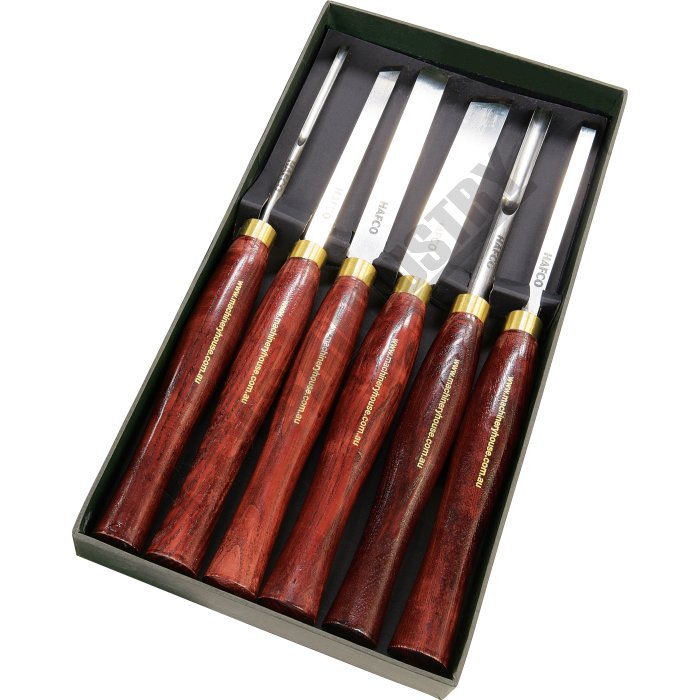

- (W3036) CHS6P HSS Turning Tool Set

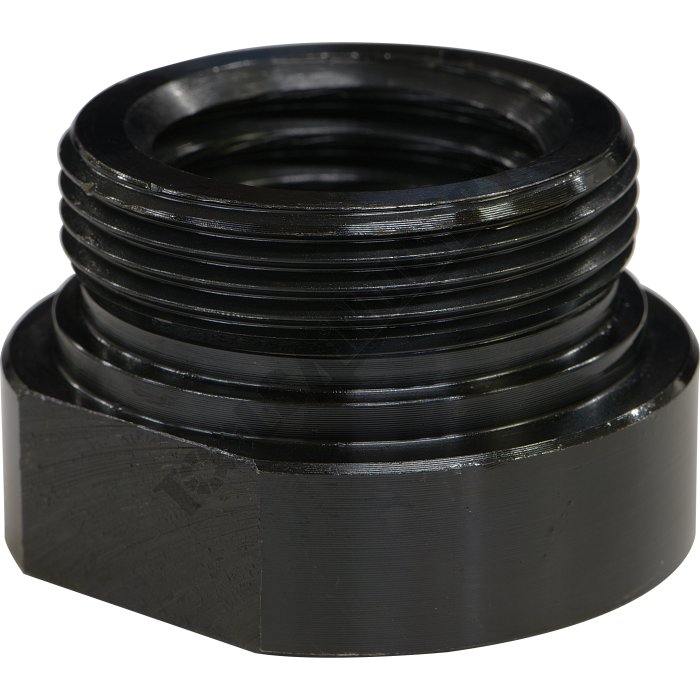

- (W366) Scroll Chuck Insert - M30 x 3.5mm

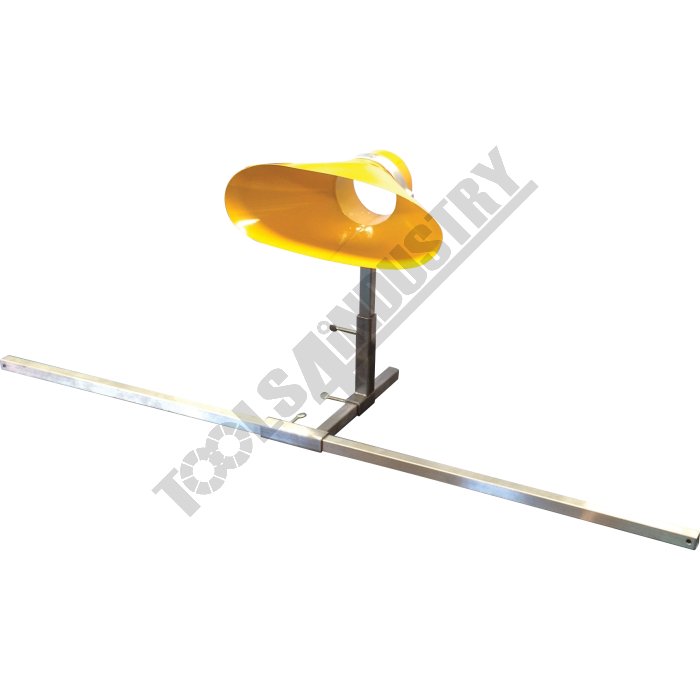

- (W290D) Dust Chute with Adjustable Brackets - 100mm
Specifications
- Compare 1 Products
- ORDER CODE
- NSW DOE Item No.
- QLD DOE Item No.
- MODEL
- Swing Over Bedmm
- Between Centresmm
- Spindle TaperMT
- Spindle Threadmm
- Spindle Speedsrpm
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Nett Weightkg
- K8841
- ~
- ~
- Schools / TAFE WL-46A
- 462
- 1194
- 2
- M30 x 3.5
- Variable 100 - 3200
- 1.5 / 2
- 240 / 10
- 228
| ORDER CODE | ~ |
|---|---|
| NSW DOE Item No. | ~ |
| QLD DOE Item No. | Schools / TAFE WL-46A |
| MODEL | 462 |
| Swing Over Bedmm | 1194 |
| Between Centresmm | 2 |
| Spindle TaperMT | M30 x 3.5 |
| Spindle Threadmm | Variable 100 - 3200 |
| Spindle Speedsrpm | 1.5 / 2 |
| Motor PowerkW / hp | 240 / 10 |
| Voltage / AmperageV / amp | 228 |
| Nett Weightkg |
