Thicknesser - HSS Blades T-20A 508 x 200mm (W x H) Material Capacity

Description

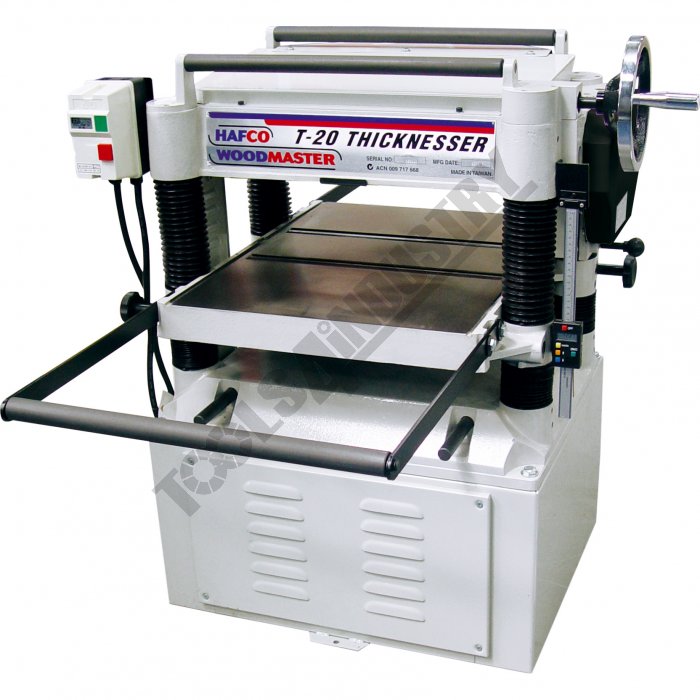

The Hafco T-20A thicknesser manufactured in Taiwan with four knife cutter head is a heavy duty machine with very substantial cast iron body and heavy gauge sheet steel base. The cast iron thicknessing table which has a polished surface to help timber slide freely as well as to help reduced vibration to improved quality of cut.

The cutter head is supported by 4 x solid pillars at each corner and the steel drive rollers have ribbing to ensure positive grip on the timber through the machine via two speed gearbox at a rate of 16 or 20fpm. The feed roller pressure can be adjusted with the four adjusters on the top of the machine. The depth of cut is set by means of the cranked handle on the side using the setting scale positioned on the in-feed side or digital readout.

Power is provided by a 2250 / 3hp 240V induction motor, housed within the base and transmitting power to the cutter block via a twin pulley vee belt drive system.

Features

• Suits professional workshop
• Heavy cast iron machine
• 4 x HSS blades pre-set in cutter head with quick action blade change
• Cutting speed 5000 rpm

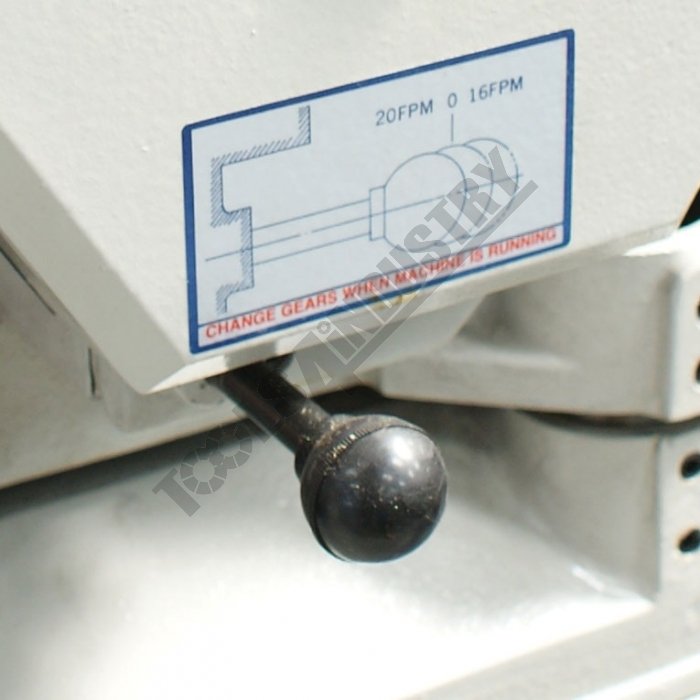

• 2 speed feed rollers with pressure adjustment
• 125mm dust chute

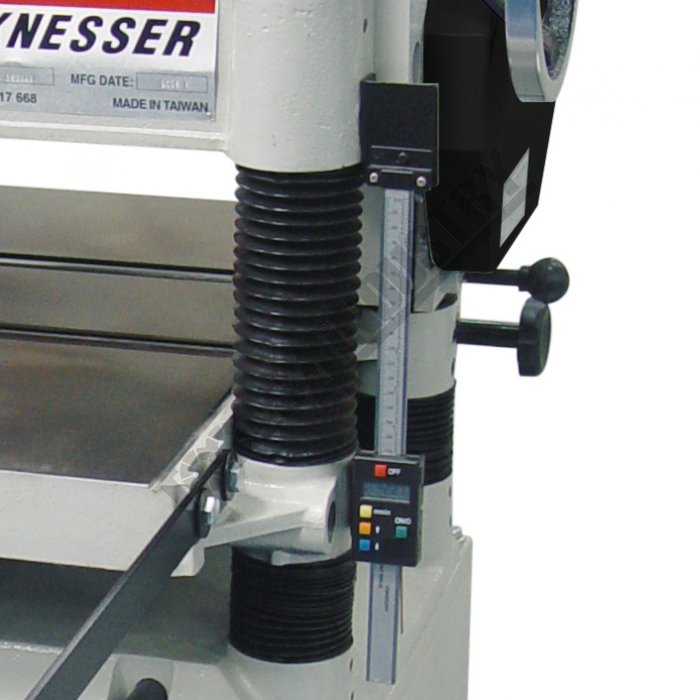

• Digital Height Gauge (Includes LR44 battery)

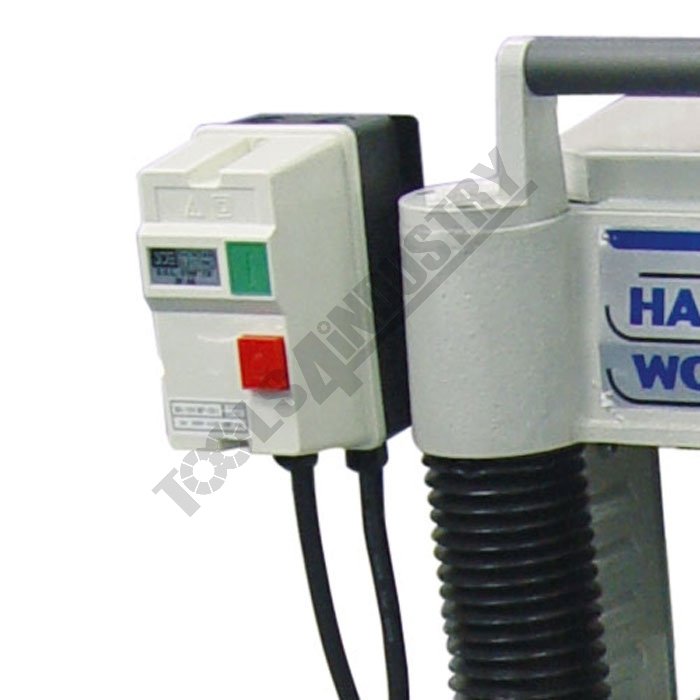

• Industrial contactor switch with overload protection
• Anti kick back fingers
• Left & right table locking dials

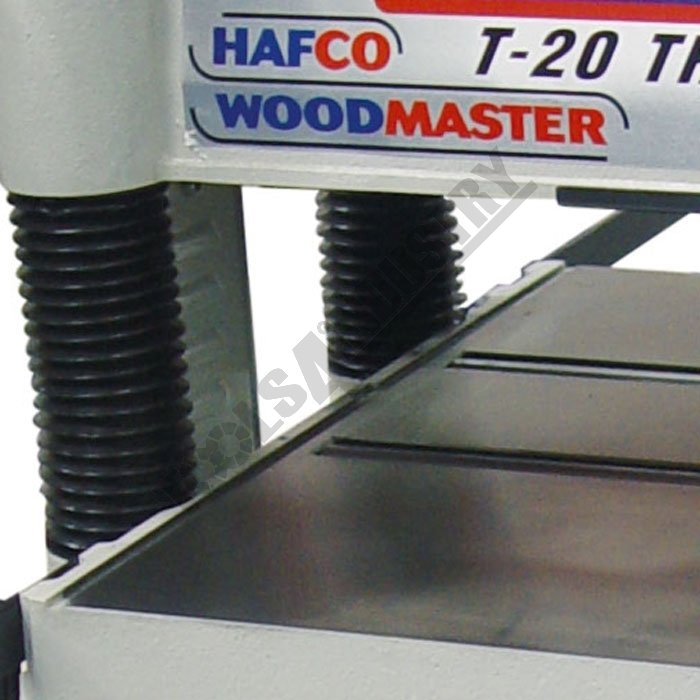

• Heavy duty four post design with protective concertina covers
• Same model sold for over 20 years
• Quality Taiwanese Manufacture


• Please Note:
• This machine is not supplied with a 240 volt plug
