| Code | W347 |
|---|---|
| Model | M-16 |
| Capacity | 125mm timber width capacity |
| Weight (kg) | 42 |
| Weight (m3) | 0.109 |
| Weight (Freight) | 42 |
| Dimensions (cm) | 67 x 45 x 36 |

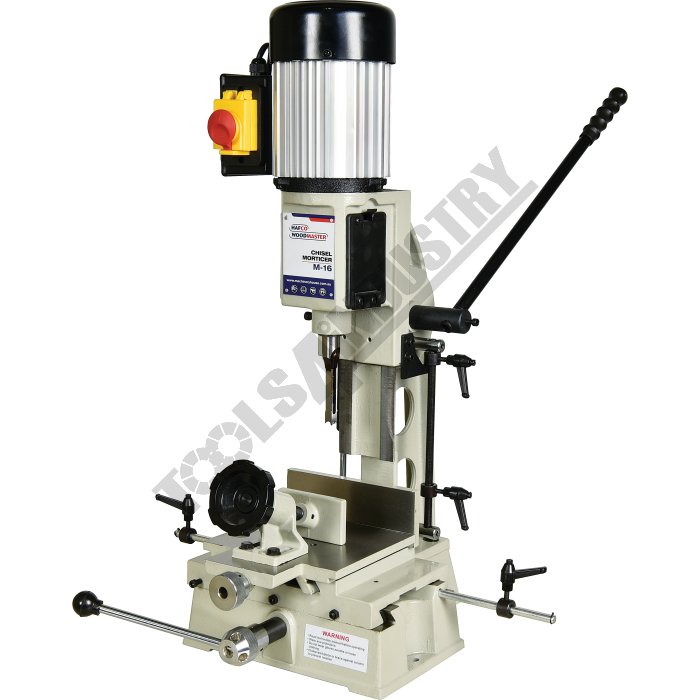

Chisel Morticer M-16 125mm timber width capacity
Description
Heavy cast iron constructionFeatures
- 16mm chisel capacity
- 125mm timber width capacity

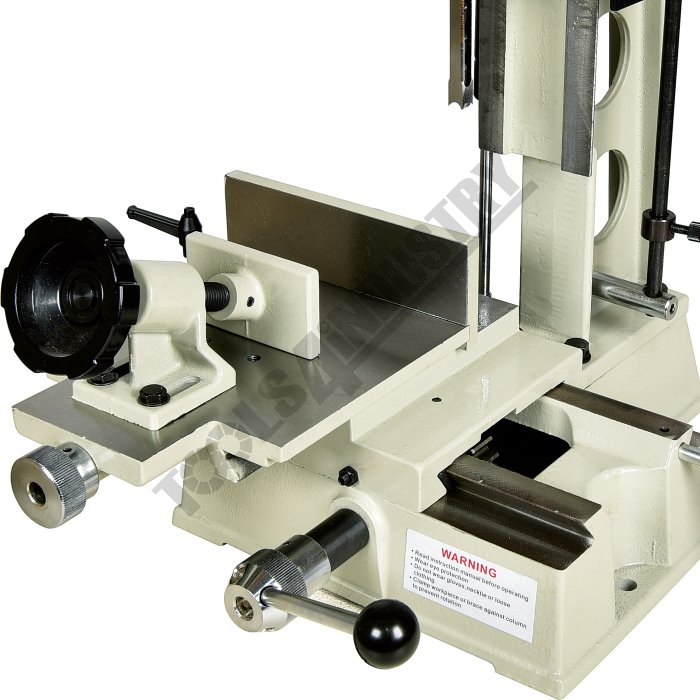

- Quick action hand wheel material clamp

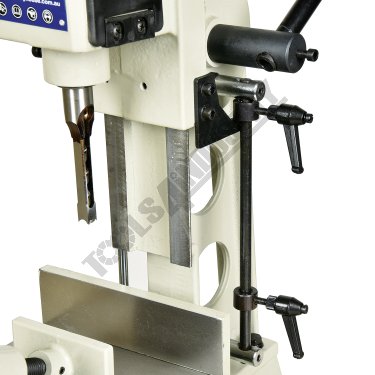

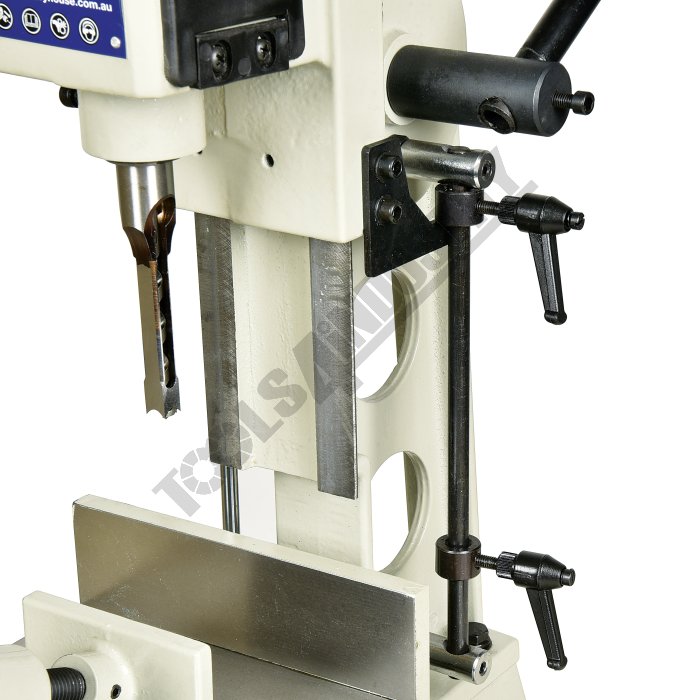

- 120mm vertical head stroke
- 165mm lateral (left to right) stroke
- 76mm maximum mortice depth

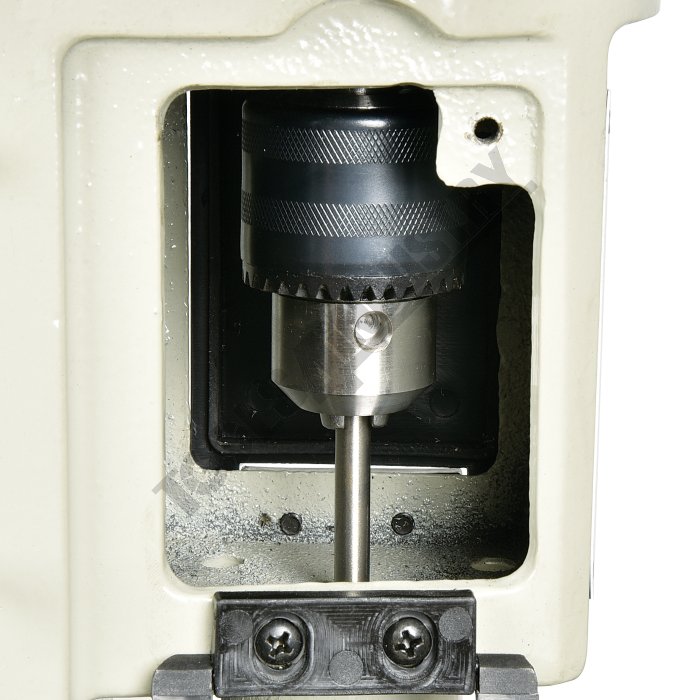

- 1-13mm drill chuck capacity
- 1400rpm spindle speed
- 370W 240V motor

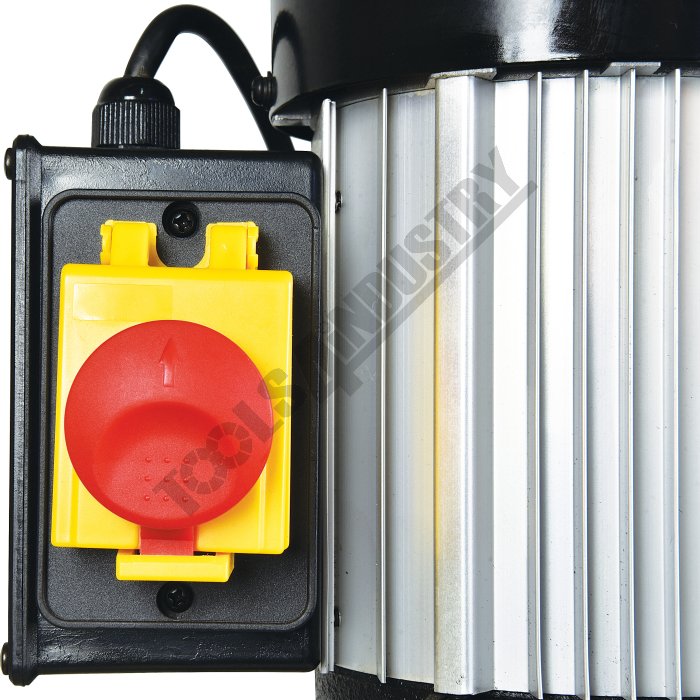

- Magnetic switch with emergency stop
Includes
- 1 x Chisel (Ø3/8" x 19mm collar)
- 1 x Collar reducing bush Ø25mm OD - Ø19mm ID
Specifications
- Compare 3 Products
- ORDER CODE
- MODEL
- Timber Capacitymm
- Table Movementmm
- Vertical Head Strokemm
- Collar Reducing Bush (ID)mm
- Motor PowerkW / hp
- VoltageV
- Floor Space (W x D x H)mm
- Nett Weightkg
| ORDER CODE | M-16 |
|---|---|
| MODEL | 125 |
| Timber Capacitymm | 160 x 46 |
| Table Movementmm | 120 |
| Vertical Head Strokemm | Ø19 |
| Collar Reducing Bush (ID)mm | 0.37 / 1/2 |
| Motor PowerkW / hp | 240 |
| VoltageV | 470 x 500 x 750 |
| Floor Space (W x D x H)mm | 46 |
| Nett Weightkg |
