Chisa 7.0 Chisel Morticer 145mm timber width capacity

Description

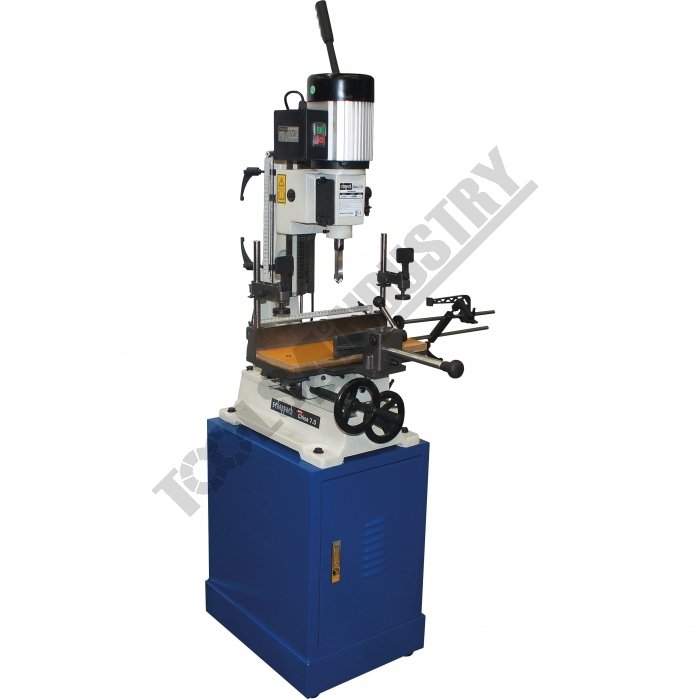

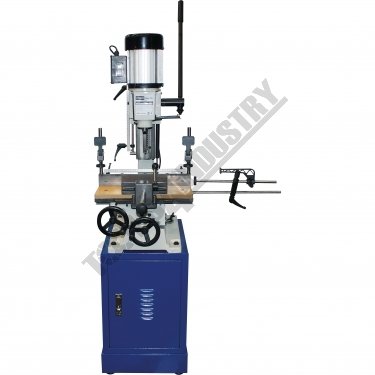

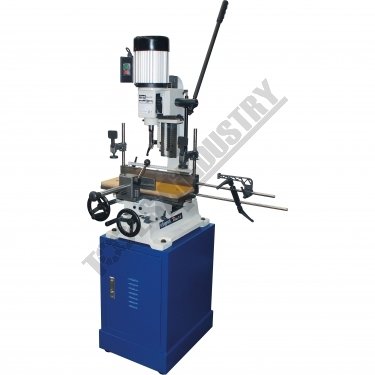

The scheppach Chisa 7.0 is a classic floor standing hollow chisel mortising machine. Due to its robust construction this machine is stable in use and offers the best results at an economic price.

Equipped with a useful cabinet storage base and facility to reverse the headstock for mortising door locks, the Chisa 7.0 is the ideal choice for both professional and amateur workshops.

Morticer Capacity:
25mm chisel in softwood
20mm chisel in hardwood

Features

  • Heavy duty cast iron frame
  • 145mm timber width capacity

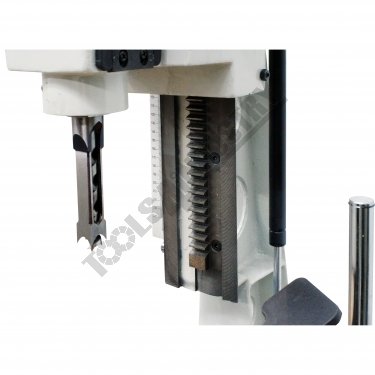

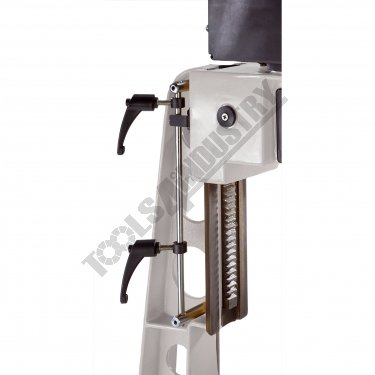

  • 220mm vertical head stroke
  • 200mm maximum workpiece height

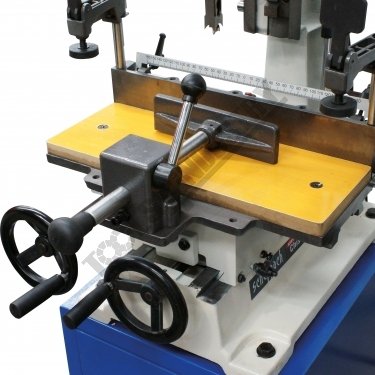

  • 400 x 150mm table size
  • 170 x 140mm table movement

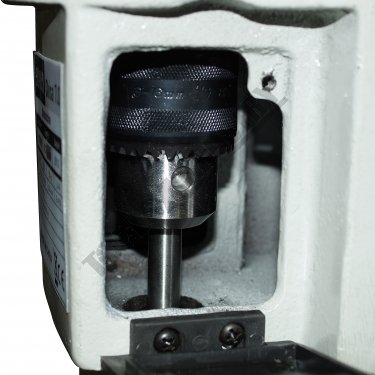

  • 16mm keyed drill chuck

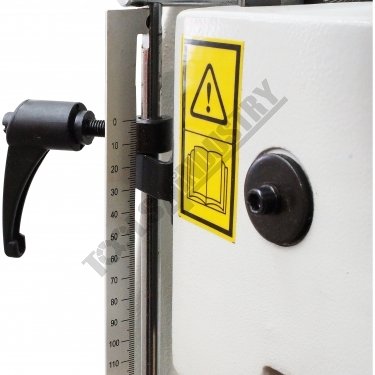

  • Adjustable depth stop

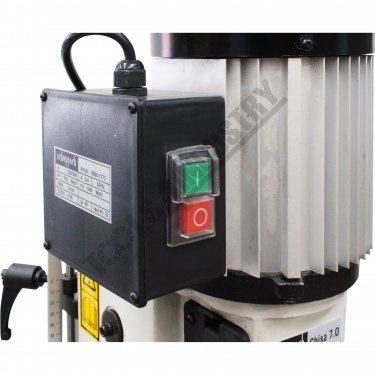

  • Magnetic safety switch

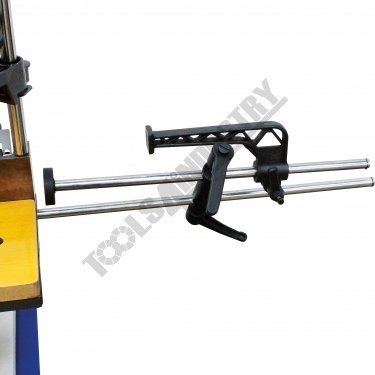

  • Adjustable material length stop

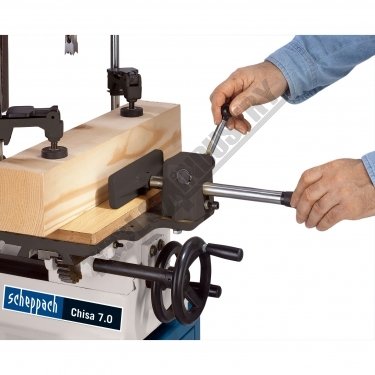

  • Quick action cam lever material clamp

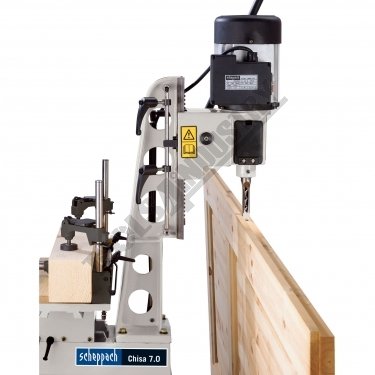

  • Mortice head can be reversed for door locks or hinge holes

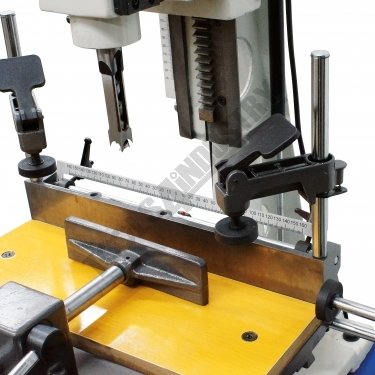

  • Adjustable overhead cam action lever material clamp

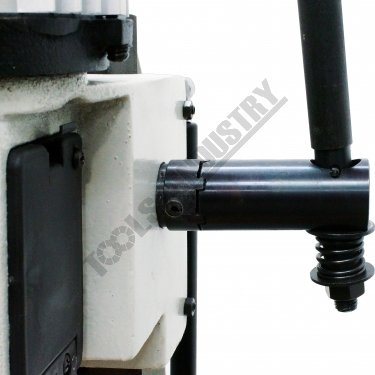

  • Mortice head lever can be reposition via spring loaded drive dog system
  • 0.75kW / 1hp 240V motor

Includes

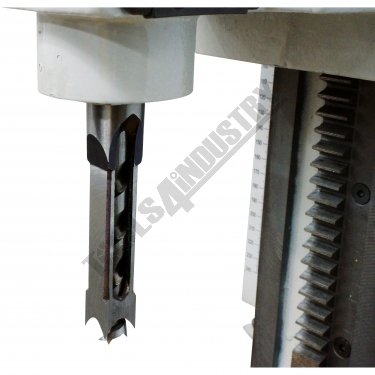

  • 1 x Ø5/8" Chisel bit for softwood
  • 1 x Ø5/8" Chisel bit for hardwood
  • 2 x Collar reducing bushes Ø30.2mm OD - Ø19mm ID & Ø30.2mm OD - Ø20.65mm ID

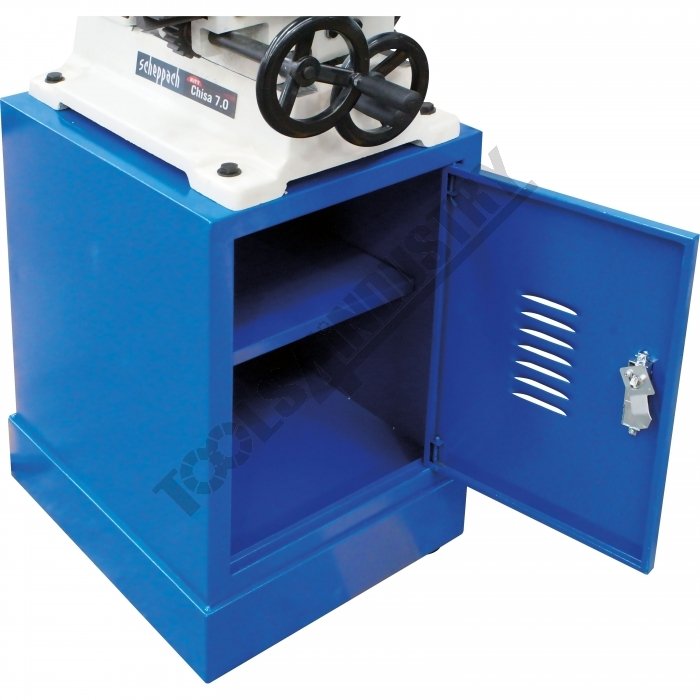

  • Storage cabinet with lock

Specifications

ORDER CODEChisa 7.0
MODEL145
Timber Capacitymm170 x 140
Table Movementmm220
Vertical Head StrokemmØ19 & Ø20.65
Collar Reducing Bush (ID)mm0.75 / 1
Motor PowerkW / hp240
VoltageV1200 x 770 x 1650
Floor Space (W x D x H)mm560 x 880 x 830
Shipping Dimensions (L x W x H)mm98
Nett Weightkg
