| Code | W810 |
|---|---|
| Model | UTS-1 |
| Capacity | Top Area 335 x 600mm x 775mm High |
| Weight (kg) | 8.3 |
| Weight (m3) | 0.008 |
| Weight (Freight) | 8.3 |
| Dimensions (cm) | 83 x 10 x 10 |

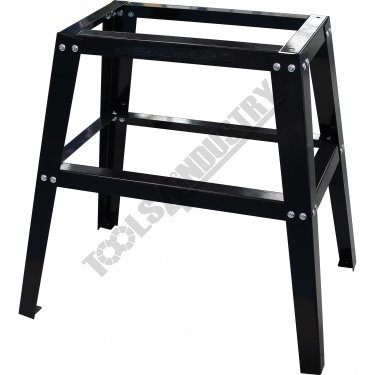

Universal Tool Stand UTS-1 Top Area 335 x 600mm x 775mm High
Description
The UTS-1 Universal Tool Stand is the perfect solution for mounting a variety of bench machinery, including Thicknessers, Routers, Band-Saws, Sanders, Wet Stone Grinders, and more. With a robust 100kg load capacity, it offers a stable 335x600mm top surface and a height of 775mm. The stand also features 4x Ø10mm top mounting holes (280x540mm centers), making it versatile and easy to adapt to your equipment.Note: Some modifications to the top plate may be necessary to fit your machine.
Features

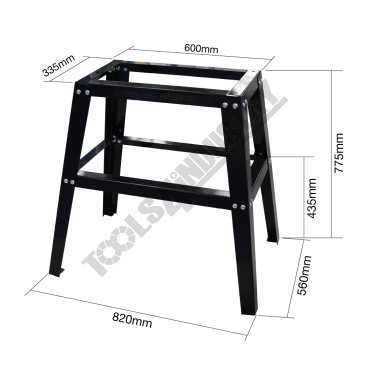

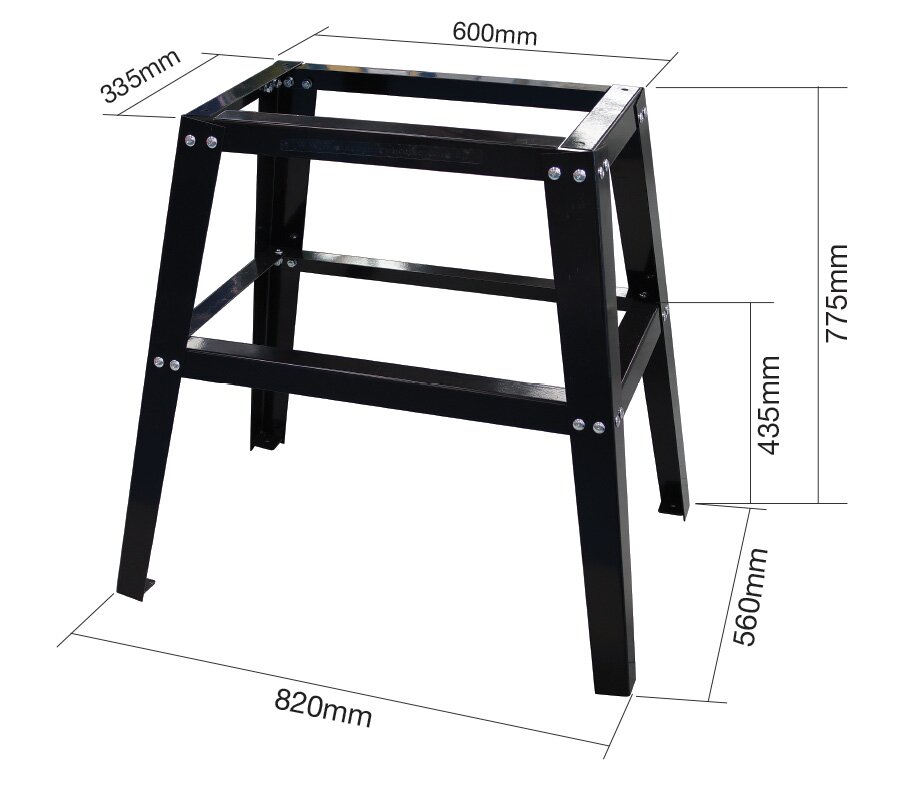

- Maximum Load Capacity: 100kg
- Top Dimensions: 335mm x 600mm
- Height: 775mm
- Mounting Holes: 4 x Ø10mm holes (280mm x 540mm centers)
- Center Support Frame Height: 435mm
- Leg Floor Space: 560mm x 820mm
- This sturdy stand is built to provide reliable support for a variety of bench machinery.
Specifications
- Compare 2 Products
- ORDER CODE
- MODEL
- Maximum Load Capacitykg
- 4 x Holes Mounting Dimensionsmm
- Top L x Dmm
- Legs L x Dmm
- Heightmm
- Centre Frame Heightmm
- Nett Weightkg
| ORDER CODE | UTS-1 |
|---|---|
| MODEL | 100 |
| Maximum Load Capacitykg | 280 x 540 centres |
| 4 x Holes Mounting Dimensionsmm | 600 x 335 |
| Top L x Dmm | 820 x 560 |
| Legs L x Dmm | 775 |
| Heightmm | 435 |
| Centre Frame Heightmm | 11 |
| Nett Weightkg |
