| Code | W811 |
|---|---|
| Model | UTS-3HD |
| Capacity | Top Area 400 x 600mm x 500~820mm High |
| Weight (kg) | 22 |
| Weight (m3) | 0.014 |
| Weight (Freight) | 22 |
| Dimensions (cm) | 63.5 x 41.5 x 5.2 |

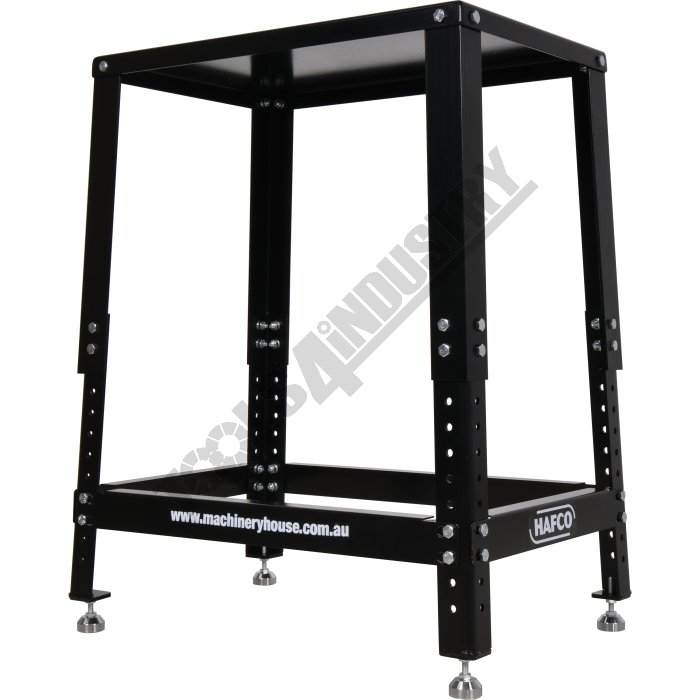

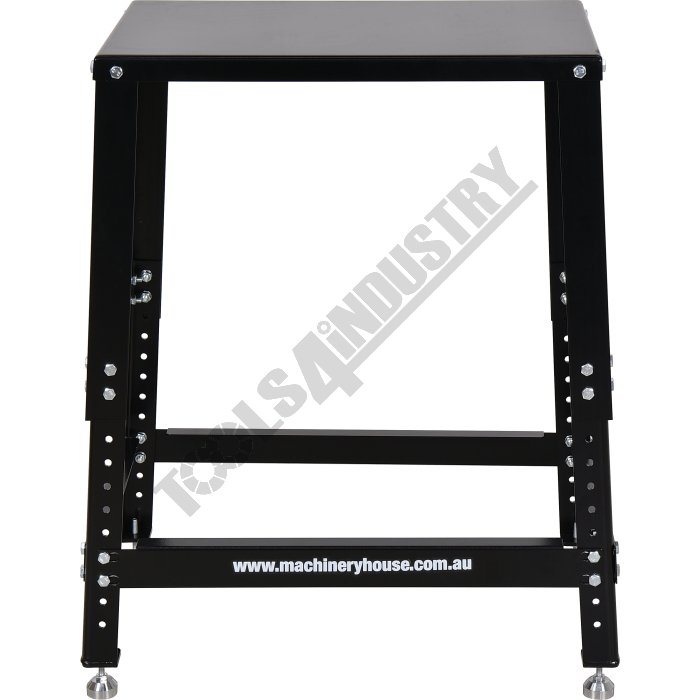

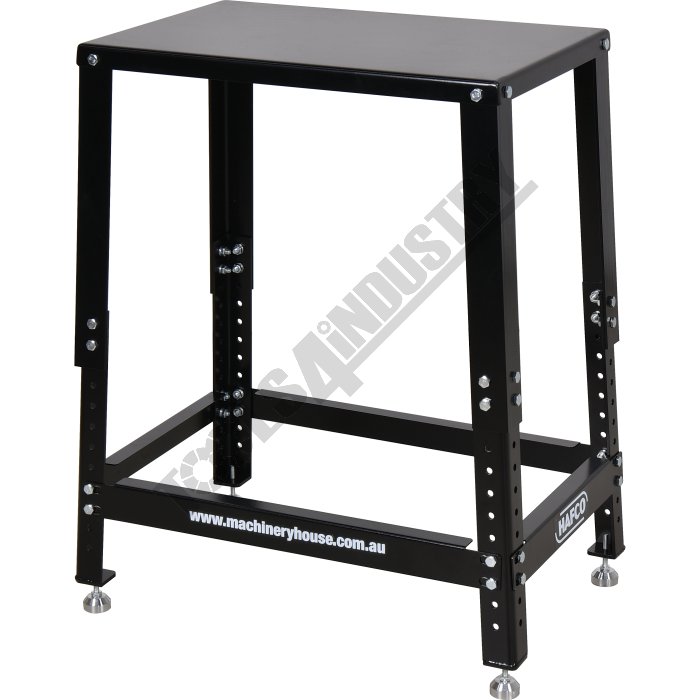

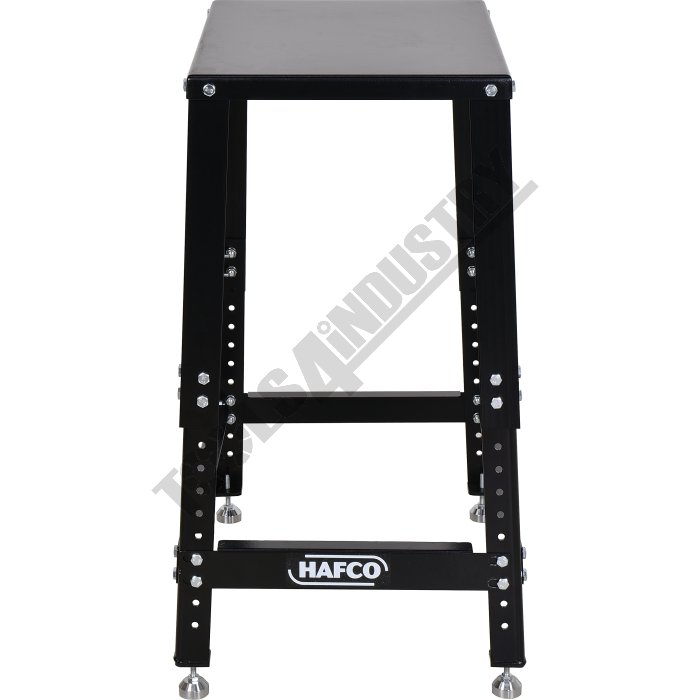

Heavy Duty Universal Stand UTS-3HD Top Area 400 x 600mm x 500~820mm High
Description
The UTS-3HD Heavy-Duty Universal Stand offers an affordable and reliable solution for supporting a wide range of small footprint machines and workshop accessories. Built with a durable 3mm steel plate, it provides a solid and customizable mounting surface to suit various applications.Capable of holding up to 200kg, the stand features a 600 x 400mm top area and an adjustable height range of 500–820mm. The screw-type adjustable feet allow you to level the stand to your floor for a stable and secure setup.
Note: Some modifications to the top plate may be required to fit your specific machine.
Features

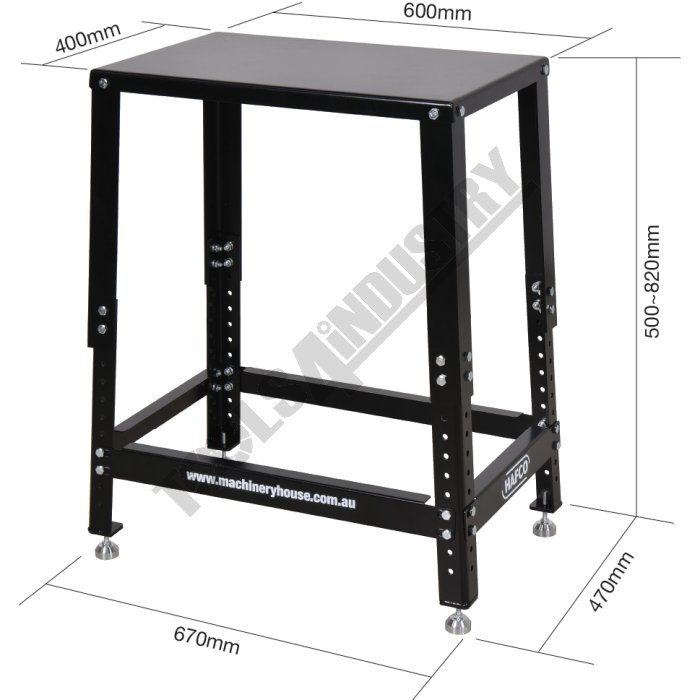

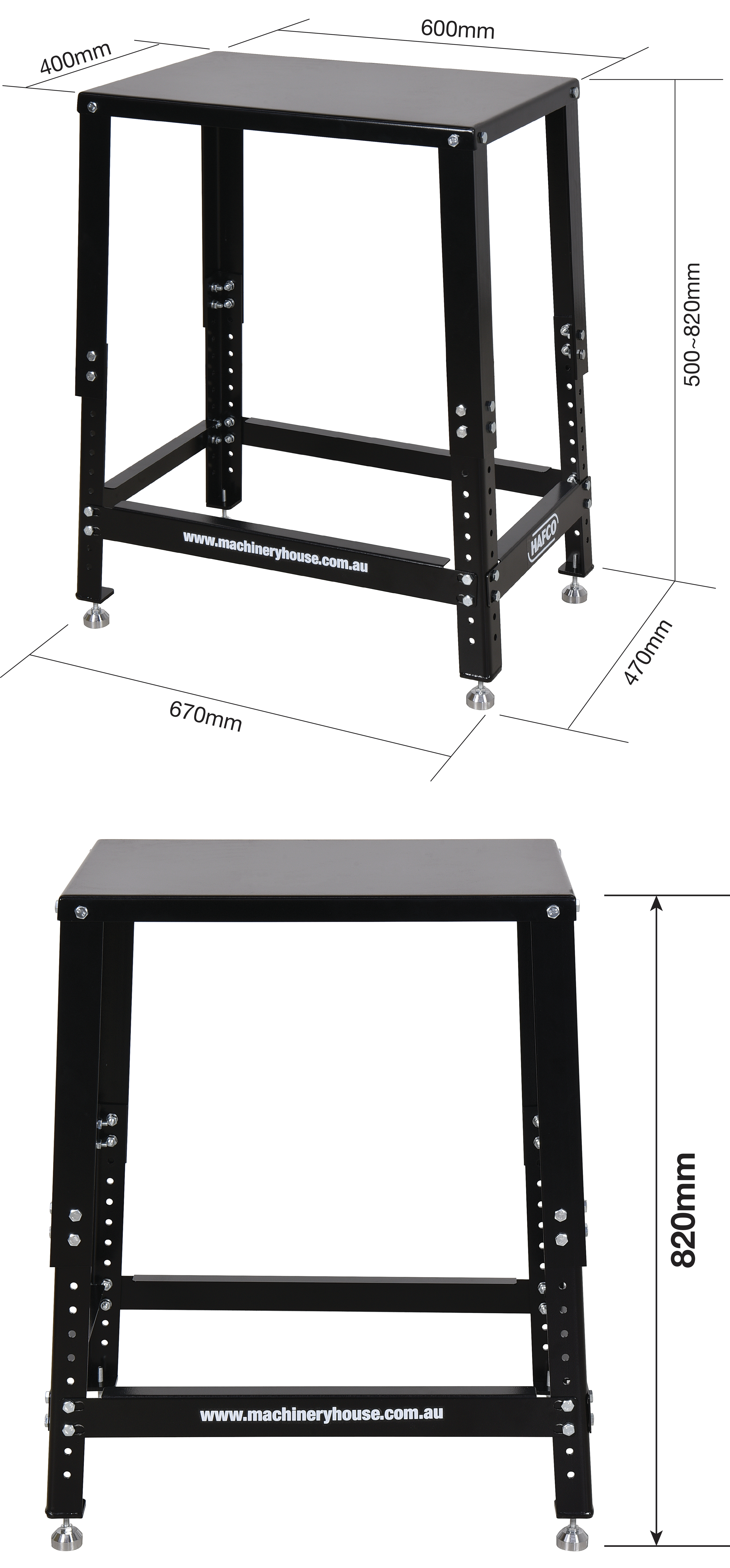

- Top Dimensions: 400mm x 600mm (3mm Top Thickness)

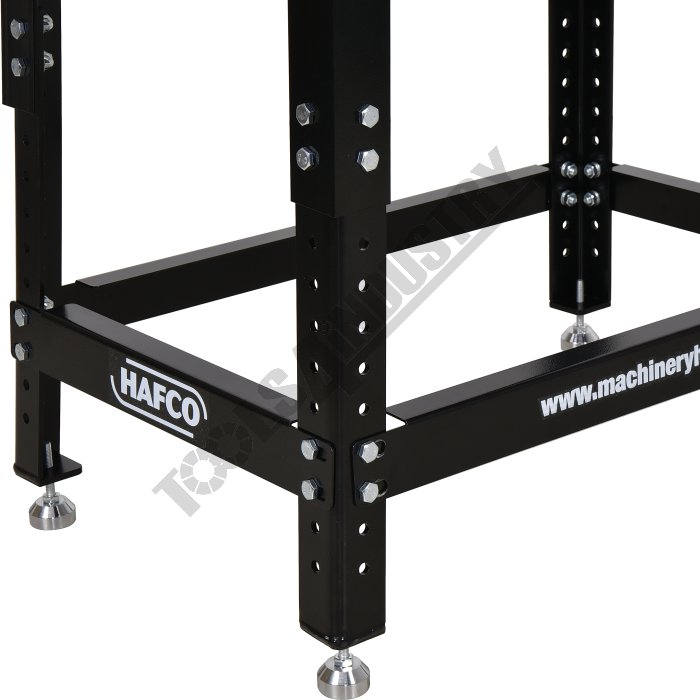

- Heavy Duty Legs: 50 x 50 x 4mm steel angle legs with adjustable feet
- Customizable Mounting: Steel plate top allows for drilling and tapping for secure mounting
- Maximum Load Capacity: 200kg

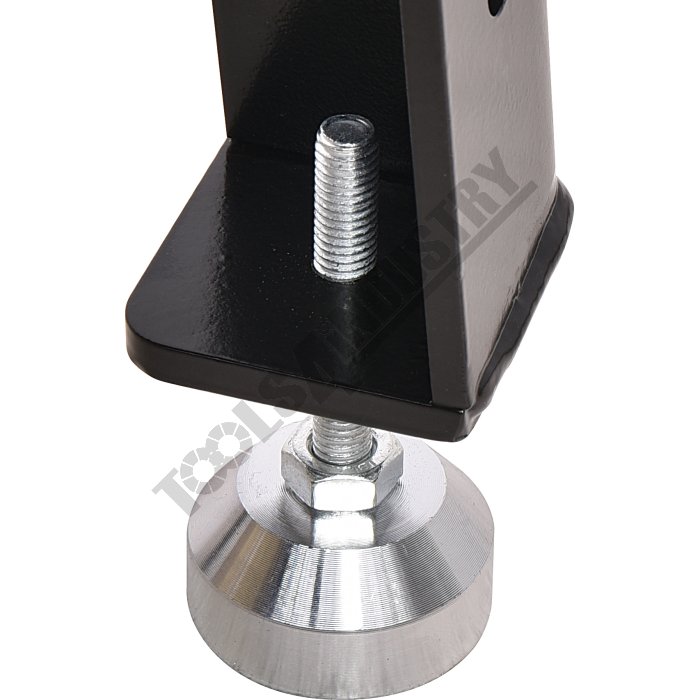

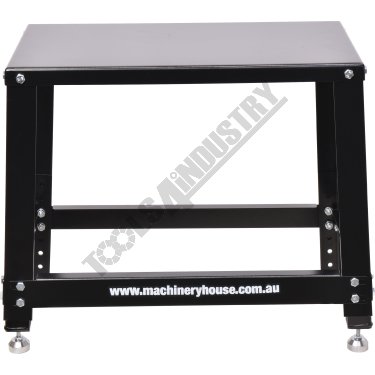

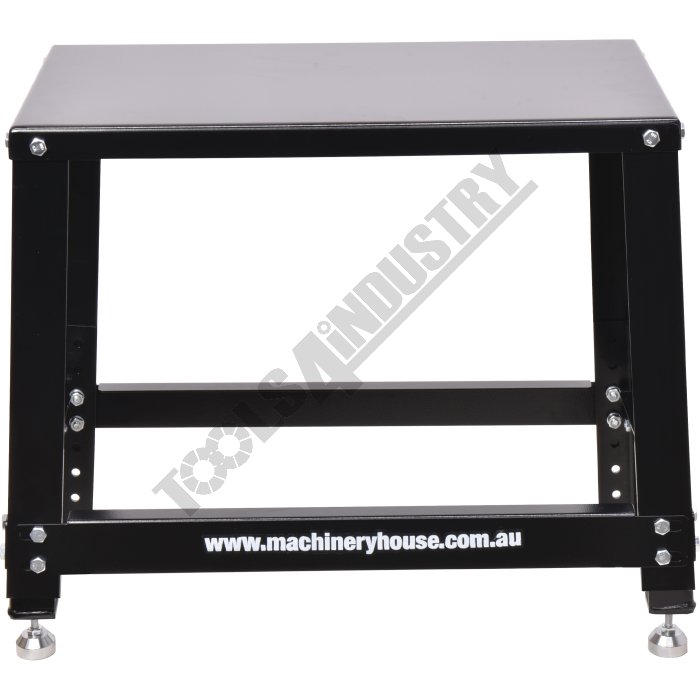

- Height: Adjustable from 500mm to 820mm with screw-type feet
- This heavy-duty stand offers a strong, customizable foundation for a wide range of machinery.
Specifications
- Compare 2 Products
- ORDER CODE
- MODEL
- Maximum Load Capacitykg
- 4 x Holes Mounting Dimensionsmm
- Top L x Dmm
- Legs L x Dmm
- Heightmm
- Centre Frame Heightmm
- Nett Weightkg
| ORDER CODE | UTS-3HD |
|---|---|
| MODEL | 200 |
| Maximum Load Capacitykg | ~ |
| 4 x Holes Mounting Dimensionsmm | 600 x 400 |
| Top L x Dmm | 670 x 470 |
| Legs L x Dmm | 500~820 with Adjustable Feet |
| Heightmm | ~ |
| Centre Frame Heightmm | 19 |
| Nett Weightkg |
