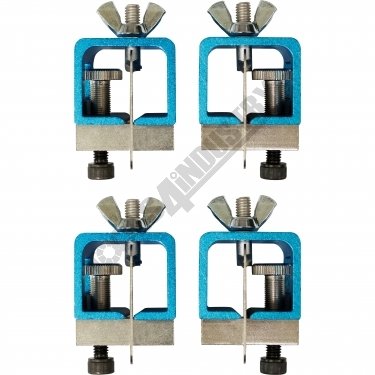

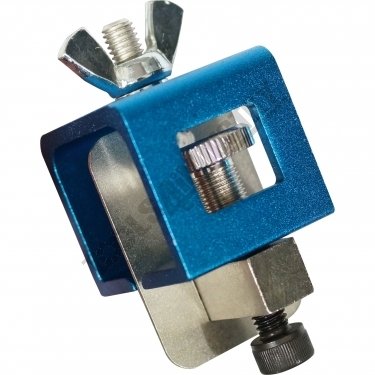

BWC-4 Butt Welding Aluminium & Steel Clamp Set 0 - 3mm Clamping Thickness

Description

A simple and efficient way of ensuring a perfect welded butt joint.
Holds panels edge to edge with almost no gap - allowing full penetration of the weld.

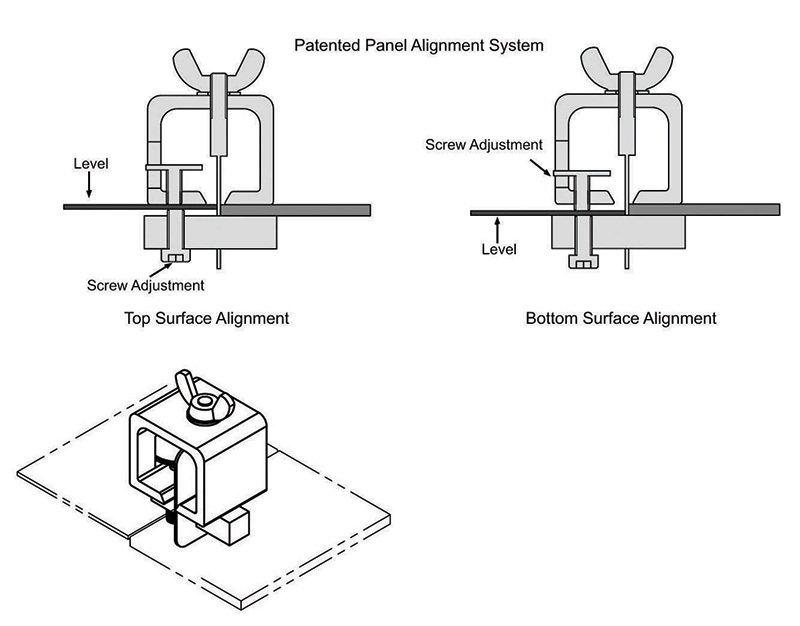

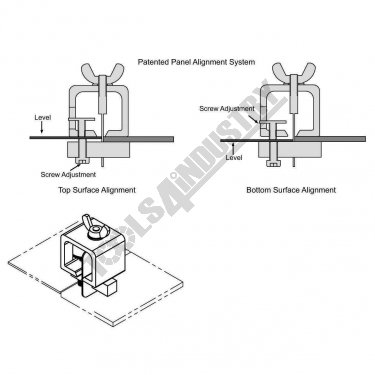

Patented level adjustment allows accurate joining of dissimilar thicknesses of materials.
Level adjustment allows flat alignment of top or bottom surface of panels.

Features

  • Manufactured from steel with an aluminium body
  • Level adjusting screws between 0 to 3mm either side
  • Knurled adjusting screw head

Specifications

ORDER CODEW113
MODELBWC-4
TypeButt Welding Clamp Set


Table Height with Standmm~
Suits Table Size~
Material Finish~
Clamping Capacity0 - 3mm
Locking Handle - Pivot Movement~
Clamp Bar - Pivot Movement~
Plunger Travelmm~
Throat Depthmm16mm
Openingmm~
Size16 x 30mm Clamp Area
Size~
Quantity Per PackNo.~
Thread~
Number of HolesNo.~
Slot Lengthmm~
Magnet Clamp Angledeg~
Pull Forcekg~
Clamping ForcekgFinger Thumb Lock
Suits~


Over all Length~
Nett Weightkg0.38
