Code C1008
Model KL-36020
Weight (kg) 0.36
Weight (m3) 0.000
Weight (Freight) 0.36
Dimensions (cm) 10 x 6 x 3
HAFCO
1 Year

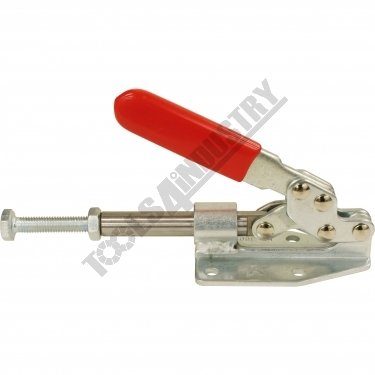

KL-36020 Straight Line Toggle Clamp

Features

  • KL-36020 - Straight Line Toggle Clamp
  • Holding capacity: 220kg
  • Handle moves: 144.5º
  • Plunger travel: 29.3mm
  • Weight: 360g

Specifications

ORDER CODEKL-36020
MODELStraight Line
Toggle Clamp

Type~
Table Height with Standmm~
Suits Table Size~
Material Finish220kg
Clamping Capacity144.5º
Locking Handle - Pivot Movement~
Clamp Bar - Pivot Movement29.3
Plunger Travelmm~
Throat Depthmm~
Openingmm~

Size1
Quantity Per PackNo.~
Thread~
Number of HolesNo.~
Slot Lengthmm~
Magnet Clamp Angledeg~
Pull Forcekg~
Clamping Forcekg~


Suits~
Over all Length0.36
Nett Weightkg
