Code C100
Model KL-12130
Weight (kg) 0.36
Weight (m3) 0.000
Weight (Freight) 0.36
Dimensions (cm) 10 x 6 x 3
HAFCO
1 Year

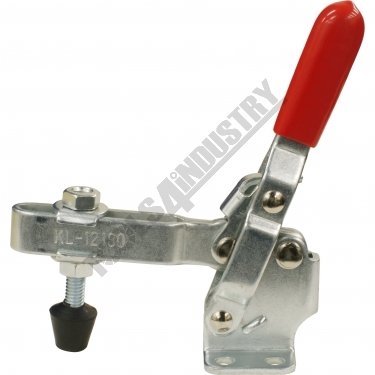

KL-12130 Vertical Toggle Clamp

Features

  • KL-12130 - Vertical Toggle Clamp
  • Holding capacity: 227kg
  • Handle moves: 65º
  • Bar moves: 100º
  • Weight: 360g

Specifications

ORDER CODEKL-12130
MODELVertical
Toggle Clamp

Type~
Table Height with Standmm~
Suits Table Size~
Material Finish227kg
Clamping Capacity65º
Locking Handle - Pivot Movement100º
Clamp Bar - Pivot Movement~
Plunger Travelmm~
Throat Depthmm~
Openingmm~

Size1
Quantity Per PackNo.~
Thread~
Number of HolesNo.~
Slot Lengthmm~
Magnet Clamp Angledeg~
Pull Forcekg~
Clamping Forcekg~


Suits~
Over all Length0.36
Nett Weightkg
