Code C1010
Model MP-304-HM
Weight (kg) 1.5
Weight (m3) 0.002
Weight (Freight) 1.5
Dimensions (cm) 26 x 13 x 7
HAFCO
1 Year

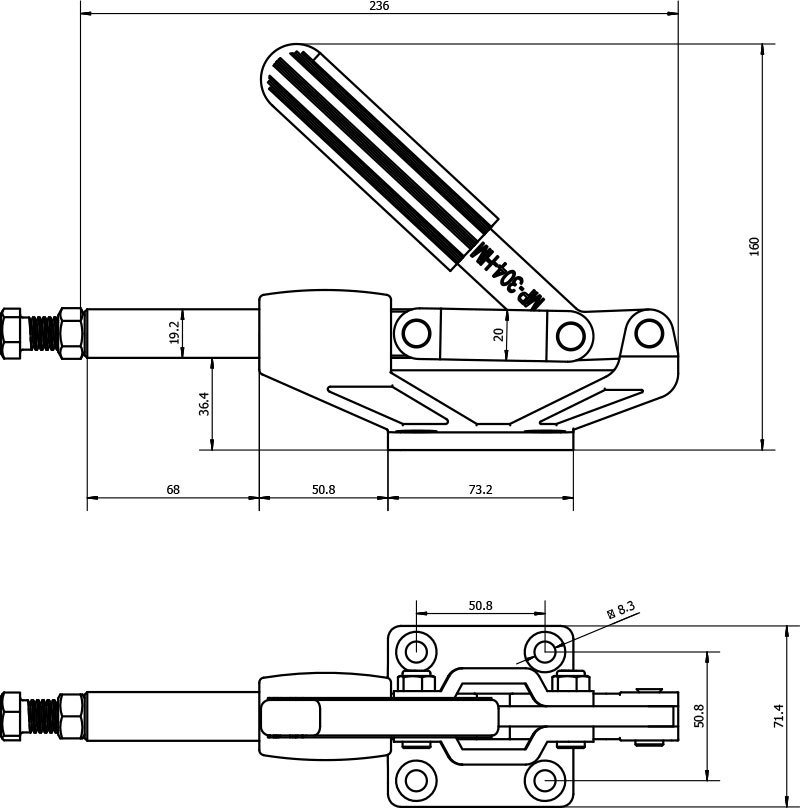

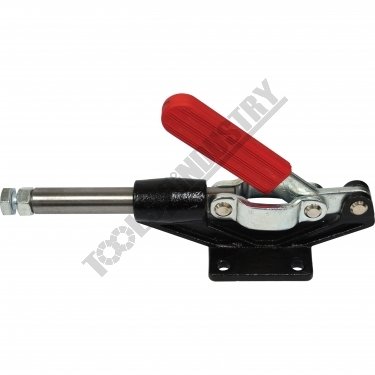

MP-304-HM Straight Line Toggle Clamp

Features

  • MP-304-HM - Straight Line Toggle Clamp
  • Holding capacity: 680kg
  • Handle moves: 190º
  • Plunger travel: 62mm
  • Weight: 1.5kg

Specifications

ORDER CODEMP-304-HM
MODELStraight Line
Toggle Clamp

Type~
Table Height with Standmm~
Suits Table Size~
Material Finish680kg
Clamping Capacity190º
Locking Handle - Pivot Movement~
Clamp Bar - Pivot Movement62
Plunger Travelmm~
Throat Depthmm~
Openingmm~

Size1
Quantity Per PackNo.~
Thread~
Number of HolesNo.~
Slot Lengthmm~
Magnet Clamp Angledeg~
Pull Forcekg~
Clamping Forcekg~


Suits~
Over all Length1.5
Nett Weightkg
