Code S996A
Model DB60-3200
Capacity 60mm x 85mm (W x H) 3200mm Long (Suits die rail type)
Weight (kg) 175
Weight (m3) 0.023
Weight (Freight) 175
Dimensions (cm) 322 x 10 x 7
METALMASTER
1 Year

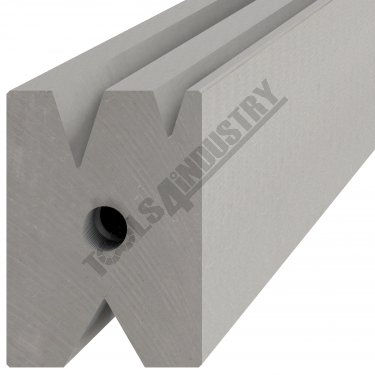

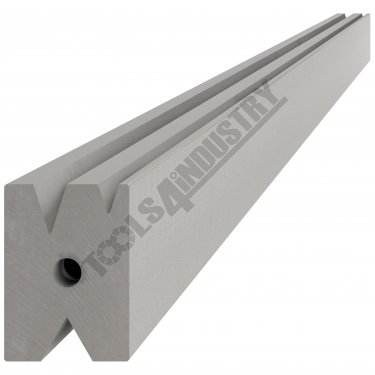

DB60-3200 60mm Die Block Pressbrake Tooling 60mm x 85mm (W x H) 3200mm Long (Suits die rail type)

Description

Acute angle multi Vee die block made from chromium-molybdenum high strength steel and heat treated for long term durability.

Designed for acute angle bending including catering profiles

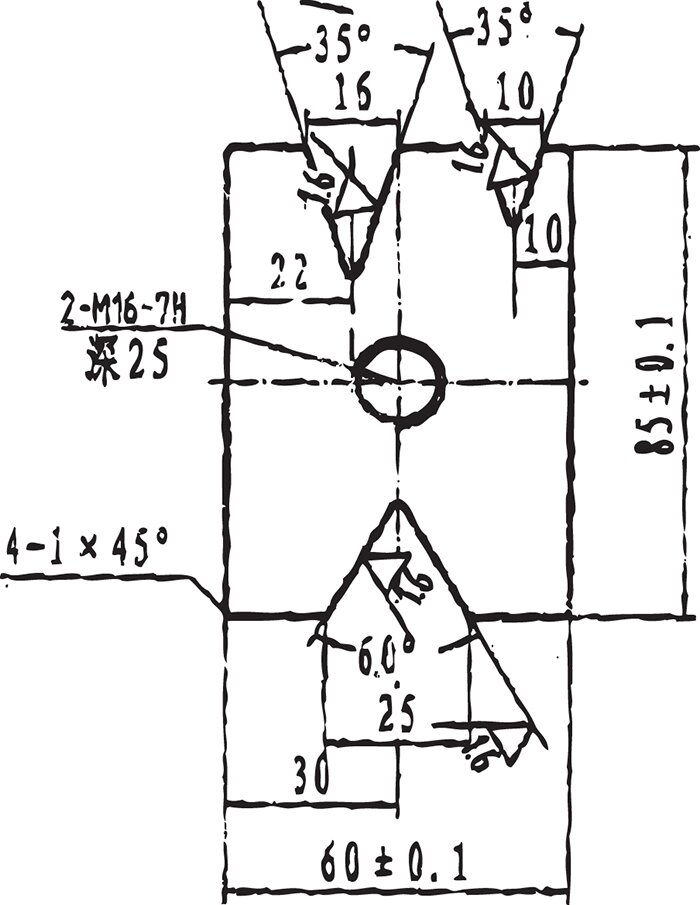

Included Vee's -:
10mm x 35º
16mm x 35º
25mm x 60º

Width - 60mm
Height - 85mm
Length - 3200mm

Suits S996B Die rail

Specifications

Order CodeDB60-3200
ModelDie Block
Type60 x 85 x 3200

Sizemm
