Code	S99599
Model	DR60-2500
Capacity	60mm Die Rail x 2500mm Length
Weight (kg)	130
Weight (m³)	0.023
Weight (Freight)	130
Dimensions (cm)	322 x 12 x 6

METALMASTER

1 Year Warranty

Product Brochure

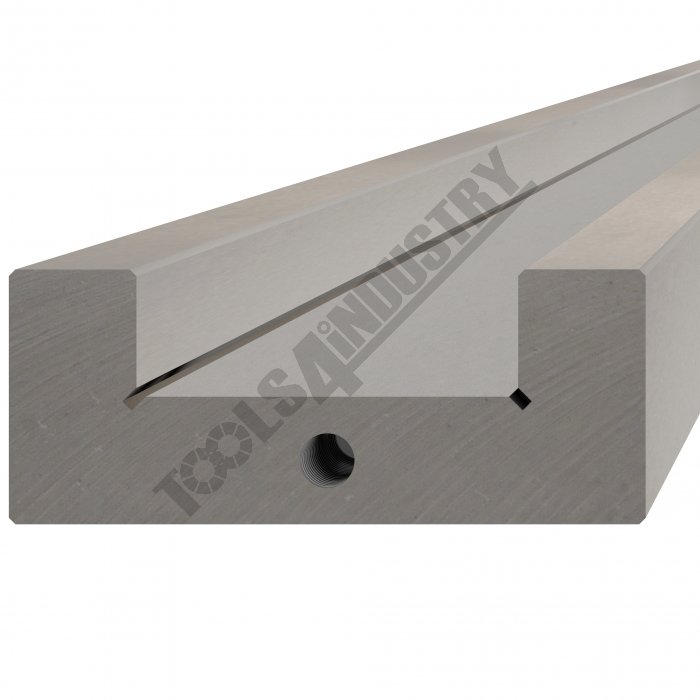

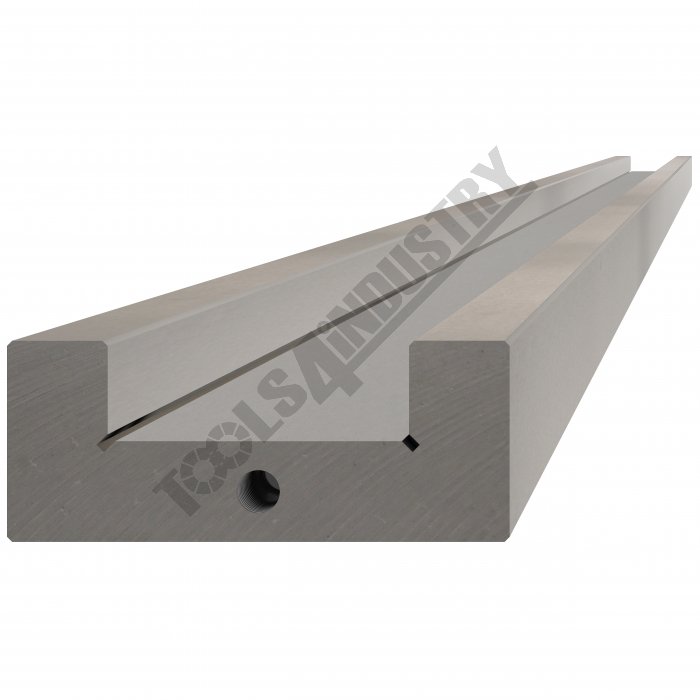

60mm Die Rail Pressbrake Tooling DR60-2500 60mm Die Rail x 2500mm Length

Description

Die rail holder to suit S996A multi Vee die block

Specifications

Compare 38 Products
Order Code
Model
Type
Sizemm

S99599
DR60-2500
Die Rail
60 x 2500

S996B
DR60-3200
Die Rail
60 x 3200

S996A
DB60-3200
Die Block
60 x 85 x 3200

S997B
DR60-4000
Die Rail
60 x 4000

S977A
DB60-4000
Die Block
60 x 85 x 4000

S9925
DB75-2000
Die Block
75 x 2000

S9927
DB75-3200
Die Block
75 x 3200

S993
DB95-3200
Die Block
95 x 3200

S993A
DB95-4000
Die Block
95 x 4000

S9951
DB110-3200
Die Block
110 x 3200

S9952
DB110-4000
Die Block
110 x 4000

S994B
Die Block
DB130-1000
130 x 1000

S994
Die Block
DB130-3200
130 x 3200

S994A
DB130-4000
Die Block
130 x 4000

S995
DB150-4000
Die Block
150 x 4000

~
~
~
~

S9870
Die Film
120 x 0.5 - 35 meter roll

S988
QA-CL
Quick Action Int. Clamps
~

S989
TP35-116.800
35º Top Punch
116 x 800

S989S
TP35-116.800S
35º Top Punch
116 x 800 In Segments Of
10,20,40,50,100,200,365

S990
TP35-150.800
35º Top Punch
150 x 800

S990S
TP35-150.800S
35º Top Punch
150 x 800 In Segments Of
10,20,40,50,100,200,365

S990F
TP35-150.3200
35º Top Punch
150 x 3200

S991
TP86-150.800
86º Top Punch
150 x 800

S991S
TP86-150.800S
86º Top Punch
150 x 800 In Segments Of
10,20,40,50,100,200,365

S991F
TP86-150.3200
86º Top Punch
150 x 3200

S9920
TP86-150.800G
86º Top Punch Gooseneck
150 x 800

S9920S
TP86-150.800G
86º Top Punch Gooseneck - Segmented
150 x 800

S996
TP15-150.3200
15º Top Punch
150 x 3200

S997
TP15-150.4000
15º Top Punch
150 x 4000

S99230
DB60-60.800
Die Block
60 x 800

S99231
DB60-60.800
Die Block
60 x 800

S99234
DB60-86.800
Die Block
60 x 800

S99235
DB60-86.800S
Die Block
60 x 800

S99240
DB60-86.800
Die Block
80 x 75 x 800

S99242
DB95-86.800
Die Block
95 x 95 x 800

S99244
DB120-86.800
Die Block
120 x 110 x 800

S99246
DB160-86.800
Die Block
160 x 120 x 800

Order Code	DR60-2500
Model	Die Rail
Type	60 x 2500
Sizemm

Recommended Accessories

S989

35º Top Punch Pressbrake Tooling
TP35-116.800
116mm High x 800mm Long
Suits MetalMaster, Amada & European Pressbrakes

Code: S989

S989S

35º Top Punch Pressbrake Tooling - Segmented
TP35-116.800S
116mm High x 800mm Long, Divided in Segments - 10, 15, 20, 40, 50,100, 200, 365mm
Suits MetalMaster, Amada & European Pressbrakes

Code: S989S

S990

35º Top Punch Pressbrake Tooling
TP35-150.800
150mm High x 800mm Long
Suits MetalMaster, Amada & European Pressbrakes

Code: S990

S990S

35º Top Punch Pressbrake Tooling - Segmented
TP35-150.800S
150mm High x 800mm Long, Divided in Segments - 10, 15, 20, 40, 50,100, 200, 365mm
Suits MetalMaster, Amada & European Pressbrakes

Code: S990S

S99230

Dieblock - 4 Way 60 Degrees
DB60-60.800
60mm Square x 800mm Long
Suits MetalMaster, Amada & European Pressbrakes

Code: S99230

S99231

Dieblock - 4 Way 60 Degrees - Segmented
DB60-60.800S
60mm Square x 800mm Long, Divided in Segments - 10, 15, 20, 40, 50,100, 200, 365mm
Suits MetalMaster, Amada & European Pressbrakes

Code: S99231
