| Code | S99235 |
|---|---|
| Model | DB60-86.800S |
| Capacity | 60mm Square x 800mm Long, Divided in Segments - 10, 15, 20, 40, 50,100, 200, 365mm |
| Weight (kg) | 20 |
| Weight (m3) | 0.019 |
| Weight (Freight) | 20 |
| Dimensions (cm) | 92 x 14 x 15 |
DB60-86.800S Dieblock - 4 Way 86 Degrees - Segmented 60mm Square x 800mm Long, Divided in Segments - 10, 15, 20, 40, 50,100, 200, 365mm
Description
Precision 4 Way Euro Style Dieblock made from chromium-molybdenum high strength steel and heat treated for long term durability.Designed to be used directly on a pressbrake with a narrow table suitable to hold 60mm tooling or can be used universally on any wide table pressbrake by using a die rail.
Suits: 60mm Die Rail
S996B - 3200mm Long die rail
S997B - 4000mm Long die rail
Features

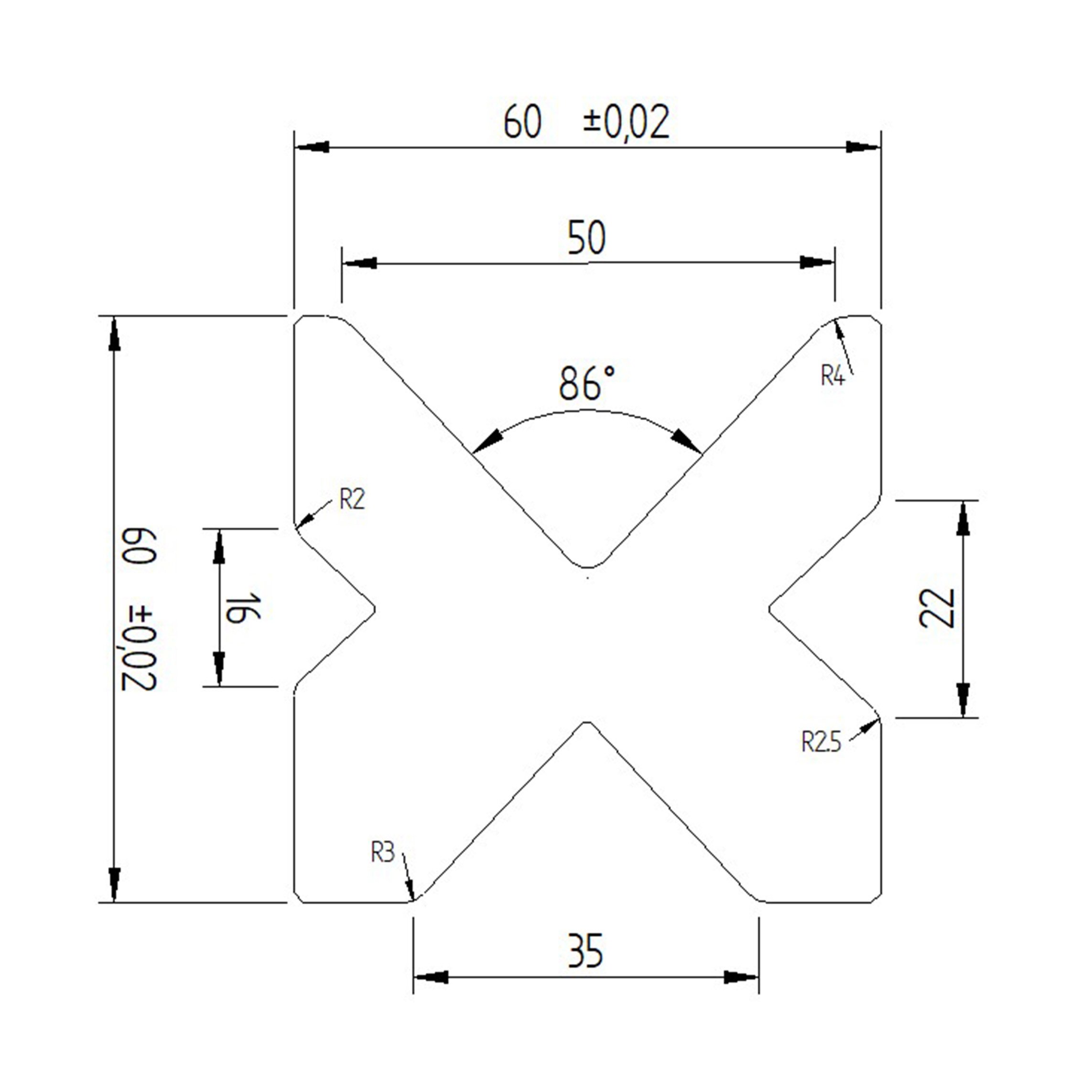

- 4 x 86 Degree V'S 16, 22, 35, 50mm
- 60mm Square x 800mm Long, Divided in Segments - 10, 15, 20, 40, 50,100, 200, 365mm
Specifications
- Compare 36 Products
- Order Code
- Model
- Type
- Sizemm
- S99235
- DB60-86.800S
- Die Block
- 60 x 800
- S99240
- DB60-86.800
- Die Block
- 80 x 75 x 800
- S99242
- DB95-86.800
- Die Block
- 95 x 95 x 800
- S99244
- DB120-86.800
- Die Block
- 120 x 110 x 800
- S996B
- DR60-3200
- Die Rail
- 60 x 3200
- S996A
- DB60-3200
- Die Block
- 60 x 85 x 3200
- S997B
- DR60-4000
- Die Rail
- 60 x 4000
- S977A
- DB60-4000
- Die Block
- 60 x 85 x 4000
- S9925
- DB75-2000
- Die Block
- 75 x 2000
- S9927
- DB75-3200
- Die Block
- 75 x 3200
- S993
- DB95-3200
- Die Block
- 95 x 3200
- S993A
- DB95-4000
- Die Block
- 95 x 4000
- S9951
- DB110-3200
- Die Block
- 110 x 3200
- S9952
- DB110-4000
- Die Block
- 110 x 4000
- S994B
- Die Block
- DB130-1000
- 130 x 1000
- S994
- Die Block
- DB130-3200
- 130 x 3200
- S994A
- DB130-4000
- Die Block
- 130 x 4000
- S995
- DB150-4000
- Die Block
- 150 x 4000
- ~
- ~
- ~
- ~
- S9870
- Die Film
- 120 x 0.5 - 35 meter roll
- S988
- QA-CL
- Quick Action Int. Clamps
- ~
- S989
- TP35-116.800
- 35º Top Punch
- 116 x 800
- S989S
- TP35-116.800S
- 35º Top Punch
- 116 x 800 In Segments Of
10,20,40,50,100,200,365
- S990
- TP35-150.800
- 35º Top Punch
- 150 x 800
- S990S
- TP35-150.800S
- 35º Top Punch
- 150 x 800 In Segments Of
10,20,40,50,100,200,365
- S990F
- TP35-150.3200
- 35º Top Punch
- 150 x 3200
- S991
- TP86-150.800
- 86º Top Punch
- 150 x 800
- S991S
- TP86-150.800S
- 86º Top Punch
- 150 x 800 In Segments Of
10,20,40,50,100,200,365
- S991F
- TP86-150.3200
- 86º Top Punch
- 150 x 3200
- S9920
- TP86-150.800G
- 86º Top Punch Gooseneck
- 150 x 800
- S9920S
- TP86-150.800G
- 86º Top Punch Gooseneck - Segmented
- 150 x 800
- S996
- TP15-150.3200
- 15º Top Punch
- 150 x 3200
- S997
- TP15-150.4000
- 15º Top Punch
- 150 x 4000
- S99230
- DB60-60.800
- Die Block
- 60 x 800
- S99231
- DB60-60.800
- Die Block
- 60 x 800
- S99234
- DB60-86.800
- Die Block
- 60 x 800
| Order Code | DB60-86.800S |
|---|---|
| Model | Die Block |
| Type | 60 x 800 |
| Sizemm |
