Code S990
Model TP35-150.800
Capacity 150mm High x 800mm Long
Weight (kg) 16
Weight (m3) 0.011
Weight (Freight) 16
Dimensions (cm) 85 x 18 x 7
METALMASTER
1 Year

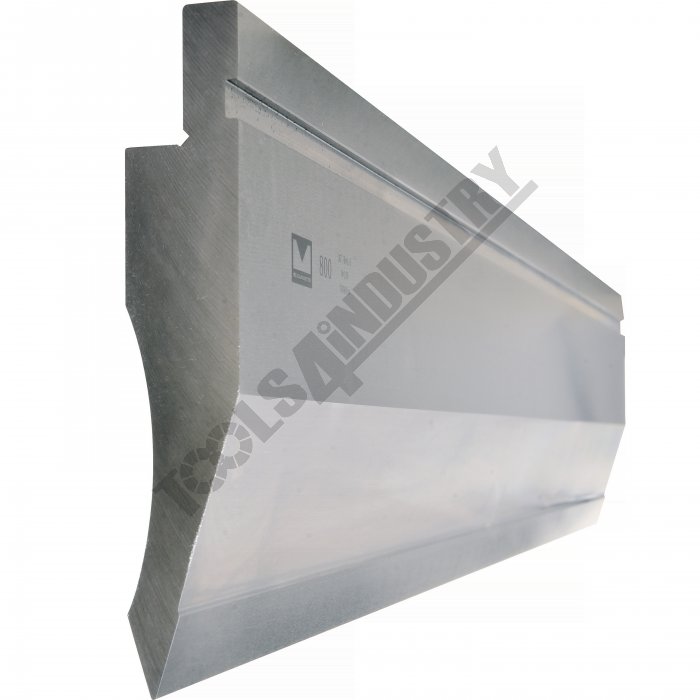

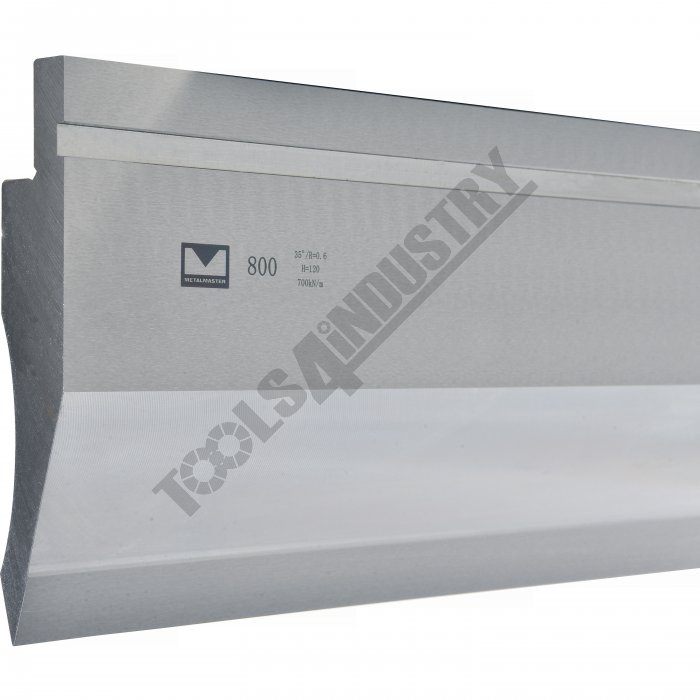

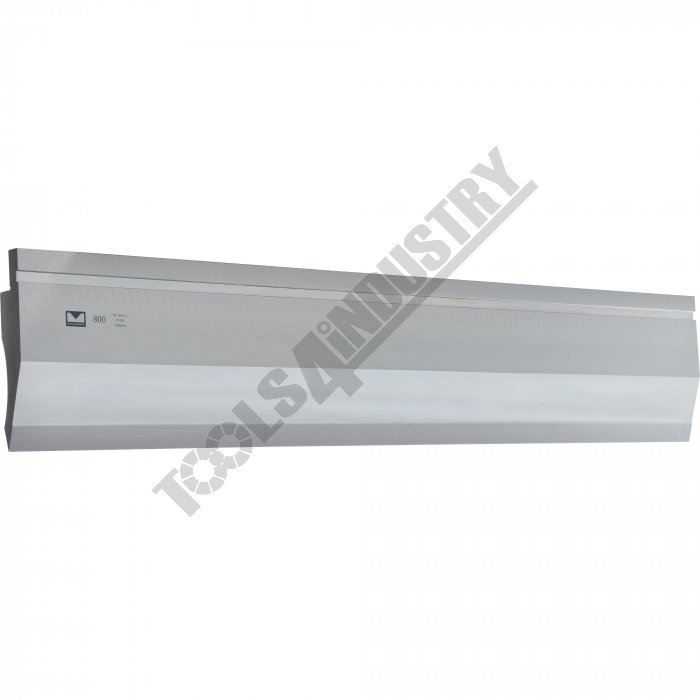

TP35-150.800 35º Top Punch Pressbrake Tooling 150mm High x 800mm Long

Description

Precision Pressbrake Punch made from chromium-molybdenum high strength steel and heat treated for long term durability.

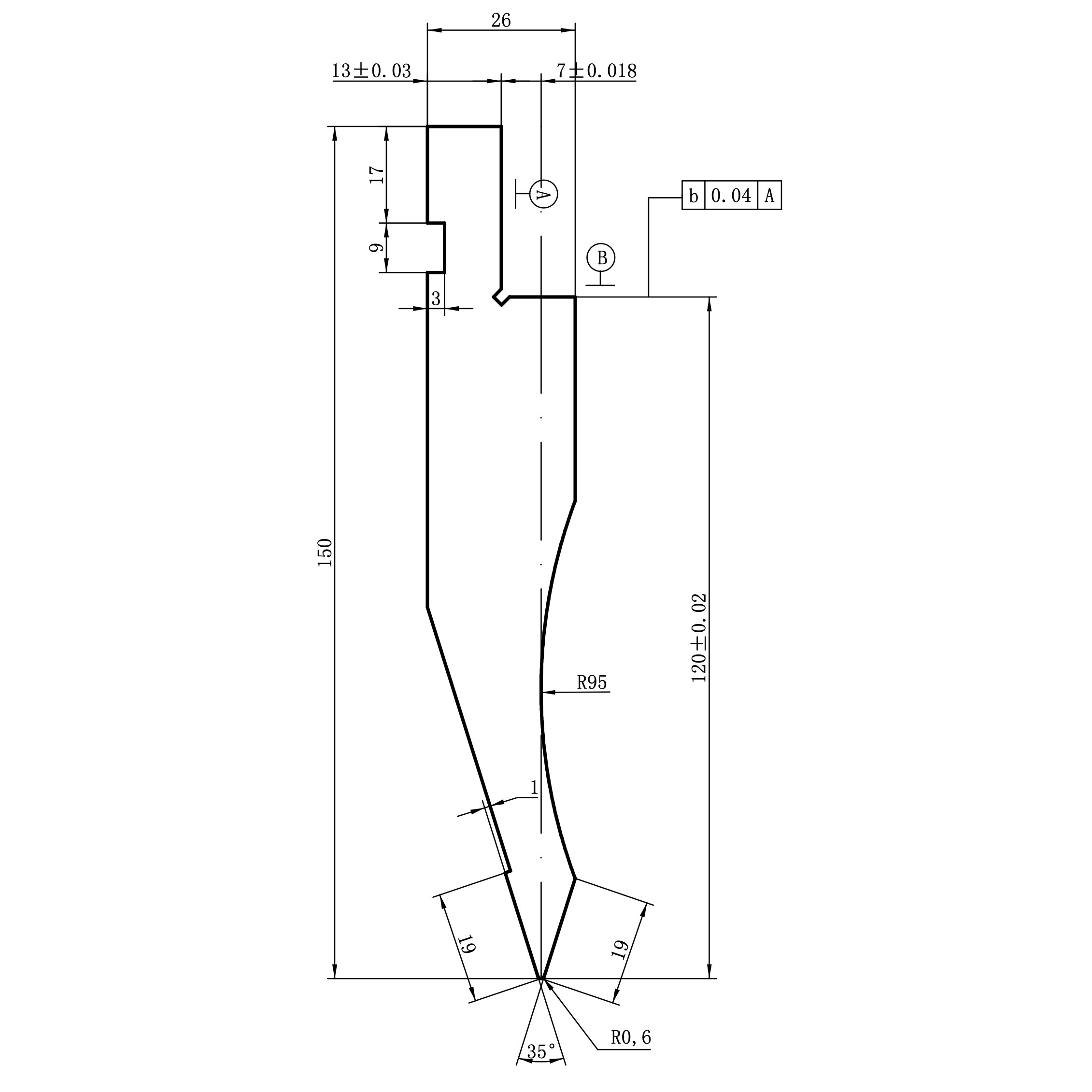

Nose Angle - 35 Degrees
Nose Radius - 0.6mm
Total Height - 150mm
Shoulder height - 120mm
Max. Tonnage - 700kN/m
Length - 800mm

Suits MetalMaster, Amada & European Pressbrakes

Specifications

Order CodeTP35-150.800
Model35º Top Punch
Type150 x 800

Sizemm
