| Code | S272 |
|---|---|
| Model | SRG-50G |
| Capacity | 1270 x 1.5mm Mild Steel Capacity |
| Weight (kg) | 298 |
| Weight (m3) | 0.605 |
| Weight (Freight) | 298 |
| Dimensions (cm) | 175 x 54 x 64 |

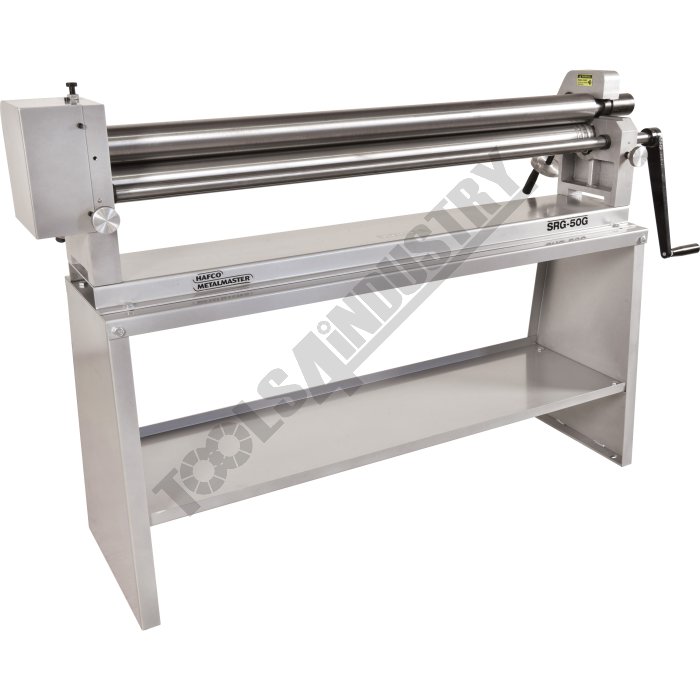

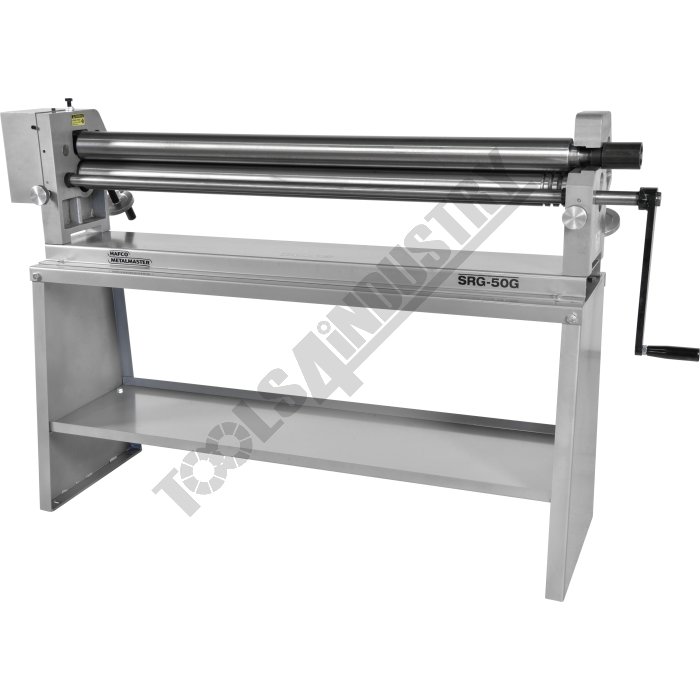

Manual Sheet Metal Curving Rolls SRG-50G 1270 x 1.5mm Mild Steel Capacity
Description
This New SRG-50G now features a "Gearbox Reduction Drive System" that requires much less manual effort when rolling 1.5mm sheet metal than other rolls in the market place.Another great feature is includes large aluminium hand dials for material thickness adjustment & curving roller adjustment for really easy & user friendly operation.
Features
- "NO BULL CAPACITY" - Australian Tested & Rated To True Working Capacity

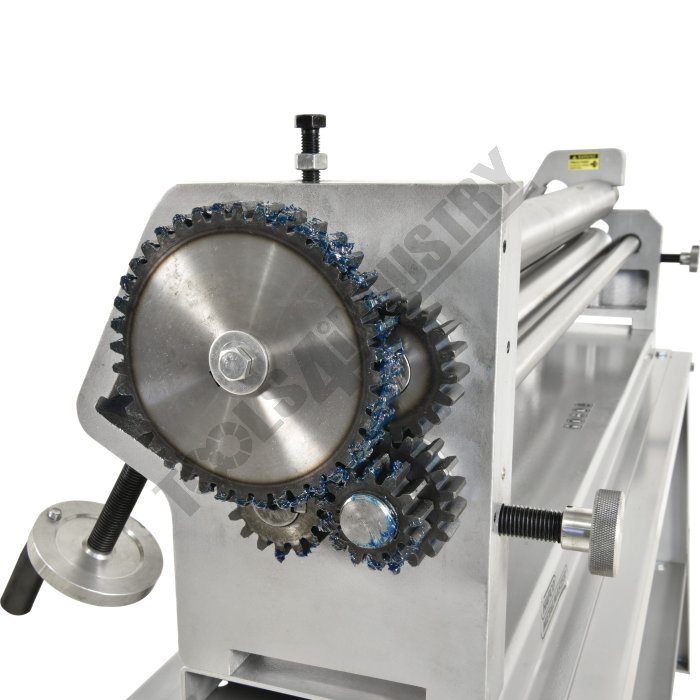

- 3:1 gear drive reduction ratio curving rolls
- Knurled aluminium hand dials for easy material thickness adjustment

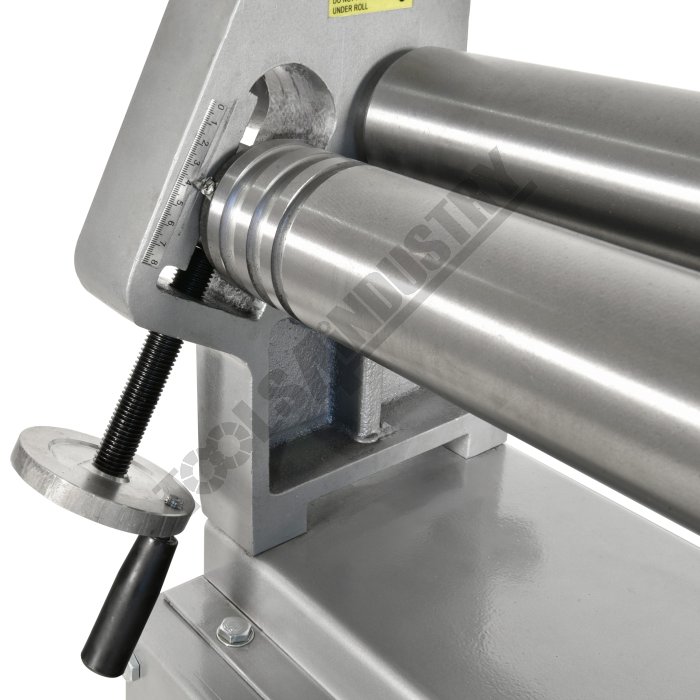

- Large aluminium hand dials for easy curving adjustment
- Cast-iron roller support ends
- 75mm Ground rolls with wiring grooves

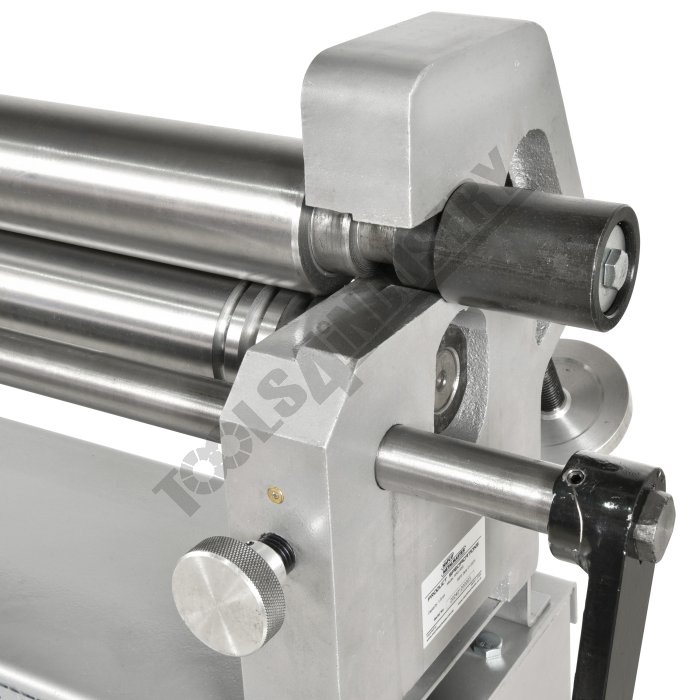

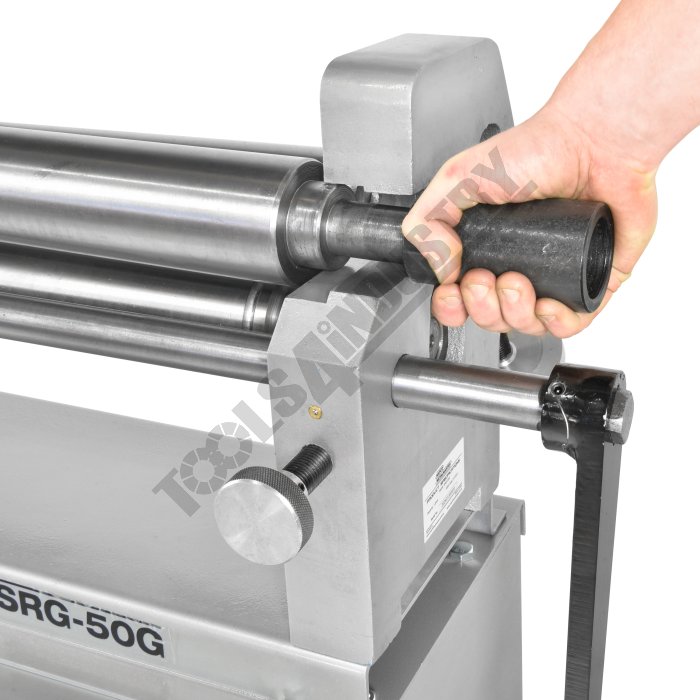

- Quick action swivel top roller
- Includes stand
- Mild steel capacity is rated on hot rolled material with 250MPA
Specifications
- Compare 9 Products
- ORDER CODE
- MODEL
- Useful Lengthmm
- Capacity - Mild Steelmm
- Minimum Rolling Diametermm
- Roll Diametermm
- Wire Groove Rollsmm
- Includes StandNo / Yes
- Nett Weightkg
| ORDER CODE | SRG-50G |
|---|---|
| MODEL | 1270 |
| Useful Lengthmm | 1.5 |
| Capacity - Mild Steelmm | 110 |
| Minimum Rolling Diametermm | 75 |
| Roll Diametermm | ~ |
| Wire Groove Rollsmm | Yes |
| Includes StandNo / Yes | 298 |
| Nett Weightkg |
