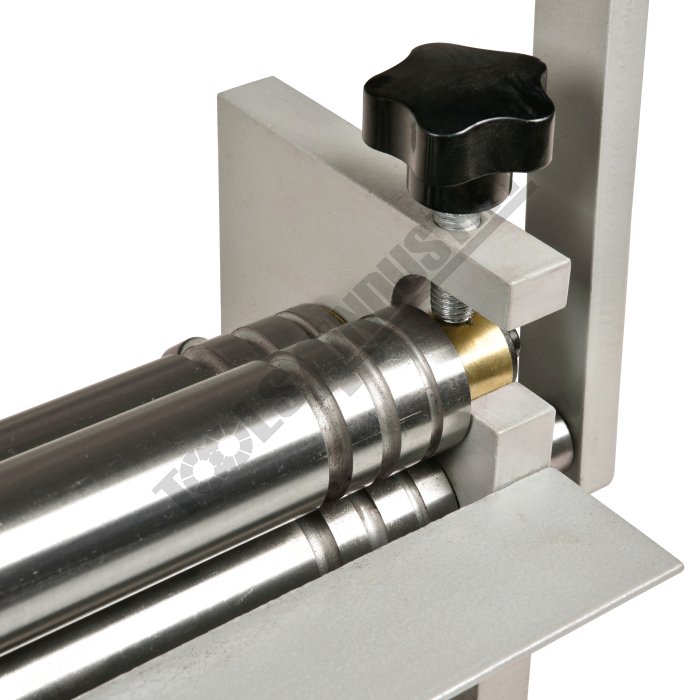

Wire Groove Rolls

Wire Groove Rolls

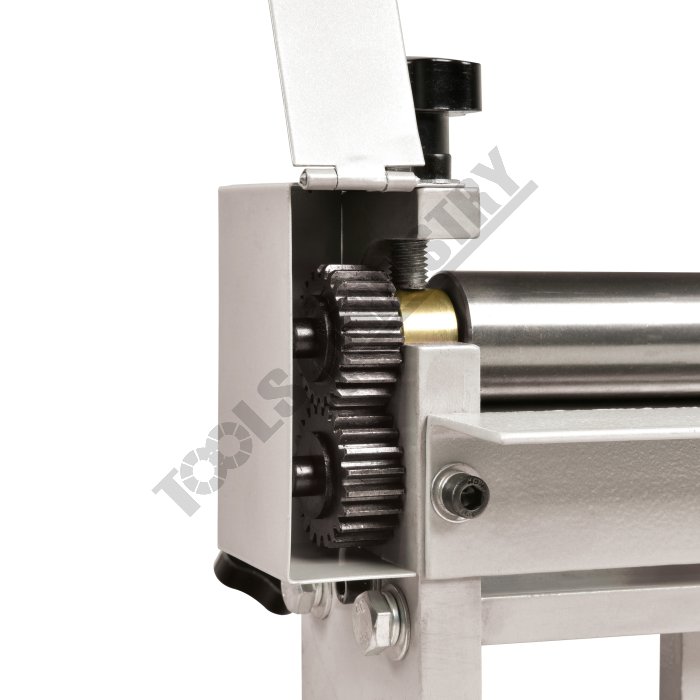

Gear Driven Rolls

Gear Driven Rolls

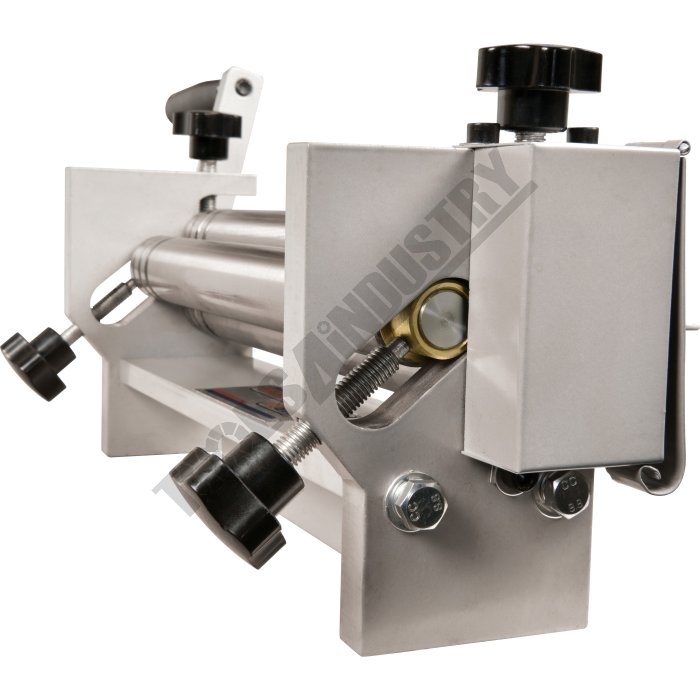

Adjustable Rear Roller

Adjustable Rear Roller

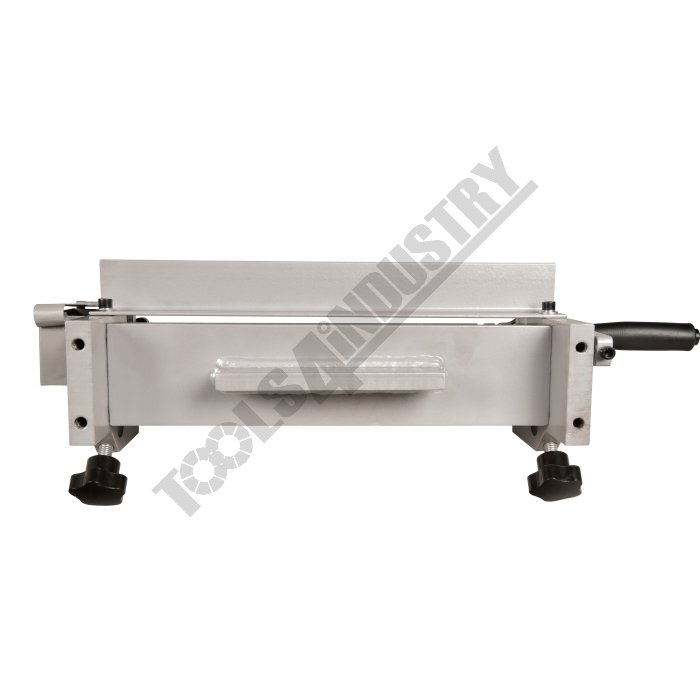

Bench or Vice Mount

Bench or Vice Mount

Code	S267
Model	SRG-12
Capacity	305 x 1mm Mild Steel Capacity
Weight (kg)	14.1
Weight (m³)	0.028
Weight (Freight)	14.1
Dimensions (cm)	49 x 22 x 26

HAFCO-METALMASTER

1 Year Warranty

Product Brochure Instruction Manual [1 MB]Rolls Sheetmetal - Manual Risk Assessment

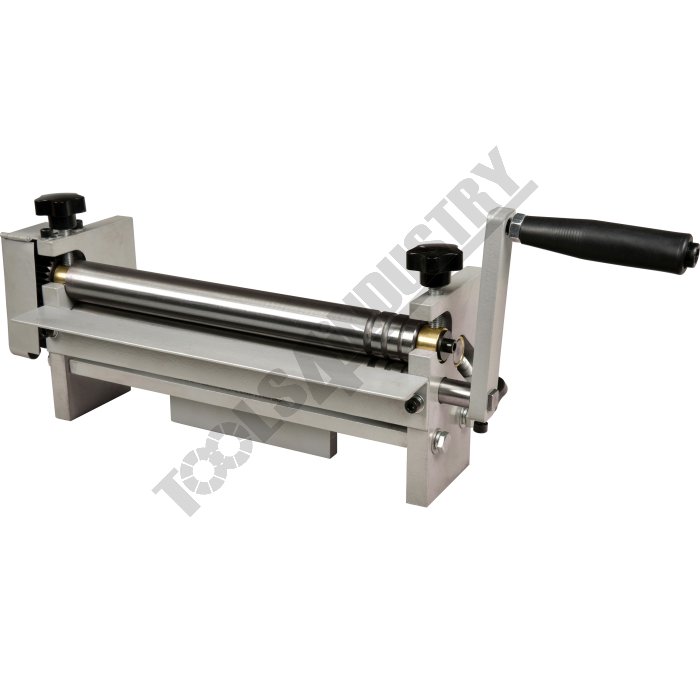

Manual Sheet Metal Curving Rolls-Bench Mount SRG-12 305 x 1mm Mild Steel Capacity

Features

Bench or vice mountable
32mm Ground steel rollers
Swivel top roller
Gear driven rollers
Standard grooves for wiring work
Mild steel capacity is rated on hot rolled material with 250MPA

Specifications

Compare 9 Products
ORDER CODE
MODEL
Useful Lengthmm
Capacity - Mild Steelmm
Minimum Rolling Diametermm
Roll Diametermm
Wire Groove Rollsmm
Includes StandNo / Yes
Nett Weightkg

S267
SRG-12
305
1
48
32
~
No
13.1

S269
SRG-24H
610
1
60
40
~
No
50

S270
SRG-40
1000
1.2
75
50
~
Yes
130

S272
SRG-50G
1270
1.5
110
75
~
Yes
298

S276
SRG-50E
1250
1.6
130
75
~
Yes
260

S278
SRG-90
1270
2.5
135
90
3 / 6 / 10
Yes
465

S783
RS1270x90
1270
2.5
135
90
~
Yes
450

S267
SRG-12
305
1
48
32
~
No
13.1

S267
SRG-12
305
1
48
32
~
No
13.1

ORDER CODE	SRG-12
MODEL	305
Useful Lengthmm	1
Capacity - Mild Steelmm	48
Minimum Rolling Diametermm	32
Roll Diametermm	~
Wire Groove Rollsmm	No
Includes StandNo / Yes	13.1
Nett Weightkg
