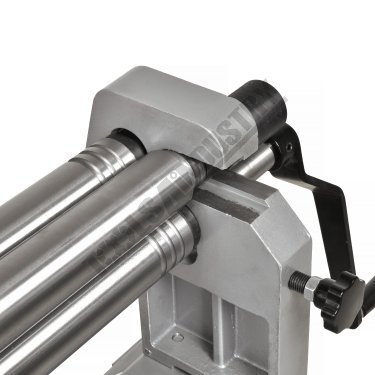

Rolls With Wire Grooves

Rolls With Wire Grooves

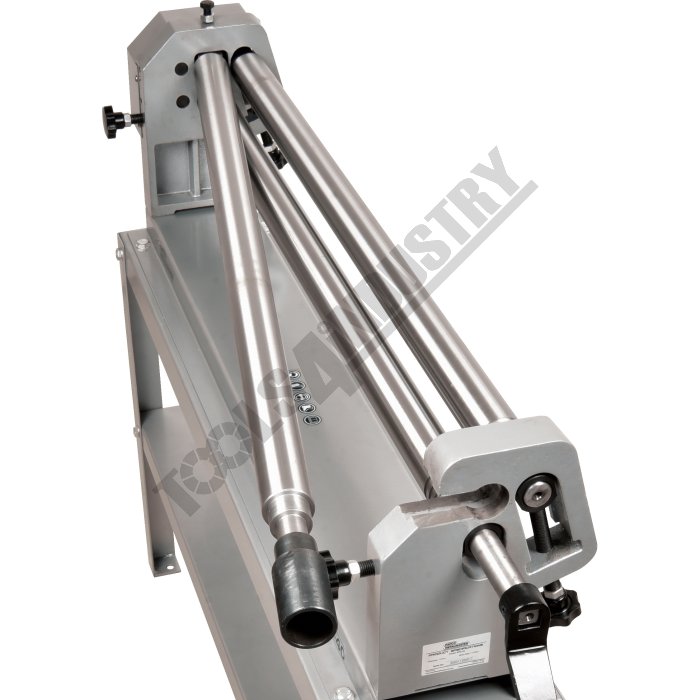

Swing out Top Roller

Swing out Top Roller

Code	S270
Model	SRG-40
Capacity	1000 x 1.2mm Mild Steel Capacity
Weight (kg)	130
Weight (m³)	0.413
Weight (Freight)	137.529
Dimensions (cm)	150 x 50 x 55

HAFCO-METALMASTER

1 Year Warranty

Product Brochure Instruction Manual [4 MB]Rolls Sheetmetal - Manual Risk Assessment

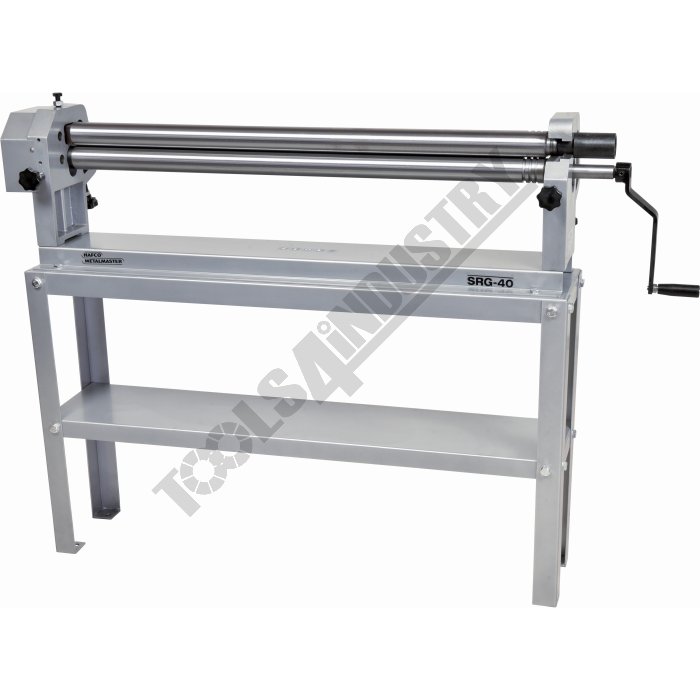

Manual Sheet Metal Curving Rolls SRG-40 1000 x 1.2mm Mild Steel Capacity

Features

Cast-iron construction support ends
50mm Ground rolls with wiring grooves
Quick action swivel top roller
Includes stand
Mild steel capacity is rated on hot rolled material with 250MPA

Specifications

Compare 9 Products
ORDER CODE
MODEL
Useful Lengthmm
Capacity - Mild Steelmm
Minimum Rolling Diametermm
Roll Diametermm
Wire Groove Rollsmm
Includes StandNo / Yes
Nett Weightkg

S270
SRG-40
1000
1.2
75
50
~
Yes
130

S272
SRG-50G
1270
1.5
110
75
~
Yes
298

S276
SRG-50E
1250
1.6
130
75
~
Yes
260

S278
SRG-90
1270
2.5
135
90
3 / 6 / 10
Yes
465

S783
RS1270x90
1270
2.5
135
90
~
Yes
450

S267
SRG-12
305
1
48
32
~
No
13.1

S267
SRG-12
305
1
48
32
~
No
13.1

S267
SRG-12
305
1
48
32
~
No
13.1

S269
SRG-24H
610
1
60
40
~
No
50

ORDER CODE	SRG-40
MODEL	1000
Useful Lengthmm	1.2
Capacity - Mild Steelmm	75
Minimum Rolling Diametermm	50
Roll Diametermm	~
Wire Groove Rollsmm	Yes
Includes StandNo / Yes	130
Nett Weightkg
