| Code | M586E |
|---|---|
| Model | BM-GEVS250 |
| Capacity | Table Travel: (X) - 700mm (Y) - 250mm (Z) - 440mm |
| Weight (kg) | 1350 |
| Weight (m3) | 5.333 |
| Weight (Freight) | 1,775.889 |
| Dimensions (cm) | 150 x 158 x 225 |

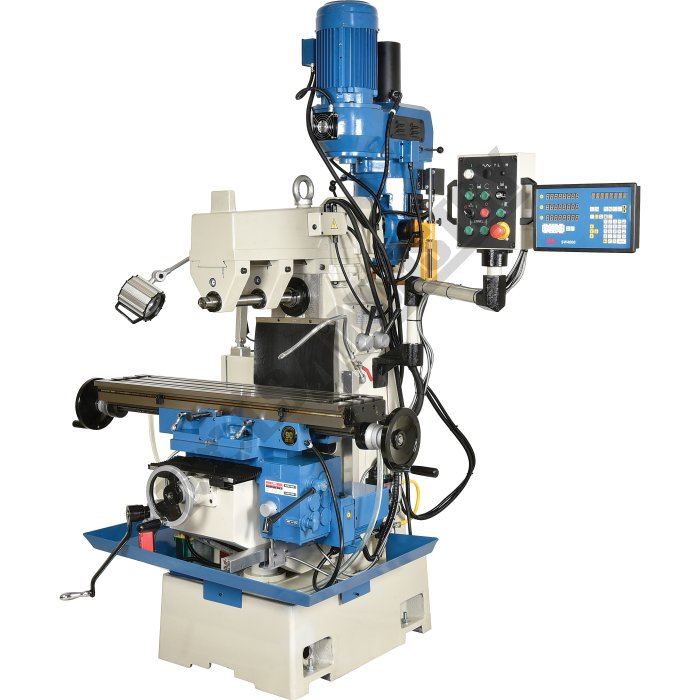

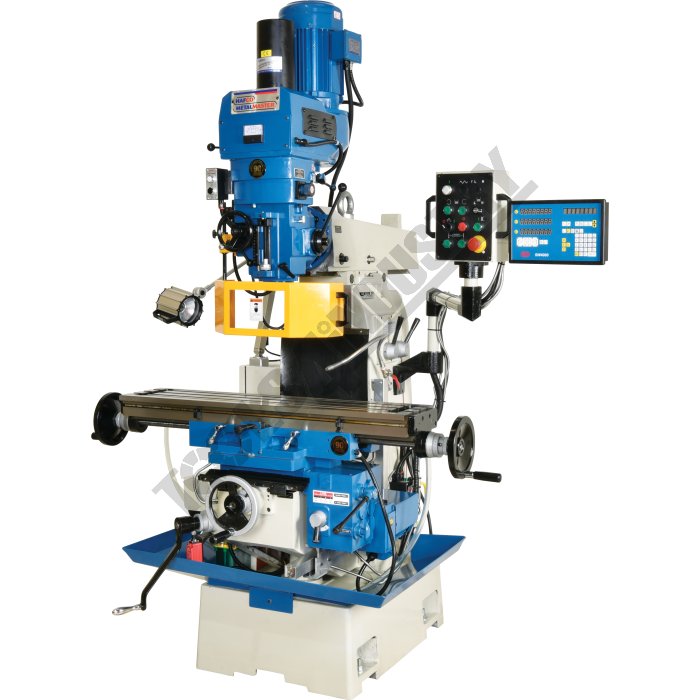

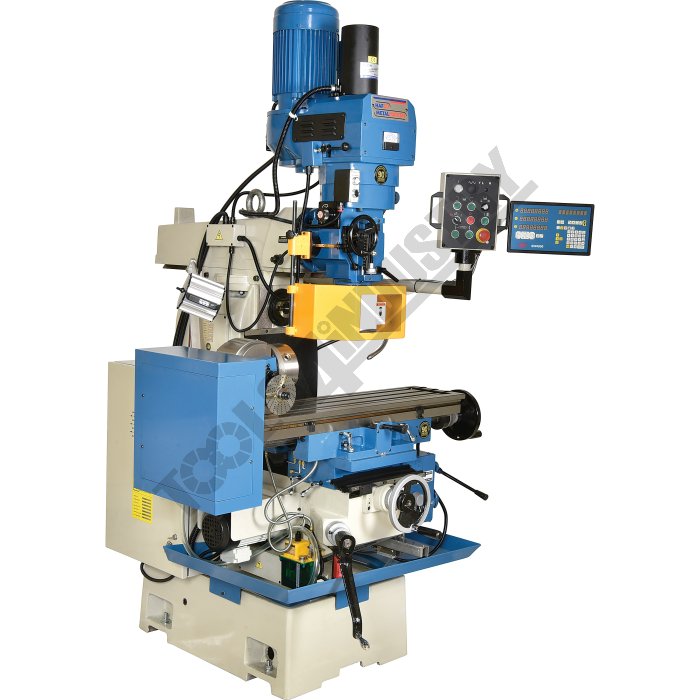

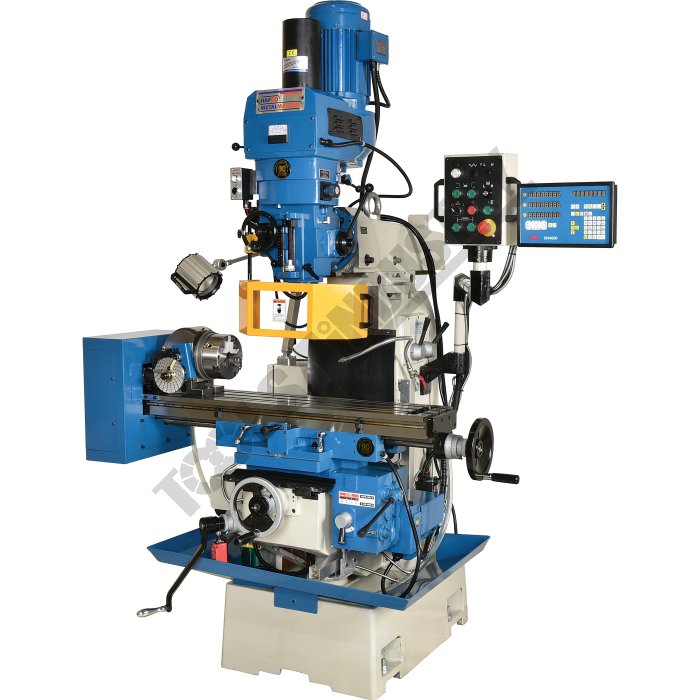

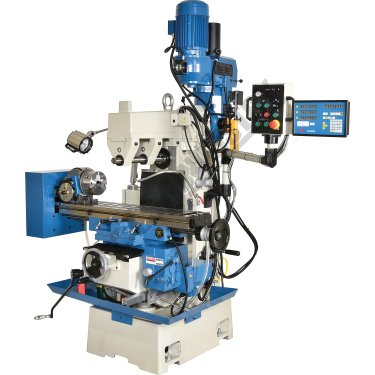

Industrial Turret Milling Machine - Horizontal & Vertical BM-GEVS250 Table Travel: (X) - 700mm (Y) - 250mm (Z) - 440mm
Features

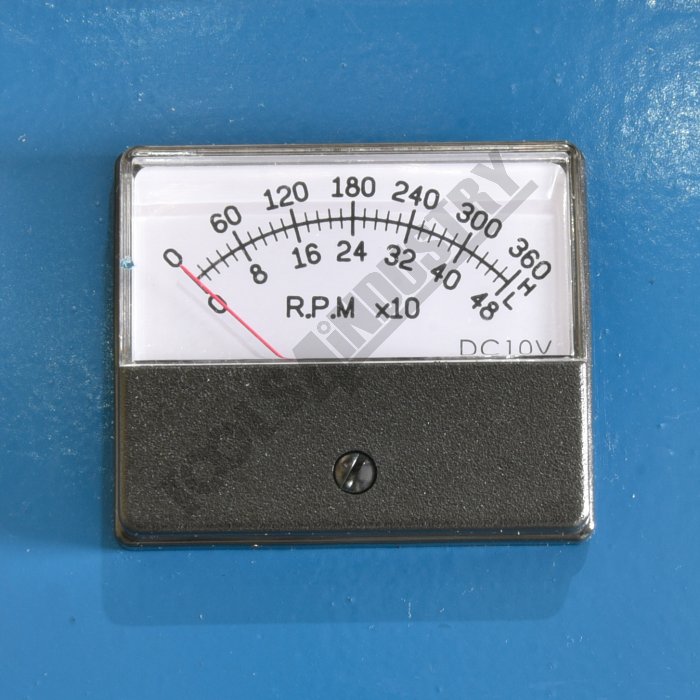

- Vertical spindle, Yaskawa inverter variable speed drive 60 – 3600rpm

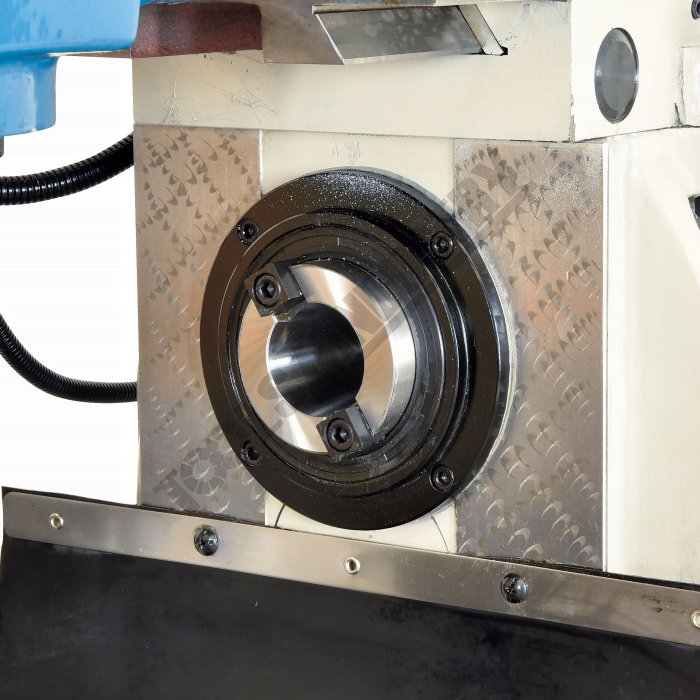

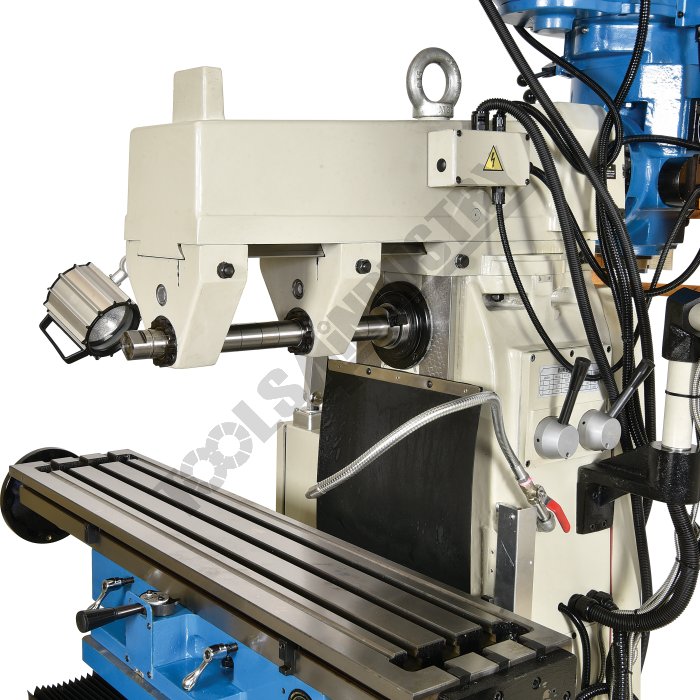

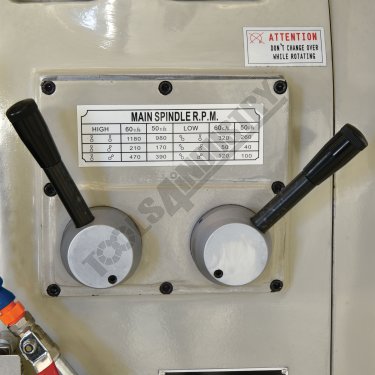

- Horizontal spindle, 40-980 rpm speeds controlled by gear selection levers with oil bath lubrication
- 5HP vertical & 3HP horizontal spindle motors provide exceptional machining power

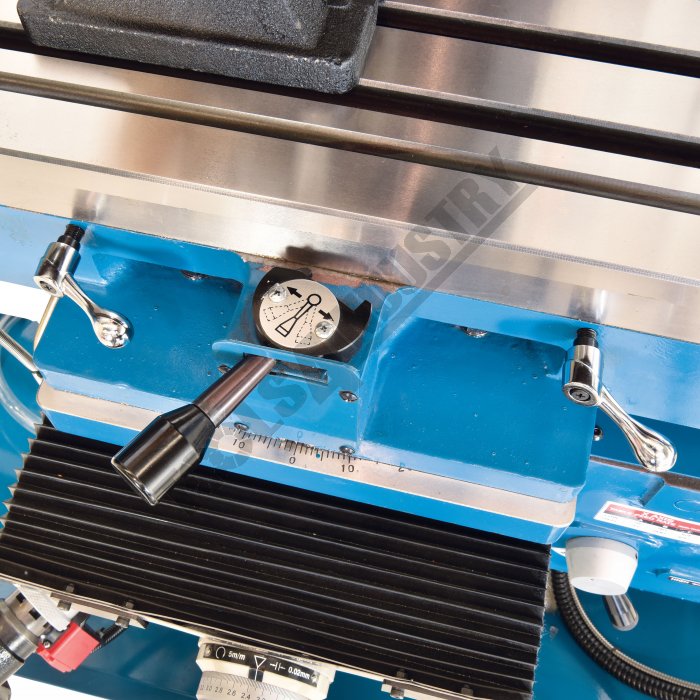

- 1100 x 250mm hardened and ground worktable with ±45º left and right swivel
- NT40 spindle taper with Ø105mm chrome hardened and ground quill

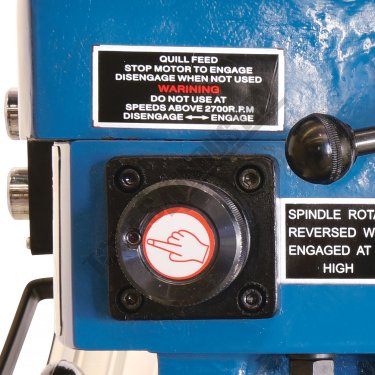

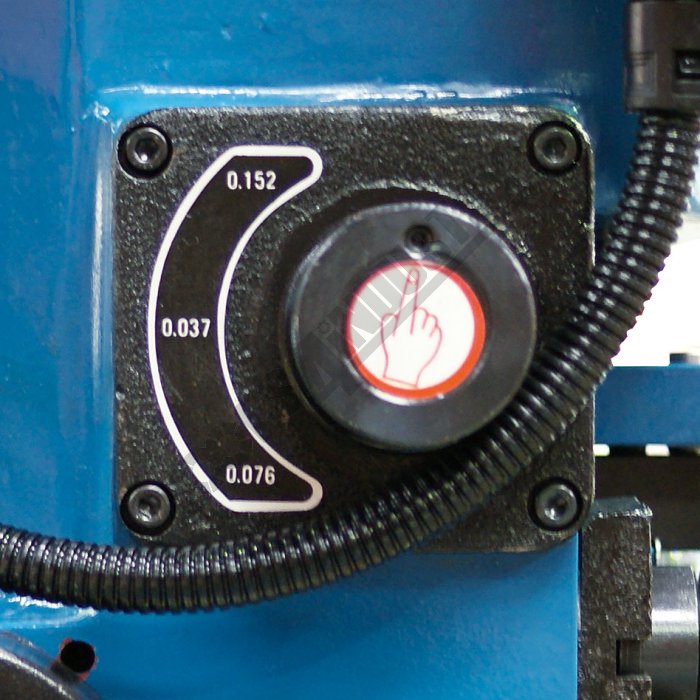

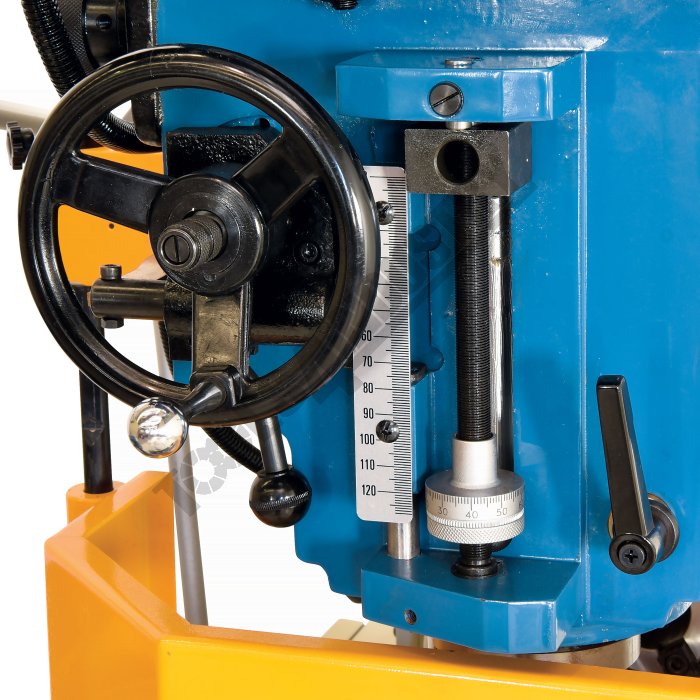

- Automatic quill feed 0.037, 0.076, 0.152mm/rev

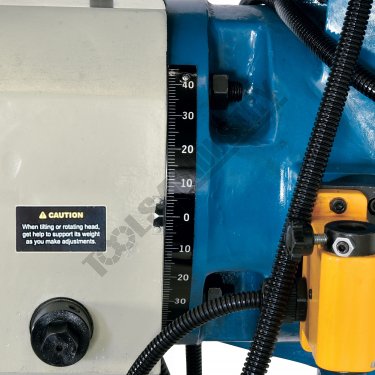

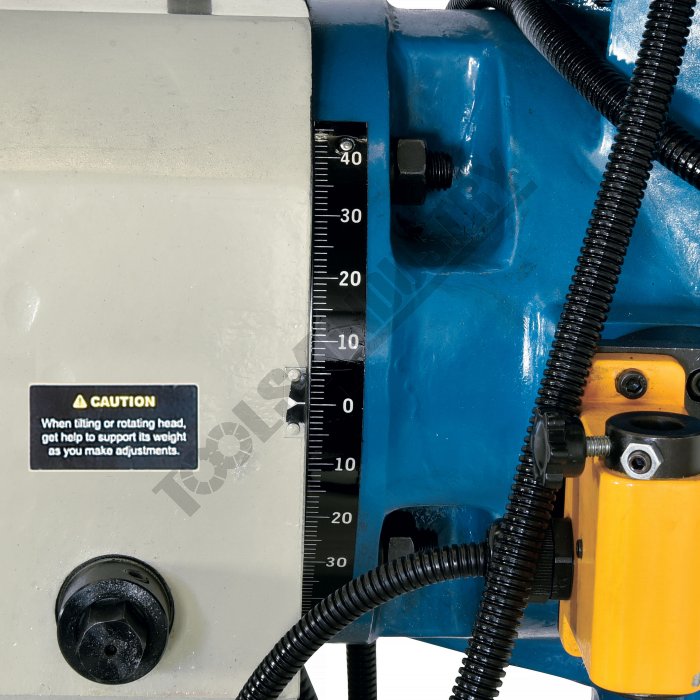

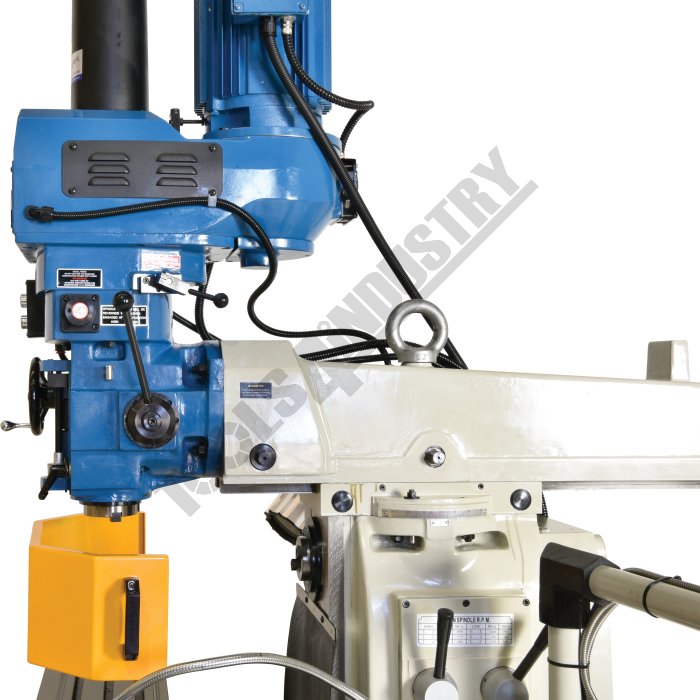

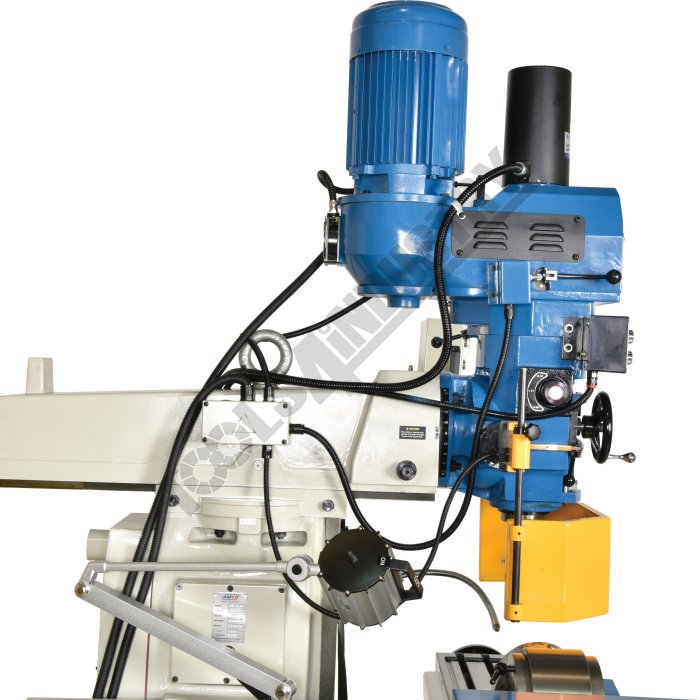

- Vertical mill head swivels ±45º to left and right

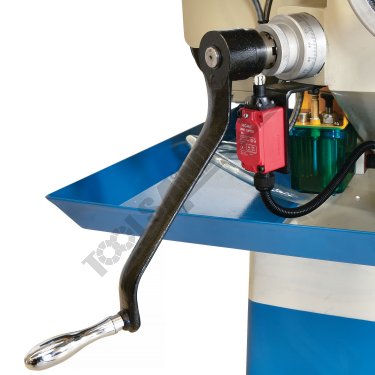

- Spindle guard with micro switch

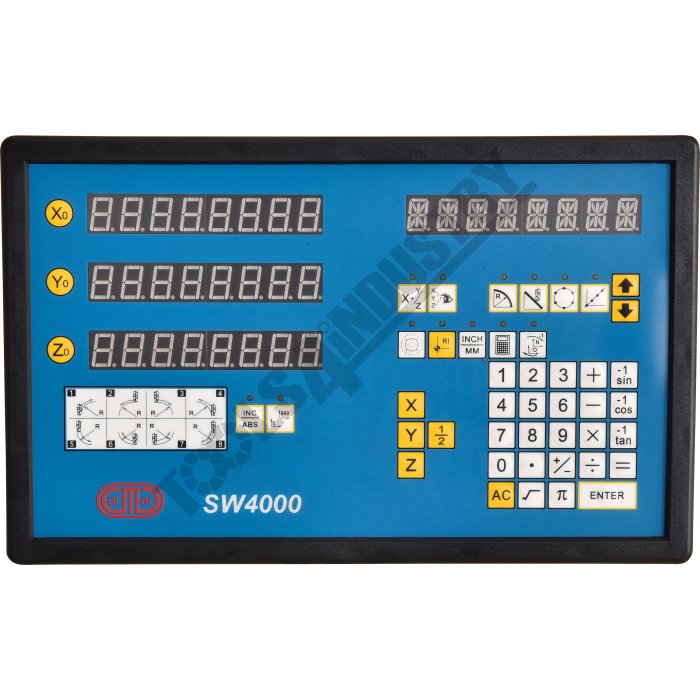

- 3-Axis digital readout fitted

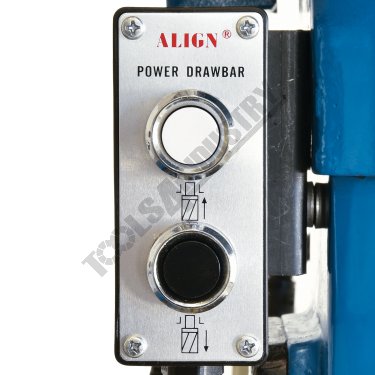

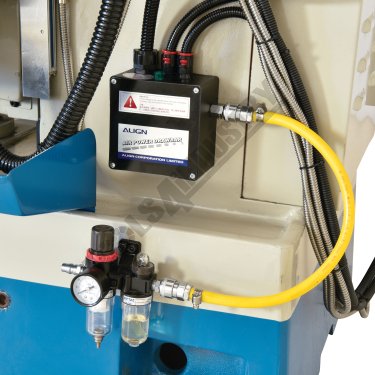

- Pneumatic draw bar system for quick and effortless tool change

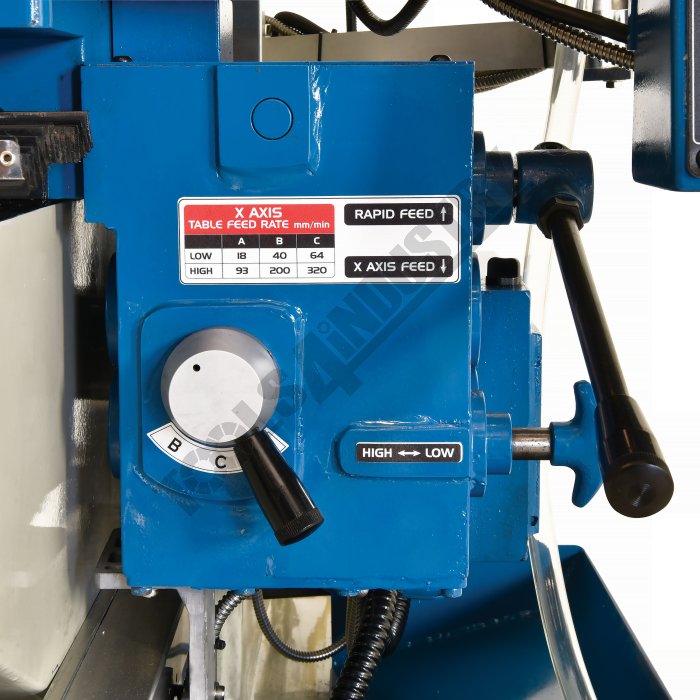

- Heavy duty gear driven X Axis power-feed

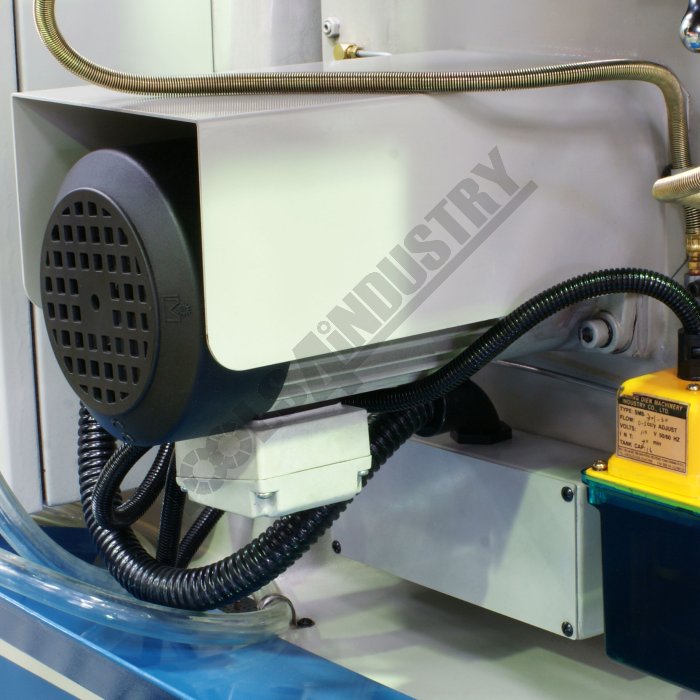

- Z-Axis powered elevating motor

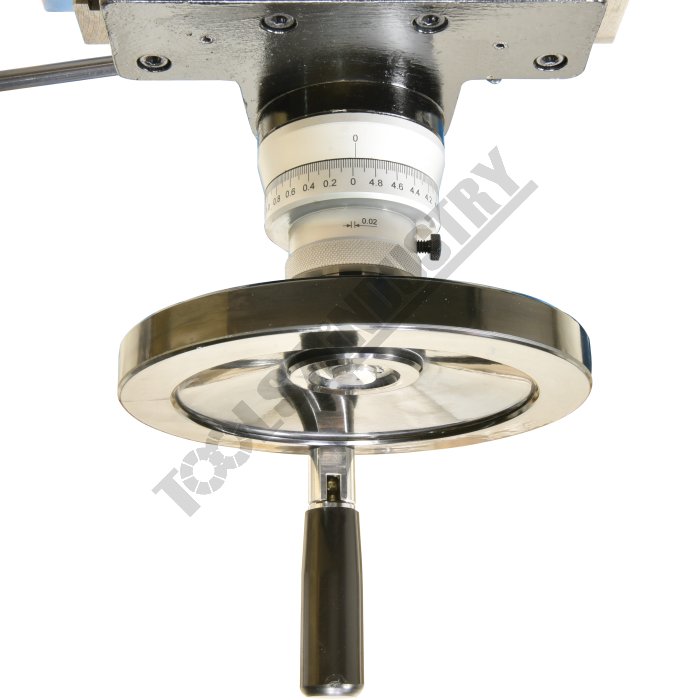

- Metric dial graduations @ 0.02mm for X , Y & Z-Axis
- Meehanite castings for superior rigidity
- Hardened and ground dovetail guideways
- Turcite-B coating on X & Y-Axis ways for wear resistance and smooth operation

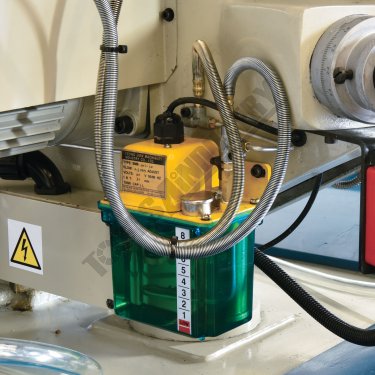

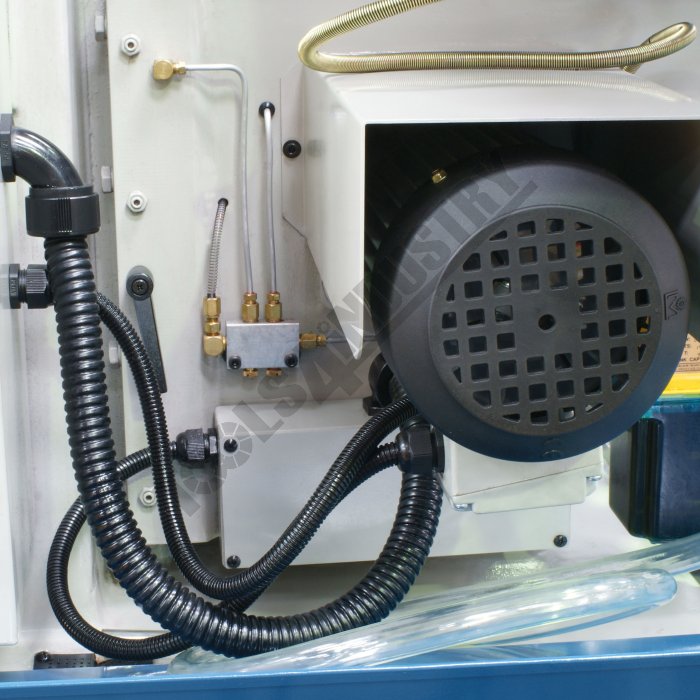

- Auto lubrication system maintains proper lubrication to all slideways

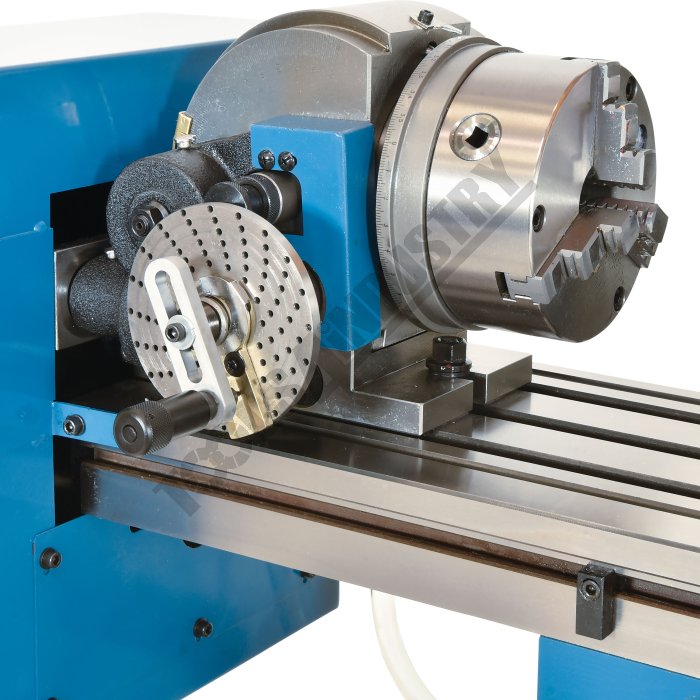

- Universal BS-2 dividing head with chuck and guarding
Includes
- 3-Axis Digital Readout Fitted
- Automatic Lubrication System
- LED Lamp
- Coolant System
- Slide-way Covers
- Safety Cutter Guard
- Swarf Tray

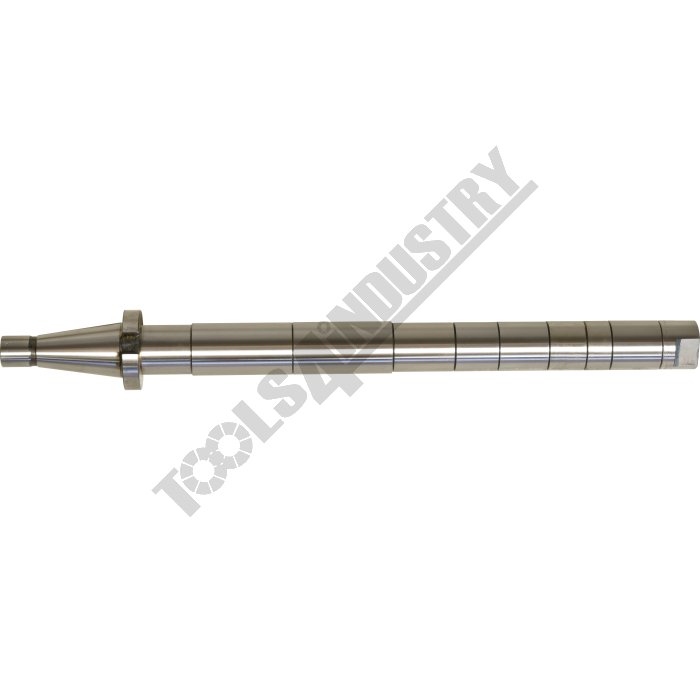

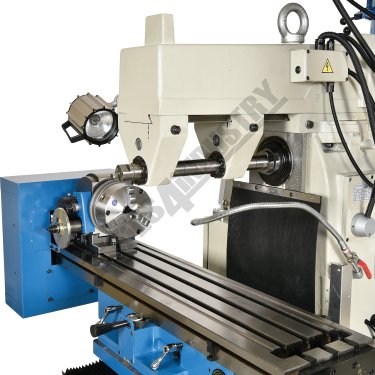

- 1" Horizontal Arbor
- 2 x Horizontal Arbor Supports
- 2 x M16 Drawbars
Specifications
- Compare 2 Products
- ORDER CODE
- NSW DOE Item No.
- QLD DOE Item No.
- MODEL
- Digital Readout
- Drilling Capacitymm
- End Milling Capacitymm
- Face Milling Capacitymm
- Spindle Taper
- Quill Travel / Diametermm
- Spindle to Tablemm
- Type of Slides
- Spindle to Columnmm
- Table Sizemm
- T-Slotmm
- Longitudinal Travel (X-Axis)mm
- Cross Travel (Y-Axis)mm
- Vertical Travel (Z-Axis)mm
- Work Table Load Capacitykg
- Swivel Head (Left - Right)
- Quill Feed Rate/Revmm/rev
- Spindle Speeds (Vertical)No. / rpm
- Spindle Speeds (Horizontal)No. / rpm
- Motor Power (Vertical)kW / hp
- Motor Power (Horizontal)kW / hp
- Motor VoltageV / amp
- Nett Weightkg
- M585E
- ~
- ~
- BM-GEVS250
- 3-Axis Digital Readout
- ~
- ~
- ~
- NT40
- 127 / 105
- 470
- Dovetail (X,Y & Z)
- 500
- 1100 x 250
- 5/8"
- 700
- 250
- 440
- 300
- ±90º
- 0.037 / 0.076 / 0.152
- Variable (60 - 3600)
- 6 (40 - 980)
- 3.75 / 5
- 2.25 / 3
- 415
- 1350
- K8742D
- ~
- ~
- Schools / TAFE HM-47B
with Digital Readout - 3-Axis DRO
- 31.5
- 28
- 80
- 3MT
- 120 / 75
- 480
- Dovetail
- ~
- 800 x 240
- 14
- 540*
- 205*
- 385
- 55
- ±90º
- Manual
- 6 (95 - 1650)
- ~
- 1.5 / 2
- ~
- 240 / 10
- 430
