| Code | K8741D |
|---|---|
| Model | QLD Schools / TAFE |
| Capacity | Table Travel: (X) - 540mm (Y) - 205mm (Z) - 385mm |
| Weight (kg) | 320 |
| Weight (m3) | 1.845 |
| Weight (Freight) | 614.385 |
| Dimensions (cm) | 100 x 90 x 205 |

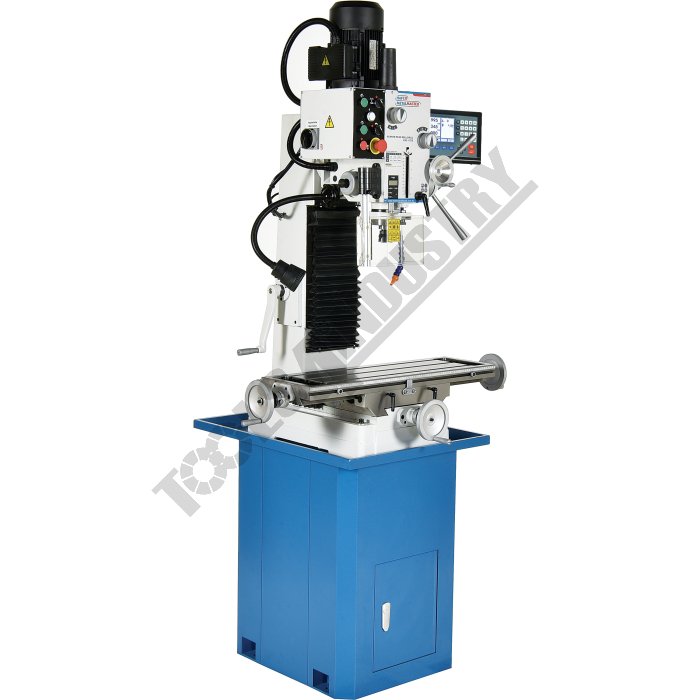

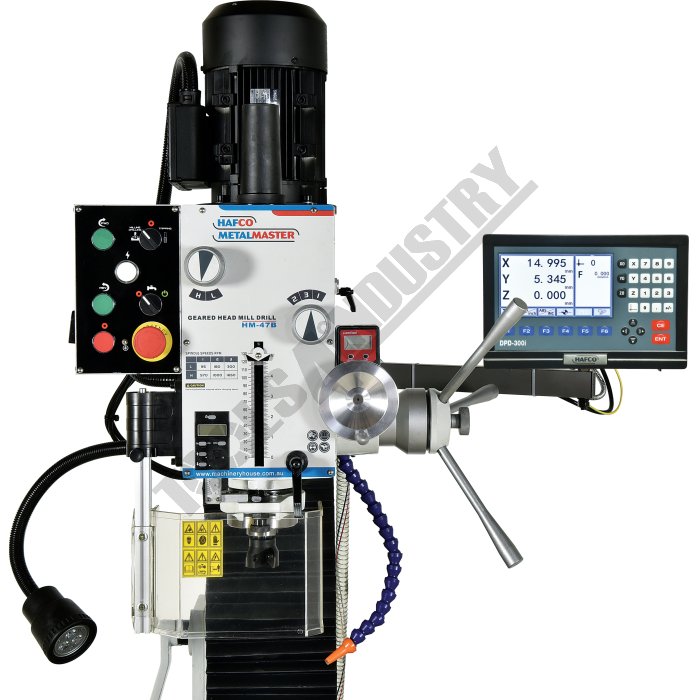

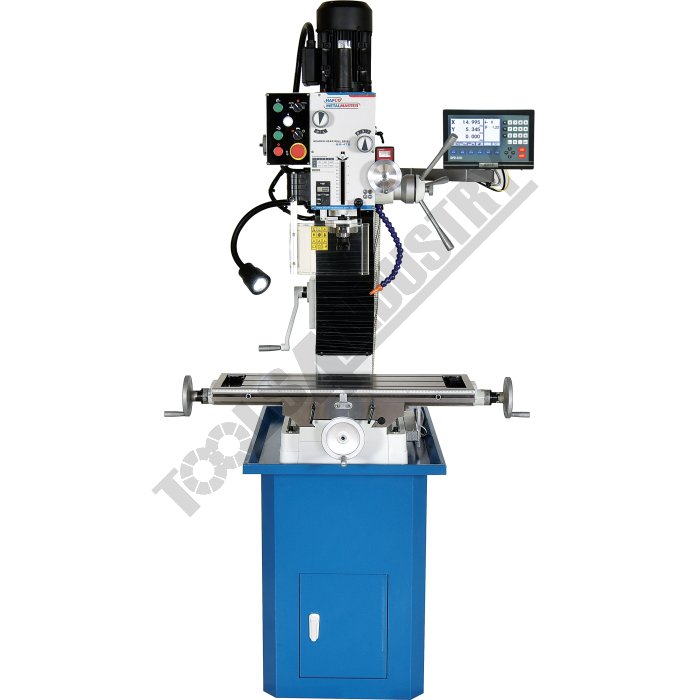

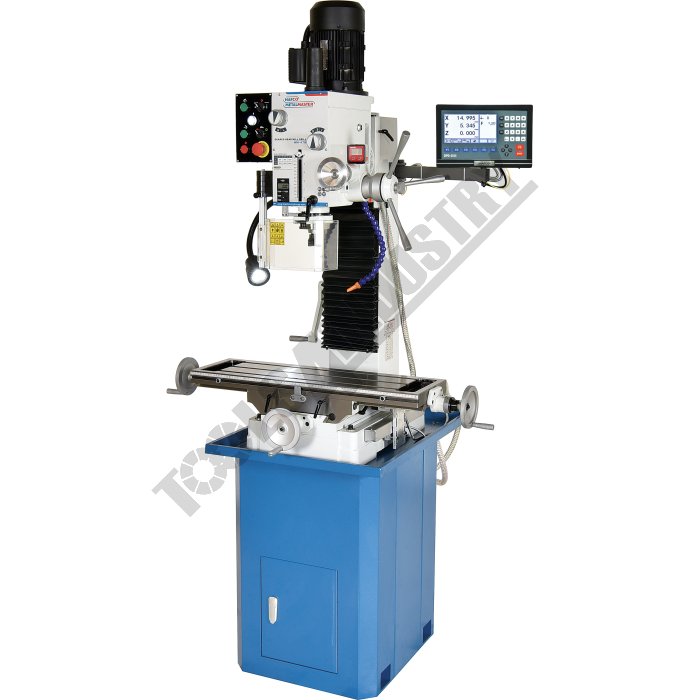

HM-47B Mill Drill Machine with Digital Readout - Includes Tooling Package QLD Schools / TAFE Table Travel: (X) - 540mm (Y) - 205mm (Z) - 385mm
Features

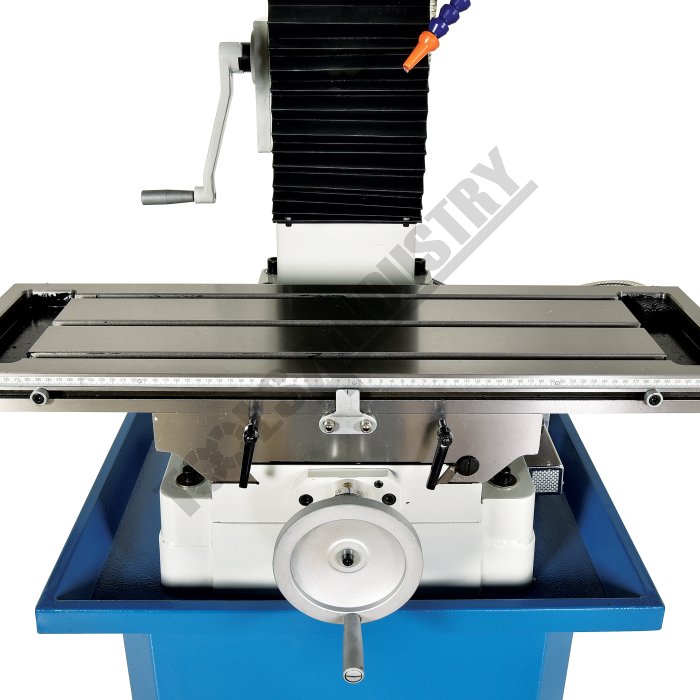

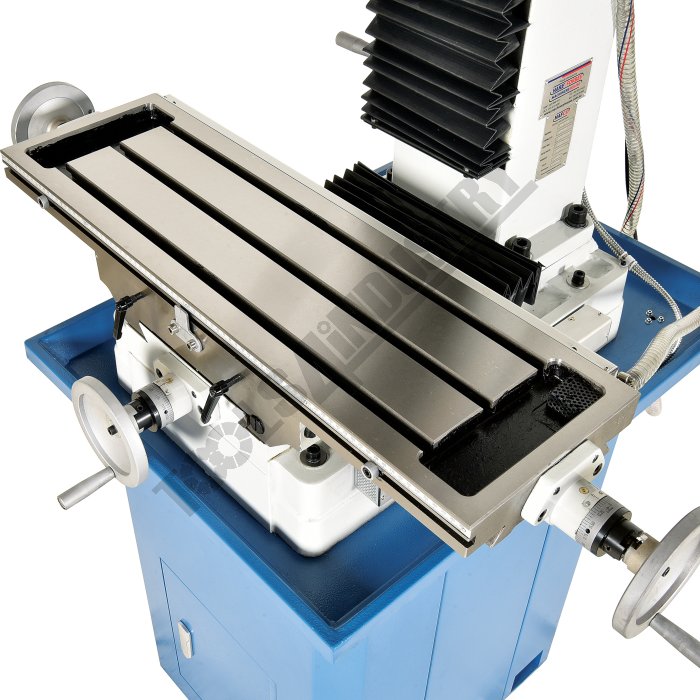

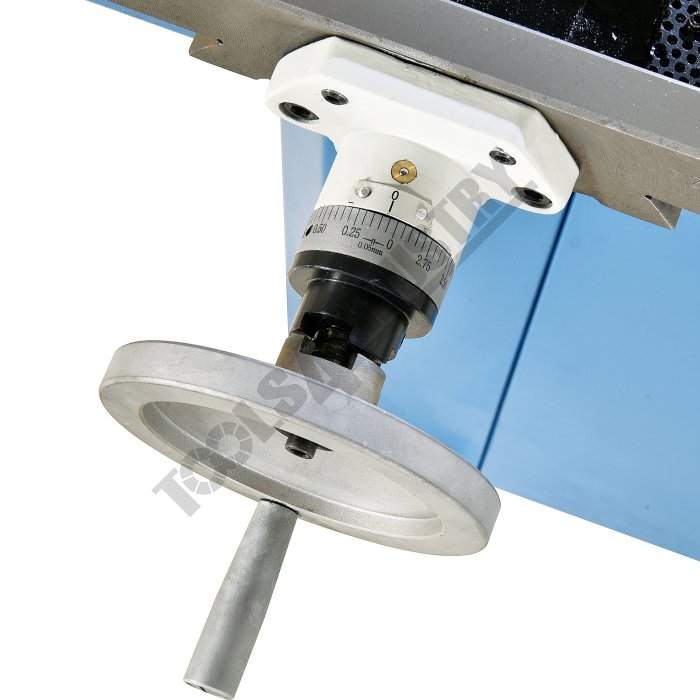

- 800 x 240mm ground work table with T-slots

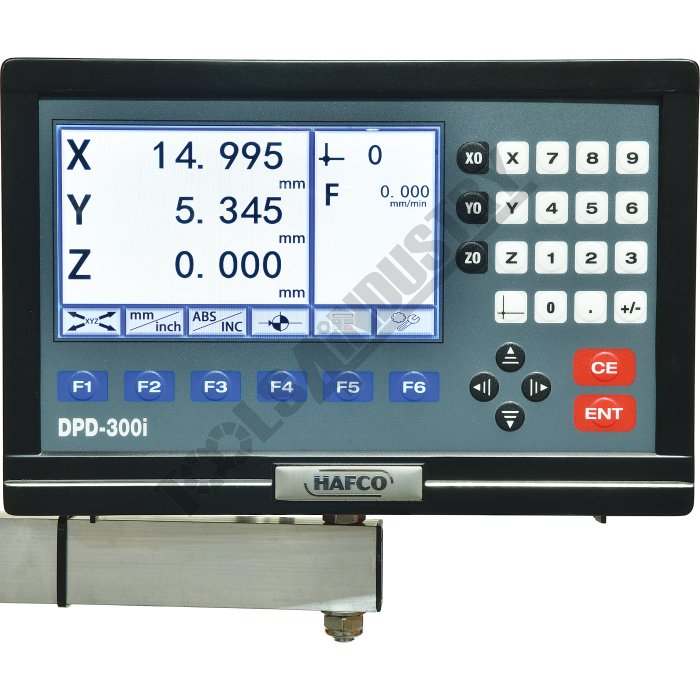

- 3-Axis digital readout counter fitted with 2-Axis X & Y scales only

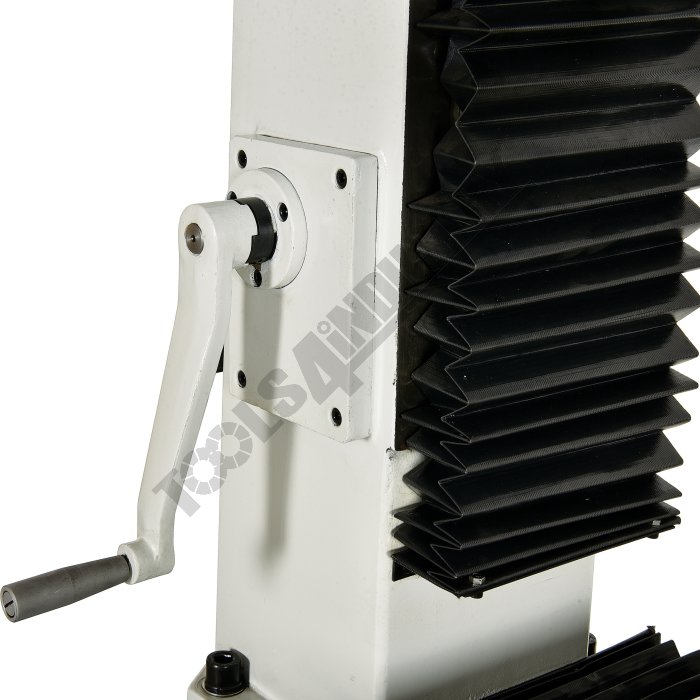

- Dovetail column on Z-Axis with rack and pinion wind-up head

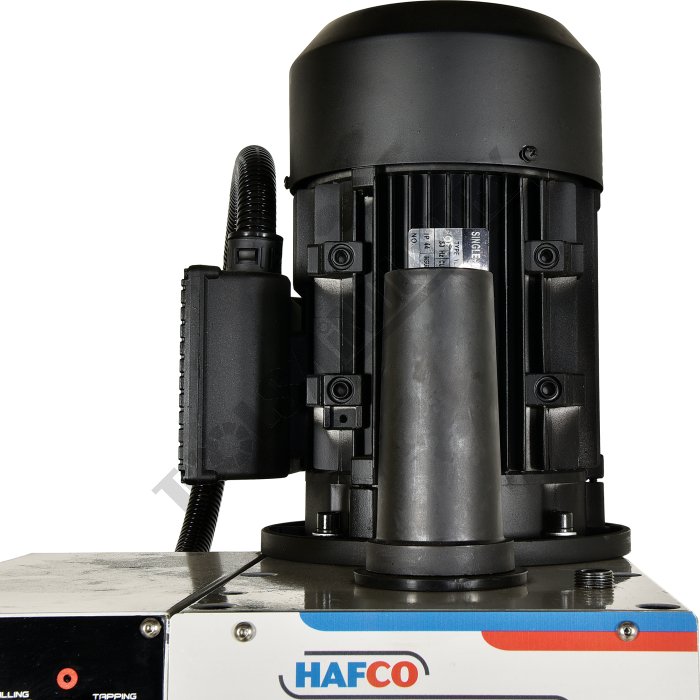

- Powerful 2HP-240V gear driven head suitable for drilling,
- milling & tapping functions

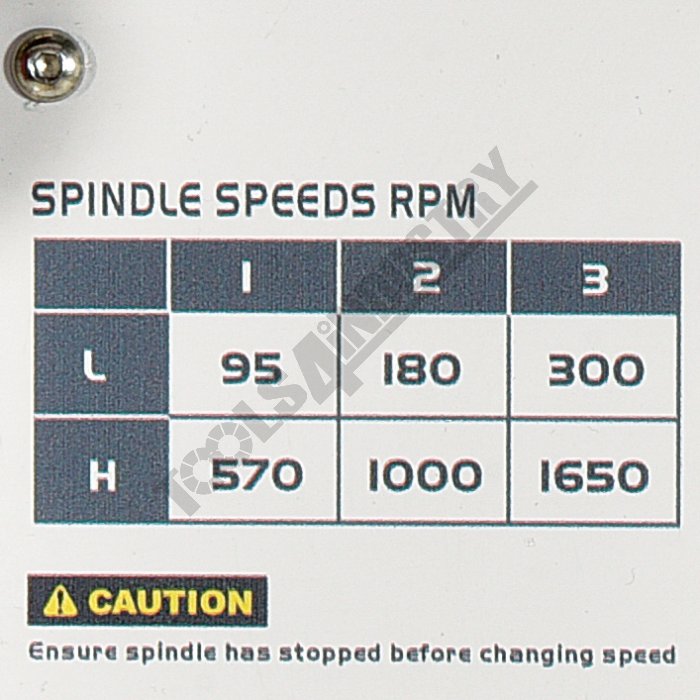

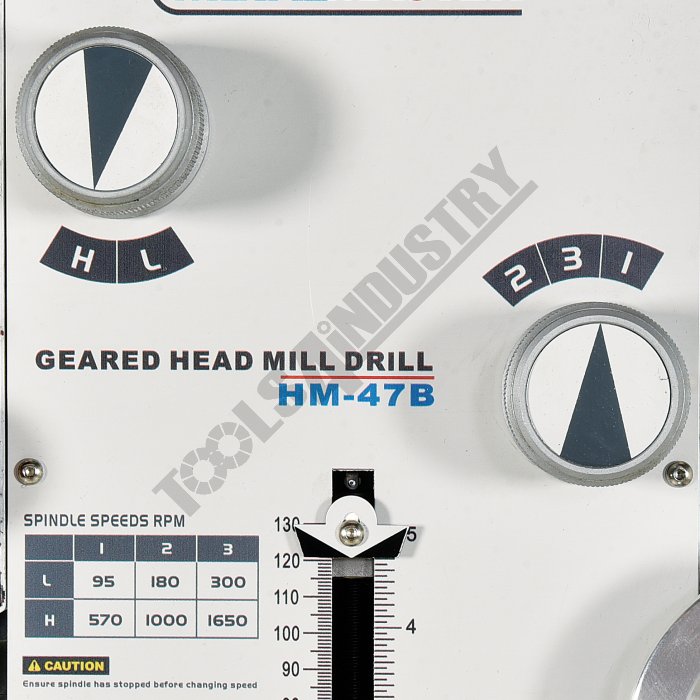

- 3MT spindle with forward and reverse controls

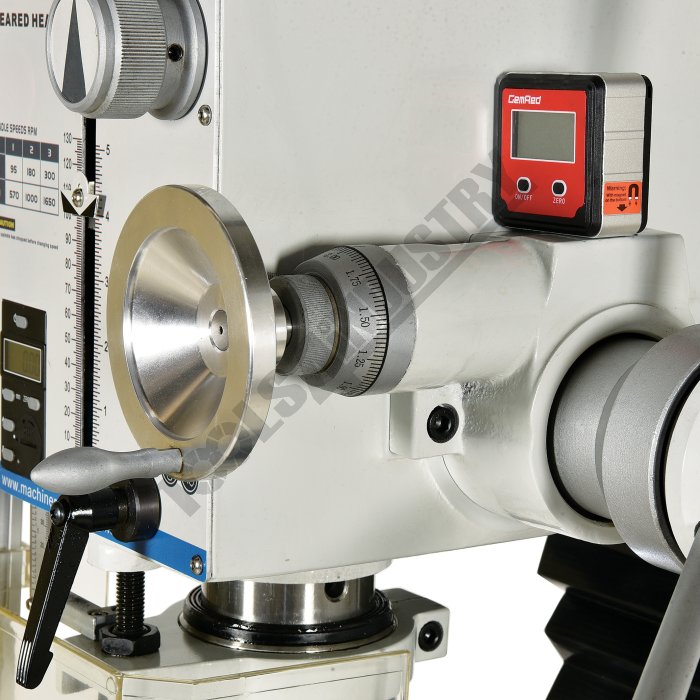

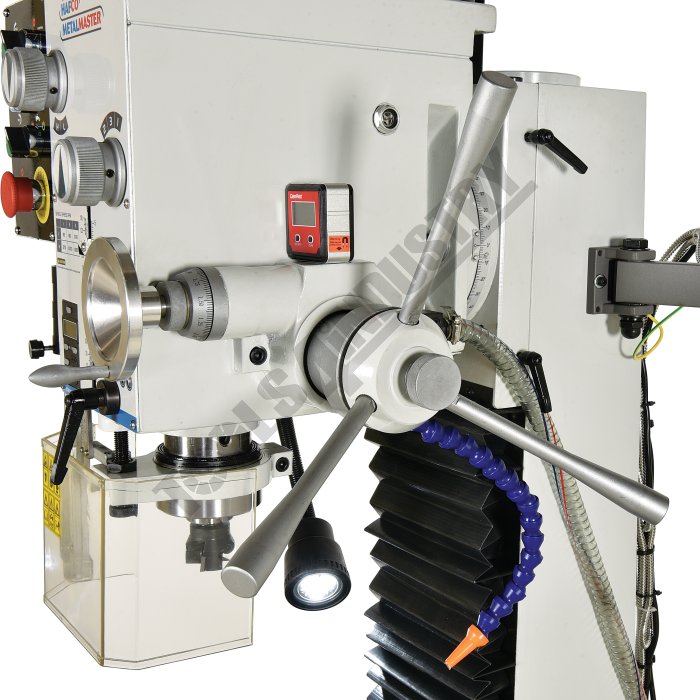

- Manual quill feed with fine feed and adjustable depth stop

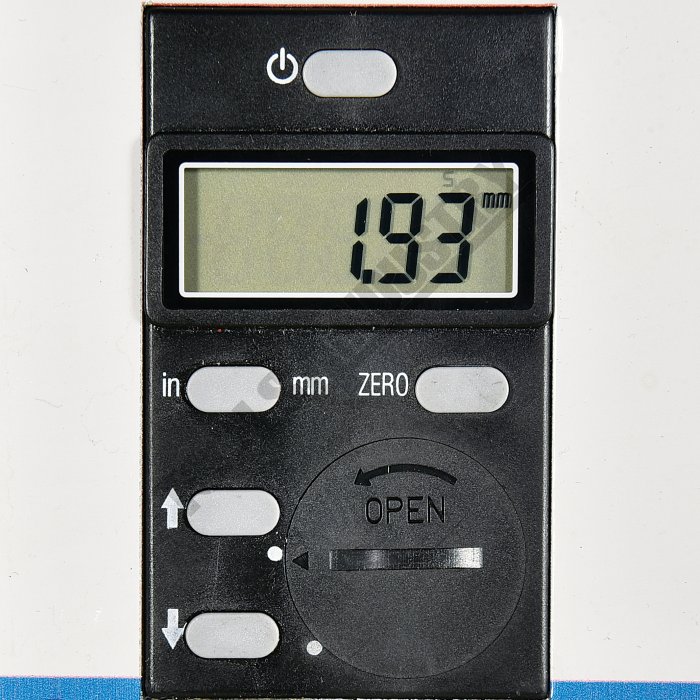

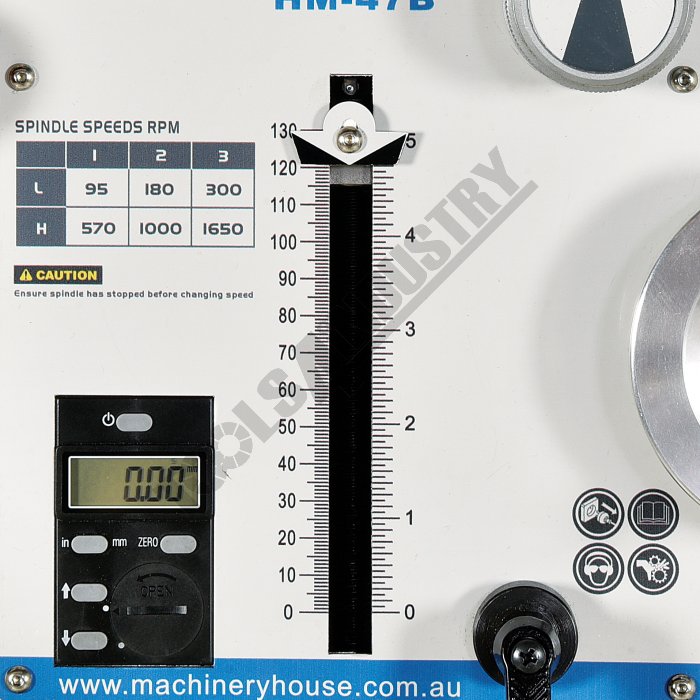

- Digital depth display with zero reset for quill

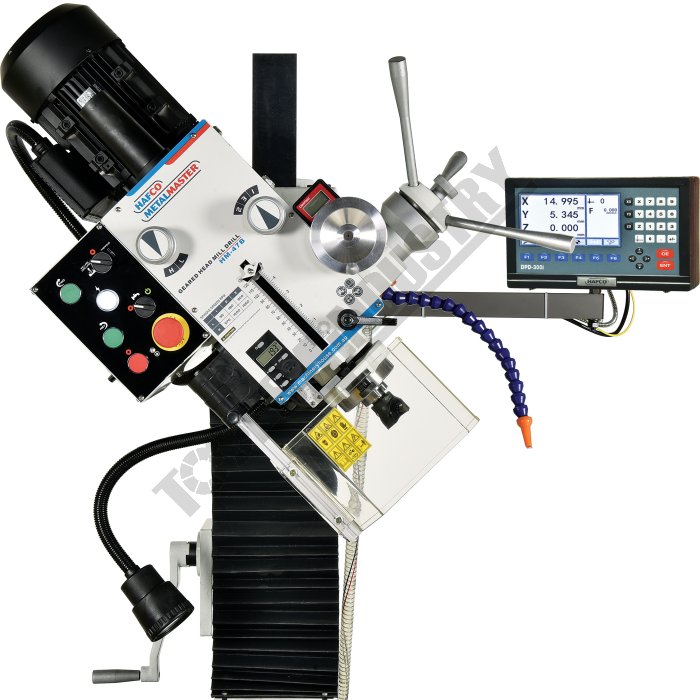

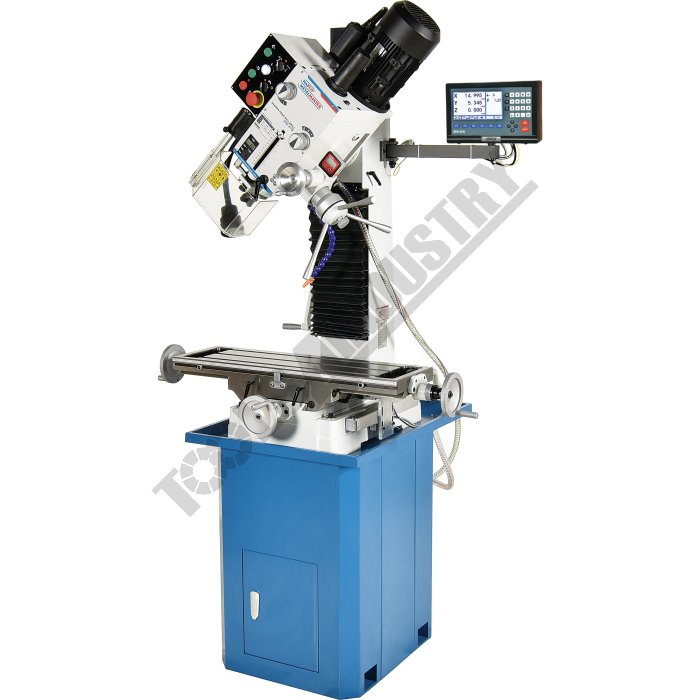

- Mill head tilts up to 90º left or 45º right

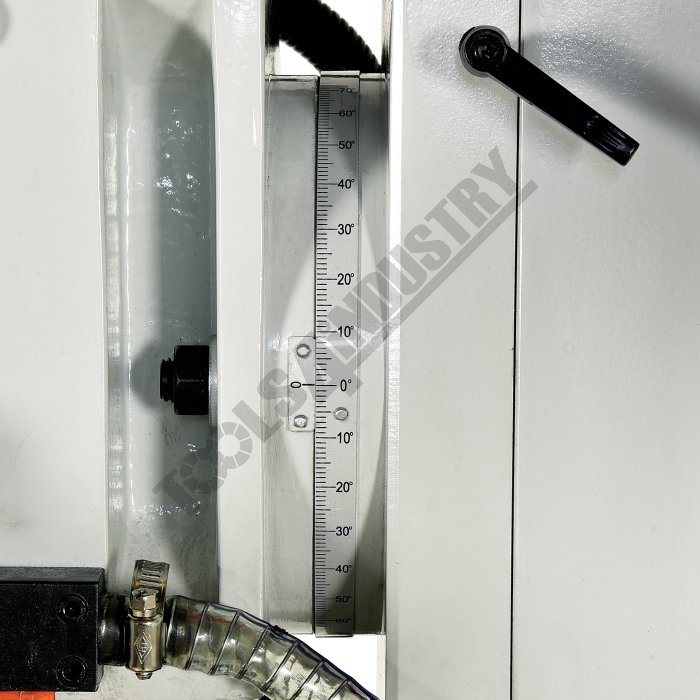

- Digital display bevel box to set head tilting
- Dovetail guideways to X, Y & Z- Axis
- Steel fabricated stand with coolant & swarf tray
- SAFETY FEATURES

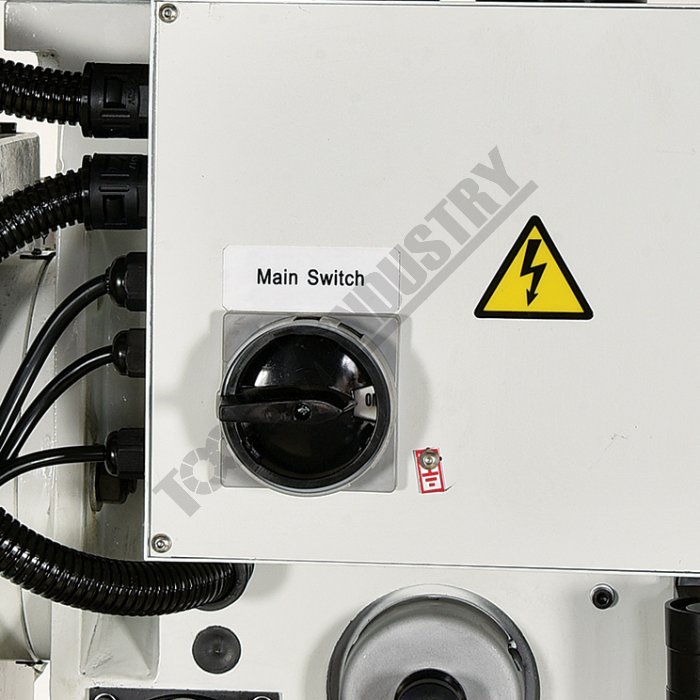

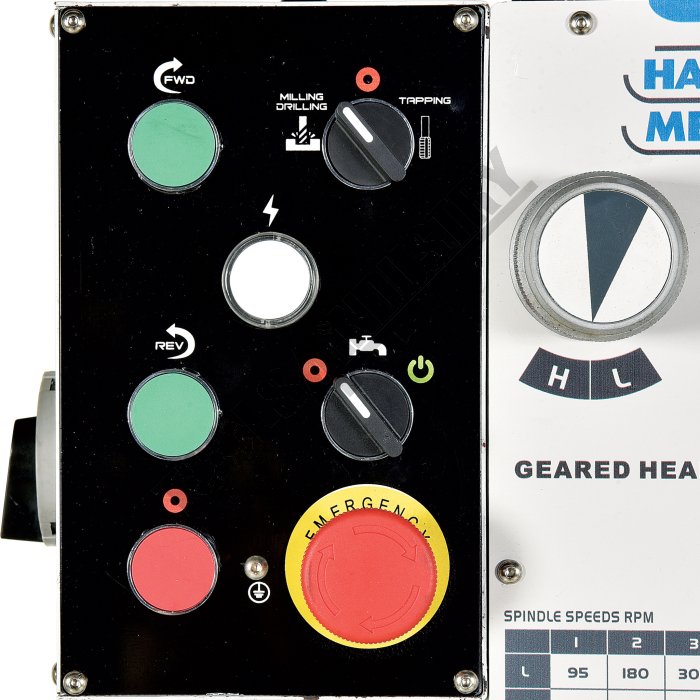

- Emergency stop switch

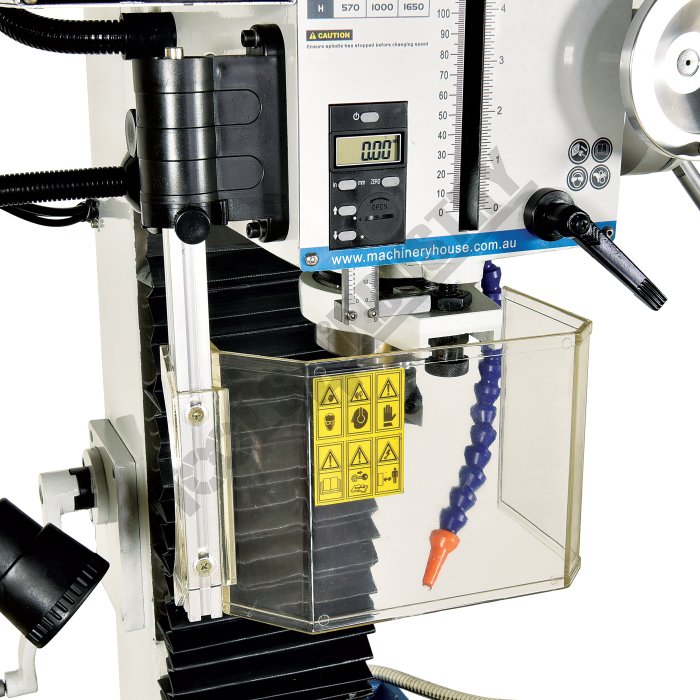

- Interlocked spindle safety guard
Includes
- Heavy-Duty Steel Stand
- Halogen Lamp
- Coolant System
- Digital Bevel Box
- Slideway Covers
- Drill Chuck & Arbor
- 3MT x 2MT Adaptor
- Face Mill Cutter & Arbor
- Spindle Guard with Micro
- 1/2" x 12TPI Drawbar
- M12 x 1.75mm Drawbar

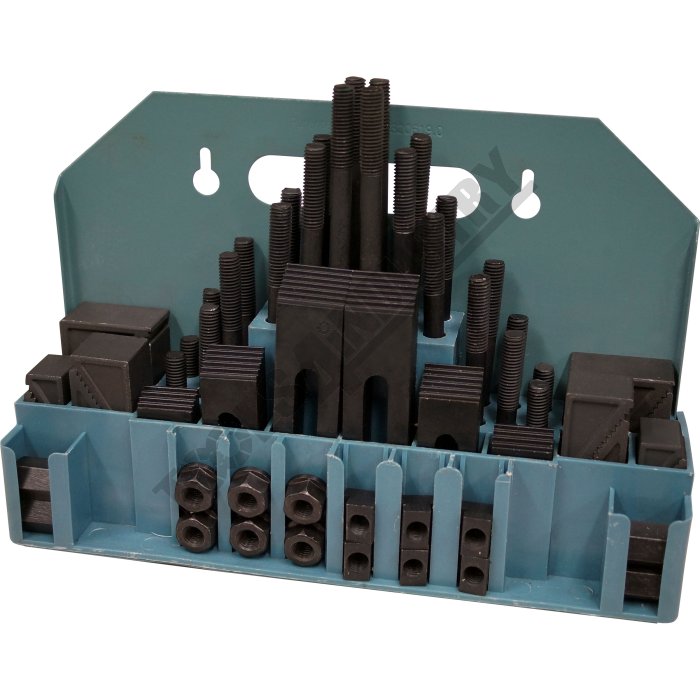

- (C0965) Workshop Series - Clamp Kit 58 piece

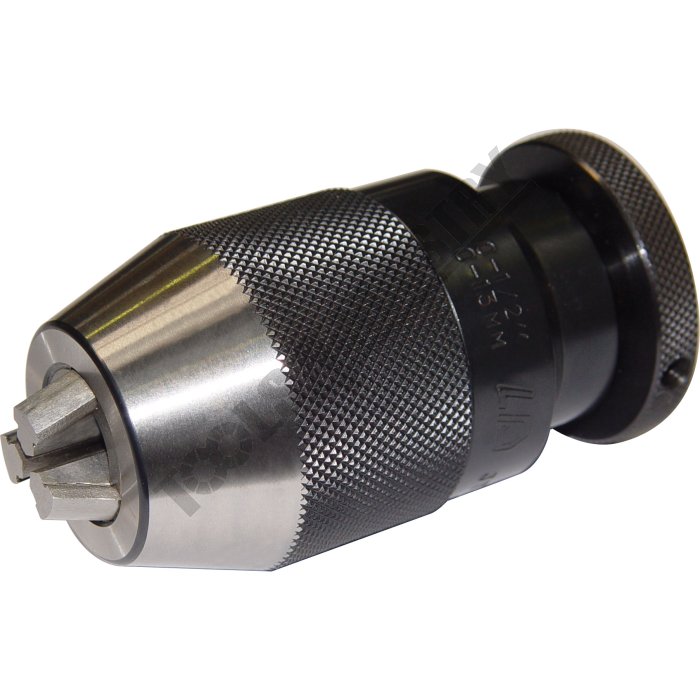

- (C292) Industrial Drill Chuck - Ø0.3 - Ø13mm

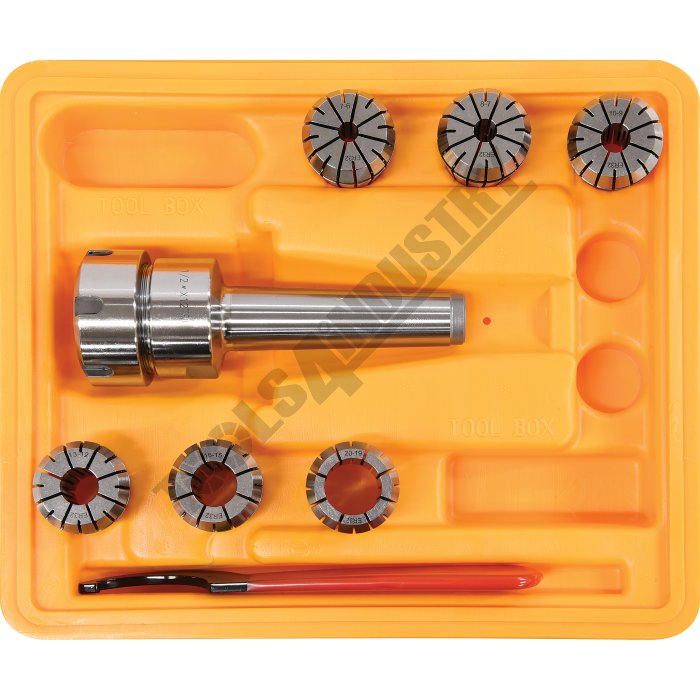

- (C922B) Ø6 - Ø20mm Collet & Chuck Set - 8 Piece

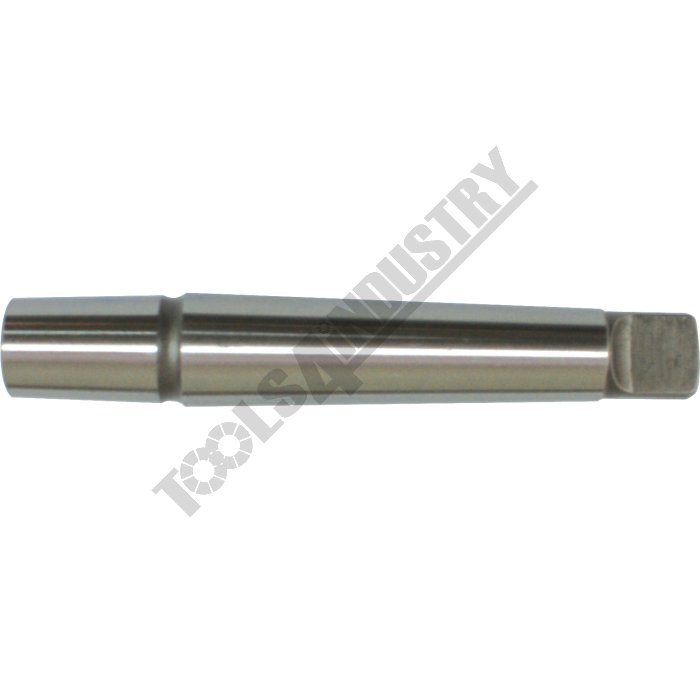

- (D442) 2MT x JT6 Drill Chuck Arbor

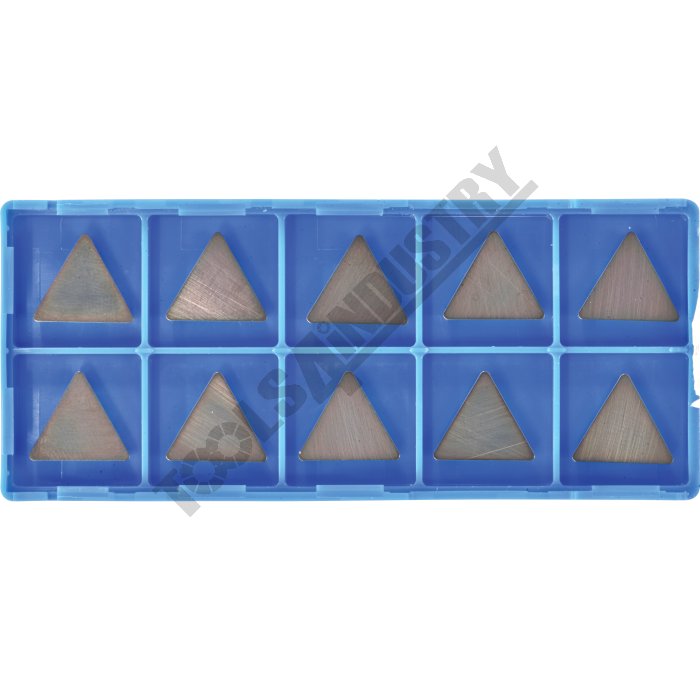

- (L066) KYOCERA Carbide Inserts - Milling- 10 Inserts

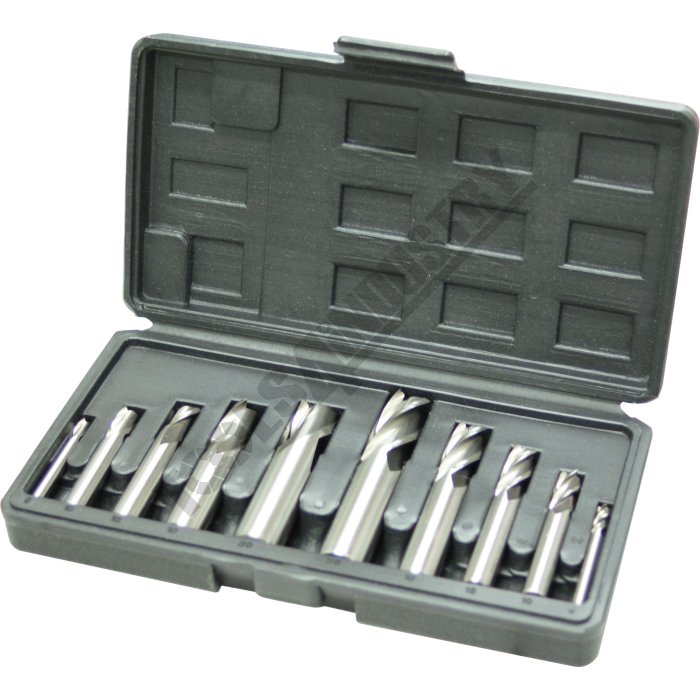

- (M3301) Metric HSS Slot Drill & End Mill Set - 10 Piece

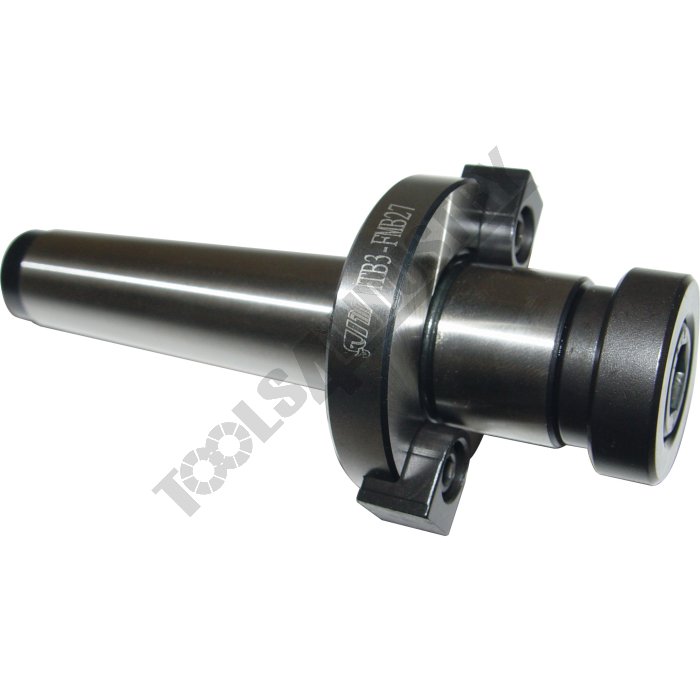

- (M563) FMB27-20 - Face Mill Arbor

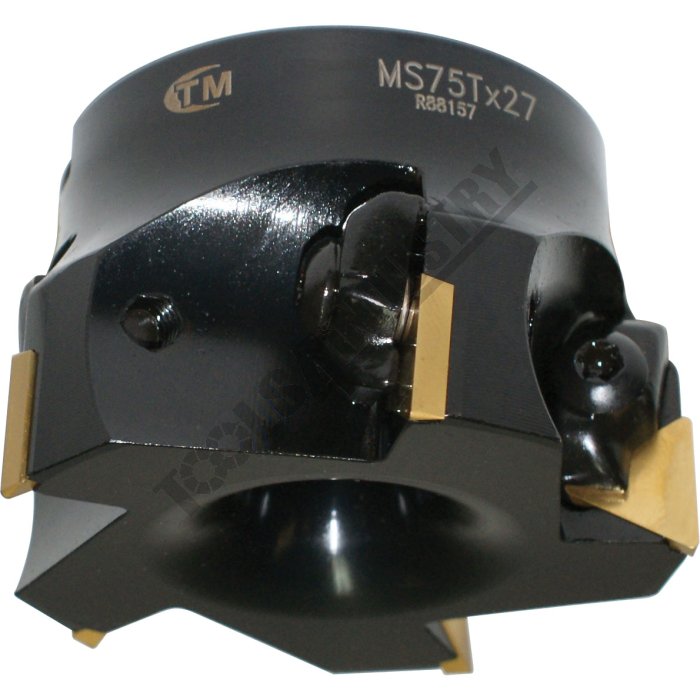

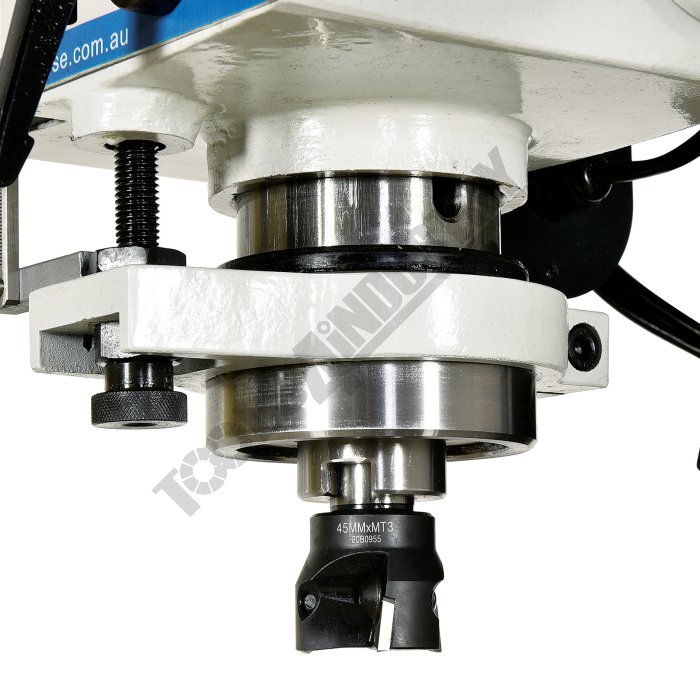

- (M512) Face Mill 90º - Positive Rake - Ø75mm

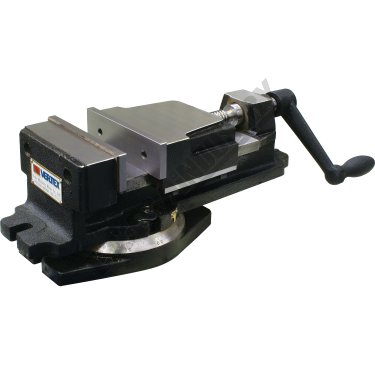

- (V105) Vertex K-Type Milling Vice - 127mm Jaw Width
Specifications
- Compare 2 Products
- ORDER CODE
- NSW DOE Item No.
- QLD DOE Item No.
- MODEL
- Digital Readout
- Drilling Capacitymm
- End Milling Capacitymm
- Face Milling Capacitymm
- Spindle Taper
- Quill Travel / Diametermm
- Spindle to Tablemm
- Type of Slides
- Spindle to Columnmm
- Table Sizemm
- T-Slotmm
- Longitudinal Travel (X-Axis)mm
- Cross Travel (Y-Axis)mm
- Vertical Travel (Z-Axis)mm
- Work Table Load Capacitykg
- Swivel Head (Left - Right)
- Quill Feed Rate/Revmm/rev
- Spindle Speeds (Vertical)No. / rpm
- Spindle Speeds (Horizontal)No. / rpm
- Motor Power (Vertical)kW / hp
- Motor Power (Horizontal)kW / hp
- Motor VoltageV / amp
- Nett Weightkg
- K8742D
- ~
- ~
- Schools / TAFE HM-47B
with Digital Readout - 3-Axis DRO
- 31.5
- 28
- 80
- 3MT
- 120 / 75
- 480
- Dovetail
- ~
- 800 x 240
- 14
- 540*
- 205*
- 385
- 55
- ±90º
- Manual
- 6 (95 - 1650)
- ~
- 1.5 / 2
- ~
- 240 / 10
- 430
- M585E
- ~
- ~
- BM-GEVS250
- 3-Axis Digital Readout
- ~
- ~
- ~
- NT40
- 127 / 105
- 470
- Dovetail (X,Y & Z)
- 500
- 1100 x 250
- 5/8"
- 700
- 250
- 440
- 300
- ±90º
- 0.037 / 0.076 / 0.152
- Variable (60 - 3600)
- 6 (40 - 980)
- 3.75 / 5
- 2.25 / 3
- 415
- 1350
| ORDER CODE | ~ |
|---|---|
| NSW DOE Item No. | ~ |
| QLD DOE Item No. | Schools / TAFE HM-47B with Digital Readout |
| MODEL | 3-Axis DRO |
| Digital Readout | 31.5 |
| Drilling Capacitymm | 28 |
| End Milling Capacitymm | 80 |
| Face Milling Capacitymm | 3MT |
| Spindle Taper | 120 / 75 |
| Quill Travel / Diametermm | 480 |
| Spindle to Tablemm | Dovetail |
| Type of Slides | ~ |
| Spindle to Columnmm | 800 x 240 |
| Table Sizemm | 14 |
| T-Slotmm | 540* |
| Longitudinal Travel (X-Axis)mm | 205* |
| Cross Travel (Y-Axis)mm | 385 |
| Vertical Travel (Z-Axis)mm | 55 |
| Work Table Load Capacitykg | ±90º |
| Swivel Head (Left - Right) | Manual |
| Quill Feed Rate/Revmm/rev | 6 (95 - 1650) |
| Spindle Speeds (Vertical)No. / rpm | ~ |
| Spindle Speeds (Horizontal)No. / rpm | 1.5 / 2 |
| Motor Power (Vertical)kW / hp | ~ |
| Motor Power (Horizontal)kW / hp | 240 / 10 |
| Motor VoltageV / amp | 430 |
| Nett Weightkg |
