| Code | M182 |
|---|---|
| Model | BC-2K |
| Capacity | Ø50mm Head |
| Weight (kg) | 3.25 |
| Weight (m3) | 0.004 |
| Weight (Freight) | 3.25 |
| Dimensions (cm) | 25.5 x 14 x 11 |

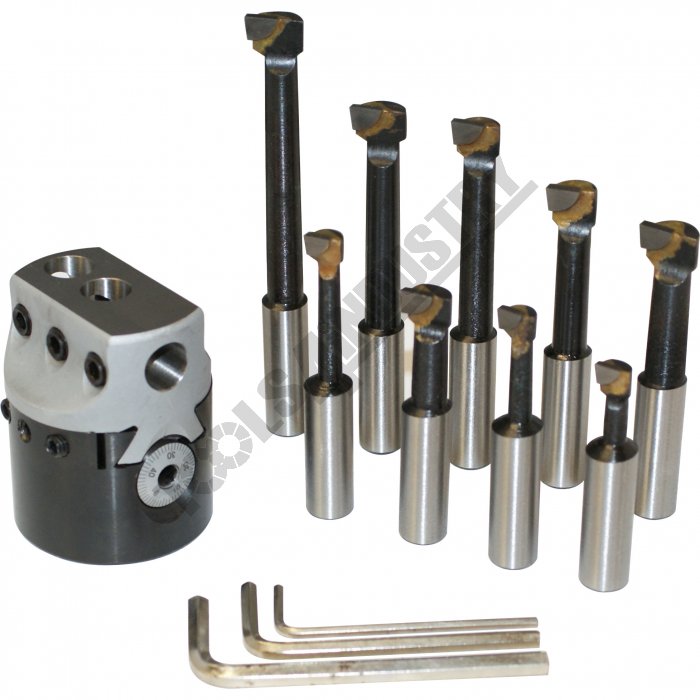

BC-2K Precision Boring Head Kit Ø50mm Head
Description
This precision boring head features two vertical holes and one cross hole for securely holding boring bars. It allows precise adjustment of the boring bar at a right angle to the spindle axis, enabling accurate positioning for boring holes with diameters ranging from 10mm to 100mm. The hardened and ground direct-reading adjustment screw features a satin chrome dial face, providing 0.01mm precise adjustments with excellent visibility. Perfect for professionals seeking reliability in metalworking, this boring head delivers exceptional results.Note: Arbor sold separately.
Features
- Wide range of boring diameters and depths
- Boring diameter 10mm - 100mm
- Calibrated micro adjusting screw via a hexagon key.
- 1-1/2" x 18TPI threaded body to mount optional arbors
- Accepts 12mm diameter boring bars

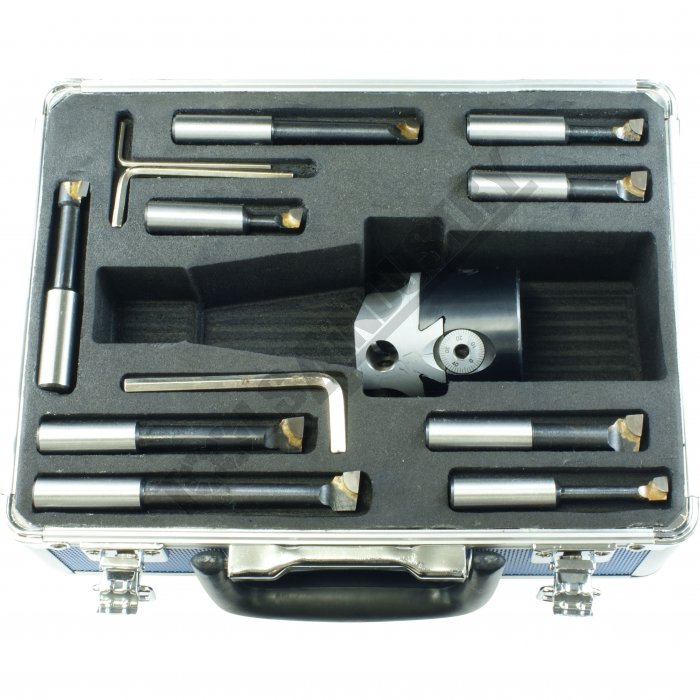

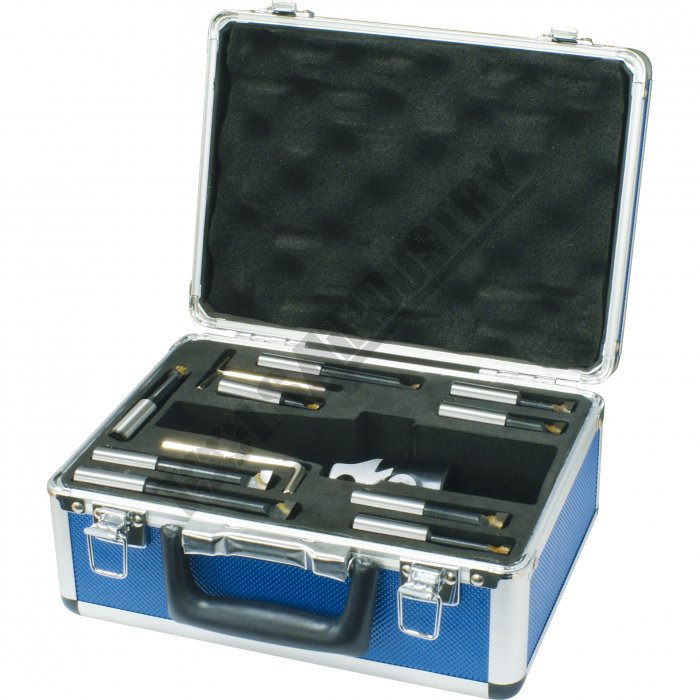

- Includes boring bars and aluminium foam padded case for protection
Specifications
- Compare 4 Products
- ORDER CODE
- MODEL
- Type
- Dmm
- Hmm
- d (lowercase)mm
- Wmm
- h (lowercase)mm
- Cross Hole Diametermm
- Centre Distance Between Holesmm
- Micro Adjustment Travelmm
- Nett Weightkg
| ORDER CODE | BC-2K |
|---|---|
| MODEL | Boring |
| Type | 50 |
| Dmm | 62 |
| Hmm | 12 |
| d (lowercase)mm | ~ |
| Wmm | ~ |
| h (lowercase)mm | ~ |
| Cross Hole Diametermm | 15 |
| Centre Distance Between Holesmm | 15 |
| Micro Adjustment Travelmm | 1.2 |
| Nett Weightkg |
