Pipe & Tube Notcher - Linisher PN-2001 Triple Station: Notcher, De-burring & Flat Sanding

Description

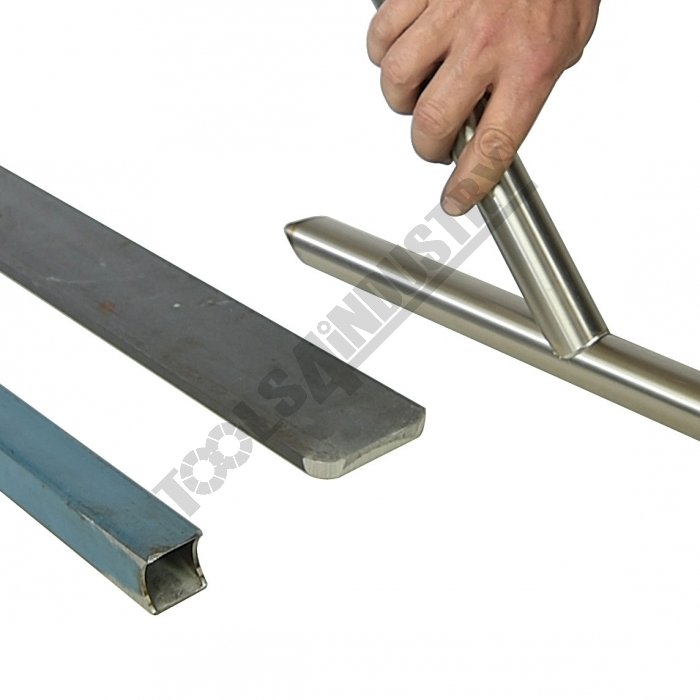

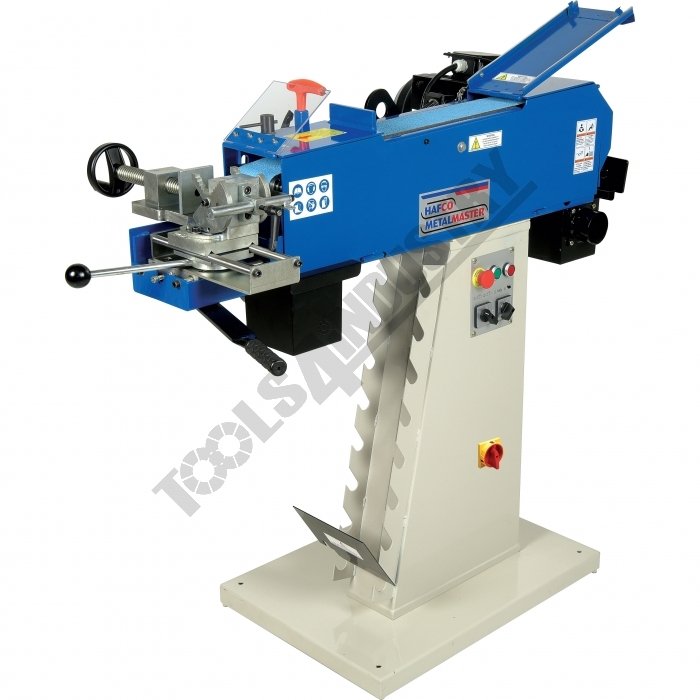

The PN-2001 Pipe - Tube Notcher & Linisher is a great multifunctional linishing machine that's ideal for linishing all types of steels. It is also capable of notching round scallops in your tube using the same linishing process when used with the optional sized rollers.

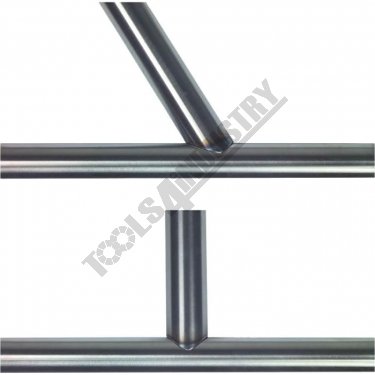

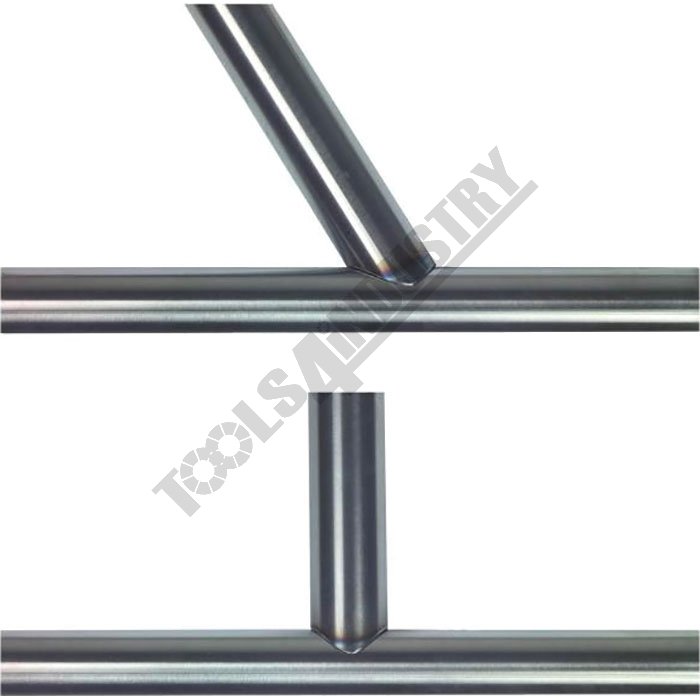

This machine has another great feature and allows you to notch your steel at different angles using the unique adjustable swivel vice. The vice is also designed to clamp round or square tube securely so when rapid linishing is performed the job stays locked in without rotating or sliding out.

Features

• Ø20-76mm OD tube notching capacity
• 1/2" - 2-1/2" NB pipe notching capacity

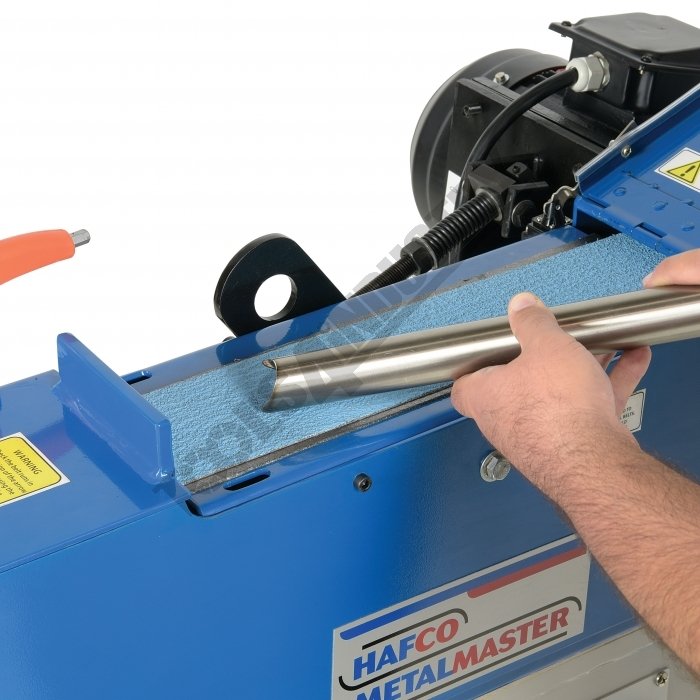

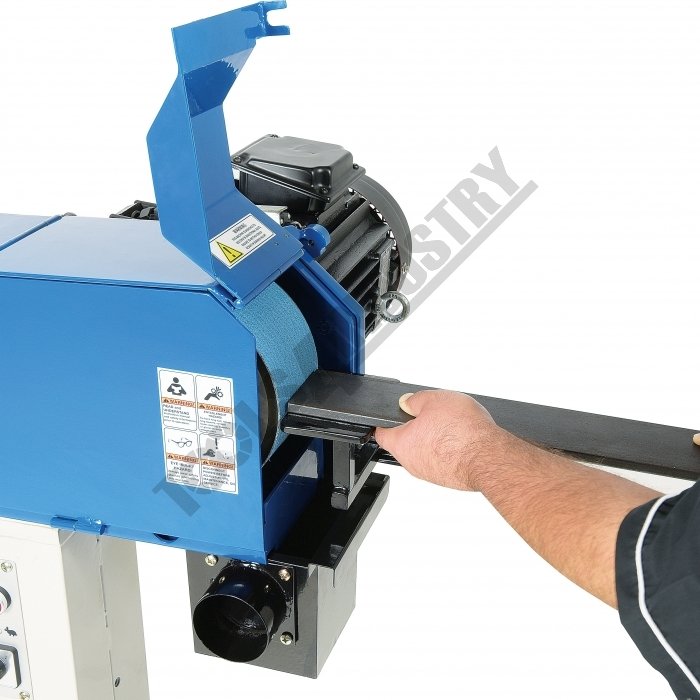

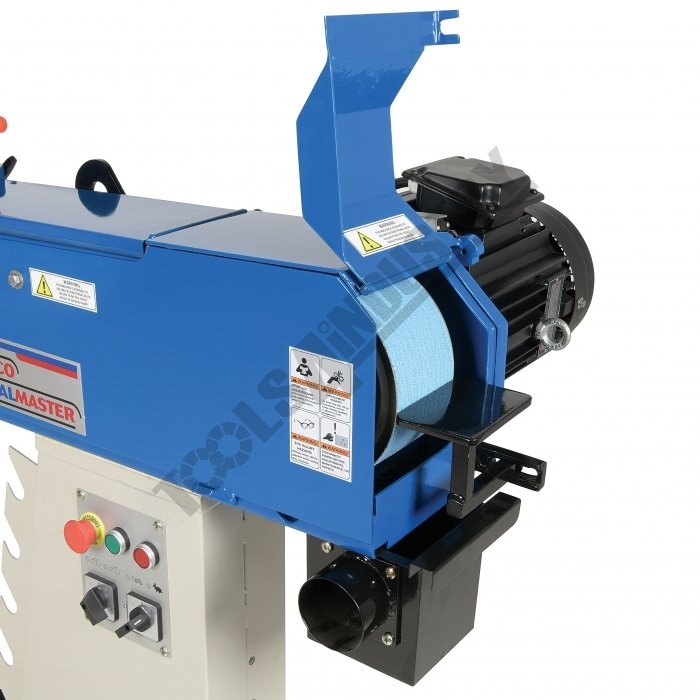

• Triple station: Notcher, De-burring, Sanding

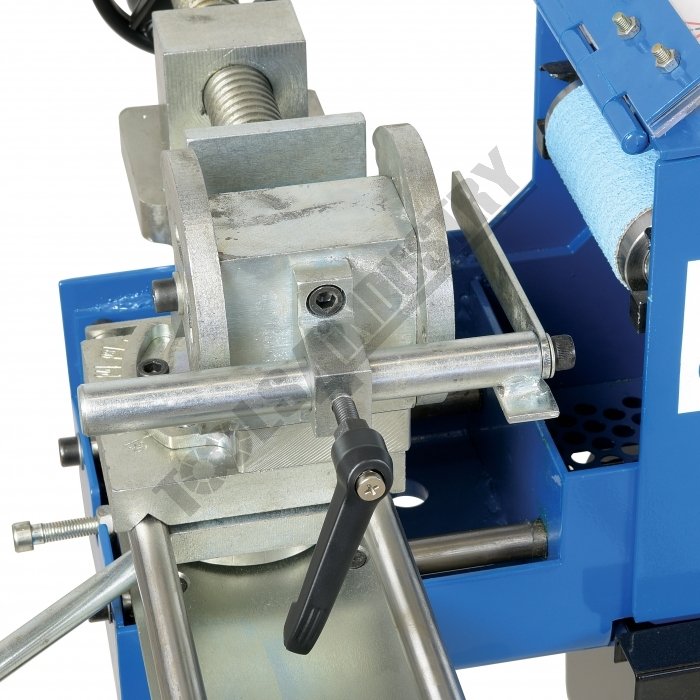

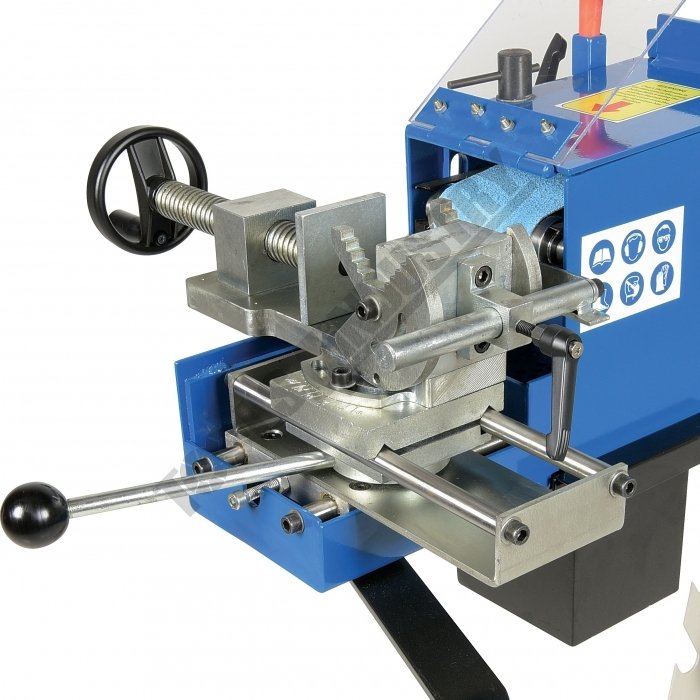

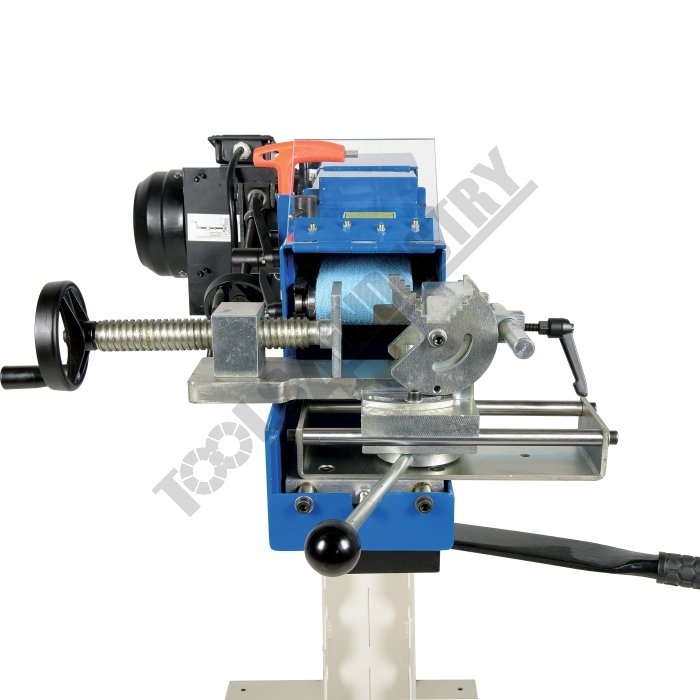

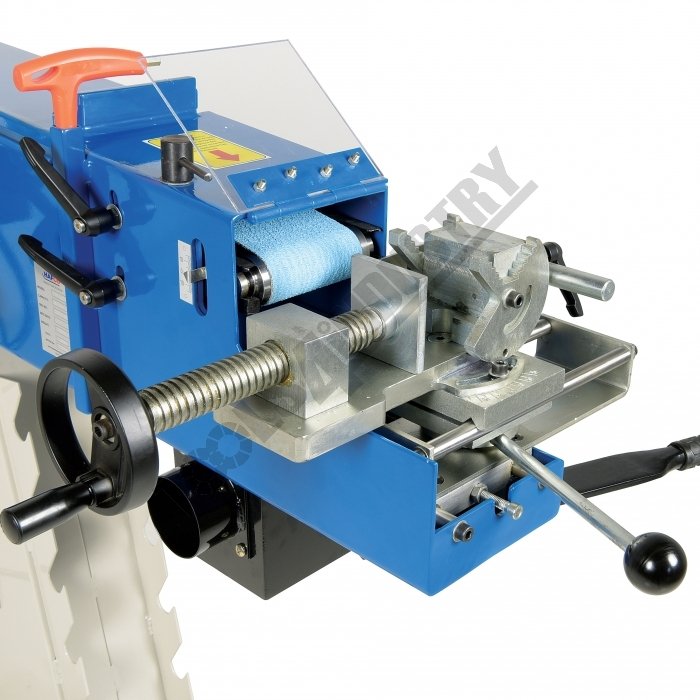

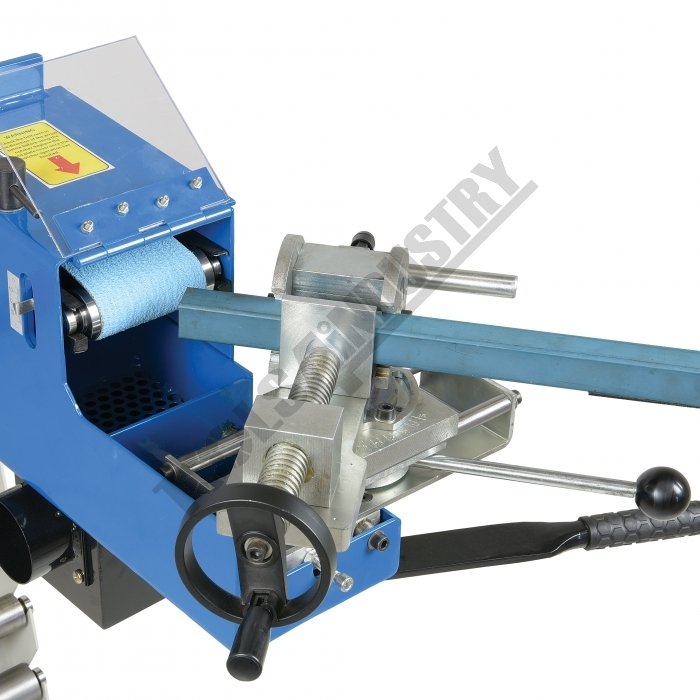

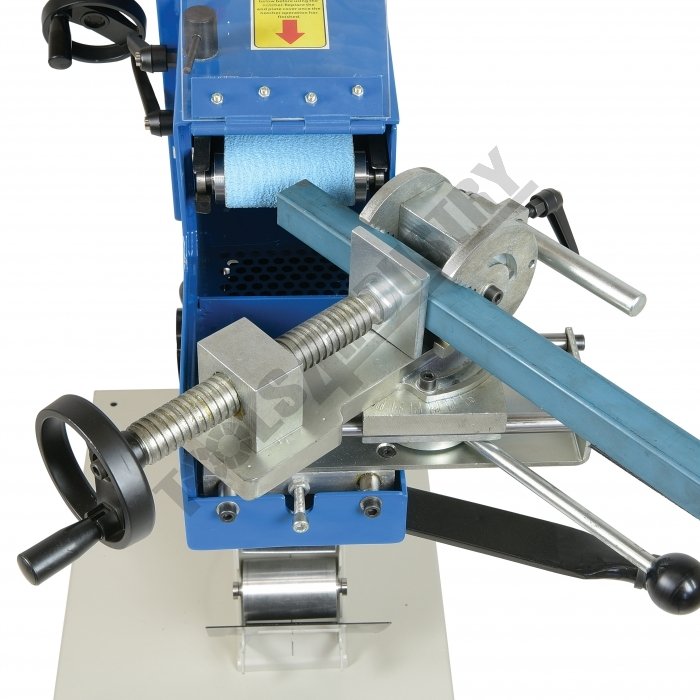

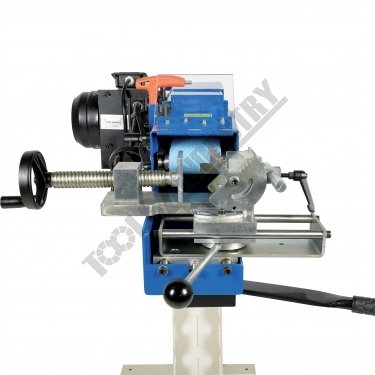

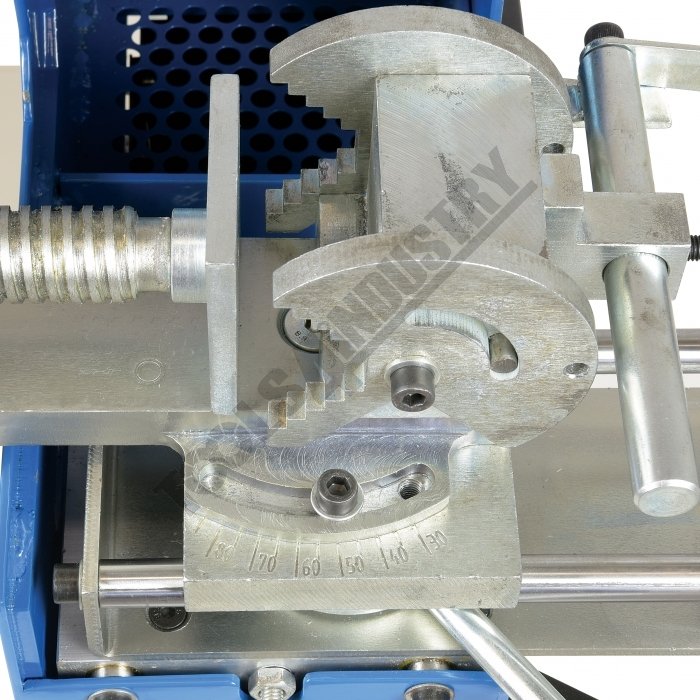

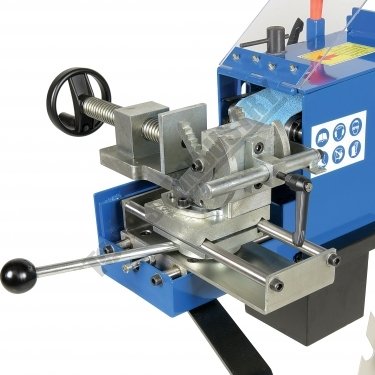

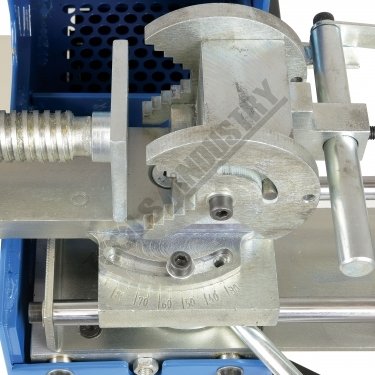

• Quick action compound swivel vice from 30-90º holds round & square tube

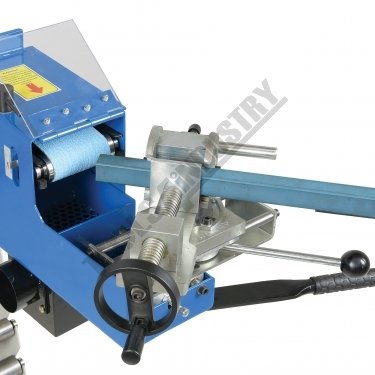

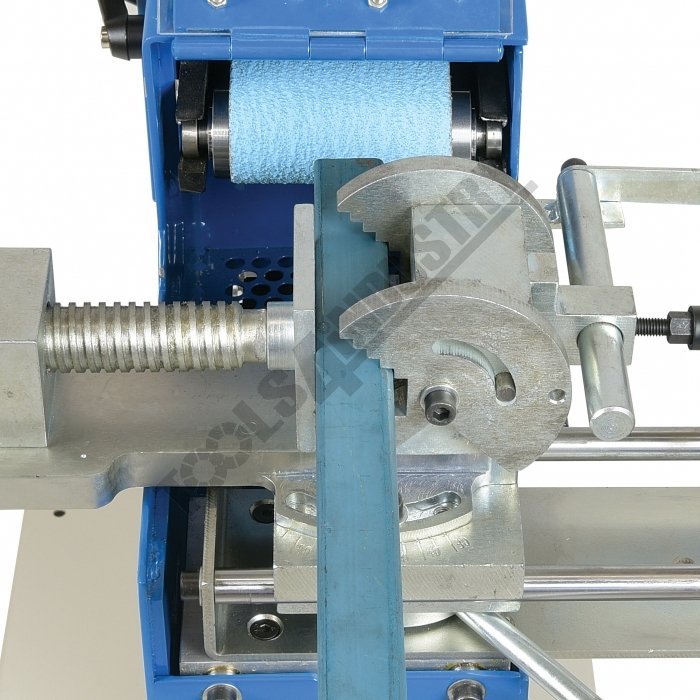

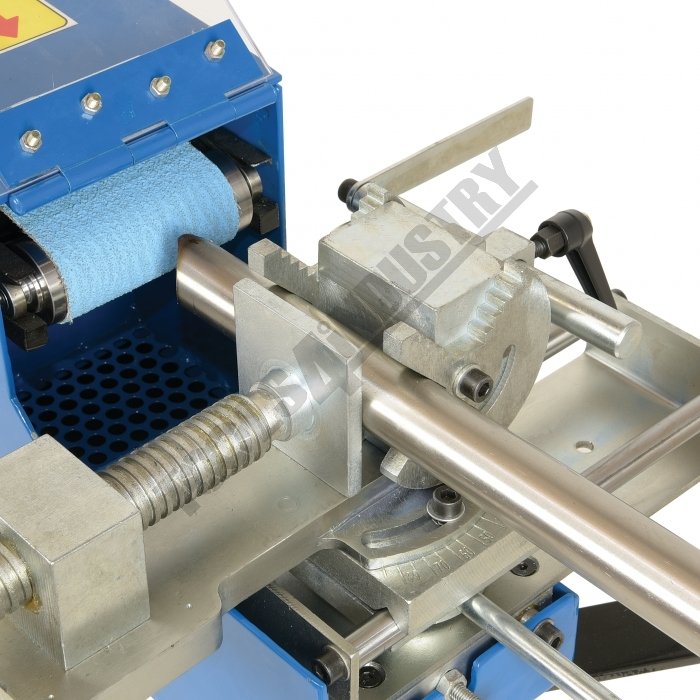

• Two position vice jaws for holding round or square material
• Heavy duty leadscrew vice for increasing clamp pressure

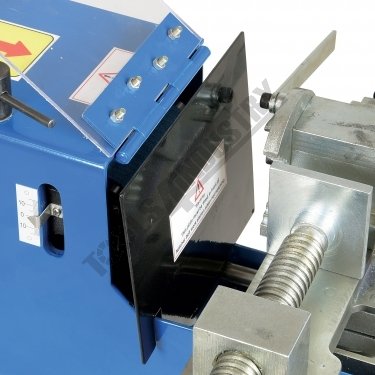

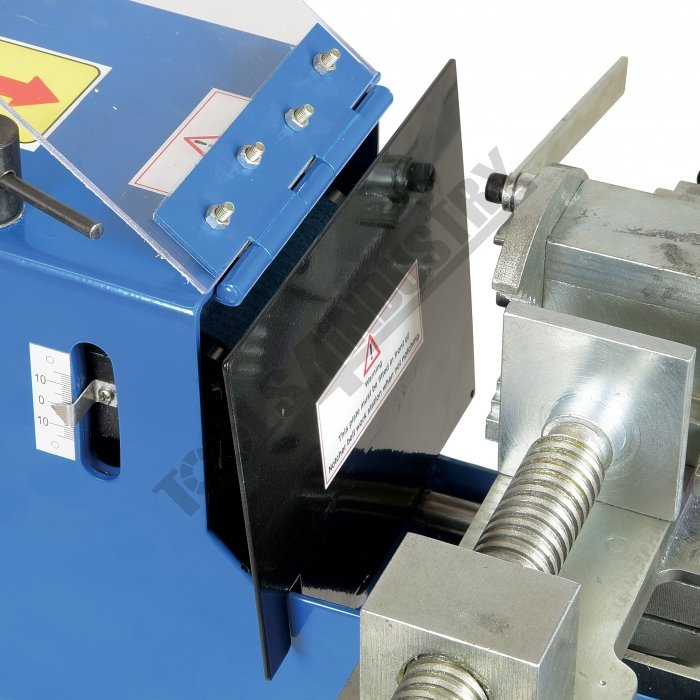

• Large face grinding area with protective cover

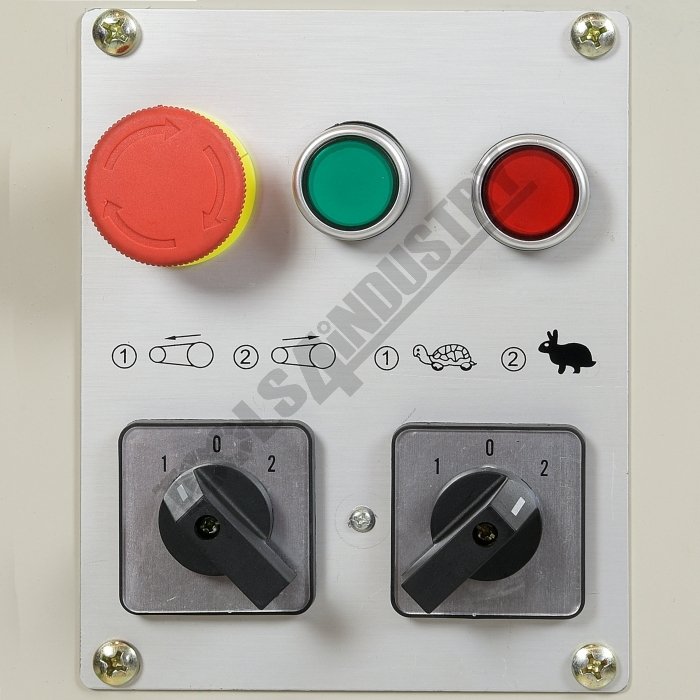

• 2 x speed motor 1400rpm for stainless steel, 2800rpm for steel

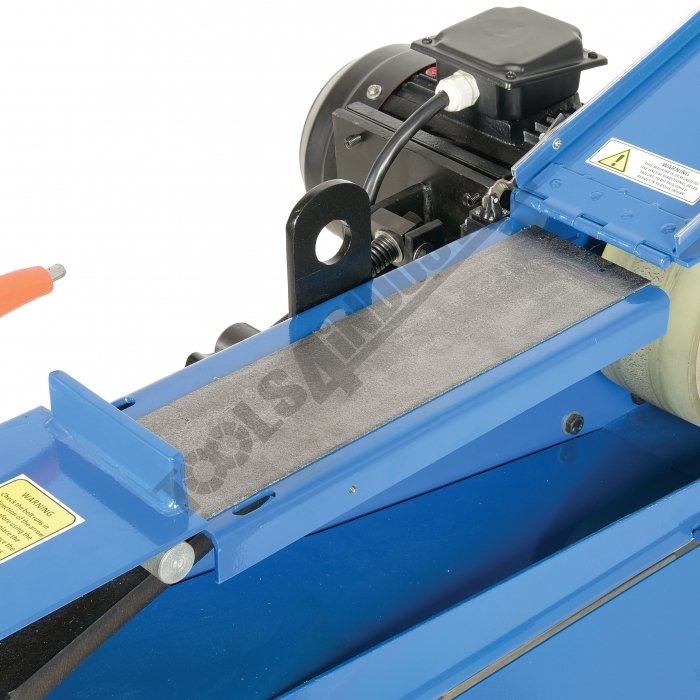

• Graphite belt pad to reduce friction

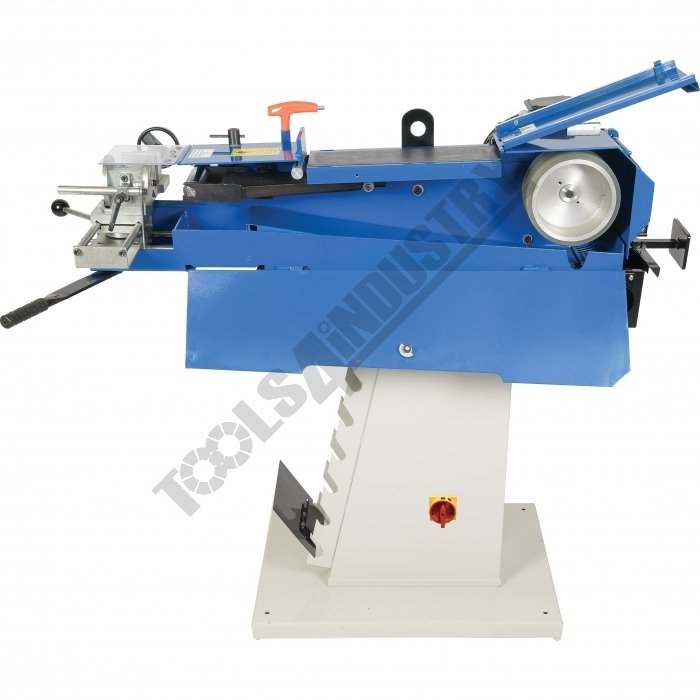

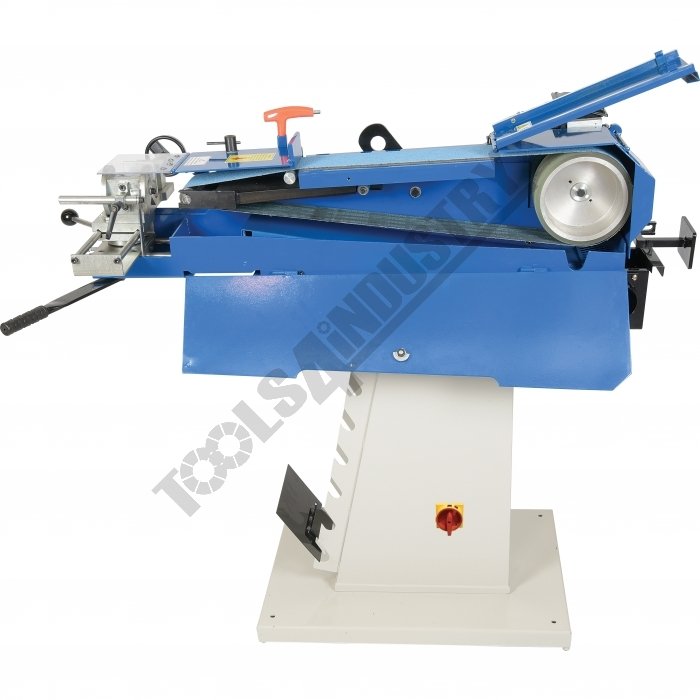

• Quick change user friendly belt system

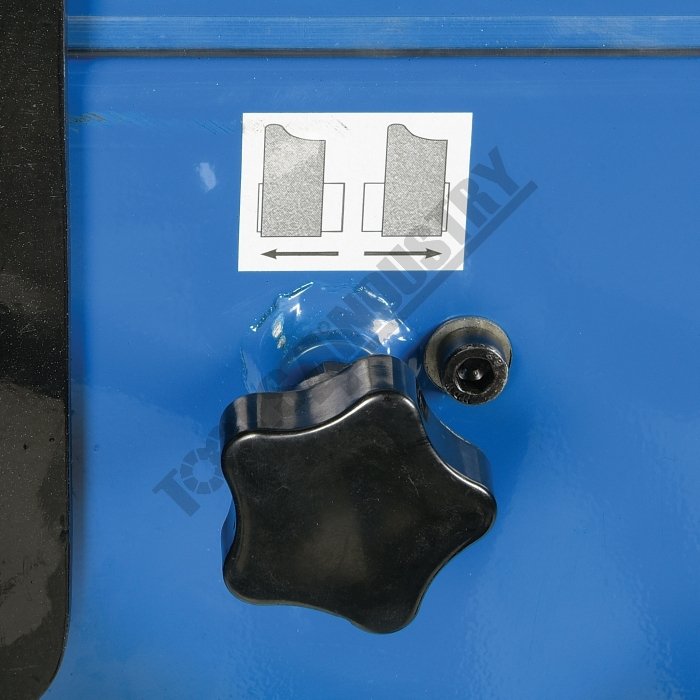

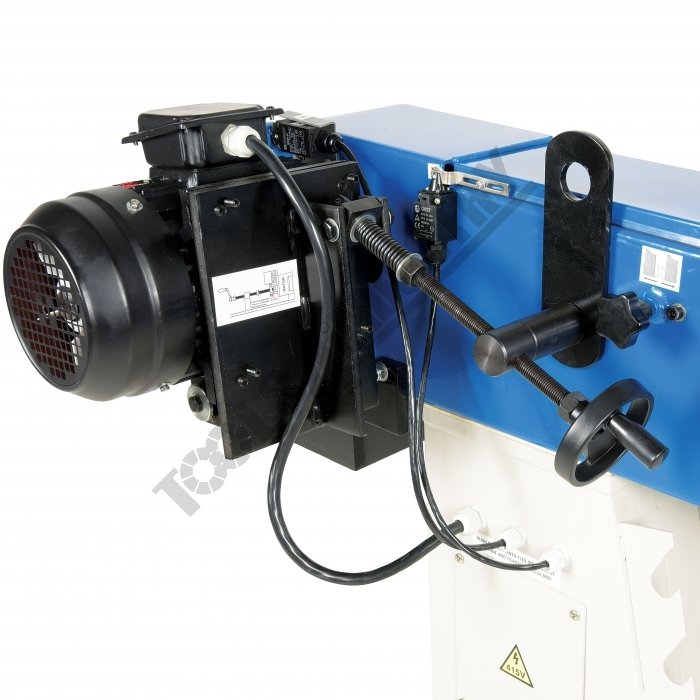

• Spring balanced clamping device allows for continuous belt tension

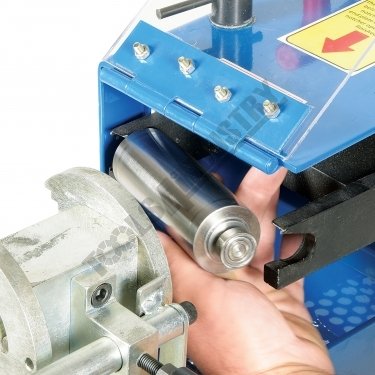

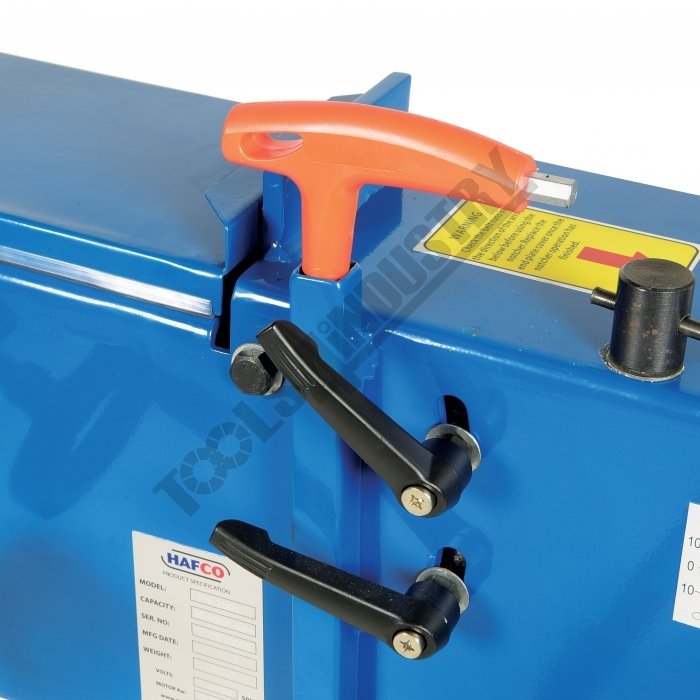

• Fast and easy change of grinding rolls – no tools required

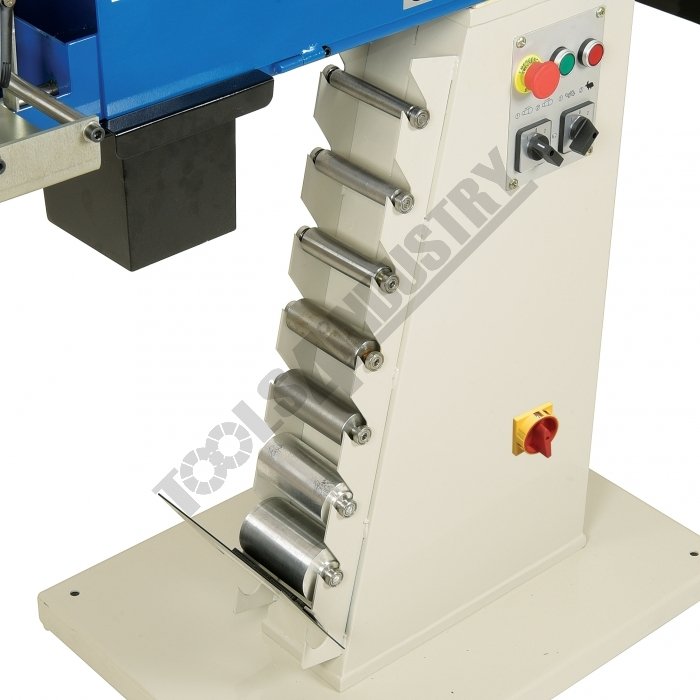

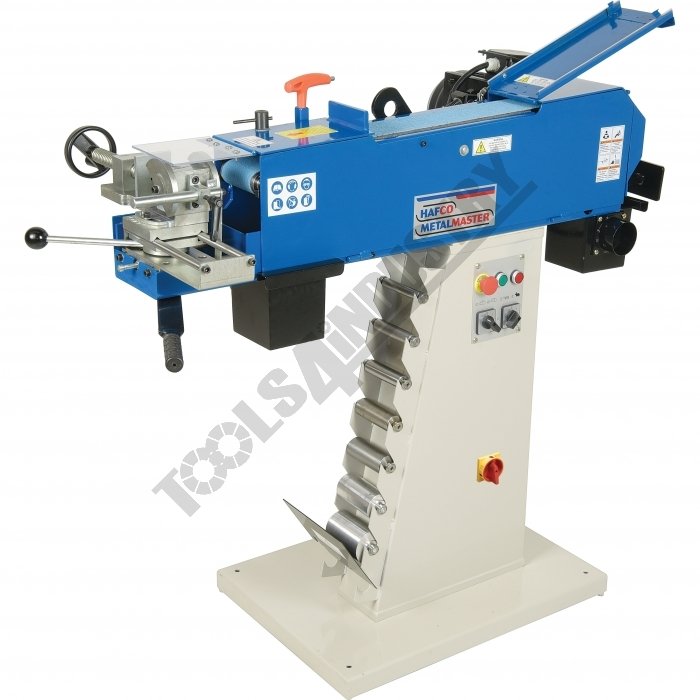

• Solid pedestal stand with built in storage rack for optional rollers

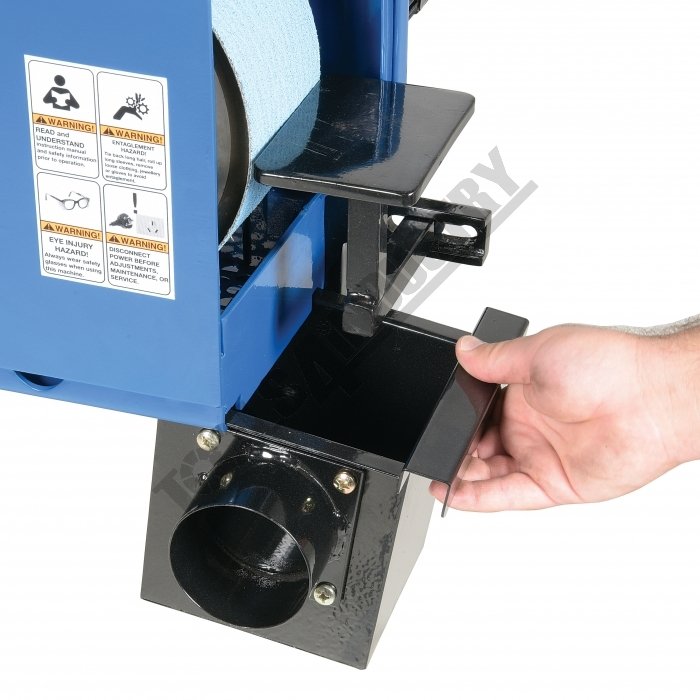

• 2 x Ø76mm dust extraction outlets
• Powerful 2.8kW / 3.7hp, 415V motor with overload protection
• Includes 1 roller suitable for Ø1-1/4" NB pipe or Ø42mm tube & 1 x linishing belt
• Pipe/tube rollers are sold separately. Range from Ø20-76mm

Includes

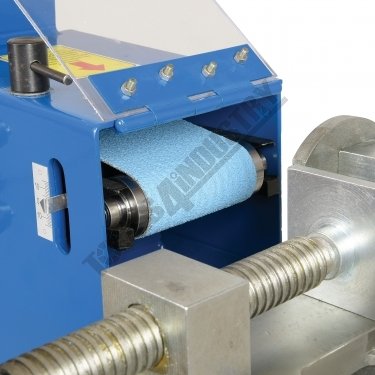

• 1 x roller suitable for Ø1-1/4" NB pipe or Ø42mm tube
• 1 x linishing belt

Optional Accessories

• Replacement Belt (A8085)
• Rollers to suit (L853-L859)
