| Code | K4012 |
|---|---|
| Model | PNP-3/4-3" |
| Capacity | Adjustable Cutting Angle Up To 50º |
| Weight (kg) | 0 |
| Weight (m3) | 0.000 |
| Weight (Freight) | 0.000 |
| Dimensions (cm) |

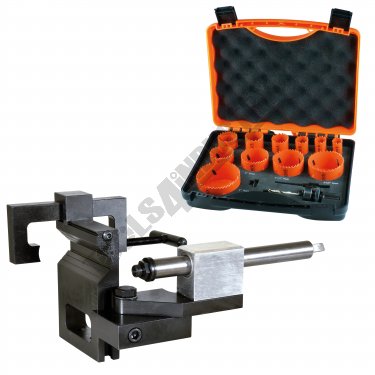

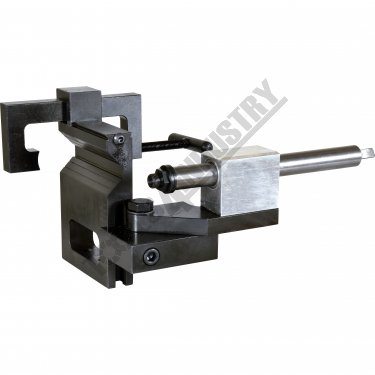

Offset Pipe & Tube Notcher & Hole Saw Package Deal PNP-3/4-3" Adjustable Cutting Angle Up To 50º
Description
Accurately notches tubes and pipe from 0- 50º with the additional ability to offset the notch +/- 25mm from the centre line.Solid steel construction with needle roller bearing to ensure smooth operation

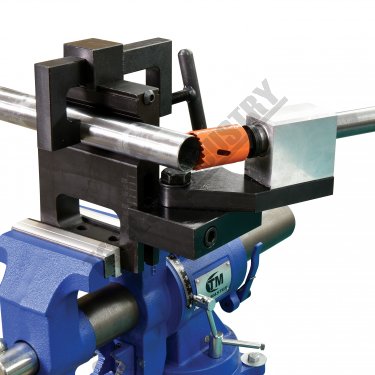

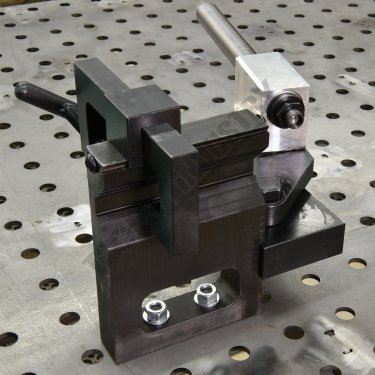

Clamp in a vice or bolt to a table and use with any hand held drill
Notch pipes and tubes with a OD from 19mm to 76.2mm (3/4-3")
Hole saw Kit

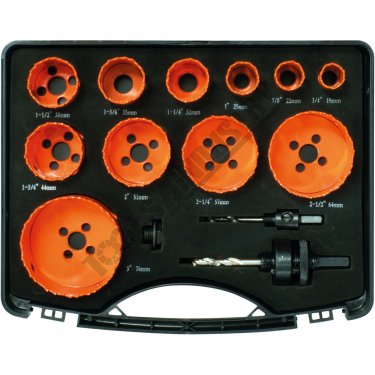

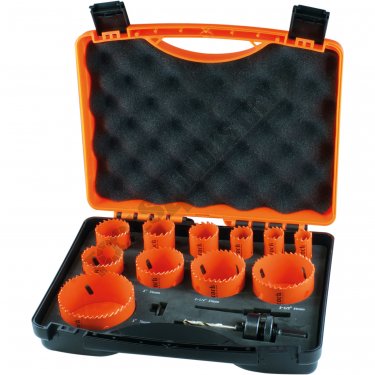

11 Piece HSS M42 Bi-Metal set Ø19 ~ Ø76mm, supplied in convenient blow mould case
Features

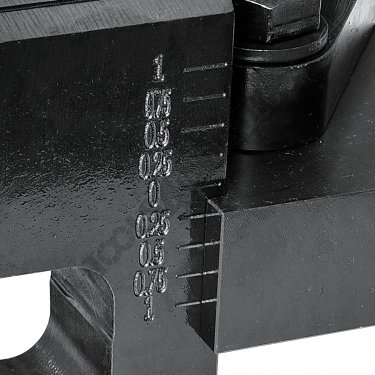

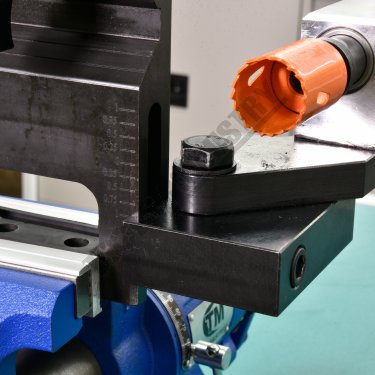

- The cutter centreline is height adjustable to accommodate a wide variety of workpieces

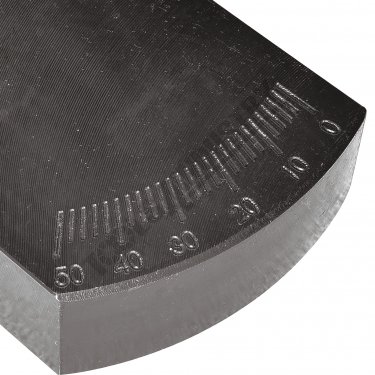

- Adjust cutting angle up to 50º
- Works with a 12mm chuck Power Drill

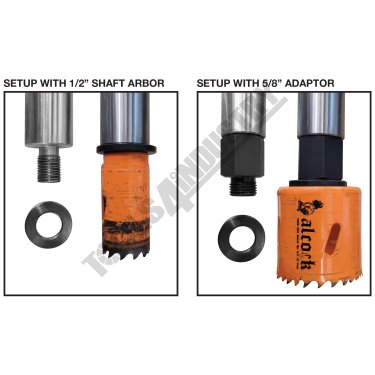

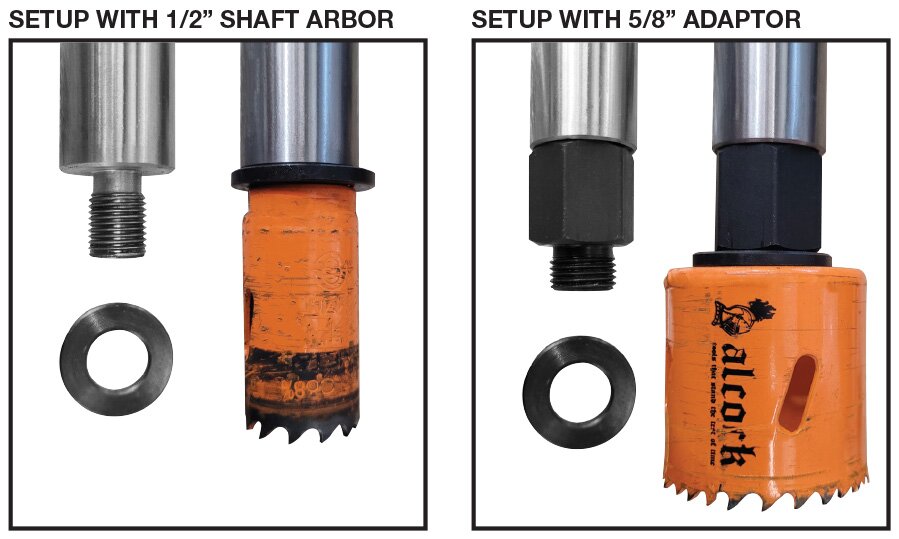

- Accepts hole saw thread sizes: 1/2” x 20tpi, 5/8” x 18tpi
- 25mm steel shaft
Specifications
- Compare 7 Products
- ORDER CODE
- MODEL
- MachineType
- Notching CutterType
- Tube Capacity (OD) - Mild Steelmm
- Pipe Capacity (NB) - Mild Steelinch / mm
- Angle AdjustmentDegree
- End Mill Sizeinch / mm
- Belt Sizemm
- Belt Speed
- Cutting Speedrpm
- Motor PowerkW / hp
- VoltageV
- Dimensions(mm)
- Nett Weightkg
- K4012
- PNP-3/4-3"
- Pipe & Tube Notcher Attachment
Metric HSS Hole Saw Set - Hole Saw (Optional) Thread 1/2" x 20tpi, 5/8"
- Ø25 - Ø75
- ~
- 0 - 50°
- ~
- ~
- ~
- ~
- ~
- ~
- 280 x 180 x 100
- 10
- P092
- PNP-3/4-3"
- Pipe & Tube
Notcher Attachment - Hole Saw (Optional) Thread 1/2" x 20tpi, 5/8"
- Ø25 - Ø75
- ~
- 0 - 50°
- ~
- ~
- ~
- ~
- ~
- ~
- 280 x 180 x 100
- 10
- W08180
- ATN100M
- Modular Pipe & Tube
Notcher Attachment - Hole Saw (Optional)
- Ø25 - Ø63.5
- Ø2"
- 0 - 90°
- ~
- ~
- ~
- ~
- ~
- ~
- 280 x 280 x 160
- 9.1
- P094
- PNM-3
- Pipe & Tube Notcher
Bench Mount - Hole Saw (Optional)
- Ø12.7 - Ø76.2
- Ø1/2" - Ø2-1/2"
- 0 - 60°
- ~
- ~
- ~
- 200
- 0.375 / 0.5
- 240V
- -
- 87
- L850
- PN-76E
- Pipe & Tube Notcher
- Linisher - Linisher
- Ø20 - Ø76
- 1/2" - 2-1/2"
- 30-90º
- ~
- 100 x 2000
- 1400rpm / 2800rpm
- ~
- 3 / 4
- 415
- ~
- 160
- K133
- PN-76E
- Pipe & Tube Notcher - Linisher
+ Rollers - PACKAGE DEAL - Linisher
- Ø20 - Ø76
- 1/2" - 2-1/2"
- 30-90º
- ~
- 100 x 2000
- 1400rpm / 2800rpm
- ~
- 3 / 4
- 415
- ~
- 160
- P090
- PN-50D
- Pipe & Tube Notcher
Attachment - Hole Saw (Optional)
- Ø19.05 - Ø50.8
- Ø1-1/2"
- 0 - 60º
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
| ORDER CODE | PNP-3/4-3" |
|---|---|
| MODEL | Pipe & Tube Notcher Attachment Metric HSS Hole Saw Set |
| MachineType | Hole Saw (Optional) Thread 1/2" x 20tpi, 5/8" |
| Notching CutterType | Ø25 - Ø75 |
| Tube Capacity (OD) - Mild Steelmm | ~ |
| Pipe Capacity (NB) - Mild Steelinch / mm | 0 - 50° |
| Angle AdjustmentDegree | ~ |
| End Mill Sizeinch / mm | ~ |
| Belt Sizemm | ~ |
| Belt Speed | ~ |
| Cutting Speedrpm | ~ |
| Motor PowerkW / hp | ~ |
| VoltageV | 280 x 180 x 100 |
| Dimensions(mm) | 10 |
| Nett Weightkg |
